OREC ISSUED NO. RM86G-1
Parts catalogue RABBIT MOWER
(EXPORT MODEL)
RM86G
MODEL CODE NO.
RM86G 0240-?????
|
|
CONTENTS |
|
OREC CO.,LTD.
Update : February
2004

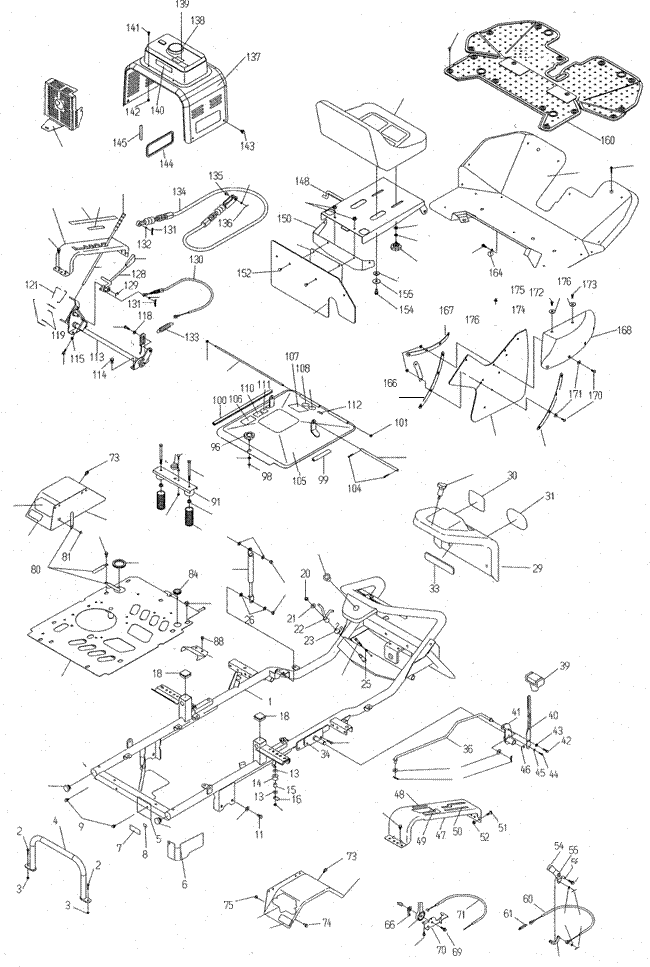

132
160
163
127
126 yg
157
)21
129
132 55
117
02
i75
169
)68
9*
73 97
’92 98
79
78
82 ’89
)65
32
27
85
22
23
87
40
73
58 59
68 69
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
1 |
0240-20100 |
Frame CMP |
1 |
|
|
2 |
89-1251-080502 |
Flange Hexagonal Bolt M8*50 |
2 |
|
|
3 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
2 |
|
|
4 |
0240-22110 |
Sub Frame CMP |
1 |
|
|
5 |
0215-84100 |
Rear Belt Cover 86 |
1 |
|
|
6 |
0240-61100 |
Rear Belt Cover B |
1 |
|
|
7 |
80-1488-928-10 |
Label, Caution for Belt Involving |
1 |
|
|
8 |
83-1712-923-00 |
Label, Oil Quantity 1.6 L |
1 |
|
|
9 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
2 |
|
|
10 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
1 |
|
|
11 |
89-1232-100202 |
Mini Hexagonal Bolt(SW) M10*20 |
4 |
|
|
12 |
89-1713-100002 |
Flat Washer 10 |
4 |
|
|
13 |
83-1020-355-00 |
Thrust Washer 12*24*1.0 |
2 |
|
|
14 |
80-1484-354-10 |
Brake Rod Roller |
1 |
|
|
15 |
89-3510-012200 |
DU Bush 12.20 |
1 |
|
|
16 |
80-1484-364-00 |
Brake Rod Hung Plate |
1 |
|
|
17 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
1 |
|
|
18 |
0207-79500 |
Square Pipe Cap 38 |
2 |
|
|
19 |
89-3511-022150 |
DU Bush 22*15*33F |
1 |
|
|
20 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
|
|
21 |
89-1713-100002 |
Flat Washer 10 |
1 |
|
|
22 |
80-1484-355-00 |
Brake Stopper |
1 |
|
|
23 |
80-1484-356-00 |
Brake Stopper Return Spring |
1 |
|
|
24 |
89-1211-080552 |
Mini Hexagonal Bolt M8*55 |
1 |
|
|
25 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
|
|
26 |
89-1713-100002 |
Flat Washer 10 |
4 |
|
|
27 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
2 |
|
|
28 |
0207-72700 |
Gas Spring KMF 50-40 |
1 |
|
|
29 |
80-1484-213-00 |
Front Cover |
1 |
|
|
30 |
80-1484-909-00 |
Label, RM |
1 |
|
|
31 |
80-1484-904-00 |
Label, Main |
1 |
|
|
32 |
0207-76500 |
Long Knob Bolt M8*20 |
1 |
|
|
33 |
80-1482-214-00 |
Battery Pad |
1 |
|
|
34 |
0240-11700 |
Change Bracket CMP |
1 |
|
|
35 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
2 |
|
|
36 |
0240-26100 |
Shift Rod CMP |
1 |
|
|
37 |
89-1711-100002 |
Flat Washer 10 |
2 |
|
|
38 |
89-2131-100002 |
Snap Pin 10 |
2 |
|
|
39 |
83-1417-435-00 |
Lever Grip(Red) |
1 |
|
|
40 |
80-1490-263-10 |
Change Lever CMP |
1 |
|
|
41 |
80-1490-264-10 |
Change Lever Boss CMP |
1 |
|
|
42 |
89-1251-080202 |
Flange Hexagonal Bolt M8*20 |
1 |
|
|
43 |
89-1750-080002 |
Spring Washer 8 |
1 |
|
|
44 |
89-1113-060142 |
Hexagonal Bolt (8T) M6*14 |
1 |
|
|
45 |
89-1750-060002 |
Spring Washer 6 |
1 |
|
|
46 |
89-2521-000150 |
E Type Ring 15 |
1 |
|
|
47 |
80-1484-267-10 |
Change Guide |
1 |
|
|
48 |
0240-71200 |
Label, Throttle |
1 |
|
|
49 |
80-1484-A43-00 |
Label, Differential Lock |
1 |
|
|
50 |
80-1484-A42-00 |
Label, Change |
1 |
|
|
51 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
4 |
|
|
52 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
4 |
|
|
53 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
4 |
|
|
54 |
80-1515-262-00 |
Arm Grip |
1 |
|
|
55 |
80-1484-273-10 |
Differential Lock Lever |
1 |
|
|
56 |
80-1020-270-00 |
Inner Collar |
1 |
|
|
57 |
89-1236-080302 |
Mini Hexagonal Bolt(PWSW) M8*30 |
1 |
|
|
58 |
89-1711-060002 |
Flat Washer 6 |
2 |
|
|
59 |
89-2120-200152 |
Split Pin 2*15 |
2 |
|
|
60 |
83-1484-937-10 |
Differential Lock Wire |
1 |
|

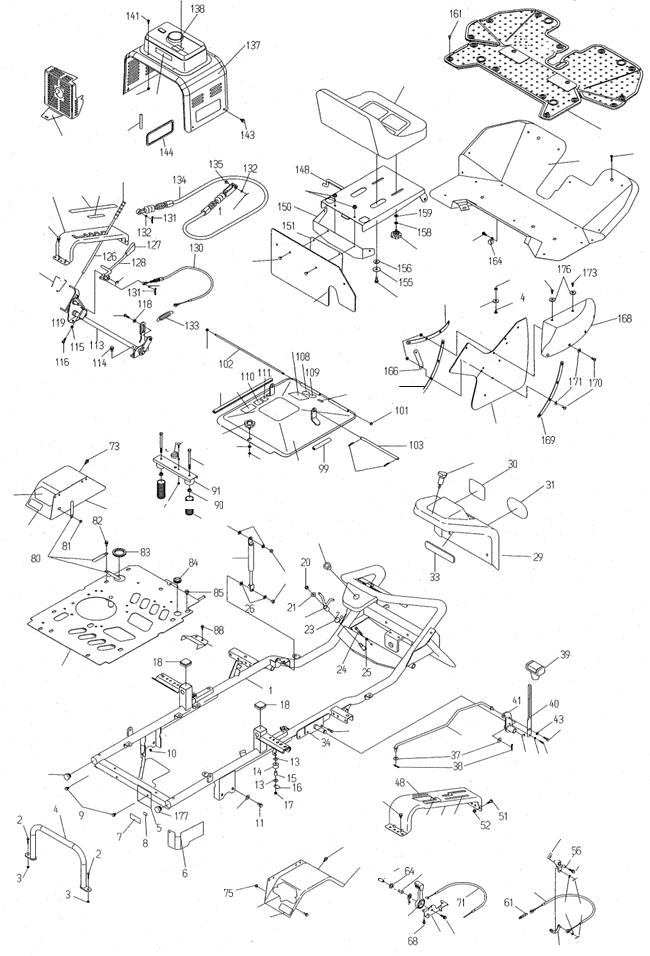

13V
142 140
iA7
121
120
122 123 12A
53
145
)25
129
132
36
152
)A9
157 163
*172
160
62 63
117
101
I pp 106
107
153
154 167 17
176
ł 75
112 ł 69
94
i 93 96
97
1%5
92
79
78
89 2b
77
28
87
86
32
" "' 10¢
27
22
35 36 42
177
12
77 —74
53
73
72 b3
/ ’y 50
70 69
5Π55
57
60
58 59
62
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
61 |
80-1425-551-00 |
Differential Lock Spring |
1 |
|
|
62 |
80-1481-287-00 |
Differential Lock Wire Joint |
1 |
|
|
63 |
80-1020-262-00 |
Control Lever Shaft |
1 |
|
|
64 |
89-1711-120003 |
Washer 13*21 |
1 |
|
|
65 |
80-1020-263-00 |
Control Lever Shaft Spring |
1 |
|
|
66 |
80-1020-264-00 |
Control Washer |
1 |
|
|
67 |
80-1020-265-00 |
Throttle Lever (H) |
1 |
|
|
68 |
89-1137-060152 |
Hexagonal Bolt(PW) M6*15 |
3 |
|
|
69 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
1 |
|
|
70 |
80-1484-266-10 |
Control Bracket CMP |
1 |
|
|
71 |
83-1484-952-10 |
Throttle Wire(NEW) GXV390 |
1 |
|
|
72 |
0238-60200 |
Fender(R) |
1 |
|
|
73 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
4 |
|
|
74 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
2 |
|
|
75 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
1 |
|
|
76 |
80-1484-903-00 |
Label, Rabbit |
1 |
|
|
77 |
80-1484-907-00 |
Reflection Seat (Yellow) |
2 |
|
|
78 |
0238-60100 |
Fender(L) |
1 |
|
|
79 |
0240-71100 |
Label, RM86G |
1 |
|
|
80 |
80-1792-988-00 |
Harness Clip 8 |
4 |
|
|
81 |
89-1671-080042 |
Mini Hexagonal Cap Nut M8 |
1 |
|
|
82 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
4 |
|
|
83 |
0207-70800 |
Grommet 45-3.5 |
1 |
|
|
84 |
0207-70900 |
Grommet 30-3.2(KG-G79QB) |
1 |
|
|
85 |
83-1490-114-00 |
Mini Hexagonal Bolt(PWSW) M8*20 |
3 |
|
|
86 |
0215-82300 |
Engine Base CMP |
1 |
|
|
87 |
80-1482-316-00 |
Protection Guard |
1 |
|
|
88 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
2 |
|
|
89 |
0215-81600 |
Seat Spring 167 |
2 |
|
|
90 |
89-1631-100042 |
Flange Mini Hexagonal Nut M10 |
2 |
|
|
91 |
0215-81800 |
Seat Receiver CMP |
1 |
|
|
92 |
89-1111-100802 |
Hexagonal Bolt M10*80 |
2 |
|
|
93 |
89-1390-060162 |
Welded Bolt M6*16 |
1 |
|
|
94 |
0207-72900 |
Seat Switch Spring |
1 |
|
|
95 |
89-1611-060042 |
Mini Hexagonal Nut M6 |
1 |
|
|
96 |
0207-76700 |
Knob Bolt(KG-B2) M8*20 |
1 |
|
|
97 |
89-1711-080002 |
Flat Washer 8 |
1 |
|
|
98 |
0207-76900 |
Bonded Washer 8 |
1 |
|
|
99 |
80-1482-492-00 |
Rubber L40 |
1 |
|
|
100 |
80-1482-467-00 |
Rubber L340 |
1 |
|
|
101 |
83-1575-189-00 |
Flange Cap Nut M6 |
2 |
|
|
102 |
0207-21200 |
Seat Bracket Shaft |
1 |
|
|
103 |
80-1481-487-00 |
Seat Receive Pin |
1 |
|
|
104 |
89-2131-120002 |
Snap Pin 12 |
2 |
|
|
105 |
0207-20400 |
Seat Bracket |
1 |
|
|
106 |
Not for Sale |
Label, Serial Number |
1 |
|
|
107 |
0223-76100 |
Label, Caution (Large) |
1 |
|
|
108 |
0215-83100 |
Attention Mark for Slope |
1 |
|
|
109 |
0215-83200 |
Label, Protection Equipment |
1 |
|
|
110 |
80-1020-932-00 |
Label, Noise 100db |
1 |
|
|
111 |
80-1010-933-00 |
Label, CE |
1 |
|
|
112 |
83-1310-902-00 |
OREC Mark |
1 |
|
|
113 |
0207-10400 |
Up/Down Adjusting Shaft CMP |
1 |
|
|
114 |
89-1232-080202 |
Mini Hexagonal Bolt(SW) M8*20 |
4 |
|
|
115 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
|
|
116 |
89-1211-080257 |
Mini Hexagonal Bolt M8*25 |
1 |
|
|
117 |
89-1235-080252 |
Mini Hexagonal Bolt (SW) M8*25 |
2 |
|
|
118 |
83-1020-312-00 |
Washer 8*30*3.2 |
2 |
|
|
119 |
0207-76800 |
Washer 16*32*2.3 |
2 |
|
|
120 |
89-2120-300252 |
Split Pin 3*25 |
2 |
|

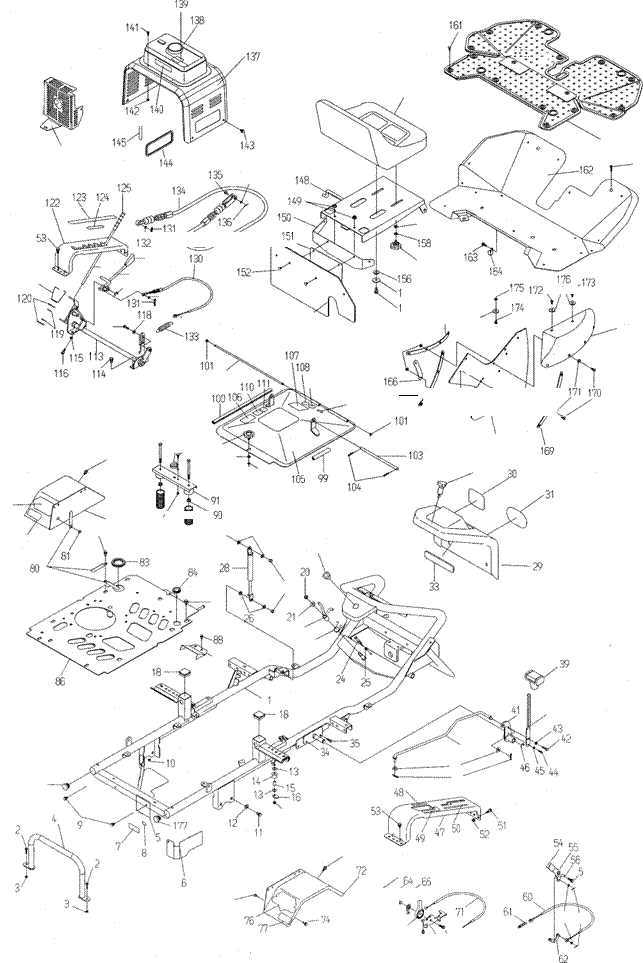

147
146
122 123 124
53
126
125
127
132
149
151
)59
Fig
157 163
162
163
120
117
132
153
116
9ś
+93
102
97
92
175
169
03
165
169
32
79
78 95
82
77
83
86
90
89 s
19
28
27
85
87
2a
177
35
" 10 37
38
177 12
76 77
72 63
57
58 59
62
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
121 |
80-1487-274-00 |
Cutting Height Lever Spring |
1 |
|
|
122 |
0207-10510 |
Cutting Height Guide |
1 |
|
|
123 |
80-1484-A45-00 |
Label, Cutting Height Adjustment |
1 |
|
|
124 |
80-1488-915-00 |
Label, Knife (13114) |
1 |
|
|
125 |
80-1515-339-00 |
Handle Grip 15 |
1 |
|
|
126 |
80-1482-272-00 |
Cutting Height Adjust Lever |
1 |
|
|
127 |
80-1484-262-00 |
Arm Grip (Red) |
1 |
|
|
128 |
0207-13800 |
Knife Clutch Lever |
1 |
|
|
129 |
89-2521-000120 |
E Type Ring 12 |
1 |
|
|
130 |
0207-70310 |
Cutting Clutch Wire |
1 |
|
|
131 |
89-2132-060002 |
Snap Pin 6 |
2 |
|
|
132 |
89-1711-060002 |
Flat Washer 6 |
3 |
|
|
133 |
0207-78400 |
Spring For Knife Tension Return |
1 |
|
|
134 |
0207-77510 |
Knife Brake Wire |
1 |
|
|
135 |
89-2181-060160 |
Flat Head Pin 6*16 |
1 |
|
|
136 |
89-2120-200152 |
Split Pin 2*15 |
1 |
|
|
137 |
0240-60100 |
Tank Bracket CMP |
1 |
|
|
138 |
Engine Parts |
Fuel Tank Assy (K) |
1 |
|
|
139 |
Engine Parts |
Label, Caution |
1 |
|
|
140 |
0223-76200 |
Label, Caution for Engine etc |
1 |
|
|
141 |
89-1159-060168 |
Truss Mini Screw M6*16 |
6 |
|
|
142 |
83-1575-189-00 |
Flange Cap Nut M6 |
6 |
|
|
143 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
4 |
|
|
144 |
0240-72200 |
Rubber L480 |
1 |
|
|
145 |
0240-74100 |
Fuel Pipe 6*12*L100 (Red) |
1 |
|
|
146 |
0240-60200 |
Muffler Cover |
1 |
|
|
147 |
80-1481-944-00 |
Seat GTP-4(Black) |
1 |
|
|
148 |
0215-81700 |
Seat Receiver CMP |
1 |
|
|
149 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
2 |
|
|
150 |
0207-21500 |
Wind Shield Setting Plate |
1 |
|
|
151 |
0240-21700 |
Shield Reinforce Plate |
1 |
|
|
152 |
80-1484-369-00 |
Clip (5347) |
4 |
|
|
153 |
0207-21600 |
Wind Shield |
1 |
|
|
154 |
89-1232-080202 |
Mini Hexagonal Bolt(SW) M8*20 |
2 |
|
|
155 |
83-1020-314-00 |
Washer 8*40*2.3 |
2 |
|
|
156 |
0207-76400 |
Washer 9*25*3.2 |
2 |
|
|
157 |
83-1560-101-00 |
Knob Bolt M8*15 |
2 |
|
|
158 |
89-1750-080002 |
Spring Washer 8 |
2 |
|
|
159 |
89-1713-080002 |
Flat Washer 8 |
2 |
|
|
160 |
0215-20800 |
Step Rubber |
1 |
|
|
161 |
83-1484-369-00 |
Clip(5347) |
9 |
|
|
162 |
0215-20710 |
Step CMP |
1 |
|
|
163 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
5 |
|
|
164 |
80-1792-988-00 |
Harness Clip 8 |
1 |
|
|
165 |
0215-21100 |
Rubber for Fender Cover (86) |
1 |
|
|
166 |
0217-20300 |
Bar for Connecting Reinforce |
1 |
|
|
167 |
0217-20400 |
Fender Cover Holder |
1 |
|
|
168 |
0217-20500 |
Fender Cover (R) |
1 |
|
|
169 |
0217-20800 |
Reinforce for Rubber Cover |
2 |
|
|
170 |
0217-72200 |
Hexagonal Hole Screw M6*18 |
8 |
|
|
171 |
0217-72300 |
Flat Washer 6*13*1.0 |
8 |
|
|
172 |
89-1111-060162 |
Hexagonal Bolt M6*16 |
2 |
|
|
173 |
89-1111-060202 |
Hexagonal Bolt M6*20 |
1 |
|
|
174 |
89-1390-060142 |
Welded Bolt M6*14 |
1 |
|
|
175 |
83-1575-189-00 |
Flange Cap Nut M6 |
12 |
|
|
176 |
89-1713-060002 |
Flat Washer 6 |
4 |
|
|
|
||||
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
1-90 |
0240-01000 |
Transmission Assy |
1 |
|
|
1 |
80-1482-101-00 |
Transmission Case (Left) |
1 |
|
|
2 |
80-1482-103-00 |
Transmission Case (Right) |
1 |
|
|
3 |
80-1481-118-00 |
A Axle 15T |
1 |
|
|
4 |
89-3115-062024 |
Bearing 6202 2RS |
2 |
|
|
5 |
80-1482-119-00 |
A Axle Collar 9 |
1 |
|
|
6 |
89-2512-000350 |
Snap Ring R35 |
1 |
|
|
7 |
89-5121-153507 |
Oil Seal UE 15.35.7 |
1 |
|
|
8 |
80-1482-122-00 |
B Axle |
1 |
|
|
9 |
80-1482-127-00 |
Bevel Gear 45T |
1 |
|
|
10 |
89-3111-062024 |
Bearing 6202 |
4 |
|
|
11 |
80-1482-131-00 |
Collar 18*22*34 |
1 |
|
|
12 |
89-2511-000170 |
Snap Ring S17 |
1 |
|
|
13 |
89-6513-420024 |
Chain #420-24L |
1 |
|
|
14 |
80-1482-128-00 |
B Axle Sprocket 8T |
1 |
|
|
15 |
80-1482-129-00 |
Collar 18*22*7 |
1 |
|
|
16 |
80-1481-123-00 |
B Axle Gear 18T |
1 |
|
|
17 |
80-1481-124-00 |
B Axle Gear 25T |
1 |
|
|
18 |
80-1481-125-00 |
B Axle Gear 33T |
1 |
|
|
19 |
80-1481-126-00 |
B Axle Gear 40T |
1 |
|
|
20 |
80-1482-130-00 |
Collar 18*22*11 |
1 |
|
|
21 |
80-1482-132-10 |
C Axle |
1 |
|
|
22 |
80-1482-113-00 |
Shift Key |
2 |
|
|
23 |
80-1481-111-00 |
Shift Key Holder |
1 |
|
|
24 |
80-1481-139-00 |
C Axle Thrust Washer 29*40*1.0 |
1 |
|
|
25 |
80-1482-138-00 |
Sprocket 18T |
1 |
|
|
26 |
80-1482-139-00 |
C Axle Thrust Washer 29*44*1.0 |
4 |
|
|
27 |
80-1482-137-00 |
C Axle Gear 48T |
1 |
|
|
28 |
80-1482-136-00 |
C Axle Gear 41T |
1 |
|
|
29 |
80-1482-135-00 |
C Axle Gear 33T |
1 |
|
|
30 |
80-1482-134-00 |
C Axle Gear 26T |
1 |
|
|
31 |
80-1482-133-00 |
C Axle Gear 12T |
1 |
|
|
32 |
80-1482-142-10 |
D Axle |
1 |
|
|
33 |
80-1482-144-00 |
D Axle Gear 36T |
1 |
|
|
34 |
83-1830-368-00 |
Thrust Washer 18*26*1.0 |
1 |
|
|
35 |
89-3111-062034 |
Bearing 6203 |
2 |
|
|
36 |
80-1482-146-10 |
Axle (Left) CMP |
1 |
|
|
37 |
80-1482-147-10 |
Axle (Right) CMP |
1 |
|
|
38 |
80-1481-152-00 |
Differential Gear 11T |
4 |
|
|
39 |
80-1481-155-00 |
Differential Gear Shaft Collar |
4 |
|
|
40 |
80-1415-150-00 |
Axle Pin |
1 |
|
|
41 |
0207-02800 |
Axle Gear CMP |
1 |
|
|
42 |
89-3410-075000 |
Steel Ball 7.5 |
3 |
|
|
43 |
83-1830-382-00 |
Thrust Washer 40*48*1.0 |
1 |
|
|
44 |
80-1751-162-00 |
Differential Lock Spring |
1 |
|
|
45 |
80-1425-143-00 |
Differential Lock Corn |
1 |
|
|
46 |
89-2511-000400 |
Snap Ring S40 |
1 |
|
|
47 |
80-1481-151-00 |
Differential Lock Plate |
1 |
with DU Bush28.30 |
|
48 |
89-1750-100002 |
Spring Washer 10 |
6 |
|
|
49 |
89-1513-100042 |
Hexagonal Nut (3 sorts) M10 |
6 |
|
|
50 |
89-2511-000280 |
Snap Ring S28 |
1 |
|
|
51 |
80-1484-A11-00 |
Axle Case (L) |
1 |
|
|
52 |
80-1484-A12-00 |
Axle Case (R) |
1 |
|
|
53 |
83-1415-663-00 |
Oil Seal AP 30.47.7 |
2 |
|
|
54 |
89-2512-000470 |
Snap Ring R47 |
2 |
|
|
55 |
89-3115-060054 |
Bearing 6005 2RS |
4 |
|
|
56 |
89-5121-284708 |
Oil Seal UE 28.47.8 |
2 |
|
|
57 |
83-1482-143-00 |
Hexagonal Tap Tight M8*25 |
12 |
|
|
58 |
89-5121-153007 |
Oil Seal UE 15.30.7 |
1 |
|
|
|
||||

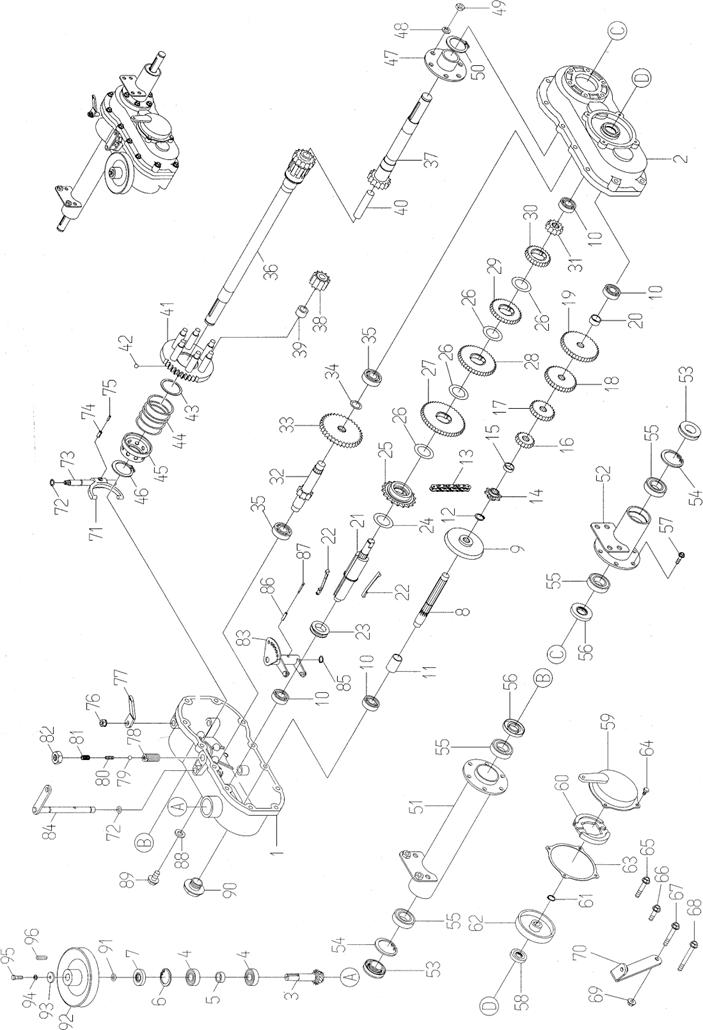

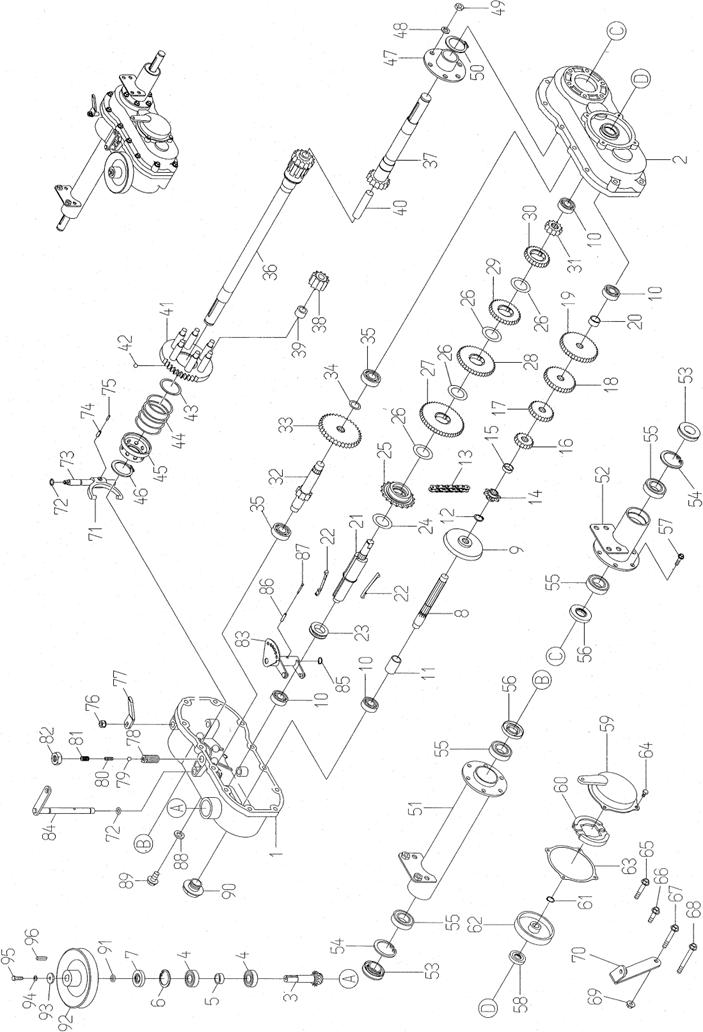

Fig.2 TRANSMISSION
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
59-63 |
80-1482-280-00 |
Brake Assy |
1 |
|
|
59 |
80-1030-271-00 |
Brake Cap Assy |
1 |
|
|
60 |
80-1030-284-00 |
Brake Shoe (PA-7) |
2 |
|
|
61 |
89-2511-000150 |
Snap Ring S15 |
1 |
|
|
62 |
80-1030-282-00 |
Brake Drum (PA-7) |
1 |
|
|
63 |
80-1030-288-00 |
Brake Cover PK (PA-7) |
1 |
|
|
64 |
83-1020-148-00 |
Tapping Bolt M6*14 |
4 |
|
|
65 |
89-1251-080503 |
Flange Hexagonal Bolt M8*50 |
8 |
|
|
66 |
89-1251-080403 |
Flange Hexagonal Bolt M8*40 |
1 |
|
|
67 |
89-1251-080703 |
Flange Hexagonal Bolt M8*70 |
1 |
|
|
68 |
89-1251-081403 |
Flange Hexagonal Bolt M8*140 |
2 |
|
|
69 |
89-1555-080003 |
Flange U Nut M8 |
12 |
|
|
70 |
0240-09100 |
Transmission Hunger Stay CMP |
1 |
|
|
71 |
80-1830-113-00 |
Differential Lock Fork |
1 |
|
|
72 |
89-5221-009000 |
O Ring P9 |
2 |
|
|
73 |
80-1481-116-00 |
Differential Lock Fork Shaft |
1 |
|
|
74 |
89-2111-050022 |
Spring Pin 5*22 |
1 |
|
|
75 |
89-2111-030020 |
Spring Pin 3*20 |
1 |
|
|
76 |
89-1541-080002 |
Hexagonal Nut (SW) M8 |
1 |
|
|
77 |
80-1484-A13-00 |
Differential Lock Arm |
1 |
|
|
78 |
80-1482-162-00 |
Notch Adjusting Screw |
1 |
|
|
79 |
89-3410-080000 |
Steel Ball 8 |
1 |
|
|
80 |
80-1481-160-00 |
Pushing Spring 1.0 |
1 |
|
|
81 |
89-1172-100161 |
Hexagonal Hole Screw M10*16 |
1 |
|
|
82 |
89-1514-160042 |
Hexagonal Nut (3 Sorts,Slender) M16 |
1 |
|
|
83 |
80-1482-108-00 |
Shift Fork |
1 |
|
|
84 |
80-1490-110-00 |
Shift Fork Shaft CMP |
1 |
|
|
85 |
89-2511-000120 |
Snap Ring S12 |
1 |
|
|
86 |
89-2111-050020 |
Spring Pin 5*20 |
1 |
|
|
87 |
89-2120-300252 |
Split Pin 3*25 |
1 |
|
|
88 |
83-1020-349-00 |
Copper Packing 10.5*18*1.6 |
1 |
|
|
89 |
89-1252-100122 |
Flange Mini Hexagonal Bolt M10*12 |
1 |
|
|
90 |
83-1032-689-00 |
Oil Gauge KMS28A |
1 |
|
|
91 |
80-1484-A14-00 |
Transmission Pulley Collar |
1 |
|
|
92 |
80-1482-521-10 |
Transmission Pulley |
1 |
|
|
93 |
83-1482-311-00 |
Washer 6.5*22*3.2 |
1 |
|
|
94 |
89-1750-060002 |
Spring Washer 6 |
1 |
|
|
95 |
89-1113-060202 |
Hexagonal Bolt(8T) M6*20 |
1 |
|
|
96 |
89-2151-050250 |
Key 5*25 (Half Round) |
1 |
|
|
|
||||
|

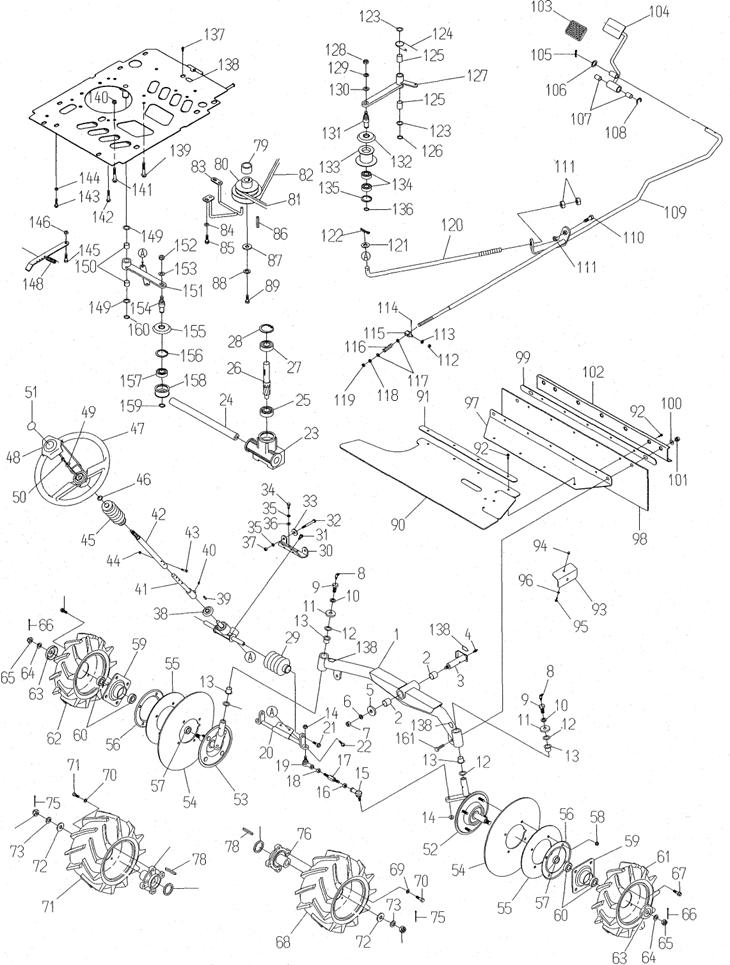

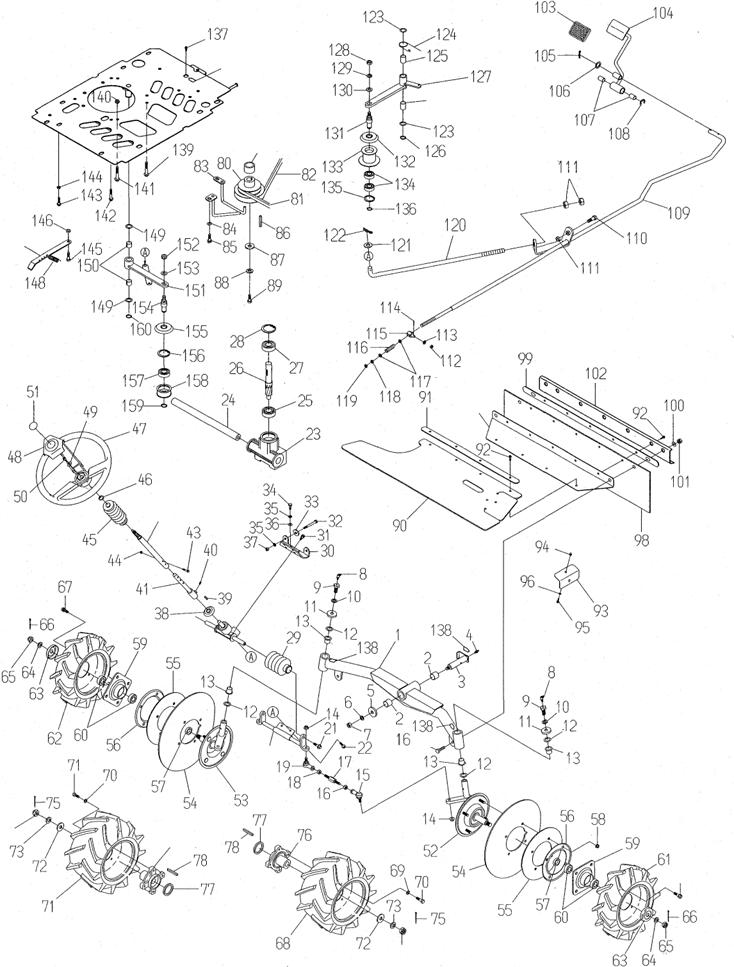

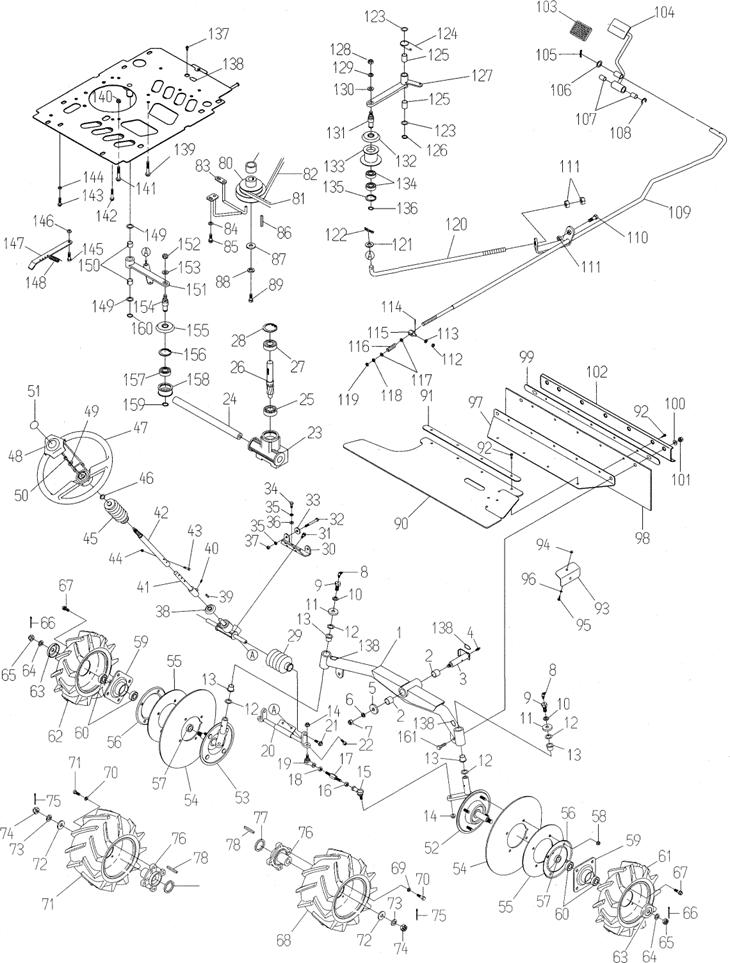

Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
1 |
0215-30200 |
Front Axle CMP |
1 |
|
|
2 |
89-3510-025350 |
DU Bush 25.35 |
2 |
|
|
3 |
0207-30700 |
Center Pin |
1 |
|
|
4 |
83-1415-975-00 |
Grease Nipple M6 |
1 |
|
|
5 |
89-1713-120002 |
Flat Washer 12 |
1 |
|
|
6 |
89-1750-120002 |
Spring Washer 12 |
1 |
|
|
7 |
89-1551-120002 |
Hexagonal U Nut M12 |
1 |
|
|
8 |
83-1515-975-00 |
Grease Nipple C-Type M6 |
2 |
|
|
9 |
84-1783-791-00 |
Grease Nipple Bolt M14 |
2 |
|
|
10 |
89-1750-140002 |
Spring Washer 14 |
2 |
|
|
11 |
84-1783-729-00 |
Dust Cover |
2 |
|
|
12 |
83-1310-371-00 |
Thrust Washer 20*30*1.0 |
4 |
|
|
13 |
89-3511-020200 |
DU Bush 20*20*31F |
4 |
|
|
14 |
83-1493-255-00 |
Flange Lock Nut M10(Slender) |
4 |
|
|
15 |
80-1493-963-00 |
Link Ball LHSA 10DLE21 |
2 |
|
|
16 |
83-1493-195-00 |
Hexagonal Nut (slender)M10 Left |
2 |
|
|
17 |
0207-13100 |
Tie Rod Adjuster |
2 |
|
|
18 |
89-1512-100042 |
Hexagonal Nut M10(Slender) |
2 |
|
|
19 |
80-1493-962-00 |
Link Ball LHSA 10DE21 |
2 |
|
|
20 |
80-1484-321-30 |
Rack Support |
1 |
|
|
21 |
89-1124-100253 |
Flange Bolt M10*25(Slender) |
2 |
|
|
22 |
83-1020-143-00 |
Tapping Bolt M8*18 |
2 |
|
|
23-28 |
80-1484-962-10 |
Steering Gear Box Assy |
1 |
|
|
23 |
80-1484-963-00 |
Steering Gear Box |
1 |
|
|
24 |
80-1484-965-00 |
Steering Horizontal Shaft |
1 |
|
|
25 |
89-3111-062024 |
Bearing 6202 |
1 |
|
|
26 |
80-1484-964-00 |
Steering Vartical Shaft |
1 |
|
|
27 |
89-3114-062024 |
Bearing 6202 ZZ |
1 |
|
|
28 |
89-2512-000350 |
Snap Ring R35 |
1 |
|
|
29 |
80-1490-967-00 |
Steering Boots |
2 |
|
|
30 |
80-1484-327-20 |
Steering Bracket |
1 |
|
|
31 |
89-1232-080162 |
Mini Hexagonal Bolt (SW) M8*16 |
4 |
|
|
32 |
89-1211-080702 |
Mini Hexagonal Bolt M8*70 |
2 |
|
|
33 |
83-1020-312-00 |
Washer 8*30*3.2 |
2 |
|
|
34 |
89-1213-080202 |
Mini Hexagonal Bolt (8T) M8*20 |
2 |
|
|
35 |
89-1750-080002 |
Spring Washer 8 |
4 |
|
|
36 |
89-1713-080002 |
Flat Washer 8 |
2 |
|
|
37 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
2 |
|
|
38 |
80-1016-461-00 |
Bearing Cover |
1 |
|
|
39 |
89-2150-050200 |
Key 5*20(Round) |
1 |
|
|
40 |
83-1493-149-00 |
Hexagonal Screw M8*10 |
1 |
|
|
41 |
80-1481-324-20 |
Steering Lower Shaft |
1 |
|
|
42 |
80-1481-323-20 |
Steering Upper Shaft |
1 |
|
|
43 |
89-1113-060282 |
Hexagonal Bolt (8T) M6*28 |
1 |
|
|
44 |
89-1553-060002 |
Bag Hexagonal U Nut M6 |
1 |
|
|
45 |
80-1484-325-00 |
Steering Shaft Cover |
1 |
|
|
46 |
83-1020-363-00 |
Thrust Washer 16*24*1.0 |
1 |
|
|
47 |
80-1484-221-00 |
Steering Wheel |
1 |
|
|
48 |
80-1484-222-00 |
Steering Cap |
1 |
|
|
49 |
89-1713-100002 |
Flat Washer 10 |
1 |
|
|
50 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
|
|
51 |
80-1484-914-00 |
Label, Handle (25330) |
1 |
|
|
52 |
0207-30320 |
King Pin (R) CMP |
1 |
|
|
53 |
0207-30220 |
King Pin (L) CMP |
1 |
|
|
54 |
0207-30600 |
Front Wheel Rubber Cover |
2 |
|
|
55 |
0207-30800 |
Front Wheel Rubber Cover (IN) |
2 |
|
|
56 |
0207-30900 |
Front Wheel Rubber Cover Support |
2 |
|
|
57 |
0207-31100 |
King Pin Collar |
2 |
|
|
58 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
8 |
|
|
59 |
0207-30410 |
Front Wheel Boss CMP |
2 |
|
67
2
74 78
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
60 |
89-3115-060044 |
Bearing 6004 2RS |
4 |
|
|
61 |
80-1260-412-00 |
Front Wheel Tire(R) Assy(3.50-7) |
1 |
|
|
62 |
80-1260-411-00 |
Front Wheel Tire(L) Assy(3.50-7) |
1 |
|
|
63 |
0207-30500 |
Front Wheel Dust Cover |
2 |
|
|
64 |
89-1750-140002 |
Spring Washer 14 |
2 |
|
|
65 |
89-1668-140042 |
Mini Ditch Nut(low 2 sort) M14 |
2 |
|
|
66 |
89-2120-250252 |
Split Pin 2.5*25 |
2 |
|
|
67 |
89-1232-100202 |
Mini Hexagonal Bolt(SW) M10*20 |
8 |
|
|
68 |
80-1751-412-00 |
Tire(R) Assy(16*7.00-8) |
1 |
|
|
69 |
89-1750-100002 |
Spring Washer 10 |
8 |
|
|
70 |
89-1213-100252 |
Mini Hexagonal Bolt(8T) M10*25 |
8 |
|
|
71 |
80-1751-411-00 |
Tire(L) Assy(16*7.00-8) |
1 |
|
|
72 |
83-1630-335-00 |
Washer 16*40*4.5 |
2 |
|
|
73 |
89-1750-160002 |
Spring Washer 16 |
2 |
|
|
74 |
89-1658-160042 |
Low Fluted Nut (2 Sorts) M16 |
2 |
|
|
75 |
89-2120-350352 |
Split Pin 3.5*35 |
2 |
|
|
76 |
0215-30100 |
Rear Wheel Boss |
2 |
|
|
77 |
0207-77800 |
Wheel Boss Dust Seal |
2 |
|
|
78 |
89-2150-070500 |
Key 7*50 (Round) |
2 |
|
|
79 |
80-1481-512-00 |
Engine Collar 33 |
1 |
|
|
80 |
80-1482-514-00 |
Engine Pulley |
1 |
|
|
81 |
89-6133-002900 |
V Belt(Drive) RCLB-29 |
1 |
|
|
82 |
89-6123-007503 |
V belt (Cutting) LB-75SG1000 |
1 |
|
|
83 |
80-1485-518-00 |
Knife Belt Holder (Engine) CMP |
1 |
|
|
84 |
89-1713-100002 |
Flat Washer 10 |
2 |
|
|
85 |
89-1232-100202 |
Mini Hexagonal Bolt(SW) M10*20 |
2 |
|
|
86 |
83-1437-205-00 |
Key 1/4 inch*40 |
1 |
|
|
87 |
80-1487-516-00 |
Washer 11*40*6 |
1 |
|
|
88 |
83-1493-300-00 |
Spring Washer 7/16 |
1 |
|
|
89 |
83-1482-115-00 |
Hexagonal Bolt(8T) UNF7/16-20*45 |
1 |
|
|
90 |
0215-60600 |
Upper Flapper |
1 |
|
|
91 |
80-1437-785-10 |
Upper Flapper Holder |
1 |
|
|
92 |
89-1137-060152 |
Hexagonal Bolt(PW) M6*15 |
9 |
|
|
93 |
0207-60900 |
Upper Flapper Holder (R) |
1 |
|
|
94 |
83-1575-189-00 |
Flange Cap Nut M6 |
2 |
|
|
95 |
89-1137-060172 |
Hexagonal Bolt (PW) M6*17 |
2 |
|
|
96 |
89-1713-060002 |
Flat Washer 6 |
2 |
|
|
97 |
0215-81100 |
Front Upper Guard |
1 |
|
|
98 |
80-1484-417-20 |
Front Flapper |
1 |
|
|
99 |
80-1484-416-20 |
Front Guard |
1 |
|
|
100 |
89-1713-100002 |
Flat Washer 10 |
2 |
|
|
101 |
89-1543-100002 |
Mini Hexagonal Nut(SW) M10 |
2 |
|
|
102 |
0215-80600 |
Food Guard |
1 |
|
|
103 |
80-1781-943-00 |
Pedal Rubber |
1 |
|
|
104 |
0207-10100 |
Brake Pedal |
1 |
|
|
105 |
89-2131-120002 |
Snap Pin 12 |
1 |
|
|
106 |
89-1711-120002 |
Flat Washer 12 |
1 |
|
|
107 |
89-3510-016250 |
DU Bush 16.25 |
2 |
|
|
108 |
89-2521-000150 |
E Type Ring 15 |
1 |
|
|
109 |
80-1490-352-00 |
Brake Rod CMP |
1 |
|
|
110 |
89-1213-100352 |
Mini Hexagonal Bolt(8T) M10*35 |
1 |
|
|
111 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
3 |
|
|
112 |
83-1493-198-00 |
Hexagonal U Nut M6 (Rock) |
1 |
|
|
113 |
89-1711-060002 |
Flat Washer 6 |
1 |
|
|
114 |
89-2120-200152 |
Split Pin 2*15 |
1 |
|
|
115 |
80-1481-358-10 |
Brake Joint |
1 |
|
|
116 |
80-1484-672-00 |
Spring 20 |
1 |
|
|
117 |
89-1711-080002 |
Flat Washer 8 |
2 |
|
|
118 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
|
|
119 |
83-1490-198-00 |
Hexagonal U Nut M8 (Rock) |
1 |
|
138
125
79
A2
20
67
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
120 |
80-1484-361-00 |
Shift Rod |
1 |
|
|
121 |
89-1711-100002 |
Flat Washer 10 |
1 |
|
|
122 |
89-2131-100002 |
Snap Pin 10 |
1 |
|
|
123 |
83-1020-363-00 |
Thrust Washer 16*24*1.0 |
2 |
|
|
124 |
80-1481-568-00 |
Knife Tension Return Spring f 26.7 |
1 |
|
|
125 |
89-3510-016250 |
DU Bush 16.25 |
2 |
|
|
126 |
89-2511-000160 |
Snap Ring S16 |
1 |
|
|
127-136 |
0207-41010 |
Knife Tension Arm Assy |
1 |
|
|
127 |
0207-41210 |
Knife Tension Arm |
1 |
|
|
128 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
1 |
|
|
129 |
89-1750-100002 |
Spring Washer 10 |
1 |
|
|
130 |
89-1711-100002 |
Flat Washer 10 |
1 |
|
|
131 |
83-1482-763-00 |
Tension Pulley Shaft |
1 |
|
|
132 |
80-1482-549-00 |
Rubber Cover 58 |
1 |
|
|
133 |
83-1483-782-00 |
Knife Tension Pulley |
1 |
|
|
134 |
89-3114-062024 |
Bearing 6202 ZZ |
2 |
|
|
135 |
89-2512-000350 |
Snap Ring R35 |
1 |
|
|
136 |
89-2511-000150 |
Snap Ring S15 |
1 |
|
|
137 |
83-1415-975-00 |
Grease Nipple M6 |
1 |
|
|
138 |
0215-81500 |
Label Grease |
4 |
|
|
139 |
83-1482-116-00 |
Hexagonal Bolt UNF5/16-24*25 |
2 |
|
|
140 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
2 |
|
|
141 |
89-1211-080402 |
Mini Hexagonal Bolt M8*40 |
2 |
|
|
142 |
89-1253-080352 |
Flange Hexagonal Bolt (8T) M8*35 |
4 |
|
|
143 |
89-1211-080552 |
Mini Hexagonal Bolt M8*55 |
1 |
|
|
144 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
2 |
|
|
145 |
89-1211-100252 |
Mini Hexagonal Bolt M10*25 |
1 |
|
|
146 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
1 |
|
|
147 |
0207-41100 |
Drive Tension Spring Arm |
1 |
|
|
148 |
80-1481-551-00 |
Spring for Drive Tension |
1 |
|
|
150-160 |
80-1482-541-10 |
Drive Tension Arm Assy |
1 |
|
|
149 |
83-1020-363-00 |
Thrust Washer 16*24*1.0 |
2 |
|
|
150 |
89-3510-016150 |
DU Bush 16.15 |
2 |
|
|
151 |
80-1484-543-10 |
Driving Tension Arm CMP |
1 |
|
|
152 |
89-1543-100002 |
Mini Hexagonal Nut(SW) M10 |
1 |
|
|
153 |
89-1711-100002 |
Flat Washer 10 |
1 |
|
|
154 |
83-1482-765-00 |
Tension Pulley Shaft |
1 |
|
|
155 |
80-1482-549-00 |
Rubber Cover 58 |
1 |
|
|
156 |
89-2512-000400 |
Snap Ring R40 |
1 |
|
|
157 |
89-3117-062034 |
Bearing 6203 2RD |
1 |
|
|
158 |
83-1032-765-00 |
Tension Pulley |
1 |
|
|
159 |
89-2511-000170 |
Snap Ring S17 |
1 |
|
|
160 |
89-2511-000160 |
Snap Ring S16 |
1 |
|
|
161 |
89-1213-100357 |
Mini Hexagonal Bolt (8T) M10*35 |
2 |
|
|
|
||||
|

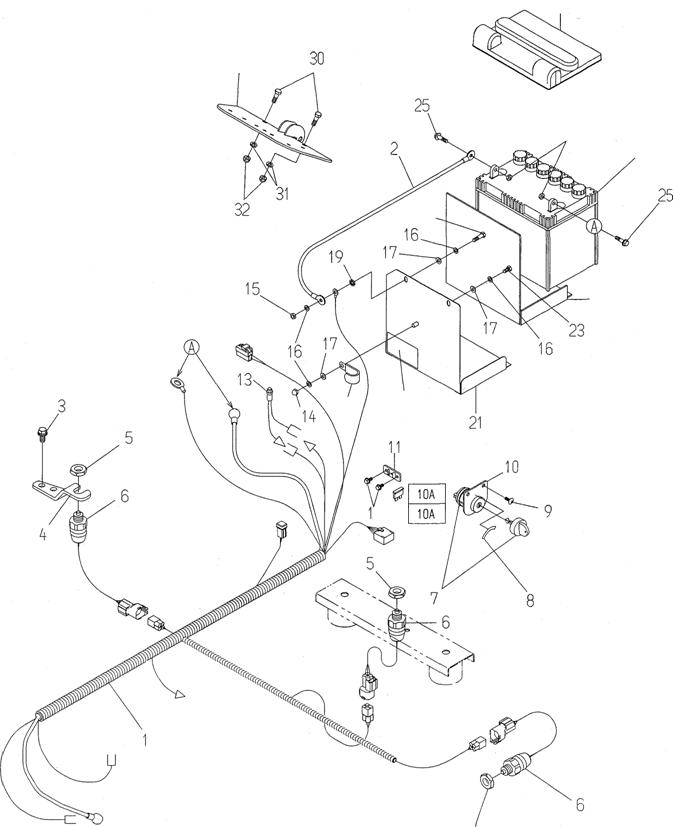

Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
1 |
80-1490-946-20 |
Wire Harness (H) |
1 |
|
|
2 |
0207-77200 |
Battery Minus Cord 230 |
1 |
|
|
3 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
2 |
|
|
4 |
0207-10610 |
Cutting Height Switch Bracket |
1 |
|
|
5 |
0207-72800 |
Switch Lock Nut |
3 |
|
|
6 |
0207-74400 |
Safety Switch K17850 |
3 |
|
|
7 |
0207-79700 |
Key Switch |
1 |
|
|
8 |
80-1488-912-00 |
Label, Key (13121) |
1 |
|
|
9 |
89-1159-060168 |
Truss Mini Screw M6*16 |
2 |
|
|
10 |
80-1482-332-00 |
Key Switch Bracket |
1 |
|
|
11 |
0207-79200 |
Fuse Box Bracket |
1 |
|
|
12 |
89-1137-060122 |
Hexagonal Bolt (PW) M6*12 |
2 |
|
|
13 |
0207-79300 |
Pilot Lamp |
1 |
|
|
14 |
89-1571-060042 |
Cap Nut M6 |
1 |
|
|
15 |
89-1511-060042 |
Hexagonal Nut M6 |
1 |
|
|
16 |
89-1750-060002 |
Spring Washer 6 |
4 |
|
|
17 |
89-1711-060002 |
Flat Washer 6 |
3 |
|
|
18 |
80-1792-988-00 |
Harness Clip 8 |
1 |
|
|
19 |
89-1812-060002 |
Toothed washer (inside) 6 |
1 |
|
|
20 |
80-1488-921-00 |
Label Pedal Stopper (13113) |
1 |
|
|
21 |
80-1490-383-40 |
Battery Carrier |
1 |
|
|
22 |
89-1111-060252 |
Hexagonal Bolt M6*25 |
1 |
|
|
23 |
89-1111-060142 |
Hexagonal Bolt M6*14 |
2 |
|
|
24 |
80-1482-971-00 |
Cushion Rubber (Battery) |
1 |
|
|
25 |
Battery Parts |
Washer Based Bolt M6*20 |
2 |
|
|
26 |
Battery Parts |
Hexagonal Nut M6 |
2 |
|
|
27 |
80-1792-976-00 |
Battery(32A-19L) |
1 |
|
|
28 |
0207-63200 |
Battery Cover |
1 |
|
|
29 |
0207-20800 |
Light Bracket |
1 |
|
|
30 |
89-1211-080162 |
Mini Hexagonal Bolt M8*16 |
2 |
|
|
31 |
89-1750-080002 |
Spring Washer 8 |
2 |
|
|
32 |
89-1671-080042 |
Mini Hexagonal Cap Nut M8 |
2 |
|
|
|
||||
21 20
84
83 22
23
24
57
52 #S
25 83
żs 81
82 71
8 69
72
80 68
73 67
48 78
51 25
2A
27 28
37
30
#0
39 31
A0
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
1 |
80-1481-709-20 |
Link Bolt |
6 |
|
|
2 |
89-1711-120002 |
Flat Washer 12 |
8 |
|
|
3 |
89-1750-120002 |
Spring Washer 12 |
8 |
|
|
4 |
89-1551-120002 |
Hexagonal U Nut M12 |
8 |
|
|
5 |
0207-51600 |
Link Bolt |
2 |
|
|
6 |
0207-51500 |
Link Collar |
2 |
|
|
7 |
0215-81900 |
Label, Oiling |
6 |
|
|
8 |
80-1482-707-00 |
Link Arm (Front) |
2 |
|
|
9 |
80-1482-708-00 |
Link Arm (Rear) |
1 |
|
|
10 |
80-1485-707-00 |
Link Arm (Right-Rear) |
1 |
|
|
11 |
80-1484-275-20 |
Connecting Plate (Left) |
2 |
|
|
12 |
83-1751-311-00 |
Washer 8*25*2.3 |
4 |
|
|
13 |
89-1235-080252 |
Mini Hexagonal Bolt (SW) M8*25 |
2 |
|
|
14 |
80-1484-276-10 |
Spring (Up/Down) |
2 |
|
|
15 |
89-1232-080162 |
Mini Hexagonal Bolt (SW) M8*16 |
2 |
|
|
16 |
80-1484-501-30 |
Knife Belt Cover |
1 |
|
|
17 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
3 |
|
|
18 |
0215-82800 |
Safety Cover CMP (New) |
1 |
|
|
19 |
89-1213-120302 |
Mini Hexagonal Bolt(8T) M12*30 |
1 |
|
|
20 |
89-1750-120002 |
Spring Washer 12 |
1 |
|
|
21 |
83-1483-328-00 |
Washer 12*36*4.5 |
1 |
|
|
22 |
0207-50400 |
Knife Pulley CMP |
1 |
|
|
23 |
89-5121-356210 |
Oil Seal UE 35.62.10 |
1 |
|
|
24 |
89-2512-000620 |
Snap Ring R62 |
2 |
|
|
25 |
89-3115-060074 |
Bearing 6007 2RS |
2 |
|
|
26 |
80-1483-641-00 |
Vertical Shaft |
1 |
|
|
27 |
83-1560-651-00 |
Oil Seal AP 40.62.12 |
1 |
|
|
28 |
80-1483-733-00 |
Knife Bracket |
1 |
|
|
29 |
80-1483-836-00 |
Knife Neck Guard |
1 |
|
|
30 |
80-1483-817-00 |
Knife Stay |
1 |
|
|
31 |
80-1483-821-00 |
Knife |
2 |
|
|
32 |
80-1483-818-00 |
Knife Collar |
2 |
|
|
33 |
83-1483-329-00 |
Washer 14*30*3.2 |
2 |
|
|
34-38 |
0207-50910 |
Knife Setting Bolt Set |
2 |
|
|
34 |
0207-50200 |
Knife Setting Bolt M14*34 |
2 |
|
|
35 |
0207-50310 |
Nut Guard 14 |
2 |
|
|
36 |
89-1750-140002 |
Spring Washer 14 |
2 |
|
|
37 |
89-1668-140042 |
Mini Ditch Nut(low 2 sort) M14 |
2 |
|
|
38 |
89-2120-300252 |
Split Pin 3*25 |
2 |
|
|
39 |
89-1750-120002 |
Spring Washer 12 |
2 |
|
|
40 |
83-1483-129-00 |
Mini Hexagonal Bolt(8T) M12*30 |
2 |
|
|
41 |
80-1483-845-00 |
Bag Nut M20 |
1 |
|
|
42 |
89-1750-200002 |
Spring Washer 20 |
1 |
|
|
43 |
89-1714-080002 |
Flat Washer 8 |
4 |
|
|
44 |
89-1750-080002 |
Spring Washer 8 |
4 |
|
|
45 |
89-1671-080042 |
Mini Hexagonal Cap Nut M8 |
4 |
|
|
46 |
89-1211-080202 |
Mini Hexagonal Bolt M8*20 |
4 |
|
|
47 |
80-1482-755-10 |
Rear Guard |
1 |
|
|
48 |
0215-80900 |
Rear Guard Flapper |
1 |
|
|
49 |
80-1482-782-00 |
Rear Guard Flapper Holder |
1 |
|
|
50 |
89-1137-060152 |
Hexagonal Bolt(PW) M6*15 |
5 |
|
|
51 |
83-1575-189-00 |
Flange Cap Nut M6 |
5 |
|
|
52 |
80-1482-373-00 |
Brake Return Spring |
1 |
|
|
53 |
89-2521-000100 |
E Type Ring 10 |
2 |
|
|
54 |
83-1754-329-00 |
Washer 13*22*1.0 |
1 |
|
|
55 |
89-3510-012200 |
DU Bush 12.20 |
2 |
|
|
56 |
80-1482-371-30 |
Knife Brake (6t) |
1 |
|
|
57 |
83-1565-329-00 |
Washer 13*22*2.3 |
4 |
|
|
58 |
0207-52120 |
Knife Brake Bracket CMP(NEW) |
1 |
|
|
59 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
2 |
|
62
84
85
57
60 55
56
57
52 53
2 20
22
23
24
65
82 71
18
- 72
80 68
73 67
45
48 A9
79
50 25
2A
27 28
2
36
76
78'
70
38
’ -21-
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
60 |
0215-81400 |
Left Cover CMP |
1 |
|
|
61 |
0215-81300 |
Left Front Cover |
1 |
|
|
62 |
89-1714-080002 |
Flat Washer 8 |
4 |
|
|
63 |
89-1750-080002 |
Spring Washer 8 |
4 |
|
|
64 |
89-1671-080042 |
Mini Hexagonal Cap Nut M8 |
4 |
|
|
65 |
89-1211-080162 |
Mini Hexagonal Bolt M8*16 |
4 |
|
|
66 |
80-1491-753-00 |
Cover CMP Right |
1 |
|
|
67 |
0215-81200 |
Right Front Cover |
1 |
|
|
68 |
80-1484-757-10 |
Cover Flapper (Right) |
1 |
|
|
69 |
80-1484-758-00 |
Flapper Holder(Right) |
1 |
|
|
70 |
89-1137-060202 |
Hexagonal Bolt(PW) M6*20 |
2 |
|
|
71 |
83-1575-189-00 |
Flange Cap Nut M6 |
3 |
|
|
72 |
80-1493-748-00 |
Right Cover Receiver Bolt |
2 |
|
|
73 |
89-1750-120002 |
Spring Washer 12 |
2 |
|
|
74 |
89-1671-120042 |
Mini Hexagonal Cap Nut M12 |
2 |
|
|
75 |
0217-71100 |
Right Cover Spring |
1 |
|
|
76 |
89-1750-080002 |
Spring Washer 8 |
1 |
|
|
77 |
0221-52400 |
Right Cover Up/Down Arm |
1 |
|
|
78 |
80-1488-747-00 |
Bolt for Right Cover Up/Down Arm |
1 |
|
|
79 |
89-1213-080202 |
Mini Hexagonal Bolt (8T) M8*20 |
1 |
|
|
80 |
89-1561-080002 |
Mini Hexagonal U Nut M8 |
1 |
|
|
81 |
80-1484-617-00 |
Knife Pulley Belt Holder |
2 |
|
|
82 |
80-1792-988-00 |
Harness Clip 8 |
1 |
|
|
83 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
2 |
|
|
84 |
80-1488-926-10 |
Label, Caution for Knife |
2 |
|
|
85 |
80-1488-928-10 |
Label, Caution for Belt Involving |
2 |
|
|
|
||||
|
Ref. |
Parts No. |
Parts Name |
Quantity RM86G GXV390 |
Remarks |
|
1-4 |
85-1484-940-00 |
Hour Meter Assy |
1 |
|
|
1 |
85-1484-941-00 |
Hour Meter |
1 |
|
|
2 |
89-1159-060168 |
Truss Mini Screw M6*16 |
2 |
|
|
3 |
85-1484-943-10 |
Hour Meter Bracket |
1 |
|
|
4 |
85-1484-942-00 |
Wire Harness for Hour Meter |
1 |
|
|

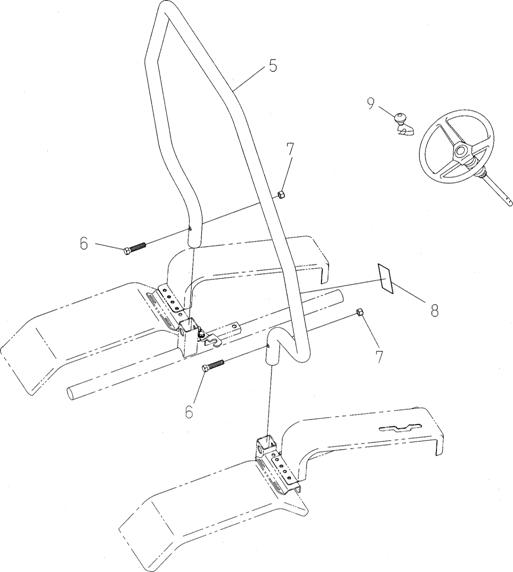

5-8 |
0207-80600 |
Upper Flame Set |
1 |
|
|
5 |
0207-80500 |
Upper Flame CMP |
1 |
|
|
6 |
89-1113-120502 |
Hexagonal Bolt (8T) M12*50 |
2 |
|
|
7 |
89-1551-120002 |
Hexagonal U Nut M12 |
2 |
|
|
8 |
0207-80400 |
Label, Caution for Upper Flame |
1 |
|
|
9 |
80-1487-223-00 |
Sub Handle Assy |
1 |
|
|
|
||||
