OREC                  ISSUED NO. RM83G/H-EUO(FB)-1

Parts catalogue Rabbit Mower

(EXPORT MODEL) RM83G(FB)

MODEL              CODE RM83G(FB)/H     0316-○○○○○





















CONTENTS



Fig. 1

FRAME ------------------------------

1

Fig. 2

TRANSMISSION ------------------

15

Fig. 3

HANDLE -----------------------------

23

Fig. 4

FRONT -------------------------------

25

Fig. 5

CONTROL --------------------------

28

Fig. 6

CUTTING ----------------------------

30

Fig. 7

SEAT ---------------------------------

37

Fig. 8

ENGINE -----------------------------

40

Fig. 9

LIGHT OPTION --------------------

43

Fig. 10

LABEL -------------------------------

OREC CO.,LTD

44



Update : May 2015



1/45

FRAME    1/14















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-60110

Side Cover (R) Red

1



2

0244-60210

Side Cover (L) Red

1



3

0244-81800

Reflection Seat

2



4

0284-23100

Side Cover Stay CMP

2



5

0284-88300

Label, Cutting Height Adjusting

1



6

0316-71200

Label, Side RM83G

2



7

89-1159-080168

Truss Mini Screw M8*16

8



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



2/45

FRAME    2/14





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1484-356-00

Brake Stopper Return Spring

1



2

0207-76500

Long Knob Bolt M8*20

1



3

0207-79200

Fuse Box Bracket

1



4

0227-71600

Label, Main (OREC)

1



5

0244-32200

Brake Stopper CMP

1



6

0284-20700

Front Cover (Lower)

1



7

0284-61100

Front Cover (Upper)

1



8

0284-72300

Battery Pad (88)

1



9

0310-20600

Front Cover Holder (RM830)

1



10

89-1137-060122

Hexagonal Bolt (PW) M6*12

2



11

89-1159-080168

Truss Mini Screw M8*16

2



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



13

89-1561-100002

Mini Hexagonal U Nut M10

1



14

89-1581-080042

Flange Cap Nut M8

2



15

89-1714-100002

Flat Washer 10

1




3/45

FRAME    3/14







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-21200

Seat Bracket Shaft

1



2

0207-72700

Gas Spring KMF 50-40

1



3

0284-21400

Step CMP (88)

1



4

0284-71500

Step Rubber (88)

1



5

83-1484-369-00

Clip (5347)

16



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



7

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



8

89-1553-060002

Bag Hexagonal U Nut M6

2



9

89-1561-100002

Mini Hexagonal U Nut M10

2



10

89-1713-100002

Flat Washer 10 (large)

4



11

Seat Part

-

1

Page. 37 ～

4/45

FRAME    4/14

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1482-971-00

Cushion Rubber (Battery)

1



2

80-1792-976-00

Battery (32A-19L)

1



3

80-1792-988-00

Harness Clip 8

1



4

0207-63200

Battery Cover

1



5

80-1488-921-00

Label Pedal Stopper (13113)

1



6

0284-22100

Battery Carrier

1



7

89-1111-060142

Hexagonal Bolt M6*14

1



8

89-1111-060252

Hexagonal Bolt M6*25

1



9

89-1541-060002

Hexagonal Nut (SW) M6

1



10

89-1581-060042

Flange Cap Nut M6

1



11

89-1713-060002

Flat Washer 6 (large)

3



12

89-1750-060002

Spring Washer 6

2



13

89-1812-060002

Toothed washer (inside) 6

2



14

Battery Parts

Battery Bolt M6*20

2



15

Battery Parts

Battery Nut M6

2



5/45

FRAME    5/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1483-988-00

Hose Clip 17

2



2

0240-74100

Fuel Pipe 6*12*L100 (Red)

1



3

0284-60400

Fuel Gauge Cover

1



4

0284-70100

Fuel Tank Assy

1



5

0284-86510

Fuel Tank Holder CMP (88ET)

1



6

0310-60400

Heat Cover CMP (RM830)

1



7

89-1159-060108

Truss Mini Screw M6*10

2



8

89-1211-080552

Mini Hexagonal Bolt M8*55

1



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



10

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



11

89-1611-080042

Mini Hexagonal Nut M8

1



12

0284-70200

Fuel Gauge Assy

1



13

0244-76900

Filter

1



14

0244-76600

Tank Cap Assy

1



6/45

FRAME    6/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-72800

Switch Lock Nut

1



2

0207-74400

Safety Switch K17850

1



3

0284-20500

Safety Switch Stay

1



4

0289-71100

Rubber L50

2



5

0297-21400

Rear Bumper CMP (H)

1



6

0316-86200

Center Belt Cover (RM83G)

1



7

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

8



8

89-1233-080352

Mini Hexagonal Bolt (PWSW) M8*35

1



9

89-1251-080502

Flange Mini Hexagonal Bolt M8*50

2



10

89-1631-080042

Flange Mini Hexagonal Nut M8

3



11

Engine Part

-

1

Page. 40 ～

12

Control Part

-

1

Page. 28 ～

13

0316-71100

Wire Harness Assy (83G/H)

1




7/45

FRAME    7/14

























































14         15         16

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-441-00

Dust Cover

1



2

80-1482-424-00

Axle Dust Cover

1



3

80-1482-426-00

Rear Wheel Rubber Cover

1



4

80-1485-414-00

Rear Wheel Boss

2



5

80-1751-411-00

Tire (L) Assy (16*7.00-8)

1



6

80-1751-412-00

Tire (R) Assy (16*7.00-8)

1



7

83-1310-374-00

Thrust Washer 22*32*1.0(80-1310-126-

2



8

89-1211-080162

Mini Hexagonal Bolt M8*16

4



9

89-1213-100252

Mini Hexagonal Bolt (8T) M10*25

8



10

89-1713-080002

Flat Washer 8 (large)

4



11

89-1750-100002

Spring Washer 10

8



12

89-2150-070500

Key 7*50 (round)

2



13

89-2511-000220

Snap Ring (S22)

2



14

80-1751-401-00

Tire 16*700*8

2



15

80-1751-404-00

Tire Tube 16*700*8

2



16

80-1751-407-00

Wheel Assy 16*700*8

2




8/45

FRAME    8/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

1



2

80-1484-928-00

Label,Oil Quantity 1.6L

1



3

80-1488-928-10

Label, Caution for Belt Involving

1



4

0237-71100

Brake Spring 40

1



5

0240-61100

Rear Belt Cover B

1



6

0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7

4



7

0310-60200

Rear Belt Cover (RM830)

1



8

0316-00100

Transmission Assy RM83G

1



9

0316-01100

Transmission Hunger Stay CMP (RM83G

1



10

0316-10500

Brake Joint RM83G

1



11

0316-41100

Transmission Pulley Belt Holder (RM83G

1



12

83-1490-198-00

Hexagonal U Nut M8 (Lock)

1



13

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



14

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



15

89-1561-080002

Mini Hexagonal U Nut M8

1



16

89-1611-080042

Mini Hexagonal Nut M8

1



17

89-1631-080042

Flange Mini Hexagonal Nut M8

1



18

89-1711-080002

Flat Washer 8

3



19

89-2120-200152

Split Pin 2*15

1




9/45

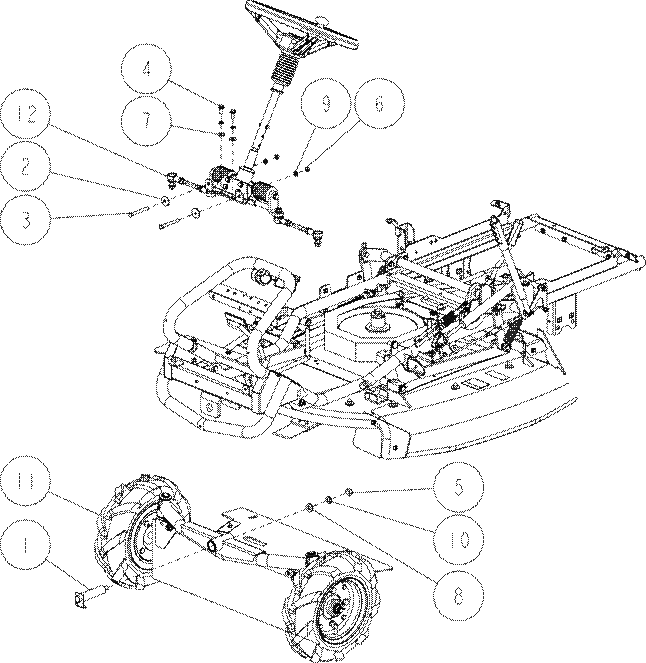

FRAME    9/14





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1490-713-10

Center Pin CMP (RM83G)

1



2

83-1415-312-00

Washer 8*30*3.2

2



3

89-1211-080702

Mini Hexagonal Bolt M8*70

2



4

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

2



5

89-1551-120002

Hexagonal U Nut M12

1



6

89-1611-080042

Mini Hexagonal Nut M8

2



7

89-1713-080002

Flat Washer 8 (large)

2



8

83-1481-328-00

Washer 12*30*3.2

1



9

89-1750-080002

Spring Washer 8

4



10

89-1750-120002

Spring Washer 12

1



11

Front Part

-

1

Page. 25 ～

12

Handle Part

-

1

Page. 23 ～

10/45

FRAME    10/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1490-705-00

Link Collar (RM83G)

2



2

80-1490-706-10

Link Pin A (RM83G)

2



3

80-1490-709-10

Link Pin B (RM83G)

2



4

0207-76200

Spring (Up/Down)

2



5

0207-76800

Washer 16*32*2.3

2



6

0316-50100

Link Arm CMP (Left-rear) RM83G

1



7

0316-50200

Link Arm CMP (Right-rear) RM83G

1



8

0316-50310

Connecting Plate (RM83G)

2



9

0316-50400

Link Arm CMP (Left-front) RM83G

1



10

0316-50500

Link Arm CMP (Right-front) RM83G

1



11

83-1415-975-00

Grease Nipple M6

4



12

0215-81500

Label Grease

4



13

89-1213-100552

Mini Hexagonal Bolt (8T) M10*55

2



14

89-1631-100042

Flange Mini Hexagonal Nut M10

2



15

89-1713-100002

Flat Washer 10 (large)

2



16

89-2131-160002

Snap Pin 16

2



17

89-2521-000120

E Type Ring 12

12



18

Cutting Part

-

1

Page. 30 ～

11/45

FRAME    11/14







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1484-361-00

Shift Rod

1



2

80-1493-354-00

Rod Return Spring

1



3

80-1781-943-00

Pedal Rubber

1



4

0316-81100

Brake Pedal (RM83G FB)

1



5

0316-81300

Brake Rod CMP (RM83G)

1



6

83-1415-975-00

Grease Nipple M6

1



7

89-1113-100357

Hexagonal Bolt (8T) M10*35

1



8

89-1611-100042

Mini Hexagonal Nut M10

3



9

89-1711-060002

Flat Washer 6

2



10

89-1711-100002

Flat Washer 10*18*1.6

1



11

89-1711-120002

Flat Washer 12

1



12

89-2131-100002

Snap Pin 10

1



13

89-2131-120002

Snap Pin 12

1



14

89-2132-060002

Snap Pin 6 (with stopper)

2



15

89-2521-000150

E Type Ring 15

1



16

89-3510-016250

DU Bush 16.25

2



12/45

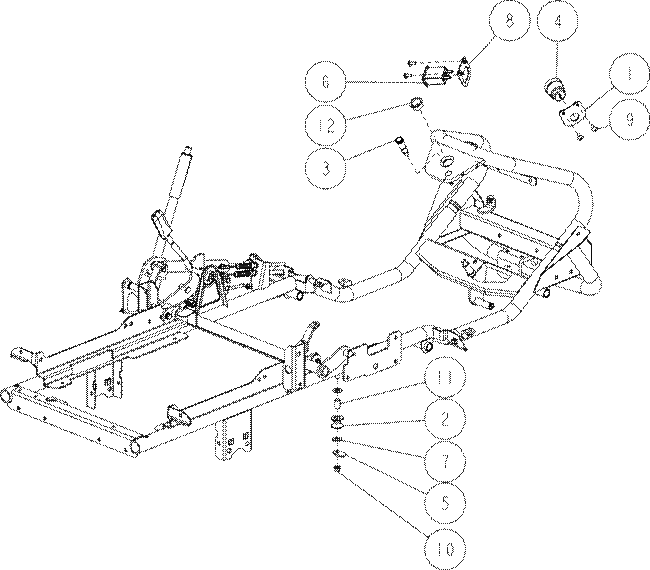

FRAME    12/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1482-332-00

Key Switch Bracket

1



2

80-1484-354-10

Brake Rod Roller

1



3

0207-79300

Pilot Lamp

1



4

0207-79700

Key Switch (NMA03-A020)

1



5

0244-22600

Brake Rod Hung Plate

1



6

0244-73600

Hour Meter

1



7

83-1020-355-00

Thrust Washer 12*24*1.0

2



8

85-1484-943-10

Hour Meter Bracket

1



9

89-1159-060168

Truss Mini Screw M6*16

4



10

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



11

89-3510-012200

DU Bush 12.20

1



12

89-3511-022150

DU Bush 22.15.33F

1



Casella di testo: mmozzato 2015-05-27 07:28:58 -------------------------------------------- KEY (NMA03-A020) O0207-83400


13/45

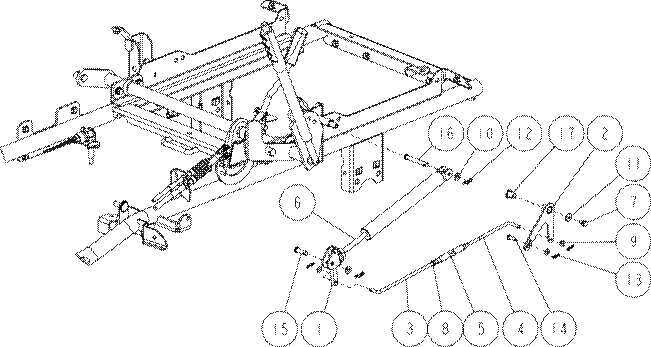

FRAME    13/14



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-10500

Lock Pusher

1



2

0244-11300

Push Rod Receiver CMP

1



3

0244-11400

Adjuster Rod (R)

1



4

0244-11500

Adjuster Rod (L)

1



5

0244-11600

Turn Buckle (Pipe Type)

1



6

0255-70100

Gas Spring Free Lock Type(FLC75-35)

1



7

89-1132-060122

Hexagonal Bolt (SW) M6*12

1



8

89-1511-060042

Hexagonal Nut M6

1



9

89-1711-060002

Flat Washer 6

3



10

89-1711-080002

Flat Washer 8

2



11

89-1713-060002

Flat Washer 6 (large)

1



12

89-2131-080002

Snap Pin 8

2



13

89-2132-060002

Snap Pin 6 (with stopper)

3



14

89-2181-060202

Flat Head Pin 6*20

1



15

89-2181-080282

Flat Head Pin 8*28

1



16

89-2181-080602

Flat Head Pin 8*60

1



17

89-3511-010150

DU Bush 10.15.18F

1



14/45

FRAME    14/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-72800

Switch Lock Nut

1



2

0207-74400

Safety Switch K17850

1



3

0244-11200

Push Rod

1



4

0244-13700

Wire Joint CMP

1



5

0244-70200

Adjusting Shaft Grip

1



6

0284-71100

Knife Brake Wire

1



7

0284-71300

Cutting Clutch Wire

1



8

0289-71300

Arm Grip (Red)

1



9

0310-10410

Up/Down Adjusting Shaft CMP (RM830/8

1



10

0310-10500

Knife Clutch Lever CMP (RM83G)

1



11

0310-72200

Safety Switch Push Plate (RM830/83G)

1



12

0316-20100

Frame CMP (RM83G)

1



13

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



14

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



15

89-1531-060042

Flange Nut M6

2



16

89-1711-060002

Flat Washer 6

3



17

89-2132-060002

Snap Pin 6 (with stopper)

3



18

89-2521-000120

E Type Ring 12

1



15/45

TRANSMISSION     1/8















Ref.

Parts Number

Parts Name

Quantity

Remarks



0207-73000

Brake Assy



Include : 1,2,3,4,6,7,12,13,14

1

80-1030-282-00

Brake Drum (PA-7)

1



2

80-1030-285-00

Spring for Brake Shoe Return

1



3

0207-73200

Brake Cap Assy

1

Include : 2,3,4,7,12,13,14

4

0244-88100

Brake Shoe Set (PA-7)

1



5

0294-00200

Mission Guard

1



6

0308-00300

Brake Cover PK (PA-7)

1



7

-

Brake Arm

1



8

83-1020-148-00

Tapping Bolt M6*14

4



9

83-1484-255-00

Lock Nut ZUF M8

2



10

89-1251-081403

Flange Mini Hexagonal Bolt M8*140

1



11

89-1253-080552

Flange Mini Hexagonal Bolt (8T) M8*55

1



12

89-1511-100040

Hexagonal Nut M10

1



13

89-1712-100002

Flat Washer 10*21*2.1

1



14

89-1750-100002

Spring Washer 10

1



15

89-2511-000150

Snap Ring (S15)

1



16/45

TRANSMISSION     2/8















Ref.

Parts Number

Parts Name

Quantity

Remarks



0244-08000

Oil Seal 25.47.15(with DP)



Include : 3,15

1

80-1482-103-00

Transmission Case (Right)

1



2

80-1484-A12-00

Axle Case (R)

1



3

83-1415-663-00

Oil Seal DP 25.30.15

1



4

83-1482-143-00

Tapping Bolt M8*25

6



5

83-1484-255-00

Lock Nut ZUF M8

9



6

89-1251-080703

Flange Mini Hexagonal Bolt M8*70

1



7

89-1251-081403

Flange Mini Hexagonal Bolt M8*140

1



8

89-1253-080402

Flange Mini Hexagonal Bolt (8T) M8*40

1



9

89-1253-080503

Flange Mini Hexagonal Bolt (8T) M8*50

7



10

89-1631-080042

Flange Mini Hexagonal Nut M8

1



11

89-2512-000470

Snap Ring (R47)

1



12

89-3115-060054

Bearing 6005 2RS

2



13

89-5121-153007

Oil Seal UE 15.30.7

1



14

89-5121-284708

Oil Seal UE 28.47.8

1



15

89-5121-304707

Oil Seal UE 30.47.7

1



17/45

TRANSMISSION     3/8



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1481-118-00

A Axle 15T

1



2

80-1482-119-00

A Axle Collar 9

1



3

80-1482-521-10

Transmission Pulley

1



4

0289-01000

Oil Plug Assy (with O Ring)

1



5

83-1020-349-00

Copper Packing 10.5*18*1.6

1



6

83-1482-311-00

Washer 6.5*22*3.2

1



7

89-1113-060202

Hexagonal Bolt (8T) M6*20

1



8

89-1252-100123

Flange Mini Hexagonal Bolt M10*12 (slender)

1



9

89-1750-060002

Spring Washer 6

1



10

89-2151-050250

Key 5*25 (half round)

1



11

89-2512-000350

Snap Ring (R35)

1



12

89-3115-062024

Bearing 6202 2RS

2



13

89-5121-153507

Oil Seal UE 15.35.7

1



18/45

TRANSMISSION     4/8

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1481-123-00

B Axle Gear 18T

1



2

80-1481-124-00

B Axle Gear 25T

1



3

80-1481-125-00

B Axle Gear 33T

1



4

80-1481-126-00

B Axle Gear 40T

1



5

80-1482-122-00

B Axle

1



6

80-1482-127-00

Bevel Gear 45T

1



7

80-1482-128-00

B Axle Sprocket 8T

1



8

80-1482-129-00

Collar 18*22*7

1



9

80-1482-130-00

Collar 18*22*11

1



10

80-1482-131-00

Collar 18*22*34

1



11

89-2511-000170

Snap Ring (S17)

1



12

89-3111-062024

Bearing 6202

2



13

89-6513-420024

Chain #420-24L

1



19/45

TRANSMISSION     5/8













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1481-139-00

C Axle Thrust Washer 29*40*1.0

1



2

80-1482-133-00

C Axle Gear 12T

1



3

80-1482-134-00

C Axle Gear 26T

1



4

80-1482-135-00

C Axle Gear 33T

1



5

80-1482-136-00

C Axle Gear 41T

1



6

80-1482-137-00

C Axle Gear 48T

1



7

80-1482-138-00

Sprocket 18T

1



8

80-1482-139-00

C Axle Thrust Washer 29*44*1.0

4



9

80-1482-142-10

D Axle

1



10

80-1482-144-00

D Axle Gear 36T

1



11

83-1830-368-00

Thrust Washer 18*26*1.0

1



12

89-3111-062024

Bearing 6202

1



13

89-3111-062034

Bearing 6203

2



20/45

TRANSMISSION     6/8





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1481-111-00

Shift Key Holder

1



2

80-1481-160-00

Pushing Spring 1.0

1



3

80-1482-108-00

Shift Fork

1



4

80-1482-113-00

Shift Key

2



5

80-1482-132-10

C Axle

1



6

80-1482-162-00

Screw for Adjusting Notch

1



7

80-1490-110-00

Shift Fork Shaft CMP

1



8

89-1172-100165

Hexagonal Hole Screw M10*16

1



9

89-1514-160042

Hexagonal Nut (3 sorts) M16 (slender)

1



10

89-2111-050020

Spring Pin 5*20

1



11

89-2120-300252

Split Pin 3*25

1



12

89-2511-000120

Snap Ring (S12)

1



13

89-3111-062024

Bearing 6202

1



14

89-3410-080000

Steel Ball 8.0

1



15

89-5221-009000

O Ring P9

1



21/45

TRANSMISSION     7/8





















Ref.

Parts Number

Parts Name

Quantity

Remarks



0244-08000

Oil Seal 25.47.15(with DP)



Include : 6,14

1

80-1481-116-00

Differential Lock Fork Axle

1



2

80-1482-101-00

Transmission Case (Left)

1



3

80-1484-A13-00

Differential Lock Arm

1



4

80-1488-156-00

Axle Case (Left)

1



5

80-1830-113-00

Differential Lock Fork

1



6

83-1415-663-00

Oil Seal DP 25.30.15

1



7

83-1482-143-00

Tapping Bolt M8*25

6



8

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



9

89-2111-030020

Spring Pin 3*20

1



10

89-2111-050022

Spring Pin 5*22

1



11

89-2512-000470

Snap Ring (R47)

1



12

89-3115-060054

Bearing 6005 2RS

2



13

89-5121-284708

Oil Seal UE 28.47.8

1



14

89-5121-304707

Oil Seal UE 30.47.7

1



15

89-5221-009000

O Ring P9

1



22/45

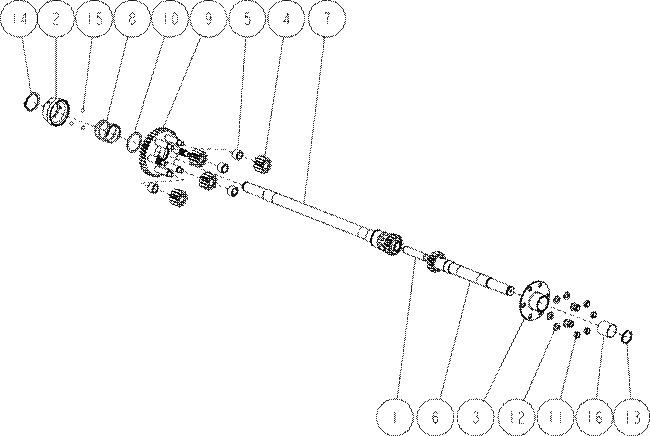

TRANSMISSION     8/8















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-150-00

Axle Pin

1



2

80-1425-143-00

Differential Lock Cone

1



3

80-1481-151-00

Differential Lock Plate

1



4

80-1481-152-00

Differential Lock Gear 11T

4



5

80-1481-155-00

Differential Gear Shaft Collar

4



6

80-1490-147-10

Axle (R) CMP

1



7

80-1491-146-10

Axle (L) CMP

1



8

80-1751-162-00

Differential Lock Spring

1



9

0207-02800

Axle Gear CMP

1



10

83-1830-382-00

Thrust Washer 40*48*1.0

1



11

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

6



12

89-1750-100002

Spring Washer 10

6



13

89-2511-000280

Snap Ring (S28)

1



14

89-2511-000400

Snap Ring (S40)

1



15

89-3410-075000

Steel Ball 7.5

3



16

89-3510-028300

DU Bush 28.30

1



23/45

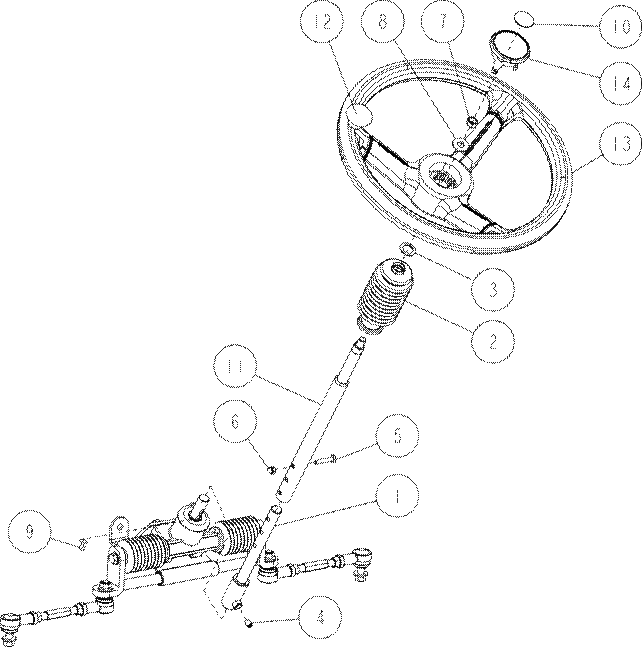

HANDLE    1/2





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1481-324-20

Steering Lower Shaft

1



2

80-1484-325-00

Steering Shaft Cover

1



3

83-1020-363-00

Thrust Washer 16*24*1.0

1



4

83-1493-149-00

Hexagonal Screw M8*10

1



5

89-1113-060302

Hexagonal Bolt (8T) M6*30

1



6

89-1553-060002

Bag Hexagonal U Nut M6

1



7

89-1561-100002

Mini Hexagonal U Nut M10

1



8

89-1713-100002

Flat Washer 10 (large)

1



9

89-2150-050200

Key 5*20 (round)

1



10

0244-80700

Label, Handle (Blue)

1



11

0316-81200

Steering Upper Shaft CMP (RM83G)

1



12

0262-70300

Sub Handle Assy

1



13

0262-70400

Steering Wheel

1



14

0262-70500

Steering Cap

1



24/45

HANDLE    2/2





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1016-461-00

Bearing Cover

1



2

80-1020-719-00

Hexagonal Tap Tight M8*18

2



3

80-1484-321-30

Rack Support

1



4

80-1484-327-20

Steering Bracket

1



5

80-1484-329-10

Tie Rod Adjuster

2



6

80-1484-962-10

Steering Gear Box Assy

1



7

80-1490-967-00

Steering Boots

2



8

80-1493-962-00

Link Ball LHSA 10DE21

2



9

80-1493-963-00

Link Ball LHSA 10DLE21

2



10

83-1493-195-00

Hexagonal Nut (slender) M10 Left

2



11

83-1493-255-00

Flange Lock Nut M10 (slender)

4



12

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1

2



13

89-1612-100042

Mini Hexagonal Nut (Slender) M10

2



14

89-1750-080002

Spring Washer 8

4



15

0314-70100

Mini Hexagonal Bolt (Meck) M8*22

4



25/45

FRONT    1/3













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1437-785-10

Supporter for Flapper

1



2

80-1484-416-20

Front Guard

1



3

0207-60900

Upper Flapper Holder (R)

1



4

0215-60500

Front Upper Guard CMP

1



5

0215-61200

Front Flapper

1



6

0271-51100

Upper Flapper

1



7

0310-60500

Foot Guard CMP(RM830)

1



8

89-1137-060152

Hexagonal Bolt (PW) M6*15

9



9

89-1137-060172

Hexagonal Bolt (PW) M6*17

2



10

89-1213-100357

Mini Hexagonal Bolt (8T) M10*35

2



11

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



12

89-1581-060042

Flange Cap Nut M6

2



13

89-1631-100042

Flange Mini Hexagonal Nut M10

2



14

89-1713-060002

Flat Washer 6 (large)

2



15

89-1713-100002

Flat Washer 10 (large)

4



26/45

FRONT    2/3





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

2



2

0207-30500

Front Wheel Dust Cover

2



3

0240-30300

Wheel Boss

2



4

0240-31100

King Pin Collar

2



5

0240-31200

Brake Arm CMP (L)

1



6

0240-31300

Brake Arm CMP (R)

1



7

0240-32100

Brake Shoe φ130

2



8

0240-32200

Brake Collar

8



9

0240-62110

Front Wheel Rubber Cover (IN)

2



10

0240-62210

Front Wheel Rubber Cover

2



11

0240-75100

Front Brake Wire

2



12

0316-83100

Brake Cover (RM83G FB)

2



13

0316-83200

Foot Guard Stay (RM83G FB)

2



14

80-1260-411-00

Front Wheel Tire (L) Assy (3.50-7)

1



15

80-1260-412-00

Front Wheel Tire (R) Assy (3.50-7)

1



16

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

8



17

89-1390-080162

Welded Bolt M8*16

4



18

89-1631-080042

Flange Mini Hexagonal Nut M8

12



19

89-1668-140042

Mini Low Fluted Nut (2 sorts) M14

2



20

89-1750-140002

Spring Washer 14

2



21

89-2120-250252

Split Pin 2.5*25

2



22

89-3115-060044

Bearing 6004 2RS

4



23

89-5221-025000

O Ring P25

2



27/45

FRONT    3/3



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0215-81500

Label Grease

2



2

0284-95600

King Pin RM88FB (R)

1



3

0284-95700

King Pin RM88FB (L)

1



4

0310-30100

Front Axle CMP

1



5

83-1310-371-00

Thrust Washer 20*30*1.0

4



6

83-1415-975-00

Grease Nipple M6

2



7

83-1490-337-00

Washer 20*38*3.2

2



8

89-2511-000200

Snap Ring (S20)

2



9

89-3510-025350

DU Bush 25.35

2



10

89-3511-020200

DU Bush 20.20.31F

4



28/45

CONTROL    1/2





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1490-263-10

Change Lever CMP

1



2

0247-26400

Change Lever Boss CMP

1



3

0284-71200

Differential Lock Wire

1



4

0310-70100

Throttle Wire (RM830)

1



5

0316-10200

Control Guide CMP (RM83G)

1



6

0316-10300

Shift Rod CMP (RM83G)

1



7

0316-71300

Label, Driving & Differential Lock (RM83

1



8

0240-71200

Label, Throttle

1



9

83-1020-363-00

Thrust Washer 16*24*1.0

1



10

83-1417-435-00

Lever Grip (Red)

1



11

89-1113-060143

Hexagonal Bolt (8T) M6*14

1



12

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



13

89-1251-080202

Flange Mini Hexagonal Bolt M8*20

1



14

89-1712-100000

Flat Washer 10

2



15

89-1750-060002

Spring Washer 6

1



16

89-1750-080002

Spring Washer 8

1



17

89-2131-100002

Snap Pin 10

2



18

89-2521-000150

E Type Ring 15

1



29/45

CONTROL    2/2













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1020-263-00

Control Lever Shaft Spring

1



2

0310-10600

Notch Ball Spring

1



3

0207-72600

Lever Grip 8 (black)

1



4

0215-70600

Lever Grip (Red)

1



5

0284-10500

Differential Lock Lever CMP

1



6

0310-10100

Throttle Lever (RM830)

1



7

0310-10200

Throttle ajustment Plate (RM830)

1



8

0316-10100

Change Bracket CMP (RM83G)

1



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



10

89-1561-100002

Mini Hexagonal U Nut M10

1



11

89-1611-100042

Mini Hexagonal Nut M10

2



12

89-1712-100000

Flat Washer 10

1



13

89-1852-100001

Belleville Spring H10

1



14

89-3410-080000

Steel Ball 8.0

1



30/45

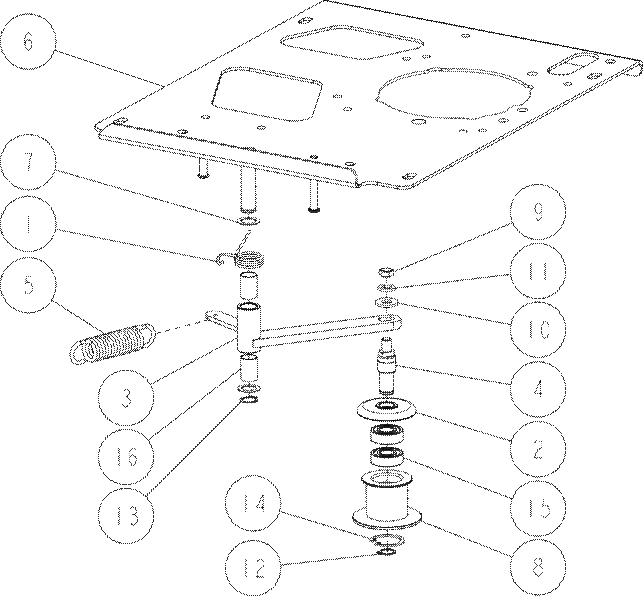

CUTTING    1/7























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0316-85500

Knife Belt Cover CMP (RM83G)

1



2

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3

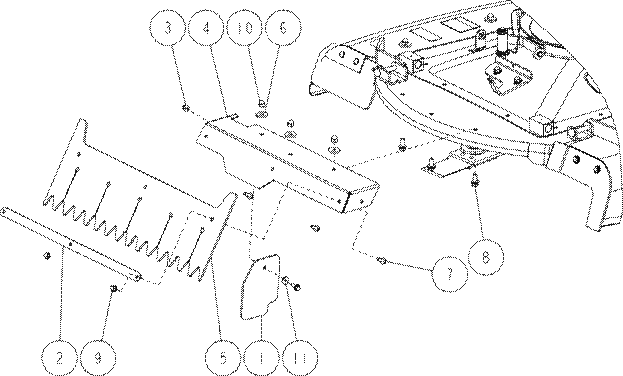

31/45

CUTTING    2/7

























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-62600

Side Flapper (Rear)

1



2

0294-60700

Rear Flapper Holder

1



3

0312-77500

Flange Cap Nut M6 (Meck)

1



4

0316-60100

Rear Guard (RM83G)

1



5

0316-60200

Rear Flapper (RM83G)

1



6

83-1751-312-00

Washer 8*25*3.2

3



7

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



9

89-1581-060042

Flange Cap Nut M6

3



10

89-1671-080042

Mini Cap Nut M8

3



11

89-1713-060002

Flat Washer 6 (large)

1



32/45

CUTTING    3/7













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-63900

Round Head Pin 10*72

2



2

0255-60800

Rear Side Flapper ( Left A)

1



3

0284-51300

Side Flapper (Front Left 88)

1



4

0312-77500

Flange Cap Nut M6 (Meck)

4



5

0316-85200

Left Cover CMP (RM83G FB)

1



6

0316-85300

Foot Guard Support (front)

1



7

83-1751-311-00

Flat Washer 8*25*2.3

2



8

83-1751-312-00

Washer 8*25*3.2

3



9

89-1137-060172

Hexagonal Bolt (PW) M6*17

2



10

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



11

89-1390-060142

Welded Bolt M6*14

2



12

89-1390-080162

Welded Bolt M8*16

2



13

89-1671-080042

Mini Cap Nut M8

5



14

89-1713-060002

Flat Washer 6 (large)

4



15

89-1714-100002

Flat Washer 10

2



16

89-2131-100002

Snap Pin 10

2



33/45

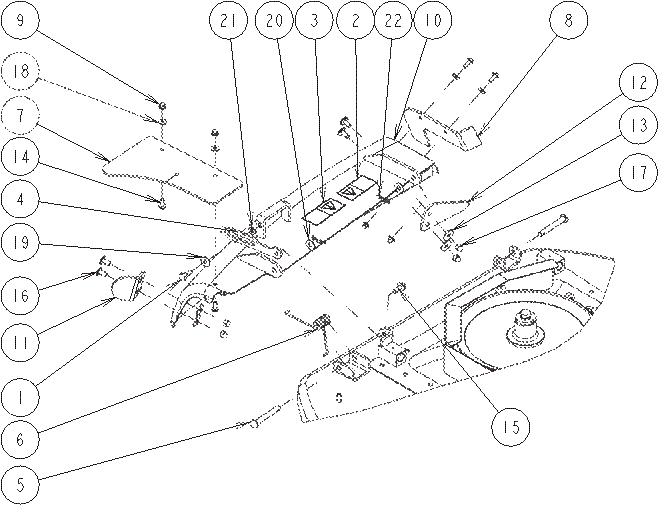

CUTTING    4/7





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1488-747-00

Bolt for Right Cover Up/Down Arm

1



2

80-1488-926-10

Label, Caution for Knife

1



3

80-1488-928-10

Label, Caution for Belt Involving

1



4

0221-52400

Right Cover Up/Down Arm

1



5

0244-63900

Round Head Pin 10*72

2



6

0244-71600

Spring for Right Cover

1



7

0284-51500

Side Flapper (Front Right 88)

1



8

0284-51600

Side Flapper (Rear Right 88)

1



9

0312-77500

Flange Cap Nut M6 (Meck)

4



10

0316-85100

Right Cover CMP (RM83G FB)

1



11

0316-85300

Foot Guard Support (front)

1



12

0316-85400

Foot Guard Support (rear)

1



13

83-1751-311-00

Flat Washer 8*25*2.3

4



14

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



15

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

1



16

89-1390-080162

Welded Bolt M8*16

4



17

89-1671-080042

Mini Cap Nut M8

4



18

89-1713-060002

Flat Washer 6 (large)

4



19

89-1713-080002

Flat Washer 8 (large)

1



20

89-1714-100002

Flat Washer 10

2



21

89-1750-080002

Spring Washer 8

1



22

89-2131-100002

Snap Pin 10

2



34/45

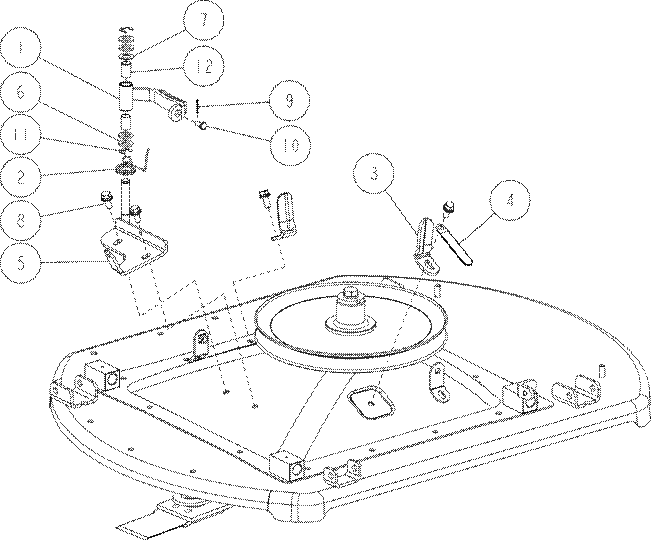

CUTTING    5/7













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1482-371-30

Knife Brake (6t)

1



2

80-1482-373-00

Brake Return Spring

1



3

80-1484-617-00

Knife Pulley Belt Holder

2



4

80-1792-988-00

Harness Clip 8

1



5

0207-52120

Knife Brake Bracket CMP (NEW)

1



6

83-1565-329-02

Washer 13*22*2.3

4



7

83-1754-329-00

Washer 13*22*1.0

1



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



9

89-2120-200152

Split Pin 2*15

1



10

89-2181-060162

Flat Head Pin 6*16

1



11

89-2521-000100

E Type Ring 10

2



12

89-3510-012200

DU Bush 12.20

2



35/45

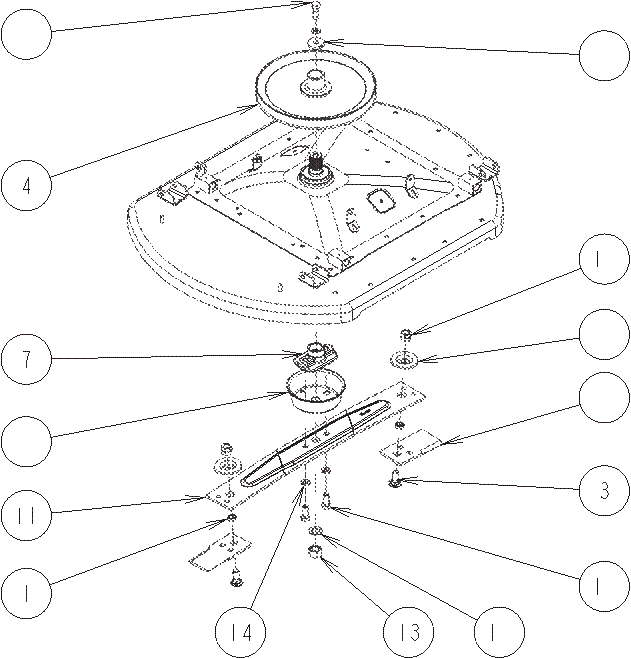

CUTTING    6/7



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1483-818-00

Knife Collar

2



2

80-1483-821-00

Knife

2



3

0207-50200

Knife Setting Bolt M14*34

2



4

0207-50400

Knife Pulley CMP

1



5

0221-76100

Washer 12*40*6

1



6

0221-76200

Mini Hexagonal Bolt (8T) M12*35

1



7

0238-51100

Knife Bracket

1



8

0244-51800

Nut Guard 14

2



9

0244-52100

Knife Neck Guard

1



10

0244-74600

Hard Lock Nut M14

2



11

0271-50100

Knife Stay R660C

1



12

83-1483-129-00

Mini Hexagonal Bolt (8T) M12*30

2



13

83-1483-175-00

Bag Nut M20 (Lock)

1



14

89-1750-120002

Spring Washer 12

3



15

89-1750-200002

Spring Washer 20

1

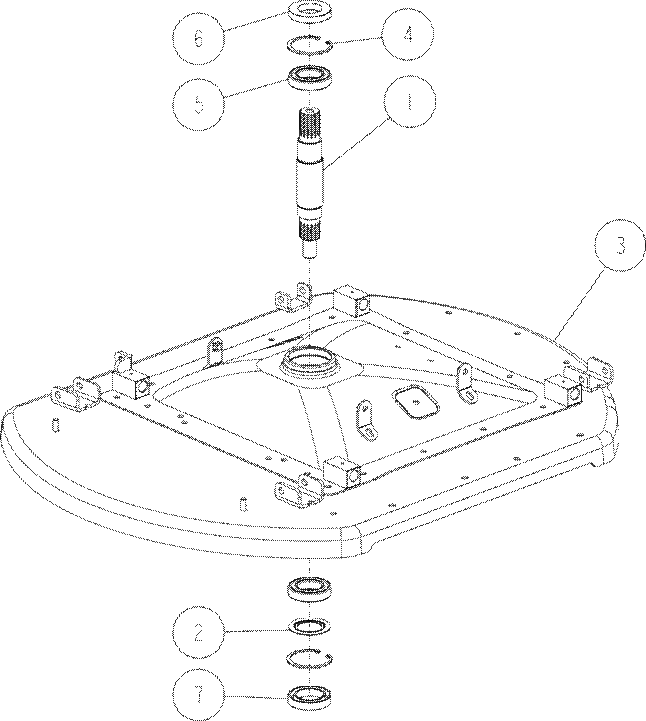

36/45

CUTTING    7/7







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1493-641-00

Vertical Shaft

1



2

0262-50100

Dust Plate

1



3

0284-50100

Safety Cover CMP

1



4

89-2512-000620

Snap Ring (R62)

2



5

89-3115-069074

Bearing 6907 2RS

2



6

89-5121-356210

Oil Seal UE 35.62.10

1



7

89-5121-406212

Oil Seal UE 40.62.12

1



37/45

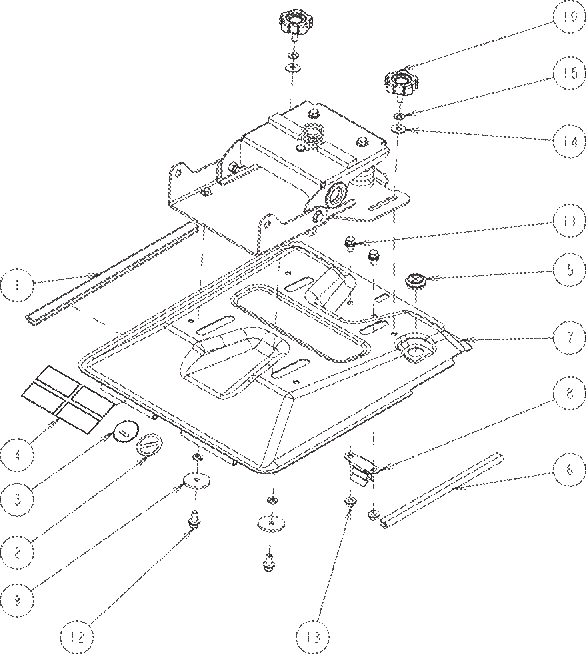

SEAT    1/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0271-72100

Seat (FK)

1



2

0316-21400

Seat Receive Pin (210L)

1



3

0316-82100

Seat Receiver CMP (RM83G)

1



4

0316-82200

Knife Clutch Return Plate (RM83G)

1



5

89-1111-060202

Hexagonal Bolt M6*20

2



6

89-1531-060042

Flange Nut M6

2



7

89-1631-080042

Flange Mini Hexagonal Nut M8

4



8

89-1713-060002

Flat Washer 6 (large)

2



9

89-1750-060002

Spring Washer 6

2



10

89-2131-120002

Snap Pin 12

2



38/45

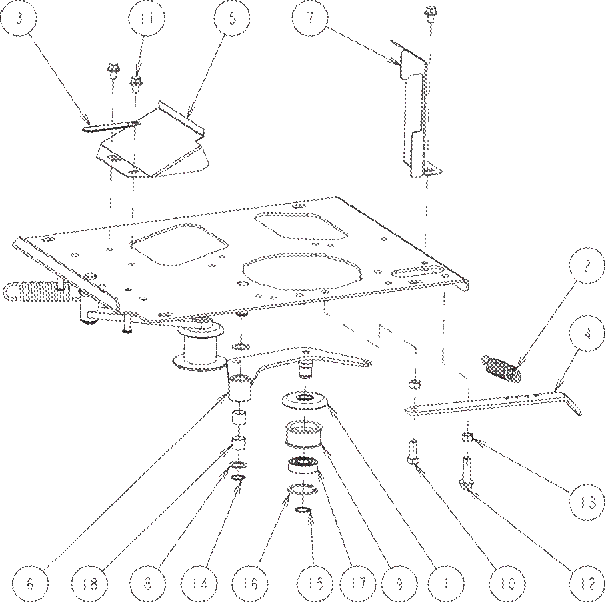

SEAT    2/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-76100

Trim 15*350

1



2

0215-83100

Attention Mark for Slope

1



3

0215-83200

Label, Protection Equipment

1



4

0223-76100

Label, Caution (Large)

1



5

0244-73700

Grommet 24

1



6

0284-72200

Seat Trim (L) 15×L250

1



7

0308-21100

Seat Bracket CMP

1



8

0312-70400

Bonnet Clip

1



9

83-1020-314-00

Washer 8*40*2.3

2



10

83-1560-101-00

Knob Bolt M8*15

2



11

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



12

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



13

89-1631-080042

Flange Mini Hexagonal Nut M8

2



14

89-1713-080002

Flat Washer 8 (large)

2



15

89-1750-080002

Spring Washer 8

4



39/45

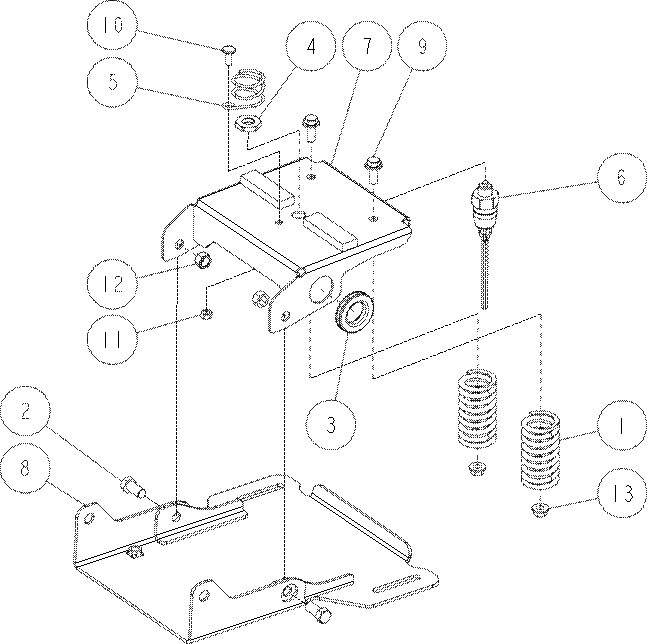

SEAT    3/3





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1484-494-10

Seat Spring φ33

2



2

0004-80400

Fitting Bolt M10*20

2



3

0207-70900

Grommet 30-3.2 (KG-G79QB)

1



4

0207-72800

Switch Lock Nut

1



5

0207-72900

Seat Switch Spring

1



6

0207-74400

Safety Switch K17850

1



7

0316-21100

Seat Switch Bracket CMP

1



8

0316-21200

Seat Base CMP

1



9

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

2



10

89-1390-060162

Welded Bolt M6*16

1



11

89-1511-060042

Hexagonal Nut M6

1



12

89-1561-100002

Mini Hexagonal U Nut M10

2



13

89-1631-080042

Flange Mini Hexagonal Nut M8

2



40/45

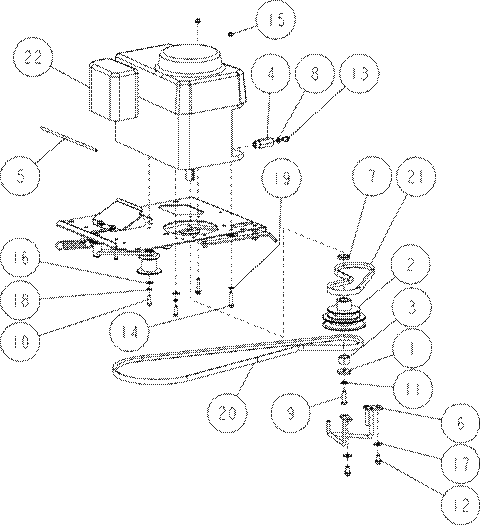

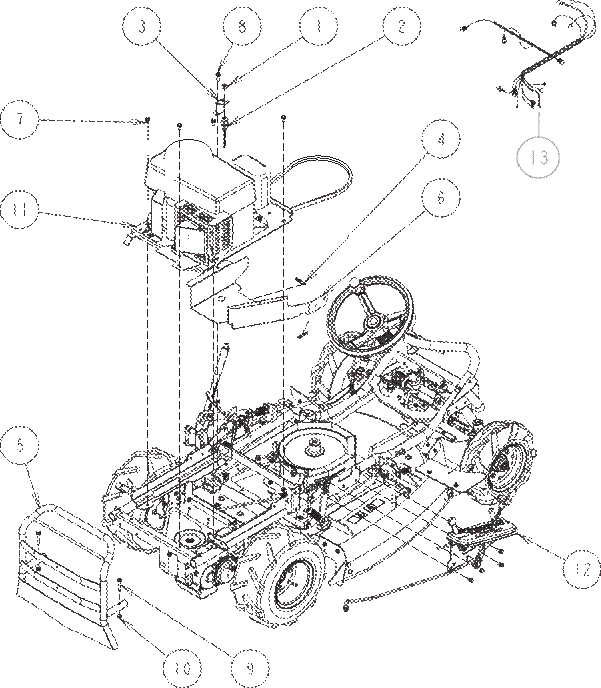

ENGINE    1/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1487-516-00

Washer 11*40*6

1



2

80-1488-514-00

Engine Pulley

1



3

80-1565-514-00

Engine Collar 16L

1



4

0220-40100

Extension Drain (RM830/83G)

1



5

0310-80200

Fuel Drain Hose 300L

1



6

0316-40200

Knife Belt Holder (Engine) CMP (RM83G

1



7

0316-41200

Engine Collar φ34*6L (RM83G)

1



8

83-1020-349-00

Copper Packing 10.5*18*1.6

1



9

83-1437-115-00

Hexagonal Bolt (8T) UNF7/16*35

1



10

83-1482-116-00

Hexagonal Bolt UNF5/16-24*25

2



11

83-1493-300-00

Spring Washer 7/16

1



12

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



13

89-1252-100123

Flange Mini Hexagonal Bolt M10*12 (slen

1



14

89-1253-080402

Flange Mini Hexagonal Bolt (8T) M8*40

2



15

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



16

89-1713-080002

Flat Washer 8 (large)

2



17

89-1713-100002

Flat Washer 10 (large)

2



18

89-1750-080002

Spring Washer 8

2



19

89-1812-080002

Toothed washer (inside) 8

1



20

89-6123-007503

V Belt LB-75 (SG1000)

1



21

89-6123-003003

V Belt LB-30 (SG1000)

1



22

9004-0071

GXV390RT1 DAE4

1



41/45

ENGINE    2/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1482-549-00

Rubber Cover 58

1



2

80-1485-551-00

Driving Tension Spring

1



3

80-1792-988-00

Harness Clip 8

1



4

0207-41100

Drive Tension Spring Arm

1



5

0240-23100

Protection Guard (H)

1



6

0316-40100

Drive Tension Arm CMP (RM83G)

1



7

0316-82300

Magnet Switch Cover

1



8

83-1020-363-00

Thrust Washer 16*24*1.0

2



9

83-1032-765-00

Tension Pulley

1



10

89-1211-100252

Mini Hexagonal Bolt M10*25

1



11

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



12

89-1253-100353

Flange Mini Hexagonal Bolt (8T) M10*35

1



13

89-1611-100042

Mini Hexagonal Nut M10

2



14

89-2511-000160

Snap Ring (S16)

1



15

89-2511-000170

Snap Ring (S17)

1



16

89-2512-000400

Snap Ring (R40)

1



17

89-3115-062034

Bearing 6203 2RS

1



18

89-3510-016150

DU Bush 16.15

2



42/45

ENGINE    3/3





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1481-568-00

Knife Tension Return Spring φ26.7

1



2

80-1482-549-00

Rubber Cover 58

1



3

0207-41210

Knife Tension Arm

1



4

0207-43100

Knife Tension Pulley Shaft

1



5

0207-78400

Spring For Knife Tension Return

1



6

0310-20300

Engine Base CMP (RM830)

1



7

83-1020-363-00

Thrust Washer 16*24*1.0

2



8

83-1483-782-10

Knife Tension Pulley

1



9

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

1



10

89-1713-100002

Flat Washer 10 (large)

1



11

89-1750-100002

Spring Washer 10

1



12

89-2511-000150

Snap Ring (S15)

1



13

89-2511-000160

Snap Ring (S16)

1



14

89-2512-000350

Snap Ring (R35)

1



15

89-3115-062024

Bearing 6202 2RS

2



16

89-3510-016250

DU Bush 16.25

2




43/45

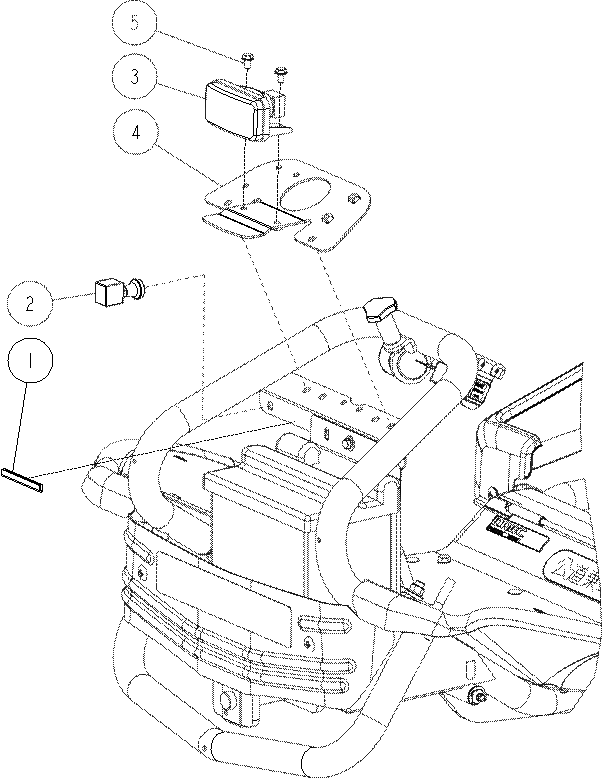

LIGHT OPTION     1/1



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1482-493-00

Ditch Gum L73

1



2

80-1484-337-00

Lighting Switch (B15930)

1



3

0244-72900

Head Lamp

1



4

0284-20600

Head Lamp Stay CMP

1



5

89-1137-060122

Hexagonal Bolt (PW) M6*12

2



-

0310-91000

Light Option Set

1

Include : 1 ～ 5

-

83-1711-719-00

Wire Band 200L

2



44/45

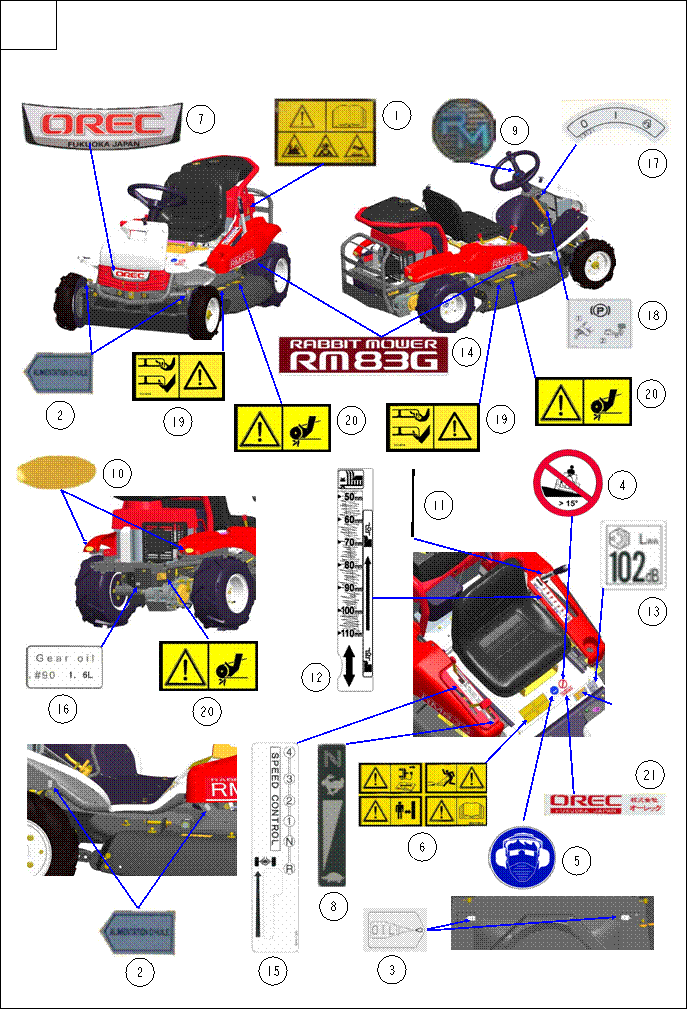

LABEL    1/2



















































































Serial Number

45/45

LABEL    2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0214-72100

Label, Caution for Engine etc

1



2

0215-81500

Label Grease

6



3

0215-81900

Label, Oiling

4



4

0215-83100

Attention Mark for Slope

1



5

0215-83200

Label, Protection Equipment

1



6

0223-76100

Label, Caution (Large)

1



7

0227-71600

Label, Main (OREC)

1



8

0240-71200

Label, Throttle

1



9

0244-80700

Label, Handle (Blue)

1



10

0244-81800

Reflection Seat

2



11

0259-80700

Label, Cutting Height Line

1



12

0284-88300

Label, Cutting Height Adjusting

1



13

0310-71300

Label, Noise 102db

1



14

0316-71200

Label, Side RM83G

2



15

0316-71300

Label, Driving & Differential Lock (RM83G)

1



16

80-1484-928-00

Label,Oil Quantity 1.6L

1



17

80-1488-912-00

Label, Key (13121)

1



18

80-1488-921-00

Label Pedal Stopper (13113)

1



19

80-1488-926-10

Label, Caution for Knife

2



20

80-1488-928-10

Label, Caution for Belt Involving

3



21

83-1310-902-00

OREC Mark

1
