OREC

ISSUED NO. RM982F EUO-2

Parts catalogue Rabbit Mower

(EXPORT MODEL) RM982F

MODEL               CODE



CONTENTS



Fig.1

Frame ----------------------------

1

Fig.3

Transmission -----------------

15

Fig.3

HST -------------------------------

23

Fig.4

Handle ---------------------------

25

Fig.5

Front -----------------------------

29

Fig.6

Tire -------------------------------

34

Fig.7

Control --------------------------

35

Fig.8

Cutting --------------------------

38

Fig.9

Seat -------------------------------

44

Fig.10

Engine ---------------------------

47

Fig.11

Label -----------------------------

50



RM982F/EU           0347-○○○○○



































OREC CO.,LTD

Update : Feb. 2018

1/51

Frame 1/14















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0227-12200

Pointer for Clinometer

1



2

0322-70900

Front Cover

1



3

0322-71200

Wing Stud φ 6*14

1



4

0322-71700

Retainer

1



5

0347-20400

Step Bumper CMP

1



6

89-1211-080252

Mini Hexagonal Bolt M8*25

2



7

89-1563-080003

Bag Hexagonal U Nut M8(UNI)

1



8

89-1611-080042

Mini Hexagonal Nut M8

2



9

89-1711-080002

Flat Washer 8

1



2/51

Frame 2/14





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0267-40900

Double Spring Bolt M

2



2

0312-76800

Side Cover (L) Red

1



3

0312-76700

Side Cover (R) Red

1



4

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

6



5

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



6

89-1714-080002

Flat Washer 8

2



3/51

Frame 3/14





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0028-70500

Center Step Hinge

4



2

0301-60400

Rubber 110L

2



3

0312-70400

Bonnet Clip

1



4

0347-25100

Step

1



5

0348-25200

Center Step CMP

1



6

0341-70100

Step Rubber

1

RH17M00103 ~

0348-70100

Step Rubber

1

~ RH17D00067

7

83-1020-314-00

Washer 8*40*2.3

2



8

83-1484-369-00

Clip (5347)

18



9

89-1137-060172

Hexagonal Bolt (PW) M6*17

2



10

89-1159-080168

Truss Mini Screw M8*16

2



11

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



12

89-1531-060042

Flange Nut M6

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



4/51

Frame 4/14

























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0347-20300

Sub Frame CMP

1



2

89-1213-100652

Mini Hexagpnal Bolt (8T) M10*65

2



3

89-1631-100042

Flange Mini Hexagonal Nut M10

2



4

89-1714-100002

Flat Washer 10

2



5/51

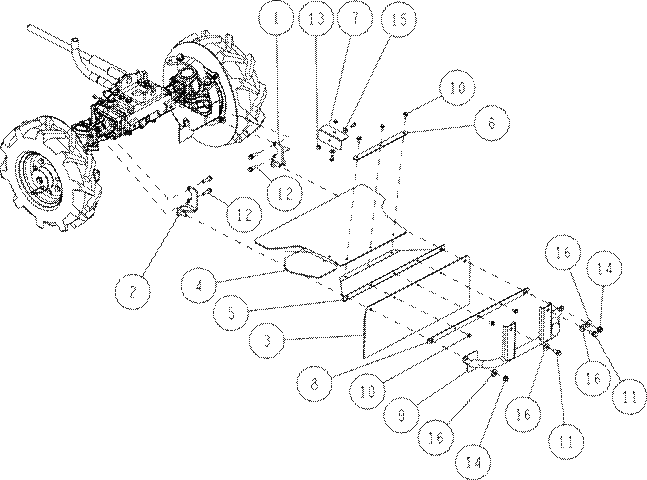

Frame 5/14





Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-71000

Fuel Tank Assy

1

Include : 3,4,5,6,11

1

80-1920-306-00

Stopper Rubber B-4

1



2

0322-60200

Rear Fender Cover (R)

1



3

0322-60400

Fuel Tank Cover Stay

1



4

0322-70100

Fuel Tank CMP

1



5

0322-76000

Fuel Tank Cap Assy (with valve)

1



6

0322-70600

Fuel Gauge

1



7

0322-70700

Fuel Filter

1



8

0322-73200

Tank Cover White

1



9

0348-20300

Fuel Tank Holder CMP

1



10

89-1111-060252

Hexagonal Bolt M6*25

1



11

89-1152-050122

Cross recess Headed Screw M5*12

2



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



14

89-1238-080162

Mini Hexagonal Bolt (SW) M8*16

2



15

89-1531-060042

Flange Nut M6

1



16

89-1713-080002

Flat Washer 8 (large)

2



6/51

Frame 6/14

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-75400

Brake Spring 30

1



2

0301-60400

Rubber 110L

1



3

0347-42100

Rear Belt Cover

1



4

Transmission Part

-

1

Page 15 ~

5

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



6

89-1561-080002

Mini Hexagonal U Nut M8

1



7

89-1611-080042

Mini Hexagonal Nut M8

1



8

89-1631-080042

Flange Mini Hexagonal Nut M8

1



9

89-1711-080002

Flat Washer 8

2



7/51

Frame 7/14







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-77100

Battery Plus Cord 230

1



2

0227-32200

Center Pin CMP (RM980F)

1



3

0322-22200

Battery Holder

1



4

0322-72200

Battery Minus Cord

1



5

0322-72300

Cushion Rubber (Battery)

1



6

Front Part

-

1

Page 29 ~

7

Handle Part

-

1

Page 25 ~

8

83-1415-975-00

Grease Nipple M6

1



9

83-1481-328-00

Washer 12*30*3.2

1



10

89-1551-120002

Hexagonal U Nut M12

1



11

89-1631-080042

Flange Mini Hexagonal Nut M8

3



12

89-1750-120002

Spring Washer 12

1



13

89-3510-025350

DU Bush 25.35

2



14

89-1236-080252

Mini Hexagonal Bolt (PWSW) M8*25

4



15

0347-72100

Wire Harness (RM982F/K)

1



8/51

Frame 8/14



S/N : ~ RH17D00067













S/N : RH17M00103 ~







2-2





2-2







8-2

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1493-354-00

Rod Return Spring

1



2-2

2-1

0310-73700

Pedal Rubber

2

RH17M00103 ~

0312-71100

Brake Pedal Rubber

1

~ RH17D00067

3

0312-23100

Brake Stopper CMP

1



4

0312-23200

Brake Stopper Return Spring

1



5

0329-60210

Center Belt Cover (RMK150)

1



6

0347-10100

Pedal Stay CMP

1

RH17M00103 ~

7

0347-10200

Change Pedal CMP

1

RH17M00103 ~

8-2

8-1

0347-10400

Brake Pedal CMP

1

RH17M00103 ~

0347-10400

Brake Pedal CMP

1

~ RH17D00067

9

0347-12100

Brake Rod CMP

1



10

Control Part

-

1

Page 35 ~

11

83-1415-975-00

Grease Nipple M6

1



12

83-1515-975-00

Grease Nipple C-Type M6

1

RH17M00103 ~

13

89-1213-100302

Mini Hexagonal Bolt (8T) M10*30

1

RH17M00103 ~

14

89-1113-100357

Hexagonal Bolt (8T) M10*35

1



15

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2

RH17M00103 ~

16

89-1611-100042

Mini Hexagonal Nut M10

1



17

89-1631-100042

Flange Mini Hexagonal Nut M10

1

RH17M00103 ~

18

89-1711-120002

Flat Washer 12

1



19

89-2131-120002

Snap Pin 12

1



20

89-2521-000120

E Type Ring 12

3

RH17M00103 ~

21

89-3510-016150

DU Bush 16.15

1



22

89-3510-016250

DU Bush 16.25

4

RH17M00103 ~


9/51

Frame 9/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0227-41000

Knife Tension Pulley (A) Set

2

Include : 4,5,11,13,14

1

80-1482-549-00

Rubber Cover 58

2



2

80-1483-568-00

Knife Tension Return Spring

1



3

0207-78400

Spring For Knife Tension Return

1



4

0227-40300

Knife Tension Pulley (A)

2



5

0244-42800

Tension Idler Shaft

2



6

0329-41200

Knife Tension Arm CMP(RMK150)

1



7

83-1020-363-00

Thrust Washer 16*24*1.0

2



8

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

2



9

89-1713-100002

Flat Washer 10 (large)

2



10

89-1750-100002

Spring Washer 10

2



11

89-2511-000150

Snap Ring (S15)

2



12

89-2511-000160

Snap Ring (S16)

1



13

89-2512-000350

Snap Ring (R35)

2



14

89-3115-062024

Bearing 6202 2RS

4



15

89-3510-016250

DU Bush 16.25

2



10/51

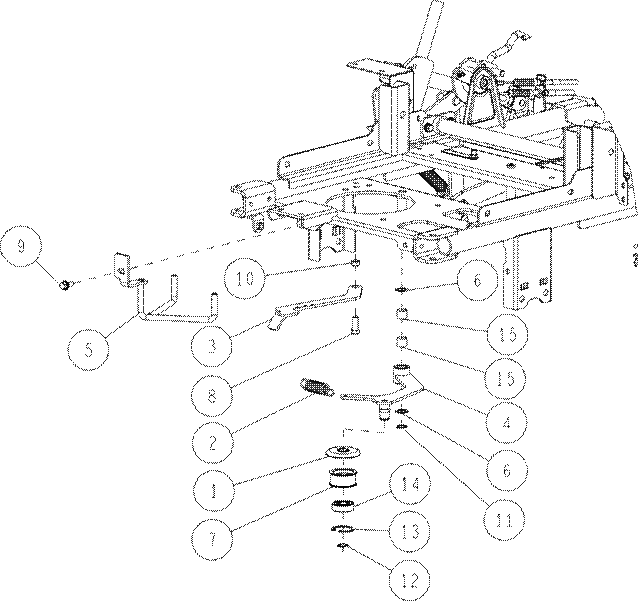

Frame 10/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

83-1032-760-00

Tension Pulley Assy

1

Inclede : 7,13,14

1

80-1482-549-00

Rubber Cover 58

1



2

80-1485-551-00

Driving Tension Spring

1



3

0322-41400

Driving Tension Spring Arm

1



4

0347-41100

Driving Tension Arm CMP

1



5

0312-41400

Belt Holder CMP (Engine)

1

RH17M00103 ~

0347-41200

Belt Holder CMP (Engine)

1

~ RH17D00067

6

83-1020-363-00

Thrust Washer 16*24*1.0

2



7

83-1032-765-00

Tension Pulley

1



8

89-1211-100252

Mini Hexagonal Bolt M10*25

1



9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



10

89-1611-100042

Mini Hexagonal Nut M10

1



11

89-2511-000160

Snap Ring (S16)

1



12

89-2511-000170

Snap Ring (S17)

1



13

89-2512-000400

Snap Ring (R40)

1



14

89-3115-062034

Bearing 6203 2RS

1



15

89-3510-016150

DU Bush 16.15

2



11/51

Frame 11/14

















Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0347-53000

Link Pin Assy (with Nipple)

1

Include : 6,9

1

80-1484-276-10

Spring (Up/Down)

2



2

0207-76800

Washer 16*32*2.3

2



3

0347-52100

Front Link Arm (R) CMP

1



4

0347-52200

Front Link Arm (L) CMP

1



5

0347-52300

Connecting Plate

2



6

0347-53100

Link Pin

1



7

0348-50500

Rear Link Arm (R) CMP

1



8

0348-50600

Rear Link Arm (L) CMP

1



9

83-1415-975-00

Grease Nipple M6

8



10

83-1751-311-00

Flat Washer 8*25*2.3

2



11

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

2



12

89-2131-160002

Snap Pin 16

2



13

89-2521-000120

E Type Ring 12

9



12/51

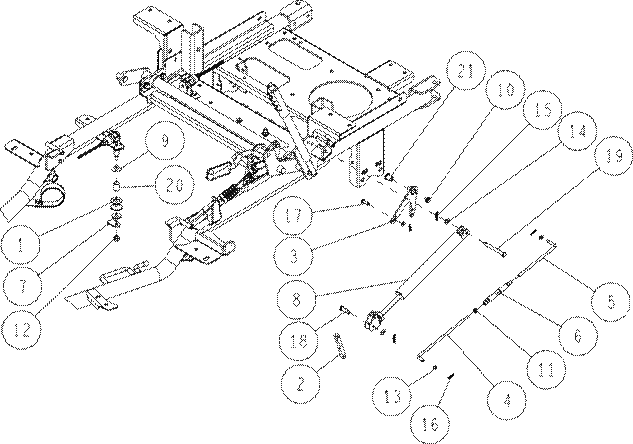

Frame 12/14









Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-73700

Gas Spring Free Lock Type(FLC75- 60) set

1

Include : 2,8

-

0244-11000

Adjusting Rod Assy

1

Include : 4,5,6,11

1

80-1484-354-10

Brake Rod Roller

1



2

0244-10500

Lock Pusher

1



3

0244-11300

Push Rod Receiver CMP

1



4

0244-11400

Adjuster Rod (R)

1



5

0244-11500

Adjuster Rod (L)

1



6

0244-11600

Turn Buckle (Pipe Type)

1



7

0244-22600

Brake Rod Hung Plate

1



8

0322-73900

Gas Spring Free Lock Type(FLC75- 60)

1



9

83-1020-355-00

Thrust Washer 12*24*1.0

2



10

89-1137-060122

Hexagonal Bolt (PW) M6*12

1



11

89-1511-060042

Hexagonal Nut M6

1



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



13

89-1711-060002

Flat Washer 6

3



14

89-1711-080002

Flat Washer 8

2



15

89-2131-080002

Snap Pin 8

2



16

89-2132-060002

Snap Pin 6 (with stopper)

3



17

89-2181-060202

Flat Head Pin 6*20

1



18

89-2181-080282

Flat Head Pin 8*28

1



19

89-2181-080692

Flat Head Pin 8*69

1



20

89-3510-012200

DU Bush 12.20

1



21

89-3511-010150

DU Bush 10.15.18F

1



13/51

Frame 13/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

2



2

0207-72800

Switch Lock Nut

2



3

0207-74400

Safety Switch K17850

2



4

0227-00900

Wire Band

1



5

0244-11200

Push Rod

1



6

0244-13700

Wire Joint CMP

1



7

0244-70200

Adjusting Shaft Grip

1



8

0289-71300

Arm Grip (Red)

1



9

0322-75210

Knife Brake Wire

1



10

0322-75110

Knife Clutch Wire

1



11

0322-13300

Safety Switch Setting Plate

1



12

0347-20100

Frame CMP

1



13

0348-12100

Knife Clutch Lever CMP

1



14

0348-50400

Up/Down Adjusting Shaft CMP

1



15

89-1132-060162

Hexagonal Bolt (SW) M6*16

2



16

89-1138-060162

Hexagonal Bolt (SW) M6*16

1



17

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



18

89-1531-060042

Flange Nut M6

1



19

89-1631-080042

Flange Mini Hexagonal Nut M8

1



20

89-1711-060002

Flat Washer 6

3



21

89-2132-060002

Snap Pin 6 (with stopper)

3



22

89-2521-000120

E Type Ring 12

1



14/51

Frame 14/14









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0229-13100

Rubber, L20

1



3

0322-22500

Upper Belt Cover

1



4

Engine Part

-

1

Page 47 ~

5

Cutting Part

-

1

Page 38 ~

6

Seat Part

-

1

Page 44 ~

7

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



15/51

Transmission 1/8















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

1



2

0207-77800

Wheel Boss Dust Seal

2



3

0227-02200

Fan Cover Setting CMP (RM980F)

1



4

0227-02900

Fan Cover CMP (RM980F)

1



5

0244-74300

Rear Tire (R) Assy (17×8.00-8)(Include Wheel Boss)

1



6

0244-74400

Rear Tire (L) Assy (17×8.00-8)(Include Wheel Boss)

1



7

0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7T Lock)

4



8

0347-01100

Transmission Hanger Stay CMP

1



9

83-1630-335-00

Washer 16*40*4.5

2



10

89-1211-080352

Mini Hexagonal Bolt M8*35

1



11

89-1561-080002

Mini Hexagonal U Nut M8

1



12

89-1631-080042

Flange Mini Hexagonal Nut M8

3



13

89-1658-160042

Low Fluted Nut (2 sorts) M16

2



14

89-1750-080002

Spring Washer 8

1



15

89-1750-160002

Spring Washer 16

2



16

89-2120-350352

Split Pin 3.5*35

2



17

89-2150-070500

Key 7*50 (round)

2



16/51

Transmission 2/8































Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-03100

Mission Guard CMP

1



2

0227-00300

Fan (RM980F)

1



3

0227-02300

Double Spring Bolt 125

2



4

HST Part

-

1

Page 23 ~

5

89-1232-080122

Mini Hexagonal Bolt (SW) M8*12

4



6

89-1251-081303

Flange Mini Hexagonal Bolt M8*130

2



7

89-1750-080002

Spring Washer 8

2



8

89-2150-050200

Key 5*20 (round)

1



9

89-5222-045000

O Ring G45

2



17/51

Transmission 3/8











Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0207-73000

Brake Assy

1

Inclede : 1,2,4,5,6,7,9,11,13

-

0207-73200

Brake Cap Assy

1

Include : 2,4,5,6,9,11,13

1

80-1030-282-00

Brake Drum (PA-7)

1



2

80-1030-285-00

Spring for Brake Shoe Return

1



3

0207-10300

Brake Joint

1



4

-

-

1



5

0207-73800

Brake Cap Assy

1



6

0244-88100

Brake Shoe Set (PA-7)

1



7

0308-00300

Brake Cover PK (PA-7)

1



8

89-1113-060122

Hexagonal Bolt (8T) M6*12

4



9

89-1611-100042

Mini Hexagonal Nut M10

1



10

89-1711-080002

Flat Washer 8

1



11

89-1712-100000

Flat Washer 10

1



12

89-1750-060002

Spring Washer 6

4



13

89-1750-100002

Spring Washer 10

1



14

89-2120-200152

Split Pin 2*15

1



15

89-2511-000150

Snap Ring (S15)

1



16

89-5125-153007

Oil Seal UE 15.30.07F

1




18/51

Transmission 4/8





Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0289-01000

Oil Plug Assy (with O Ring)

1

Include : 2,15

-

0244-08000

Oil Seal 25.47.15(with DP)

1

Include : 5,14

1

0215-00100

Driving Clutch Arm

1



2

0289-01100

Oil Plug Assy (with O Ring)

1



3

0312-01100

Axle Case (L) CMP

1



4

83-1020-349-00

Copper Packing 10.5*18*1.6

1



5

83-1415-663-00

Oil Seal DP 25.30.15

1



6

83-1415-671-00

Blind Cover 22

1



7

89-1238-080202

Mini Hexagonal Bolt (SW) M8*20

6



8

89-1252-100122

Flange Mini Hexagonal Bolt M10*12 (slender)

1



9

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



10

89-2512-000470

Snap Ring (R47)

1



11

89-3115-060054

Bearing 6005 2RS

2



12

89-5121-122207

Oil Seal UE 12.22.7

1



13

89-5121-284708

Oil Seal UE 28.47.8

1



14

89-5121-304707

Oil Seal UE 30.47.7

1



15

89-5221-024000

O Ring P24

1



19/51

Transmission 5/8



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1310-138-00

Spring 1.4

1



2

0207-00100

Transmission Case(L)

1



3

0207-00400

20T Spiral Mita Gear(L)

1



4

0207-01700

Swing Arm CMP

1



5

0207-01900

Shift Spring Holder

1



6

0207-40200

Transmission Pulley

1



7

0281-00300

A Axle

1



8

83-1020-148-00

Tapping Bolt M6*14

2



9

83-1482-143-00

Tapping Bolt M8*25

12



10

83-1482-311-00

Washer 6.5*22*3.2

1



11

89-1113-060202

Hexagonal Bolt (8T) M6*20

1



12

89-1750-060002

Spring Washer 6

1



13

89-2150-050160

Key 5*16 (round)

1



14

89-2151-050200

Key 5*20 (half round)

1



15

89-2511-000170

Snap Ring (S17)

1



16

89-2512-000420

Snap Ring (R42)

1



17

89-3115-060044

Bearing 6004 2RS

2



18

89-3410-080000

Steel Ball 8.0

1



19

89-5121-204208

Oil Seal UE 20.42.8

1




20/51

Transmission 6/8















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-00500

20T Spiral Mita Gear(R)

1



2

0207-00700

C Axle

1



3

0207-01310

Brake Shaft 34T Gear

1



4

0207-01400

D Axle 37T Gear

1



5

0207-01600

Shift Fork Shaft CMP

1



6

0207-02700

D Axle

1



7

0215-00300

Brake Shaft

1



8

0215-00400

Shift Gear 28

1



9

0215-00500

C Axle Collar 26

1



10

0227-00100

B Axle

1



11

83-1020-361-00

Thrust Washer 15*24*1.0

1



12

89-3111-060044

Bearing 6004

4



13

89-3111-062024

Bearing 6202

2



14

89-3111-062034

Bearing 6203

2



21/51

Transmission 7/8













Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0244-08000

Oil Seal 25.47.15(with DP)

1

Include : 7,17

1

80-1488-153-00

Differential Lock Arm

1



2

80-1830-113-00

Differential Lock Fork

1



3

0207-00200

Transmission Case(R)

1



4

0207-01800

Differential Lock Fork Shaft

1



5

0207-06100

Air Bleezer

1



6

0312-01200

Axle Case (R) CMP

1



7

83-1415-663-00

Oil Seal DP 25.30.15

1



8

83-1415-671-00

Blind Cover 22

1



9

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

6



10

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



11

89-2111-030020

Spring Pin 3*20

1



12

89-2111-050022

Spring Pin 5*22

1



13

89-2512-000470

Snap Ring (R47)

1



14

89-3115-060054

Bearing 6005 2RS

2



15

89-5121-122207

Oil Seal UE 12.22.7

1



16

89-5121-284708

Oil Seal UE 28.47.8

1



17

89-5121-304707

Oil Seal UE 30.47.7

1



22/51

Transmission 8/8













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-150-00

Axle Pin

1



2

80-1425-143-00

Differential Lock Cone

1



3

80-1481-151-00

Differential Lock Plate

1



4

80-1481-152-00

Differential Lock Gear 11T

4



5

80-1481-155-00

Differential Gear Shaft Collar

4



6

80-1751-162-00

Differential Lock Spring

1



7

0207-02800

Axle Gear CMP

1



8

0312-02100

Axle (L) CMP

1



9

0312-02200

Axle (R) CMP

1



10

83-1830-382-00

Thrust Washer 40*48*1.0

1



11

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

6



12

89-1750-100002

Spring Washer 10

6



13

89-2511-000280

Snap Ring (S28)

1



14

89-2511-000400

Snap Ring (S40)

1



15

89-3410-075000

Steel Ball 7.5

3



16

89-3510-028300

DU Bush 28.30

1



23/51

HST 1/2





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0227-01400

Port Joint 7/8-14UNF

1



2

0227-01500

Poet Joint G1/4

1



3

0227-02600

HST Hose

1



4

0227-02700

HST Hose (Oil Filter)

2



5

0227-03100

Hose Clip 17

2



6

0312-74400

Hose Band 16-25

5



7

0347-00500

HST Oil Tank Setting CMP

1



8

0347-01200

HST Oil Tank CMP

1



9

0347-01300

HST Oil Tank Cap (KRM-ABG2-FW)

1



10

0347-01400

Oil Gauge Window (KMH-4)

1



11

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



12

0227-00600

HST Hose

1



13

0347-00200

Oil Filter

1




24/51

HST 2/2



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0227-00400

Oil Pressure Hose 1590

1



2

0227-00700

Different Diameter Joint

2



3

0227-01300

Oil Pressure Hose 1670

1



4

0347-02100

Control Arm CMP

1



5

89-1113-060202

Hexagonal Bolt (8T) M6*20

1



6

89-1511-060042

Hexagonal Nut M6

1



7

0227-01100

HST Unit 13cc

1



25/51

Handle 1/4







Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0262-70100

Steering Wheel Assy

1

Include : 2,3,4

1

0207-79200

Fuse Box Bracket

1



2

0262-70300

Sub Handle Assy

1



3

0262-70400

Steering Wheel

1



4

0262-70500

Steering Cap

1



5

0312-11700

Handle Stay Cover Holder

2



6

0312-77900

Fuse Box Cover

1

Only Cover

7

0322-11500

Meter Panel Cover

1



8

0322-73000

Magnet Switch Set

1



9

0348-14700

Fuse Box Bracket

1



10

89-1137-060152

Hexagonal Bolt (PW) M6*15

4



11

89-1159-060108

Truss Mini Screw M6*10

4



12

89-1531-060042

Flange Nut M6

4



13

89-1561-100002

Mini Hexagonal U Nut M10

1



14

89-1713-100002

Flat Washer 10 (large)

1



15

89-1812-060002

Toothed washer (inside) 6

1



26/51

Handle 2/4







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0207-79300

Pilot Lamp

1



3

0207-79700

Key Switch (NMA03-A020)

1



4

0244-70300

Lighting Switch

1



5

0244-70400

Lamp, Caution for Engine Oil

1



6

0244-73600

Hour Meter

1



7

0322-11100

Tilt Pin CMP

1



8

0322-71100

Clip φ 6

1



9

0322-71300

Head Lamp

1



10

0347-13400

Handle Stay CMP

1



11

0347-13500

Meter Panel CMP

1



12

0347-13700

Head Lamp Stay

1



13

0347-13800

Steering Gear Box Holder

1



14

0348-10700

Flat Washer 9*35*3.2

1



15

0348-70200

Choke Wire

1



16

0348-71400

Cramp Lever

1



17

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



18

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

10



19

89-1631-080042

Flange Mini Hexagonal Nut M8

3



20

89-1750-080002

Spring Washer 8

1



27/51

Handle 3/4





Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0245-71000

Universal Joint Assy

1

Include : 7,8,9

-

0227-33000

Tie Rod Adjuster Assy

1

Include : 2,3,4,5,6,18

1

0212-72100

Hexagonal Bolt(8T) M10*25(Meck)

1



2

0227-32100

Tie Rod Adjuster

1



3

0244-71700

Link Ball 12 (R)

1



4

0244-71800

Link Ball 12 (L)

1



5

0244-71900

Tough Lock Nut M12=P1.25

2



6

0244-73800

Hexagonal Nut (slender) M12 Left

1



7

0245-71100

Universal Joint NC-12

1



8

0245-71200

Universal Joint Pin

2



9

0245-71300

Universal Joint Ring

2



10

0347-13100

Steering Arm CMP

1



11

0347-13200

Steering Lower Shaft

1



12

0347-13310

Steering Upper Shaft CMP

1



13

0348-14310

Handle Support CMP

1



14

0348-14600

Bolt for Upper Shaft Setting

1



15

83-1610-324-00

Washer 10*36*3.2

1



16

89-1236-080252

Mini Hexagonal Bolt (PWSW) M8*25

4



17

89-1553-060002

Bag Hexagonal U Nut M6

1



18

89-1612-120042

Mini Hexagonal Nut (Slender) M12

1



19

89-1750-100002

Spring Washer 10

1



20

89-2151-070240

Key 7*24 (half round)

1



22

89-3511-025250

DU Bush 25.25.36F

1



28/51

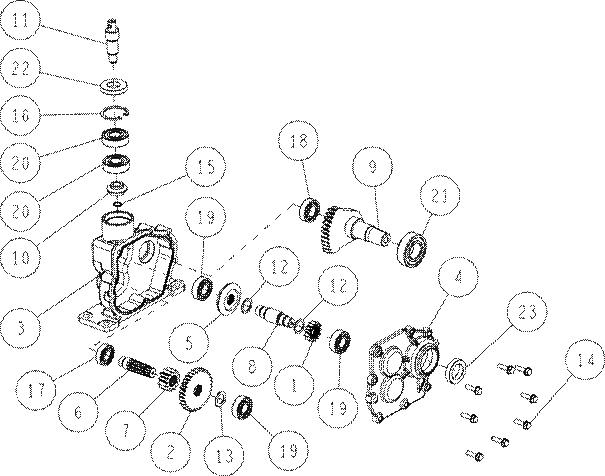

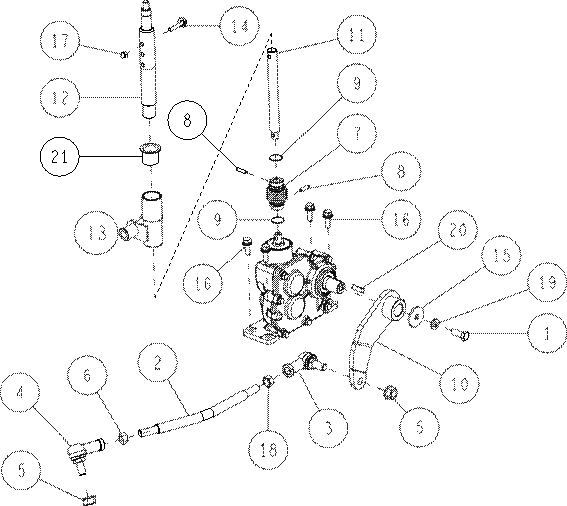

Handle 4/4





Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0347-13000

Steering Gear Box Assy

1

Include : 1~23

1

80-1321-131-10

2nd Shaft 13T

1



2

0223-01500

3rd Shaft Gear 31T

1



3

0227-36100

Steering Gear Box (A)

1



4

0227-36200

Steering Gear Box (B)

1



5

0227-36300

Bevel Gear 34T

1



6

0227-36400

2nd Shaft

1



7

0227-36500

2nd Shaft 12T

1



8

0227-36600

1st Shaft

1



9

0227-36700

Steering Output Shaft

1



10

0313-05400

Bevel Gear 19T

1



11

0347-13600

Handle Input Shaft

1



12

83-1017-365-10

Thrust Washer 17*23*1.0

2



13

83-1020-361-00

Thrust Washer 15*24*1.0

1



14

83-1515-148-00

Tapping Bolt M6*22

8



15

89-2511-000100

Snap Ring (S10)

1



16

89-2512-000400

Snap Ring (R40)

1



17

89-3111-060024

Bearing 6002

1



18

89-3111-060034

Bearing 6003

1



19

89-3111-062024

Bearing 6202

3



20

89-3115-062034

Bearing 6203 2RS

2



21

89-3115-062054

Bearing 6205 2RS

1



22

89-5121-204008

Oil Seal UE 20.40.8

1



23

89-5121-253808

Oil Seal UE 25.38.8

1



29/51

Front 1/5













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0227-31100

Front Flapper Stay (Left) CMP

1



2

0227-31200

Front Flapper Stay (Right) CMP

1



3

0227-60100

Front Flapper

1



4

0227-60310

Upper Flapper

1



5

0227-60400

Front Upper Guard CMP

1



6

0244-61700

Upper Flapper Holder

1



7

0284-53200

Upper Flapper

1



8

0347-31200

Front Flapper Holder

1



9

0347-31300

Foot Guard CMP

1



10

89-1137-060152

Hexagonal Bolt (PW) M6*15

8



11

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



12

89-1253-080302

Flange Mini Hexagonal Bolt (8T) M8*30

4



13

89-1581-060042

Flange Cap Nut M6

2



14

89-1631-100042

Flange Mini Hexagonal Nut M10

2



15

89-1713-060002

Flat Washer 6 (large)

2



16

89-1713-100002

Flat Washer 10 (large)

4



30/51

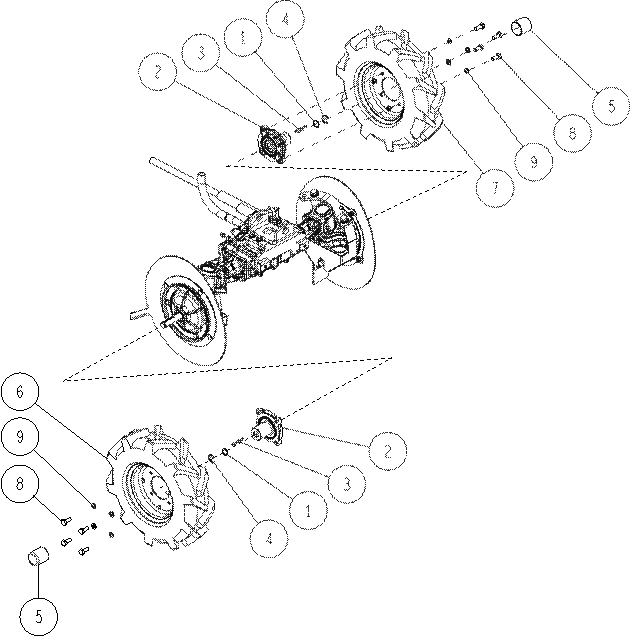

Front 2/5









Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0227-70510

Front Wheel Tire (L) ASSY (Include Wheel Boss)

1

Include : 2,7,8,9

-

0227-70410

Front Wheel Tire (R) ASSY (Include Wheel Boss)

1

Include : 2,6,8,9

1

0010-71500

Thrust Washer 19*25*1.0

2



2

0227-30110

Front Wheel Boss

2



3

0227-32300

key 3/16*3/16*50

2



4

0227-32400

Snap Ring for Axes(RM980F)

2



5

0227-70300

Front Wheel Cap (φ42L*50)

2



6

0244-79110

Front Wheel Tire (R) Assy (400-7)

1



7

0244-79210

Front Wheel Tire (L) Assy (4.00-7)

1



8

89-1113-100252

Hexagonal Bolt (8T) M10*25

8



9

89-1750-100002

Spring Washer 10

8



31/51

Front 3/5











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0227-30210

Front Wheel Rubber Cover Installation

1



2

0227-30400

Front Wheel Rubber Cover

1



3

0227-30700

Front Axle Cover Left CMP

1



4

0227-30800

Axle Cover Flapper

1



5

0227-30900

Steering Knuckle Arm

1



6

0227-32600

Axle Dust Guard

1



7

0227-32700

Front Wheel Rubber Cover Press

1



8

0347-31400

Foot Guard (L)

1

~ RH17D00067

9

89-1111-120952

Hexagonal Bolt M12*95

1



10

89-1113-120352

Hexagonal Bolt (8T) M12*35

1



11

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



12

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2

~ RH17D00067

13

89-1631-080042

Flange Mini Hexagonal Nut M8

4



14

89-1713-060002

Flat Washer 6 (large)

2



15

89-1713-120002

Flat Washer 12 (large)

2



16

89-1750-120002

Spring Washer 12

2



32/51

Front 4/5













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0227-30210

Front Wheel Rubber Cover Installation

1



2

0227-30400

Front Wheel Rubber Cover

1



3

0227-30600

Front Axle Cover Right CMP

1



4

0227-30800

Axle Cover Flapper

1



5

0227-32600

Axle Dust Guard

1



6

0227-32700

Front Wheel Rubber Cover Press

1



7

0347-31500

Foot Guard (R)

1

~ RH17D00067

8

89-1111-120252

Hexagonal Bolt M12*25

2



9

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



10

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2

~ RH17D00067

11

89-1631-080042

Flange Mini Hexagonal Nut M8

4



12

89-1713-060002

Flat Washer 6 (large)

2



13

89-1713-120002

Flat Washer 12 (large)

2



14

89-1750-120002

Spring Washer 12

2



33/51

Front 5/5



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0227-00400

Oil Pressure Hose 1590

1



2

0227-00500

Hose Joint

1



3

0227-00600

HST Hose

1



4

0227-00800

Joint 3-4-16UNF

1



5

0227-01300

Oil Pressure Hose 1670

1



6

0227-01600

Adjustable Elbow

1



7

0227-01700

Hose Press Board

1



8

0312-74400

Hose Band 16-25

1



9

0347-31100

Front Axle Holder CMP

1



10

89-1232-100252

Mini Hexagonal Bolt (SW) M10*25

6



11

89-1238-080202

Mini Hexagonal Bolt (SW) M8*20

1



12

89-1239-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



13

89-1714-100002

Flat Washer 10

6



14

89-5221-014000

O Ring P14

1



15

0227-01210

Front Unit Assy (KXH-10F)

1



34/51

Tire 1/1























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-404-00

Tire Tube 3.50-7

2



2

80-1260-407-00

Wheel Assy 3.50-7

2



3

0244-78610

Tire 17*8.00-8

2



4

0244-78300

Tire Tube 17*8.00-8

2



5

0244-78800

Wheel Assy 17*800-8

4



6

0207-31200

Rear Wheel Boss

2



7

0244-79310

Tire (4.00-7)

2



8

89-1113-100252

Hexagonal Bolt (8T) M10*25

8



9

89-1213-080162

Mini Hexagonal Bolt (8T) M8*16

8



10

89-1213-080162

Mini Hexagonal Bolt (8T) M8*16

12



11

89-1543-080002

Mini Hexagonal Nut (SW) M8

20



12

89-1750-100002

Spring Washer 10

8



35/51

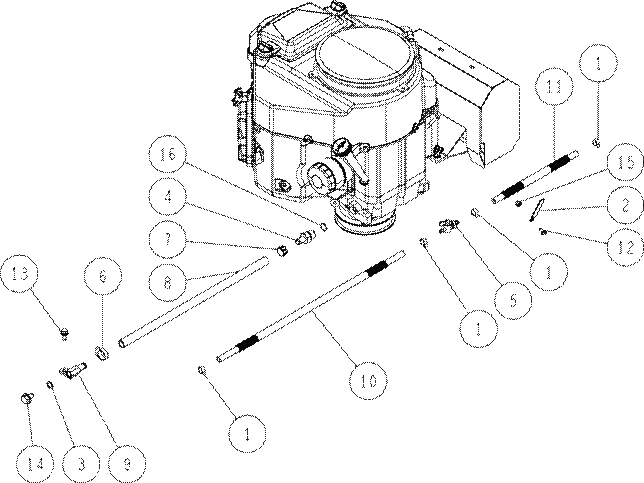

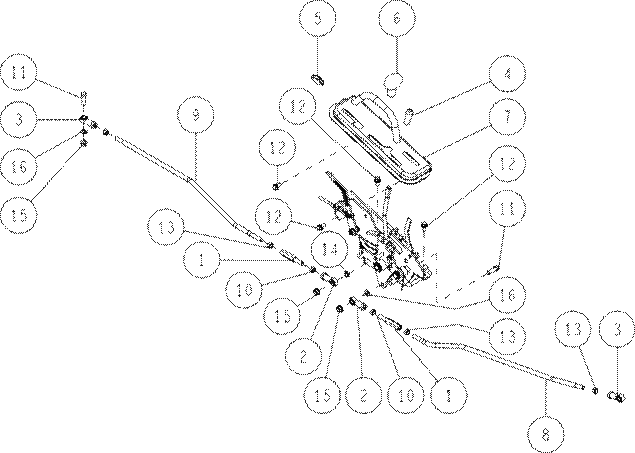

Control 1/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0348-11000

Shift Rod Assy

1

Include : 1,2,3,9,10,13

-

0342-15010

Change Pedal Rod Assy

1

Include : 1,2,3,8,10,13

1

80-1485-265-00

Shift Rod Adjuster

2

RH17M00103 ~

80-1485-265-00

Shift Rod Adjuster

1

~ RH17D00067

2

80-1487-962-10

Rod End PHS10ECL

2

RH17M00103 ~

80-1487-962-10

Rod End PHS10ECL

1

~ RH17D00067

3

80-1487-964-10

Rod End PHS10EC

2

RH17M00103 ~

80-1487-964-10

Rod End PHS10EC

1

~ RH17D00067

4

0207-72600

Lever Grip 8 (black)

1



5

0215-70600

Lever Grip (Red)

1



6

0221-13200

Change Grip

1



7

0341-10200

Control Guide CMP

1



8

0342-15110

Change Pedal Rod

1

RH17M00103 ~

9

0348-11100

Shift Rod

1



10

83-1488-195-02

Mini Hexagonal Nut M10 (L)

2

RH17M00103 ~

83-1488-195-02

Mini Hexagonal Nut M10 (L)

1

~ RH17D00067

11

89-1213-100302

Mini Hexagonal Bolt (8T) M10*30

2

RH17M00103 ~

89-1213-100302

Mini Hexagonal Bolt (8T) M10*30

1

~ RH17D00067

12

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



13

89-1611-100042

Mini Hexagonal Nut M10

4

RH17M00103 ~

89-1611-100042

Mini Hexagonal Nut M10

2

~ RH17D00067

14

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

1



15

89-1631-100042

Flange Mini Hexagonal Nut M10

3

RH17M00103 ~

89-1631-100042

Flange Mini Hexagonal Nut M10

2

~ RH17D00067

16

89-1711-100002

Flat Washer 10*18*1.6

2

RH17M00103 ~

89-1711-100002

Flat Washer 10*18*1.6

1

~ RH17D00067

36/51

Control 2/3





Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0312-17010

Change Brake Assy

1

5,6,9,10(~ RH18A00023)

1

0207-72300

Change Brake Adjuster

1

~ RH18A00023

2

0225-11800

Spring, Change Brake

1

~ RH18A00023

3

0312-12900

Throttle Lever

1



4

0312-14200

Spring for Brake Pulling

1

~ RH18A00023

5

0312-17100

Brake Cover

1

~ RH18A00023

6

0312-17200

Brake Drum

1

~ RH18A00023

7

0312-75100

Throttle Wire

1



8

83-1675-375-00

Thrust Washer 14*23*1.0

1

~ RH18A00023

9

85-1711-317-00

Shoe Return Spring

2

~ RH18A00023

10

85-1711-318-00

Brake Shoe Set

1

~ RH18A00023

11

89-1113-060122

Hexagonal Bolt (8T) M6*12

3

~ RH18A00023

12

89-1561-100002

Mini Hexagonal U Nut M10

1



13

89-1611-080042

Mini Hexagonal Nut M8

2

~ RH18A00023

14

89-1611-100042

Mini Hexagonal Nut M10

1



15

89-1750-060002

Spring Washer 6

3

~ RH18A00023

16

89-1852-100001

Belleville Spring H10

2



17

89-2132-060002

Snap Pin 6 (with stopper)

1

~ RH18A00023

18

89-2150-050100

Key 5*10 (round)

1

~ RH18A00023

19

89-2181-060122

Flat Head Pin 6*12

1

~ RH18A00023

20

89-2511-000140

Snap Ring (S14)

1

~ RH18A00023

37/51

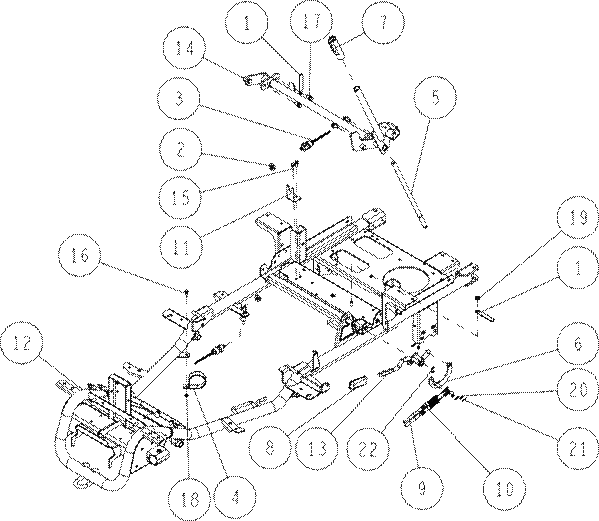

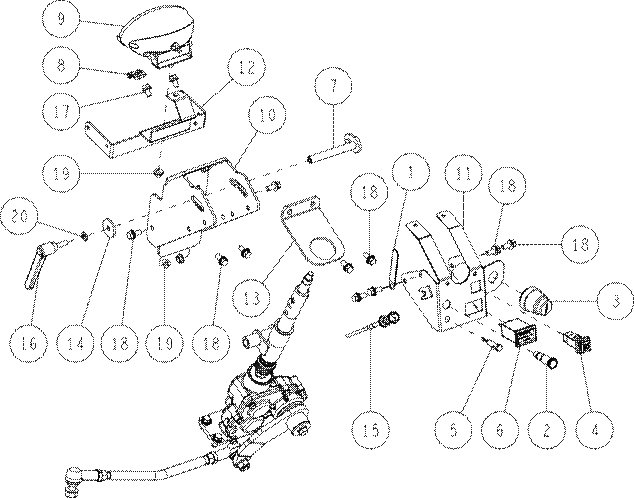

Control 3/3























S/N : ~ RH18A00023







S/N : RH18B00106 ~

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1020-263-00

Control Lever Shaft Spring

1



2

0244-13200

Differential Lock Lever CMP

1



3

0244-72410

Defferential Lock Wire

1



4

0312-12100

Change Bracket CMP

1



5

0312-12310

Neutral Arm

2

~ RH18A00023

6

0312-12420

Change Lever Base CMP

1

~ RH18A00023

7

0312-13700

Spring for Change Lever

1

~ RH18A00023

8

0312-13800

Spring for Change Return Arm

1



9

0322-12400

Change Return Arm CMP

1



10

0329-12500

Spring for Change Pedal

1

~ RH18A00023

11

0348-15100

Change Lever Guide CMP

1

RH18B00106 ~

0348-10100

Change Lever Guide CMP

1

~ RH18A00023

12

0348-10300

Change Lever CMP

1



13

89-1113-060452

Hexagonal Bolt (8T) M6*45

1

RH18B00106 ~

89-1113-060552

Hexagonal Bolt (8T) M6*55

1

~ RH18A00023

14

89-1551-060002

Hexagonal U Nut M6

1



15

89-1561-100002

Mini Hexagonal U Nut M10

1



16

89-1711-100002

Flat Washer 10*18*1.6

1



17

89-1713-060002

Flat Washer 6 (large)

1

~ RH18A00023

18

89-2132-060002

Snap Pin 6 (with stopper)

1



19

89-2181-060162

Flat Head Pin 6*16

1



20

89-2521-000100

E Type Ring 10

1

~ RH18A00023

21

89-2521-000120

E Type Ring 12

2



22

89-3510-016150

DU Bush 16.15

4

RH18B00106 ~

89-3510-016150

DU Bush 16.15

6

~ RH18A00023


38/51

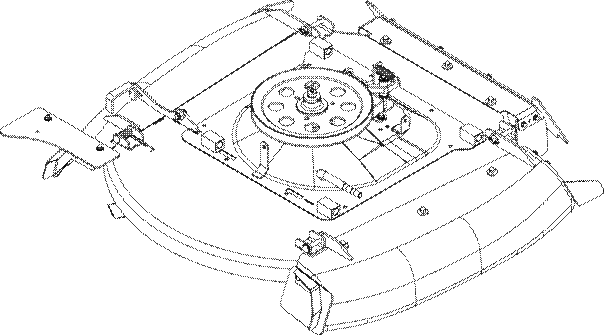

Cutting 1/6











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0244-42400

Knife Pulley Belt Holder (L)

1



3

0244-42600

Knife Pulley Belt Holder

1



4

0347-50200

Knife Belt Cover CMP

1



5

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



6

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



7

89-6123-008002

V Belt SB-80 (W800)

1



39/51

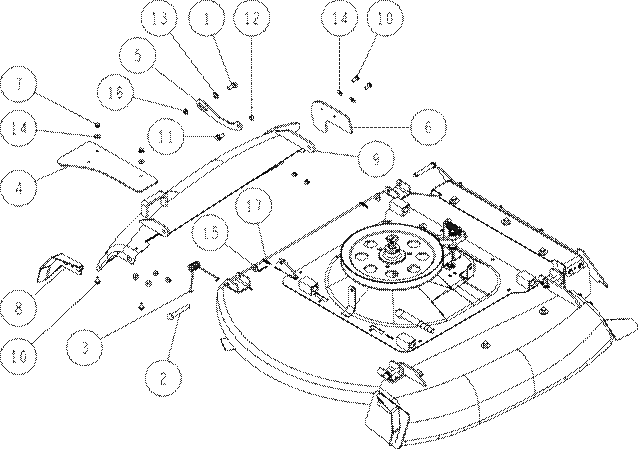

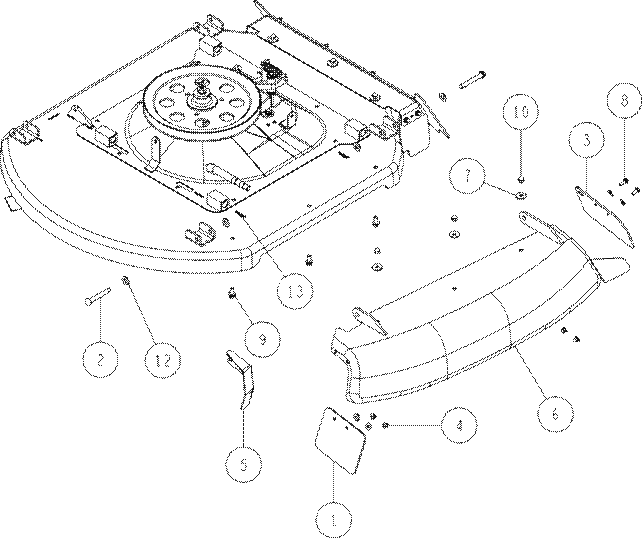

Cutting 2/6











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1488-747-00

Bolt for Right Cover Up/Down Arm

1



2

0244-63900

Round Head Pin 10*72

2



3

0244-71600

Spring for Right Cover

1



4

0255-60300

Right Cover Flapper

1



5

0259-51700

Right Cover Up/Down Arm

1



6

0290-50200

Side Flapper (Back Right)

1



7

0312-77500

Flange Cap Nut M6 (Meck)

6

RH17M00103 ~

0312-77500

Flange Cap Nut M6 (Meck)

4

~ RH17D00067

8

0347-51400

Foot Guard (R)

1

RH17M00103 ~

9

0348-50200

Right Cover CMP

1



10

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



11

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

1



12

89-1561-080002

Mini Hexagonal U Nut M8

1



13

89-1711-100002

Flat Washer 10*18*1.6

1



14

89-1713-060002

Flat Washer 6 (large)

6

RH17M00103 ~

89-1713-060002

Flat Washer 6 (large)

4

~ RH17D00067

15

89-1714-100002

Flat Washer 10

2



16

89-1750-080002

Spring Washer 8

1



17

89-2131-100002

Snap Pin 10

2



40/51

Cutting 3/6











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-61800

Side Flapper (Front)

1



2

0244-63900

Round Head Pin 10*72

2



3

0255-60800

Rear Side Flapper ( Left A)

1



4

0312-77500

Flange Cap Nut M6 (Meck)

4



5

0347-51300

Foot Guard (L)

1

RH17M00103 ~

6

0348-50300

Left Cover CMP

1



7

83-1751-312-00

Washer 8*25*3.2

3



8

89-1137-060172

Hexagonal Bolt (PW) M6*17

2

RH17M00103 ~

89-1137-060172

Hexagonal Bolt (PW) M6*17

4

~ RH17D00067

9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



10

89-1671-080042

Mini Cap Nut M8

3



11

89-1713-060002

Flat Washer 6 (large)

4



12

89-1714-100002

Flat Washer 10

4



13

89-2131-100002

Snap Pin 10

2



41/51

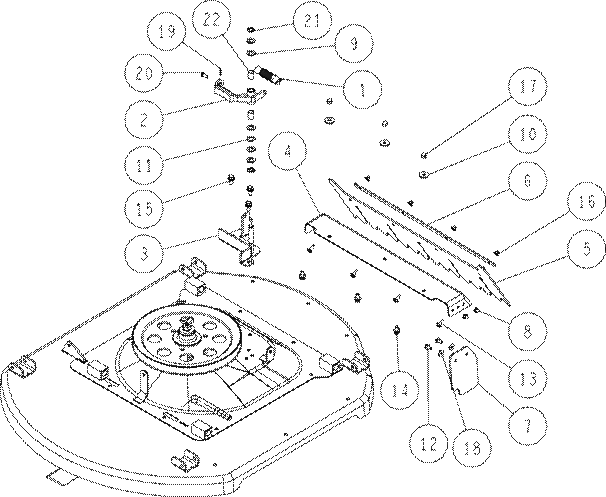

Cutting 4/6





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1485-551-00

Driving Tension Spring

1



2

0244-50600

Knife Brake

1



3

0244-50710

Knife Brake Bracket CMP

1



4

0244-61200

Rear Guard

1



5

0244-61300

Rear Guard Flapper

1



6

0244-61400

Rear Guard Flapper Holder

1



7

0312-50700

Side Rear Flapper (L)

1



8

0312-77500

Flange Cap Nut M6 (Meck)

2



9

83-1565-329-00

Washer 13*22*2.3

4



10

83-1751-312-00

Washer 8*25*3.2

3



11

83-1754-329-00

Washer 13*22*1.0

2



12

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



13

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



14

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



15

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



16

89-1581-060042

Flange Cap Nut M6

4



17

89-1671-080042

Mini Cap Nut M8

3



18

89-1713-060002

Flat Washer 6 (large)

2



19

89-2120-200152

Split Pin 2*15

1



20

89-2181-060162

Flat Head Pin 6*16

1



21

89-2521-000100

E Type Ring 10

2



22

89-3510-012200

DU Bush 12.20

2



42/51

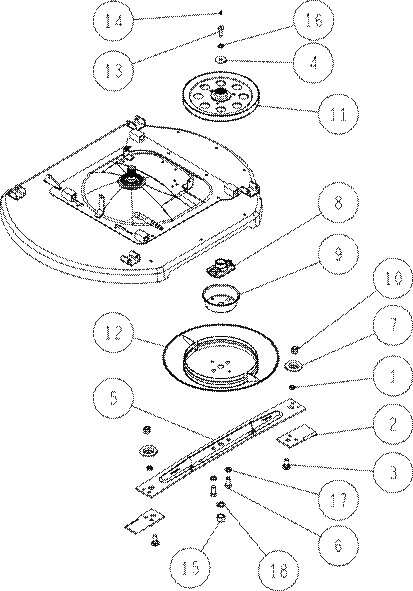

Cutting 5/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1483-818-00

Knife Collar

2



2

80-1483-821-00

Knife

2



3

0207-50200

Knife Setting Bolt M14*34

2



4

0221-76100

Washer 12*40*6

1



5

0244-51200

Knife Stay (R817B)

1



6

0244-51600

Mini Hexagonal Bolt (8T) M14*30 (Knife

2



7

0244-51800

Nut Guard 14

2



8

0244-51900

Knife Bracket

1



9

0244-52100

Knife Neck Guard

1



10

0244-74600

Hard Lock Nut M14

2



11

0312-50300

Knife Pulley CMP

1



12

0312-51800

Washer Plate CMP

1



13

0322-52200

Nipple Bolt M12*35 (8T)

1



14

83-1415-975-00

Grease Nipple M6

1



15

83-1483-175-00

Bag Nut M20 (Lock)

1



16

89-1750-120002

Spring Washer 12

1



17

89-1750-140002

Spring Washer 14

2



18

89-1750-200002

Spring Washer 20

1



43/51

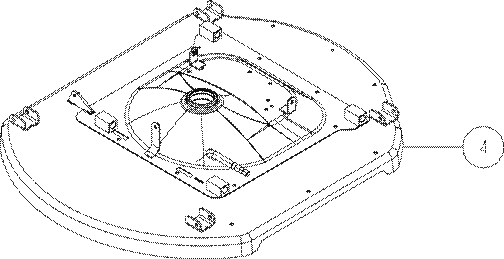

Cutting 6/6















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0262-50100

Dust Plate

1



2

0322-52100

Vertical Shaft

1



3

0322-72700

Oil Seal UE 35.62.6

1



4

0347-50100

Safety Cover CMP

1



5

89-2512-000620

Snap Ring (R62)

4



6

89-3115-060074

Bearing 6007 2RS

2



7

89-5121-406212

Oil Seal UE 40.62.12

1



44/51

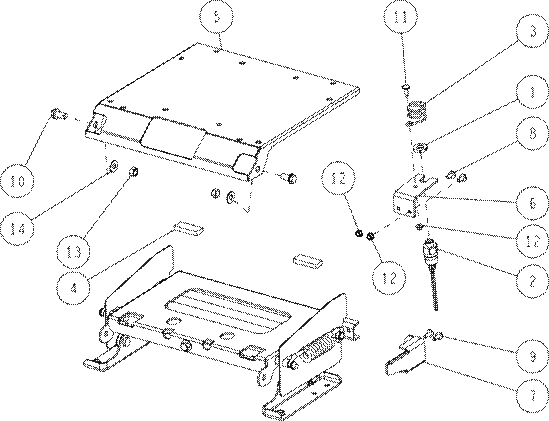

Seat 1/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0207-72700

Gas Spring KMF 50-40

1



3

0221-71900

Clip CT-339

1



4

0244-22200

Seat Bracket Shaft

1



5

0244-73700

Grommet 24

1



7

0312-70700

Bonnet Clip

1

RH17M00103 ~

0312-70400

Bonnet Clip

1

~ RH17D00067

8

0322-21600

Seat Bracket CMP

1



10

0341-21200

Lower Slide CMP

2



11

0341-21300

Upper Slide CMP (R)

1



12

0341-21400

Upper Slide CMP (L)

1



13

0341-21500

Seat Lever Spring

1



14

0341-21800

Slide Lever CMP

1



15

83-1415-312-00

Washer 8*30*3.2

2



16

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

2



17

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



18

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



19

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



20

89-1553-060002

Bag Hexagonal U Nut M6

2



21

89-1561-080002

Mini Hexagonal U Nut M8

1



22

89-1561-100002

Mini Hexagonal U Nut M10

2



23

89-1631-080042

Flange Mini Hexagonal Nut M8

8



24

89-1711-080002

Flat Washer 8

1



25

89-1711-100002

Flat Washer 10*18*1.6

4



26

89-1750-080002

Spring Washer 8

2



27

0348-24100

Upper Seat Receiver CMP

1



28

CR532150891

Seat Cobo

1




45/51

Seat 2/3









S/N : ~ RH17D00067

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-72800

Switch Lock Nut

1



2

0207-74400

Safety Switch K17850

1



3

0207-72900

Seat Switch Spring

1



4

0312-22300

Rubber, Seat Spacer

2



5

0341-21100

Seat Receiver

1



6

0341-21600

Seat Switch Stay

1



7

0348-21510

Clutch Cancellation Stay

1

RH17M00103 ~

0348-21500

Clutch Cancellation Stay

1

~ RH17D00067

8

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



9

89-1137-060172

Hexagonal Bolt (PW) M6*17

2

RH17M00103 ~

10

89-1253-100202

Flange Mini Hexagonal Bolt (8T) M10*20

2



11

89-1390-060162

Welded Bolt M6*16

1



12

89-1531-060042

Flange Nut M6

3



13

89-1561-100002

Mini Hexagonal U Nut M10

2



14

89-1714-100002

Flat Washer 10

2



15

89-1541-060002

Hexagonal Nut (SW) M6

2

~ RH17D00067


46/51

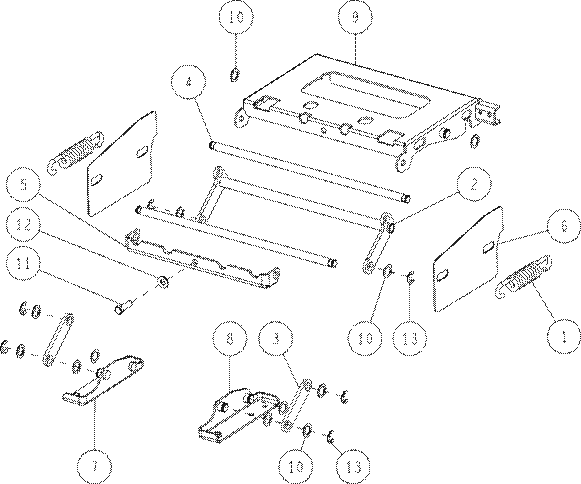

Seat 3/3





S/N : ~ RH17D00067

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-71200

Spring for Seat Link

2



2

0312-21600

Parallel Seat Link CMP

1



3

0312-21700

Seat Parallel Link (B)

2



4

0312-21800

Spring Shaft

2



5

0312-22100

Spring Shaft Hook CMP

1



6

0329-80300

Seat Link Shield (RMK150)

2



7

0348-21100

Link Upper Bracket (R) CMP

1



8

0348-21200

Link Upper Bracket (L) CMP

1



9

0348-21310

Link Upper Bracket CMP

1

RH17M00103 ~

0348-21300

Link Upper Bracket CMP

1

~ RH17D00067

10

83-1020-363-00

Thrust Washer 16*24*1.0

12



11

89-1211-100302

Mini Hexagonal Bolt M10*30

1



12

89-1714-100002

Flat Washer 10

1



13

89-2521-000120

E Type Ring 12

6




47/51

Engine 1/3









Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-74000

Fuel Cock Assy (K)

1

Include : 1,5,11

-

0322-72500

Fuel Hose 270L & Clip

1

Include : 1,11

-

0322-72400

Fuel Hose 600L & Clip

1

Include : 1,10

-

0312-44100

Oil Drain Assy (K)

1

Include : 4,6,7,8,9,16

1

80-1483-988-00

Hose Clip 17

4



2

80-1792-988-00

Harness Clip 8

1



3

0207-74900

Copper Packing 12.5*19*1.0

1



4

0244-40700

Drain Bolt (K)

1



5

0244-74500

Fuel Cock

1



6

0244-75700

Hose Band 22

1



7

0271-73300

Socket

1



8

0312-44200

Oil Drain Hose (K)

1



9

0312-44300

Drain End CMP (K)

1



10

0322-70400

Fuel Hose 600L

1



11

0322-70500

Fuel Hose 270L

1



12

89-1137-060122

Hexagonal Bolt (PW) M6*12

1



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



14

89-1251-120152

Flange Mini Hexagonal Bolt M12*15

1



15

89-1581-060042

Flange Cap Nut M6

1



16

89-5221-016000

O Ring P16

1



48/51

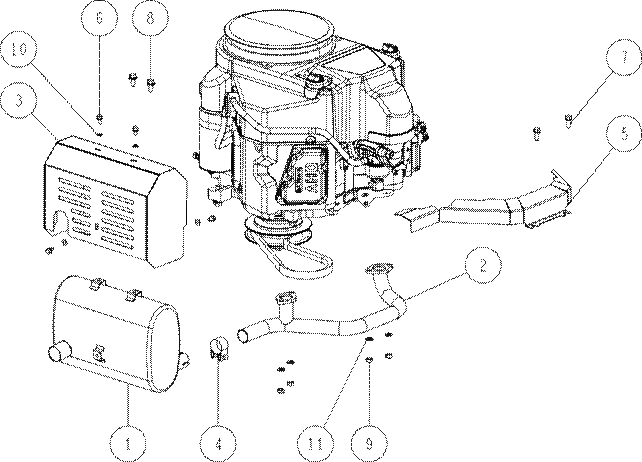

Engine 2/3



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0312-40100

Muffler

1



2

0312-40200

Exhaust Pipe CMP (FS641)

1



3

0312-40500

Muffler Cover CMP

1



4

0312-70500

Muffler Band

1



5

0329-40600

Exhaust Pipe Cover (RMK150)

1



6

89-1132-060122

Hexagonal Bolt (SW) M6*12

4



7

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

2



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



9

89-1611-080042

Mini Hexagonal Nut M8

4



10

89-1711-060002

Flat Washer 6

4



11

89-1750-080002

Spring Washer 8

4



49/51

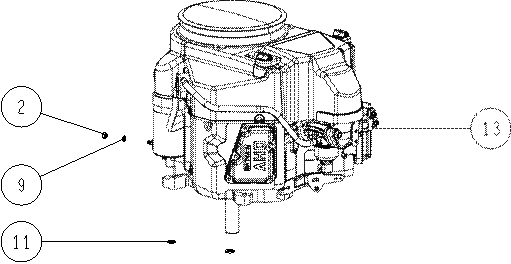

Engine 3/3























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1487-516-00

Washer 11*40*6

1



2

0207-76300

Nut UNF 1/4

1



3

0227-40500

Engine Pulley

1



4

0244-41100

Engine Collar

1



5

0244-41200

Sub Engine Collar (21HP)

1



6

0312-42100

Hexagonal Bolt (8T) UNC 3/8-16*38

4



7

83-1437-115-00

Hexagonal Bolt (8T) UNF7/16*35

1



8

83-1493-300-00

Spring Washer 7/16

1



9

89-1750-060002

Spring Washer 6

1



10

89-1750-100002

Spring Washer 10

4



11

89-1812-100002

Toothed washer (inside) 10

1



12

89-6123-003202

V Belt SB-32 (W800)

1



13

9025-0010

Kawasaki Engine FS691V-AG80

1




50/51

Label 1/2



















































































































Serial Number

51/51

Label 2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0215-80400

Driving Clutch ON-OFF Label

1



2

0215-83100

Attention Mark for Slope

1



3

0215-83200

Label, Protection Equipment

1



4

0217-70100

Label, Differential Lock (13168)

1



5

0217-70800

Label, Gear Oil 1.0L

1



6

0223-76100

Label, Caution (Large)

1



7

0227-71200

Clinometer Label

1



8

0244-80700

Label, Handle (Blue)

1



9

0259-80600

Label, Caution for Engine Oil

1



10

0259-80700

Label, Cutting Height Line

1



11

0310-71300

Label, Noise 102db

1



12

0312-76900

Label, OREC B05

1



13

0312-86100

Label, Seat Spring Adjusting

1



14

0322-77900

Reflection Seat (Red)

2



15

0322-78300

Label, Fuse Box

1



16

0322-78800

Label, OREC B03

2



17

0329-76200

Label, Caution for Hand and Leg etc

2



18

0329-77500

Label, Choke (RMK150)

1



19

0329-78400

Label, Control (RMK150)

1



20

0347-71200

Label, Side RM982F

2



21

0347-71300

Label, Maintenance & Belt Size

1



22

0348-72400

Label, Cutting Height Adjusting

1



23

80-1488-912-00

Label, Key (13121)

1



24

80-1488-921-00

Label Pedal Stopper (13113)

1



25

80-1488-928-10

Label, Caution for Belt Involving

1



26

-

Serial Number

1
