OREC ISSUED NO. RM980F EUO-3
Parts catalogue
Rabbit Mower
(EXPORT MODEL) RM980F
MODEL CODE
RM980F 0227-○○○○○
|
CONTENTS
|
|
FRAME
|
1-14
|
|
TRANSMISSION
|
15-23
|
|
HST
|
24-25
|
|
HANDLE
|
26-30
|
|
FRONT
|
31-35
|
|
CONTROL
|
36-40
|
|
CUTTING
|
41-47
|
|
SEAT
|
48-50
|
|
ENGINE
|
51-55
|
OREC CO.,LTD
Update : Sep 2014
|
|
|
1/55
|

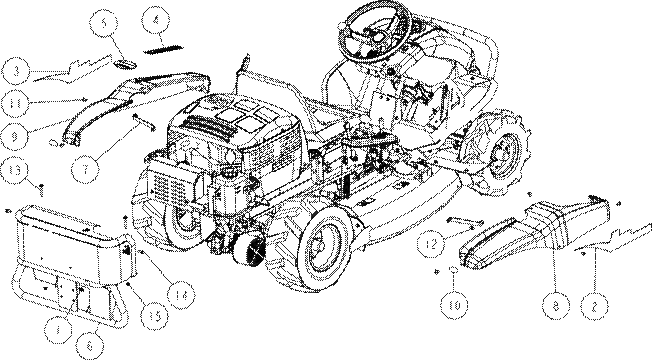

Frame 1/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0217-70800
|
Label, Gear
Oil 1.0L
|
1
|
|
|
2
|
0227-71300
|
Label, Right Side (4WD)
|
1
|
|
|
3
|
0227-71400
|
Label, Left Side (4WD)
|
1
|
|
|
4
|
0227-74500
|
Label, Cutting Height Adjusting (RM980F
|
1
|
|
|
5
|
0227-75500
|
Label, Model RM980F
|
1
|
|
|
6
|
0227-82300
|
Sub Frame CMP (RM980F)
|
1
|
|
|
7
|
0244-22400
|
Side Cover Stay CMP
|
2
|
|
|
8
|
0244-60110
|
Side Cover (R) Red
|
1
|
|
|
9
|
0244-60210
|
Side Cover (L) Red
|
1
|
|
|
10
|
0244-81800
|
Reflection Seat
|
2
|
|
|
11
|
89-1159-080168
|
Truss Mini Screw M8*16
|
8
|
|
|
12
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
2
|
|
|
13
|
89-1251-080502
|
Flange Mini
Hexagonal Bolt M8*50
|
2
|
|
|
14
|
89-1253-080202
|
Flange Mini
Hexagonal Bolt (8T) M8*20
|
2
|
|
|
15
|
89-1631-080042
|
Flange Mini
Hexagonal Nut M8
|
2
|
|
|
|
-
|
|
|
2/55
|
Frame 2/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-12200
|
Pointer for
Clinometer
|
1
|
|
|
2
|
0227-22500
|
Front Bumper CMP (RM980F)
|
1
|
|
|
3
|
0227-71200
|
Clinometer Label
|
1
|
|
|
4
|
0227-71500
|
Label, Front (4WD)
|
1
|
|
|
5
|
0227-71600
|
Label, Main (OREC)
|
1
|
|
|
6
|
0244-60600
|
Front Cover
|
1
|
|
|
7
|
89-1211-080252
|
Mini Hexagonal Bolt M8*25
|
2
|
|
|
8
|
89-1563-080002
|
Bag Hexagonal U Nut M8
|
1
|
|
|
9
|
89-1611-080042
|
Mini Hexagonal Nut M8
|
2
|
|
|
10
|
89-1711-080002
|
Flat Washer 8
|
1
|
|
|
|
-
|
|
|
3/55
|
Frame 3/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0215-83100
|
Attention Mark for Slope
|
1
|
|
|
2
|
0215-83200
|
Label, Protection Equipment
|
1
|
|
|
3
|
0223-76100
|
Label, Caution (Large)
|
1
|
|
|
4
|
0227-10100
|
Change Pedal CMP (RM980F)
|
1
|
|
|
5
|
0227-20300
|
Step CMP
(RM980F)
|
1
|
|
|
6
|
0227-21200
|
Pedal Base CMP (RM980F)
|
1
|
|
|
7
|
0227-20500
|
Step Rubber (RM980F)
|
1
|
|
|
8
|
0290-72100
|
Change Pedal Rubber
|
1
|
|
|
9
|
83-1310-902-00
|
OREC Mark
|
1
|
|
|
10
|
83-1484-369-00
|
Clip (5347)
|
15
|
|
|
11
|
83-1515-975-00
|
Grease Nipple C-Type M6
|
1
|
|
|
12
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
6
|
|
|
13
|
89-2511-000160
|
Snap Ring (S16)
|
1
|
|
|
14
|
89-3510-016250
|
DU Bush
16.25
|
2
|
|
|
|
-
|
|
|
4/55
|
Frame 4/14
|
|
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0207-72700
|
Gas Spring KMF 50-40
|
1
|
|
|
2
|
0227-20400
|
Front Guard (RM980F)
|
1
|
|
|
3
|
0244-22200
|
Seat Bracket Shaft
|
1
|
|
|
4
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
3
|
|
|
5
|
89-1553-060002
|
Bag Hexagonal U Nut M6
|
2
|
|
|
6
|
89-1561-100002
|
Mini Hexagonal U Nut M10
|
2
|
|
|
7
|
89-1711-100002
|
Flat Washer 10*18*1.6
|
4
|
|
|
8
|
Seat Part
|
|
|
Page 46～
|
|
|
-
|
|
|
5/55
|
Frame 5/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1485-265-00
|
Shift Rod
Adjuster
|
2
|
|
|
2
|
80-1487-962-10
|
Rod End
PHS10ECL
|
2
|
|
|
3
|
80-1487-964-10
|
Rod End
PHS10EC
|
2
|
|
|
4
|
0244-13800
|
Shift Rod
|
1
|
|
|
5
|
0244-13900
|
Change Pedal Rod
|
1
|
|
|
6
|
83-1488-195-02
|
Mini Hexagonal Nut M10 (L)
|
2
|
|
|
7
|
89-1213-100302
|
Mini Hexagonal Bolt (8T) M10*30
|
3
|
|
|
8
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
4
|
|
|
9
|
89-1611-100042
|
Mini Hexagonal Nut M10
|
4
|
|
|
10
|
89-1631-100042
|
Flange Mini
Hexagonal Nut M10
|
4
|
|
|
11
|
Control Part
|
|
|
Page 34～
|
|
|
-
|
|
|
6/55
|

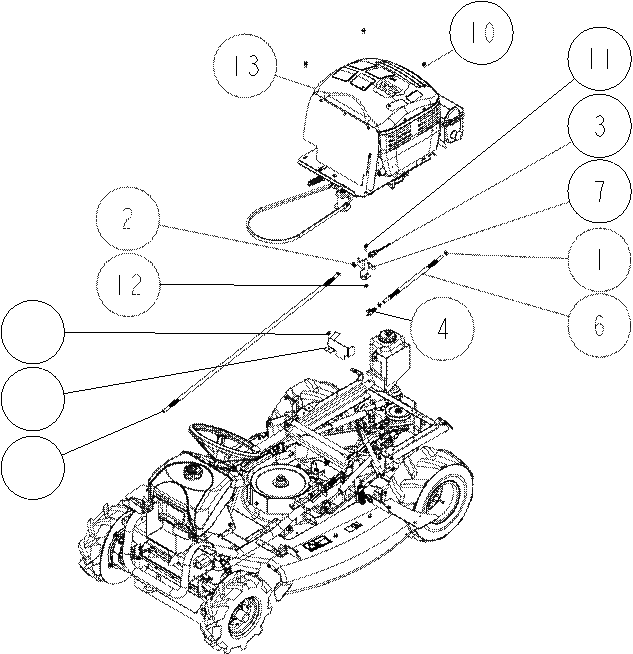

Frame 6/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1483-988-00
|
Hose Clip
17
|
3
|
|
|
2
|
0207-72800
|
Switch Lock Nut
|
1
|
|
|
3
|
0207-74400
|
Safety Switch K17850
|
1
|
|
|
4
|
0244-74500
|
Fuel Cock
|
1
|
|
|
5
|
0244-75200
|
Fuel Hose
(Front)
|
1
|
|
|
6
|
0244-75300
|
Fuel Hose
(B)
|
1
|
Briggs
|
|
7
|
0292-80500
|
Fuel Cock Bracket (Tel)
|
1
|
JW14A00023～
|
|
0244-20400
|
Fuel Cock
Bracket
|
1
|
～JW13B00088
|
|
8
|
0292-82400
|
Protection Guard (RM97)
|
1
|
|
|
9
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
1
|
|
|
10
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
4
|
|
|
11
|
89-1233-080302
|
Mini Hexagonal Bolt (PWSW) M8*30
|
1
|
|
|
12
|
89-1631-080042
|
Flange Mini
Hexagonal Nut M8
|
1
|
|
|
13
|
Engine Part
|
|
|
Page 49～
|
|
|
-
|
|
|
7/55
|
Frame 7/14
|
|
11307 111529
111418 121630
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1488-928-10
|
Label, Caution for Belt Involving
|
1
|
|
|
2
|
0207-31200
|
Rear Wheel Boss
|
2
|
|
|
3
|
0207-77800
|
Wheel Boss
Dust Seal
|
2
|
|
|
4
|
0227-70600
|
Rear Wheel Cap (φ42*75L)
|
2
|
|
|
5
|
0227-81500
|
Rear Belt
Cover (RM980F)
|
1
|
|
|
6
|
0244-78400
|
Tire (R)
Assy (17*8.00-8)
|
1
|
|
|
7
|
0244-78500
|
Tire (L)
Assy (17*8.00-8)
|
1
|
|
|
8
|
83-1630-335-00
|
Washer 16*40*4.5
|
2
|
|
|
9
|
89-1113-100252
|
Hexagonal Bolt
(8T) M10*25
|
8
|
|
|
10
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
2
|
|
|
11
|
89-1631-080042
|
Flange Mini
Hexagonal Nut M8
|
2
|
|
|
12
|
89-1658-160042
|
Low
Fluted Nut (2
sorts) M16
|
2
|
|
|
13
|
89-1750-100002
|
Spring Washer 10
|
8
|
|
|
14
|
89-1750-160002
|
Spring Washer 16
|
2
|
|
|
15
|
89-2120-350352
|
Split Pin
3.5*35
|
2
|
|
|
16
|
89-2150-070500
|
Key 7*50 (round)
|
2
|
|
|
17
|
0244-78600
|
Tire (17*8.00-8 , BS / FM2)
|
2
|
|
|
18
|
0244-78800
|
Wheel Assy
17*800-8
|
2
|
|
|
19
|
0244-78700
|
Packing (17*8.00-8)
|
2
|
|
|
20
|
0244-84300
|
Rear Wheel Bulb (TR413)
|
2
|
|
|
|
-
|
|
|
8/55
|
Frame 8/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0207-10300
|
Brake Joint
|
1
|
|
|
2
|
0207-75400
|
Brake Spring 30
|
1
|
|
|
3
|
0227-02200
|
Fan Cover Setting CMP (RM980F)
|
1
|
|
|
4
|
0227-02500
|
Transmission Hunger Stay (RM980F)
|
1
|
|
|
5
|
0227-02900
|
Fan Cover CMP (RM980F)
|
1
|
|
|
6
|
0244-83200
|
Mini Hexagonal Bolt (PWSW) M10*25 (7
|
4
|
|
|
7
|
Transmission Part
|
|
1
|
Page 15～
|
|
8
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
1
|
|
|
9
|
89-1561-080002
|
Mini Hexagonal U Nut M8
|
1
|
|
|
10
|
89-1611-080042
|
Mini Hexagonal Nut M8
|
2
|
|
|
11
|
89-1631-080042
|
Flange Mini
Hexagonal Nut M8
|
3
|
|
|
12
|
89-1711-080002
|
Flat Washer 8
|
3
|
|
|
13
|
89-1750-080002
|
Spring Washer 8
|
1
|
|
|
14
|
89-2120-200152
|
Split Pin
2*15
|
1
|
|
|
15
|
89-1211-080352
|
Mini Hexagonal Bolt M8*35
|
1
|
|
|
|
-
|
9/55
|
Frame 9/14
|
|
Y
k7䍙Ş –⿒☎
20A 1253
–㤛⿒ 5
10A
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1483-988-00
|
Hose Clip 17
|
1
|
|
|
2
|
0227-82100
|
Battery Case CMP (RM980F)
|
1
|
|
|
3
|
0244-60810
|
Battery Setting
Stay
|
1
|
|
|
4
|
0244-70100
|
Fuel Tank
|
1
|
|
|
5
|
0244-72900
|
Head Lamp
|
2
|
|
|
6
|
0244-73400
|
Fuel Tank Bush
|
2
|
|
|
7
|
0244-76600
|
Tank Cap Assy
|
1
|
|
|
8
|
0244-76700
|
Fuel Gauge Assy
|
1
|
|
|
9
|
0244-76800
|
Leak Guide
|
1
|
|
|
10
|
0244-76900
|
Filter
|
1
|
|
|
11
|
0244-77800
|
Leak Hose
|
1
|
|
|
12
|
89-1137-060152
|
Hexagonal Bolt (PW) M6*15
|
4
|
|
|
13
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
5
|
|
|
14
|
89-1551-060002
|
Hexagonal U Nut M6
|
2
|
|
|
15
|
0227-81800
|
Wire Harness
Assy RM980F (B&S)
|
1
|
|
|
|
|
10/55
|

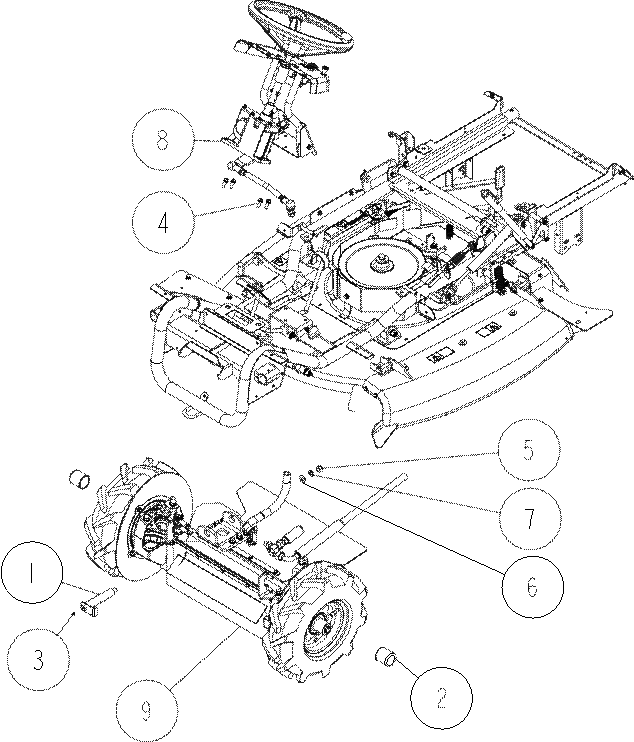

Frame 10/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-32200
|
Center Pin
CMP (RM980F)
|
1
|
|
|
2
|
0227-70300
|
Front Wheel Cap (φ42L*50)
|
2
|
|
|
3
|
83-1415-975-00
|
Grease Nipple M6
|
1
|
|
|
4
|
89-1236-080252
|
Mini Hexagonal Bolt (PWSW) M8*25
|
4
|
|
|
5
|
89-1551-120002
|
Hexagonal U Nut M12
|
1
|
|
|
6
|
89-1713-120002
|
Flat Washer 12 (large)
|
1
|
|
|
7
|
89-1750-120002
|
Spring Washer 12
|
1
|
|
|
8
|
Handle Part
|
|
|
Page 26～
|
|
9
|
Front Part
|
|
|
Page 29～
|
|
|
-
|
|
|
11/55
|
Frame 11/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1020-969-00
|
Change Return Spring
|
1
|
|
|
2
|
80-1493-354-00
|
Rod Return Spring
|
1
|
|
|
3
|
80-1781-943-00
|
Pedal Rubber
|
1
|
|
|
4
|
0227-10200
|
Brake Pedal CMP (RM980F)
|
1
|
|
|
5
|
0227-10300
|
Brake Lod
CMP (RM980F)
|
1
|
|
|
6
|
0227-11700
|
Brake Stopper CMP (RM980F)
|
1
|
|
|
7
|
0227-81400
|
Center Belt Cover CMP
|
1
|
|
|
8
|
83-1415-975-00
|
Grease Nipple M6
|
1
|
|
|
9
|
89-1213-100352
|
Mini Hexagonal Bolt (8T) M10*35
|
1
|
|
|
10
|
89-1233-080302
|
Mini Hexagonal Bolt (PWSW) M8*30
|
1
|
|
|
11
|
89-1611-100042
|
Mini Hexagonal Nut M10
|
1
|
|
|
12
|
89-1631-080042
|
Flange Mini
Hexagonal Nut M8
|
1
|
|
|
13
|
89-1711-120002
|
Flat Washer 12
|
1
|
|
|
14
|
89-2131-120002
|
Snap Pin
12
|
1
|
|
|
15
|
89-2511-000100
|
Snap Ring (S10)
|
1
|
|
|
16
|
89-2511-000160
|
Snap Ring (S16)
|
1
|
|
|
17
|
89-3510-016250
|
DU Bush
16.25
|
2
|
|
|
|
-
|
|
|
12/55
|
Frame 12/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0207-76200
|
Spring (Up/Down)
|
2
|
|
|
2
|
0207-76800
|
Washer 16*32*2.3
|
2
|
|
|
3
|
0227-11500
|
Connecting Plate (RM980F)
|
2
|
|
|
4
|
0244-52200
|
Link Bolt
|
8
|
|
|
5
|
0255-50100
|
Rear Link Arm R CMP
|
1
|
|
|
6
|
0255-50200
|
Front Link Arm R CMP
|
1
|
|
|
7
|
0255-50300
|
Front Link Arm B CMP
|
2
|
|
|
8
|
0255-50400
|
Rear Link Arm L CMP
|
1
|
|
|
9
|
0255-50600
|
Link Arm
Adjuster
|
2
|
|
|
10
|
0255-70200
|
Hexagonal Nut
M16(L)
|
2
|
|
|
11
|
0281-50200
|
Front Link Arm L CMP
|
1
|
|
|
12
|
83-1415-975-00
|
Grease Nipple M6
|
7
|
|
|
13
|
83-1515-975-00
|
Grease Nipple C-Type M6
|
1
|
|
|
14
|
83-1751-311-00
|
Flat Washer 8*25*2.3
|
2
|
|
|
15
|
89-1232-080162
|
Mini Hexagonal Bolt (SW) M8*16
|
2
|
|
|
16
|
89-1511-160042
|
Hexagonal Nut
M16
|
2
|
|
|
17
|
89-1551-120002
|
Hexagonal U Nut M12
|
8
|
|
|
18
|
89-1711-120002
|
Flat Washer 12
|
8
|
|
|
19
|
89-1750-120002
|
Spring Washer 12
|
8
|
|
|
20
|
89-2131-160002
|
Snap Pin
16
|
2
|
|
|
21
|
Cutting Part
|
|
1
|
Page 39～
|
|
-
|
0255-52200
|
Front Link Arm L Assy
|
1
|
Include :
7,9,10,11,16
|
|
-
|
0255-52100
|
Front Link Arm R Assy
|
1
|
Include :
6,7,9,10,16,
|
|
|
-
|
|
|
13/55
|
Frame 13/14
|
|


|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1484-354-10
|
Brake Rod
Roller
|
1
|
|
|
2
|
0244-10500
|
Lock Pusher
|
1
|
|
|
3
|
0244-11300
|
Push Rod
Receiver CMP
|
1
|
|
|
4
|
0244-11400
|
Adjuster Rod
(R)
|
1
|
|
|
5
|
0244-11500
|
Adjuster Rod
(L)
|
1
|
|
|
6
|
0244-11600
|
Turn Buckle (Pipe Type)
|
1
|
|
|
7
|
0244-22600
|
Brake Rod
Hung Plate
|
1
|
|
|
8
|
0255-70100
|
Gas Spring Free Lock Type(FLC75-35)
|
1
|
|
|
9
|
83-1020-355-00
|
Thrust Washer 12*24*1.0
|
2
|
|
|
10
|
89-1132-060122
|
Hexagonal Bolt
(SW) M6*12
|
1
|
|
|
11
|
89-1511-060042
|
Hexagonal Nut
M6
|
1
|
|
|
12
|
89-1543-080002
|
Mini Hexagonal Nut (SW) M8
|
1
|
|
|
13
|
89-1711-060002
|
Flat Washer 6
|
2
|
|
|
14
|
89-1711-080002
|
Flat Washer 8
|
2
|
|
|
15
|
89-2131-080002
|
Snap Pin
8
|
2
|
|
|
16
|
89-2132-060002
|
Snap Pin
6 (with stopper)
|
2
|
|
|
17
|
89-2181-080282
|
Flat Head
Pin 8*28
|
1
|
|
|
18
|
89-2181-080602
|
Flat Head
Pin 8*60
|
1
|
|
|
19
|
89-3510-010150
|
DU Bush
10.15
|
1
|
|
|
20
|
89-3510-012200
|
DU Bush
12.20
|
1
|
|
|
|
-
|
|
|
14/55
|
Frame 14/14
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0207-72800
|
Switch Lock Nut
|
1
|
|
|
2
|
0207-74400
|
Safety Switch K17850
|
1
|
|
|
3
|
0227-00900
|
Wire Band
|
1
|
|
|
4
|
0227-81100
|
Frame CMP
(RM980F)
|
1
|
|
|
5
|
0227-82400
|
Up/Down Adjusting Shaft CMP (Tel)
|
1
|
JW14A00023～
|
|
0227-11100
|
Up/Down Adjusting Shaft CMP (RM980F
|
1
|
～JW13B00088
|
|
6
|
0244-11200
|
Push Rod
|
1
|
|
|
7
|
0244-13700
|
Wire Joint CMP
|
1
|
|
|
8
|
0244-70200
|
Adjusting Shaft Grip
|
1
|
|
|
9
|
0244-71500
|
Fastener Spring ST-9
|
4
|
|
|
10
|
0244-72200
|
Knife Brake Wire
|
1
|
|
|
11
|
0244-72300
|
Cutting Clutch Wire
|
1
|
|
|
12
|
0244-75100
|
Blind Rivet
|
8
|
|
|
13
|
0259-14310
|
Knife Clutch Lever
|
1
|
|
|
14
|
0259-80700
|
Label, Cutting Height Line
|
1
|
|
|
15
|
0289-71300
|
Arm Grip (Red)
|
1
|
|
|
16
|
89-1138-060162
|
Hexagonal Bolt (SW) M6*16
|
1
|
|
|
17
|
89-1211-080252
|
Mini Hexagonal Bolt M8*25
|
1
|
|
|
18
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
4
|
|
|
19
|
89-1531-060042
|
Flange Nut
M6
|
1
|
|
|
20
|
89-1611-080042
|
Mini Hexagonal Nut M8
|
1
|
|
|
21
|
89-1711-060002
|
Flat Washer 6
|
3
|
|
|
22
|
89-2132-060002
|
Snap Pin
6 (with stopper)
|
3
|
|
|
23
|
89-2181-060202
|
Flat Head
Pin 6*20
|
1
|
|
|
24
|
89-2521-000120
|
E Type
Ring 12
|
1
|
|
|
|
-
|
|
|
15/55
|
Transmission 1/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
89-1239-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
4
|
|
|
2
|
89-1251-081303
|
Flange Mini
Hexagonal Bolt M8*130
|
2
|
|
|
3
|
89-1750-080002
|
Spring Washer 8
|
2
|
|
|
4
|
89-2150-050200
|
Key 5*20 (round)
|
1
|
|
|
5
|
89-5222-045000
|
O Ring G45
|
2
|
|
|
6
|
0207-03100
|
Mission Guard CMP
|
1
|
|
|
7
|
0227-00300
|
Fan (RM980F)
|
1
|
|
|
8
|
0227-02300
|
Double Spring Bolt 125
|
2
|
|
|
9
|
0227-09000
|
HST Unit Assy (RM980F)
|
1
|
|
|
|
-
|
|
|
16/55
|
Transmission 2/9
|
|
1233
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
|
0207-73000
|
Brake Assy
|
1
|
Include : 1,2,4,5,7,9,10,11,12
|
|
1
|
80-1030-282-00
|
Brake Drum (PA-7)
|
1
|
|
|
2
|
80-1030-285-00
|
Spring for
Brake Shoe Return
|
1
|
|
|
3
|
89-1113-060122
|
Hexagonal Bolt
(8T) M6*12
|
4
|
|
|
4
|
89-1611-100042
|
Mini Hexagonal Nut M10
|
1
|
|
|
5
|
89-1714-100002
|
Flat Washer 10
|
1
|
|
|
6
|
89-1750-060002
|
Spring Washer 6
|
4
|
|
|
7
|
89-1750-100002
|
Spring Washer 10
|
1
|
|
|
8
|
89-2511-000150
|
Snap Ring (S15)
|
1
|
|
|
9
|
0308-00300
|
Brake Cover PK (PA-7)
|
1
|
|
|
10
|
0207-73200
|
Brake Cap Assy
|
1
|
Include : 2,4,5,7,10,11,12
|
|
11
|
-
|
Brake Arm
|
1
|
|
|
12
|
0244-88100
|
Brake Shoe Set (PA-7)
|
1set
|
|
|
13
|
0227-09100
|
Transmission Assy RM980F(without HST
|
1
|
|
|
|
-
|
|
|
17/55
|
Transmission 3/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
|
0244-08000
|
Oil Seal 20.47.15(with DP)
|
|
Include :
2,8
|
|
1
|
83-1020-349-00
|
Copper Packing 10.5*18*1.6
|
1
|
|
|
2
|
83-1415-663-00
|
Oil Seal DP 25.30.15
|
1
|
|
|
3
|
89-1232-080202
|
Mini Hexagonal Bolt (SW) M8*20
|
6
|
|
|
4
|
89-1252-100122
|
Flange Mini
Hexagonal Bolt M10*12 (sle
|
1
|
|
|
5
|
89-2512-000470
|
Snap Ring (R47)
|
1
|
|
|
6
|
89-3115-060054
|
Bearing 6005
2RS
|
2
|
|
|
7
|
89-5121-284708
|
Oil Seal UE 28.47.8
|
1
|
|
|
8
|
89-5121-304707
|
Oil Seal UE 30.47.7
|
1
|
|
|
9
|
0244-01100
|
Axle Case(L) CMP
|
1
|
|
|
|
-
|
|
|
18/55
|
Transmission 4/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
83-1482-311-00
|
Washer 6.5*22*3.2
|
1
|
|
|
2
|
89-1113-060202
|
Hexagonal Bolt
(8T) M6*20
|
1
|
|
|
3
|
89-1543-080002
|
Mini Hexagonal Nut (SW) M8
|
1
|
|
|
4
|
89-1750-060002
|
Spring Washer 6
|
1
|
|
|
5
|
89-5121-122207
|
Oil Seal UE 12.22.7
|
1
|
|
|
6
|
89-5121-153007
|
Oil Seal UE 15.30.7
|
1
|
|
|
7
|
0207-06100
|
Air Bleezer
|
1
|
|
|
8
|
0207-40200
|
Transmission Pulley
|
1
|
|
|
9
|
0215-00100
|
Driving Clutch Arm
|
1
|
|
|
10
|
0289-01000
|
Oil Plug
Assy (with O Ring)
|
1
|
|
|
|
-
|
|
|
19/55
|
Transmission 5/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1310-138-00
|
Spring 1.4
|
1
|
|
|
2
|
83-1020-148-00
|
Tapping Bolt M6*14
|
2
|
|
|
3
|
83-1415-671-00
|
Blind Cover 22
|
1
|
|
|
4
|
83-1482-143-00
|
Tapping Bolt M8*25
|
12
|
|
|
5
|
89-2150-050160
|
Key 5*16 (round)
|
1
|
|
|
6
|
89-2151-050200
|
Key 5*20 (half round)
|
1
|
|
|
7
|
89-2511-000170
|
Snap Ring (S17)
|
1
|
|
|
8
|
89-2512-000420
|
Snap Ring (R42)
|
1
|
|
|
9
|
89-3115-060044
|
Bearing 6004
2RS
|
2
|
|
|
10
|
89-3410-080000
|
Steel Ball 8.0
|
1
|
|
|
11
|
89-5121-204208
|
Oil Seal UE 20.42.8
|
1
|
|
|
12
|
0207-00100
|
Transmission Case(L)
|
1
|
|
|
13
|
0207-00400
|
20T Spiral Mita Gear(L)
|
1
|
|
|
14
|
0207-01700
|
Swing Arm
CMP
|
1
|
|
|
15
|
0207-01900
|
Shift Spring Holder
|
1
|
|
|
16
|
0281-00300
|
A Axle
|
1
|
|
|
|
-
|
|
|
20/55
|
Transmission 6/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
83-1415-671-00
|
Blind Cover 22
|
1
|
|
|
2
|
89-3111-060044
|
Bearing 6004
|
4
|
|
|
3
|
0207-00500
|
20T Spiral Mita Gear(R)
|
1
|
|
|
4
|
0207-00700
|
C Axle
|
1
|
|
|
5
|
0207-01600
|
Shift Fork
Shaft CMP
|
1
|
|
|
6
|
0215-00400
|
Shift Gear 28
|
1
|
|
|
7
|
0215-00500
|
C Axle Collar 26
|
1
|
|
|
8
|
0227-00100
|
B Axle
|
1
|
|
|
|
-
|
|
|
21/55
|

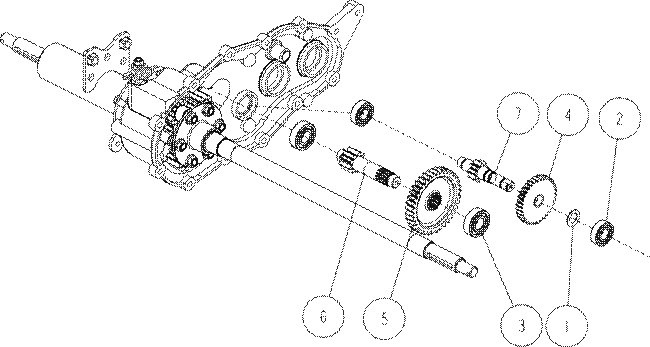

Transmission 7/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
83-1020-361-00
|
Thrust Washer 15*24*1.0
|
1
|
|
|
2
|
89-3111-062024
|
Bearing 6202
|
2
|
|
|
3
|
89-3111-062034
|
Bearing 6203
|
2
|
|
|
4
|
0207-01310
|
Brake Shaft 34T Gear
|
1
|
|
|
5
|
0207-01400
|
D Axle 37T Gear
|
1
|
|
|
6
|
0207-02700
|
D Axle
|
1
|
|
|
7
|
0215-00300
|
Brake Shaft
|
1
|
|
|
|
-
|
|
|
22/55
|

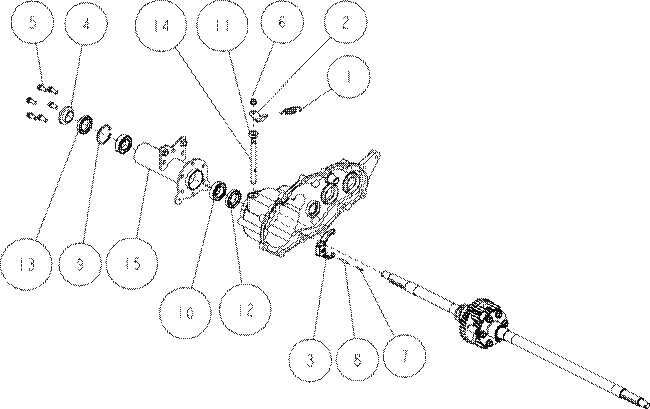

Transmission 8/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
|
0244-08000
|
Oil Seal 20.47.15(with DP)
|
|
Include :
4,13
|
|
1
|
80-1425-551-00
|
Differential Lock Spring
|
1
|
|
|
2
|
80-1488-153-00
|
Differential Lock Arm
|
1
|
|
|
3
|
80-1830-113-00
|
Differential Lock Fork
|
1
|
|
|
4
|
83-1415-663-00
|
Oil Seal DP
25.30.15
|
1
|
|
|
5
|
89-1232-080202
|
Mini Hexagonal Bolt (SW) M8*20
|
6
|
|
|
6
|
89-1543-080002
|
Mini Hexagonal Nut (SW) M8
|
1
|
|
|
7
|
89-2111-030020
|
Spring Pin
3*20
|
1
|
|
|
8
|
89-2111-050022
|
Spring Pin
5*22
|
1
|
|
|
9
|
89-2512-000470
|
Snap Ring (R47)
|
1
|
|
|
10
|
89-3115-060054
|
Bearing 6005
2RS
|
2
|
|
|
11
|
89-5121-122207
|
Oil Seal UE 12.22.7
|
1
|
|
|
12
|
89-5121-284708
|
Oil Seal UE 28.47.8
|
1
|
|
|
13
|
89-5121-304707
|
Oil Seal UE 30.47.7
|
1
|
|
|
14
|
0207-01800
|
Differential Lock Fork Shaft
|
1
|
|
|
15
|
0244-01200
|
Axle Case(R) CMP
|
1
|
|
|
|
-
|
|
|
23/55
|
Transmission 9/9
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1415-150-00
|
Axle Pin
|
1
|
|
|
2
|
80-1425-143-00
|
Differential Lock Cone
|
1
|
|
|
3
|
80-1481-151-00
|
Differential Lock Plate
|
1
|
|
|
4
|
80-1481-152-00
|
Differential Lock
Gear 11T
|
4
|
|
|
5
|
80-1481-155-00
|
Differential Gear Shaft Collar
|
4
|
|
|
6
|
80-1751-162-00
|
Differential Lock Spring
|
1
|
|
|
7
|
83-1830-382-00
|
Thrust Washer 40*48*1.0
|
1
|
|
|
8
|
89-1613-100042
|
Mini Hexagonal Nut (3 sorts) M10
|
6
|
|
|
9
|
89-1750-100002
|
Spring Washer 10
|
6
|
|
|
10
|
89-2511-000280
|
Snap Ring (S28)
|
1
|
|
|
11
|
89-2511-000400
|
Snap Ring (S40)
|
1
|
|
|
12
|
89-3410-075000
|
Steel Ball 7.5
|
3
|
|
|
13
|
89-3510-028300
|
DU Bush
28.30
|
1
|
|
|
14
|
0207-00200
|
Transmission Case(R)
|
1
|
|
|
15
|
0207-02120
|
Axle(L) CMP
|
1
|
|
|
16
|
0207-02220
|
Axle(R) CMP
|
1
|
|
|
17
|
0207-02800
|
Axle Gear
CMP
|
1
|
|
|
|
-
|
|
|
24/55
|
HST 1/2
|
|
|
|
|
|
|
|
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
|
0227-09000
|
HST Unit Assy
(RM980F)
|
1
|
Include : 1～11
|
|
1
|
0227-01010
|
HST Oil Tank Assy (RM980F)
|
1
|
|
|
0227-01000
|
HST Oil
Tank Assy (RM980F)
|
1
|
|
|
2
|
0227-01400
|
Port Joint 7/8-14UNF
|
1
|
|
|
3
|
0227-01500
|
Poet Joint G1/4
|
1
|
|
|
4
|
0227-02400
|
HST Tank Installation
|
1
|
|
|
5
|
0227-02600
|
HST Hose
|
1
|
|
|
6
|
0227-02700
|
HST Hose
(Oil Filter)
|
2
|
|
|
7
|
0227-02800
|
Oil Filter
|
1
|
|
|
8
|
0227-03100
|
Hose Clip 17
|
2
|
|
|
9
|
0312-74400
|
Hose Band 16-25
|
5
|
|
|
10
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
2
|
|
|
11
|
0227-00600
|
HST Hose
|
1
|
|
|
12
|
0227-00200
|
HST Oil Tank
(RM980F)
|
1
|
|
|
13
|
0207-71300
|
Filter (with level)
|
1
|
|
|
14
|
0207-08400
|
Cap Packing
|
1
|
|
|
15
|
0312-01800
|
HST Oil Tank
Cap
|
1
|
|
|
0207-08300
|
Oil Tank Cap
|
1
|
|
|
|
|
|
|
|
|
|
|
-
|
|
|
27/55
|
Handle 2/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0207-79200
|
Fuse Box
Bracket
|
1
|
|
|
2
|
0227-10400
|
Steering Upper Shaft CMP
|
1
|
|
|
3
|
0227-10500
|
Steering Low
Shaft CMP
|
1
|
|
|
4
|
0227-21100
|
Steering Support CMP
|
1
|
|
|
5
|
0227-82200
|
Gear Box
Cover
|
1
|
|
|
6
|
0244-75800
|
Bolt for
Upper Shaft Setting
|
1
|
|
|
7
|
0244-77900
|
Fuse Box
Cover
|
1
|
|
|
8
|
0244-80700
|
Label, Handle (Blue)
|
1
|
|
|
9
|
0262-70300
|
Sub Handle Assy
|
1
|
|
|
10
|
0262-70400
|
Steering Wheel
|
1
|
|
|
11
|
0262-70500
|
Steering Cap
|
1
|
|
|
12
|
83-1493-149-00
|
Hexagonal Screw M8*10
|
1
|
|
|
13
|
89-1132-060122
|
Hexagonal Bolt
(SW) M6*12
|
2
|
|
|
14
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
2
|
|
|
15
|
89-1553-060002
|
Bag Hexagonal U Nut M6
|
1
|
|
|
16
|
89-1561-100002
|
Mini Hexagonal U Nut M10
|
1
|
|
|
17
|
89-1581-060042
|
Flange Cap
Nut M6
|
2
|
|
|
18
|
89-1713-100002
|
Flat Washer 10 (large)
|
1
|
|
|
19
|
89-2150-050200
|
Key 5*20 (round)
|
1
|
|
|
20
|
89-3511-022250
|
DU Bush
22.25.33F
|
1
|
|
|
|
-
|
|
|
28/55
|
Handle 3/5 ~JW11L00236
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0212-72100
|
Hexagonal Bolt(8T) M10*25(Meck)
|
1
|
|
|
2
|
0227-10600
|
Steering Arm CMP
|
1
|
|
|
3
|
0227-31400
|
Steering Rack
|
1
|
|
|
4
|
0227-31500
|
Steering Gear Box A
|
1
|
|
|
5
|
0227-31600
|
Steering Gear CMP
|
1
|
|
|
6
|
0227-31700
|
Steering Box
Cover CMP
|
1
|
|
|
7
|
0227-31800
|
Adjust Plate
|
1
|
|
|
8
|
0227-32100
|
Tie Rod
Adjuster
|
1
|
|
|
9
|
0227-32500
|
Ball Screw
|
1
|
|
|
10
|
0244-71700
|
Link Ball 12 (R)
|
1
|
|
|
11
|
0244-71800
|
Link Ball 12 (L)
|
1
|
|
|
12
|
0244-71900
|
Tough Lock Nut M12=P1.25
|
2
|
|
|
13
|
0244-73800
|
Hexagonal Nut
(slender) M12 Left
|
1
|
|
|
14
|
83-1610-324-00
|
Washer 10*36*3.2
|
1
|
|
|
15
|
89-1111-060202
|
Hexagonal Bolt M6*20
|
2
|
|
|
16
|
89-1113-050252
|
Hexagonal Bolt (8T) M5*25
|
4
|
|
|
17
|
89-1138-060162
|
Hexagonal Bolt
(SW) M6*16
|
6
|
|
|
18
|
89-1511-060042
|
Hexagonal Nut
M6
|
2
|
|
|
19
|
89-1612-120042
|
Mini Hexagonal Nut (Slender) M12
|
1
|
|
|
20
|
89-1750-050002
|
Spring Washer 5
|
4
|
|
|
21
|
89-1750-100002
|
Spring Washer 10
|
1
|
|
|
22
|
89-2151-070240
|
Key 7*24 (half round)
|
1
|
|
|
23
|
89-2512-000620
|
Snap Ring (R62)
|
1
|
|
|
24
|
89-3111-060014
|
Bearing 6001
|
1
|
|
|
25
|
89-3111-060044
|
Bearing 6004
|
1
|
|
|
26
|
89-3115-060014
|
Bearing 6001
2RS
|
1
|
|
|
27
|
89-3115-062064
|
Bearing 6206
2RS
|
1
|
|
|
28
|
89-5121-122507
|
Oil Seal UE 12.25.7
|
1
|
|
|
29
|
89-5121-306210
|
Oil Seal UE 30.62.10
|
1
|
|
|
|
-
|
|
|
29/55
|
Handle 4/5 JW11M255~JW12L00258
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0208-71100
|
Thrust Washer 12*18*1.0
|
1
|
|
|
2
|
0212-72100
|
Hexagonal Bolt(8T) M10*25(Meck)
|
1
|
|
|
3
|
0227-10610
|
Steering Arm
CMP
|
1
|
|
|
4
|
0227-31400
|
Steering Rack
|
1
|
|
|
5
|
0227-31510
|
Steering Gear Box A
|
1
|
|
|
6
|
0227-31610
|
Steering Gear
CMP
|
1
|
|
|
7
|
0227-31710
|
Steering Box
Cover CMP
|
1
|
|
|
8
|
0227-31800
|
Adjust Plate
|
1
|
|
|
9
|
0227-32100
|
Tie Rod
Adjuster
|
1
|
|
|
10
|
0227-32510
|
Ball Screw
|
1
|
|
|
11
|
0244-71700
|
Link Ball 12 (R)
|
1
|
|
|
12
|
0244-71800
|
Link Ball 12 (L)
|
1
|
|
|
13
|
0244-71900
|
Tough Lock Nut M12=P1.25
|
2
|
|
|
14
|
0244-73800
|
Hexagonal Nut
(slender) M12 Left
|
1
|
|
|
15
|
83-1610-324-00
|
Washer 10*36*3.2
|
1
|
|
|
16
|
89-1111-060202
|
Hexagonal Bolt M6*20
|
2
|
|
|
17
|
89-1113-050252
|
Hexagonal Bolt
(8T) M5*25
|
4
|
|
|
18
|
89-1138-060162
|
Hexagonal Bolt (SW) M6*16
|
6
|
|
|
19
|
89-1511-060042
|
Hexagonal Nut
M6
|
2
|
|
|
20
|
89-1612-120042
|
Mini Hexagonal Nut (Slender) M12
|
1
|
|
|
21
|
89-1750-050002
|
Spring Washer 5
|
4
|
|
|
22
|
89-1750-100002
|
Spring Washer 10
|
1
|
|
|
23
|
89-2151-070240
|
Key 7*24 (half round)
|
1
|
|
|
24
|
89-2512-000620
|
Snap Ring (R62)
|
1
|
|
|
25
|
89-3111-060044
|
Bearing 6004
|
1
|
|
|
26
|
89-3111-063014
|
Bearing 6301
|
1
|
|
|
27
|
89-3115-060014
|
Bearing 6001
2RS
|
1
|
|
|
28
|
89-3115-062064
|
Bearing 6206
2RS
|
1
|
|
|
29
|
89-3370-051101
|
Thrust Bearing 51101
|
1
|
|
|
30
|
89-5121-306210
|
Oil Seal UE 30.62.10
|
1
|
|
|
31
|
89-5130-122204
|
Oil Seal KE 12.22.4
|
1
|
|
|
|
-
|
|
|

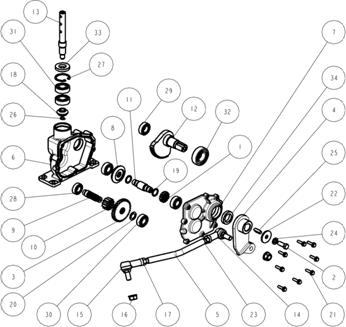

30/55
|
Handle 5/5 JW13B00045~
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1321-131-10
|
2nd Shaft 13T
|
1
|
|
|
2
|
0212-72100
|
Hexagonal Bolt(8T) M10*25(Meck)
|
1
|
|
|
3
|
0223-01500
|
3rd Shaft Gear 31T
|
1
|
|
|
4
|
0227-10610
|
Steering Arm
CMP
|
1
|
|
|
5
|
0227-32100
|
Tie Rod
Adjuster
|
1
|
|
|
6
|
0227-36100
|
Steering Gear Box
(A)
|
1
|
|
|
7
|
0227-36200
|
Steering Gear Box
(B)
|
1
|
|
|
8
|
0227-36300
|
Bevel Gear 34T
|
1
|
|
|
9
|
0227-36400
|
2nd Shaft
|
1
|
|
|
10
|
0227-36500
|
2nd Shaft 12T
|
1
|
|
|
11
|
0227-36600
|
1st Shaft
|
1
|
|
|
12
|
0227-36700
|
Steering Output Shaft
|
1
|
|
|
13
|
0227-36800
|
Handle Input Shaft
|
1
|
|
|
14
|
0244-71700
|
Link Ball 12 (R)
|
1
|
|
|
15
|
0244-71800
|
Link Ball 12 (L)
|
1
|
|
|
16
|
0244-71900
|
Tough Lock Nut M12=P1.25
|
2
|
|
|
17
|
0244-73800
|
Hexagonal Nut
(slender) M12 Left
|
1
|
|
|
18
|
0313-05400
|
Bevel Gear 19T
|
1
|
|
|
19
|
83-1017-365-10
|
Thrust Washer 17*23*1.0
|
2
|
|
|
20
|
83-1020-361-00
|
Thrust Washer 15*24*1.0
|
1
|
|
|
21
|
83-1515-148-00
|
Tapping Bolt
M6*22
|
8
|
|
|
22
|
83-1610-324-00
|
Washer 10*36*3.2
|
1
|
|
|
23
|
89-1612-120042
|
Mini Hexagonal Nut (Slender) M12
|
1
|
|
|
24
|
89-1750-100002
|
Spring Washer 10
|
1
|
|
|
25
|
89-2151-070240
|
Key 7*24 (half round)
|
1
|
|
|
26
|
89-2511-000100
|
Snap Ring (S10)
|
1
|
|
|
27
|
89-2512-000400
|
Snap Ring (R40)
|
1
|
|
|
28
|
89-3111-060024
|
Bearing 6002
|
1
|
|
|
29
|
89-3111-060034
|
Bearing 6003
|
1
|
|
|
30
|
89-3111-062024
|
Bearing 6202
|
3
|
|
|
31
|
89-3115-062034
|
Bearing 6203
2RS
|
2
|
|
|
32
|
89-3115-062054
|
Bearing 6205
2RS
|
1
|
|
|
33
|
89-5121-204008
|
Oil Seal UE 20.40.8
|
1
|
|
|
34
|
89-5121-253808
|
Oil Seal UE 25.38.8
|
1
|
|
|
|
-
|
|
|
31/55
|
Front 1/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-31100
|
Front Flapper Stay (Left) CMP
|
1
|
|
|
2
|
0227-31200
|
Front Flapper Stay (Right) CMP
|
1
|
|
|
3
|
0227-60100
|
Front Flapper
|
1
|
|
|
4
|
0227-60310
|
Upper Flapper
|
1
|
|
|
5
|
0227-60400
|
Front Upper Guard CMP
|
1
|
|
|
6
|
0227-81200
|
Front Foot
Guard
|
1
|
|
|
7
|
0244-61700
|
Upper Flapper Holder
|
1
|
|
|
8
|
0284-53200
|
Upper Flapper Holder (R)
|
1
|
|
|
9
|
89-1137-060152
|
Hexagonal Bolt
(PW) M6*15
|
8
|
|
|
10
|
89-1253-080302
|
Flange Mini
Hexagonal Bolt (8T) M8*30
|
4
|
|
|
11
|
89-1581-060042
|
Flange Cap
Nut M6
|
2
|
|
|
12
|
89-1631-100042
|
Flange Mini
Hexagonal Nut M10
|
2
|
|
|
13
|
89-1713-060002
|
Flat Washer 6 (large)
|
2
|
|
|
14
|
89-1713-100002
|
Flat Washer 10 (large)
|
2
|
|
|
|
-
|
|
|
32/55
|
Front 2/5
|
|
11901 111210
111123
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0010-71500
|
Thrust Washer 19*25*1.0
|
2
|
|
|
2
|
0227-30110
|
Front Wheel Boss
|
2
|
|
|
3
|
0227-32300
|
key 3/16*3/16*50
|
2
|
|
|
4
|
0227-32400
|
Snap Ring for Axes(RM980F)
|
2
|
|
|
5
|
0244-79110
|
Front Wheel Tire (R) Assy (400-7)
|
1
|
|
|
6
|
0244-79210
|
Front Wheel Tire (L) Assy
(4.00-7)
|
1
|
|
|
7
|
89-1113-100252
|
Hexagonal Bolt
(8T) M10*25
|
8
|
|
|
8
|
89-1750-100002
|
Spring Washer 10
|
8
|
|
|
9
|
0244-79310
|
Tire (4.00-7)
|
2
|
|
|
10
|
80-1260-404-00
|
Tire Tube
3.50-7
|
2
|
|
|
11
|
80-1260-407-00
|
Wheel Assy
3.50-7
|
2
|
|
|
|
-
|
|
|
33/55
|
Front 3/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-30210
|

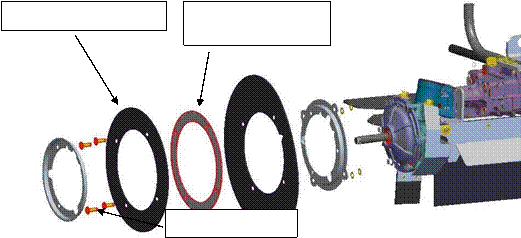

Front Wheel Rubber Cover Installation
|
1
|
|
|
2
|
0227-30300
|
Front Wheel Rubber Cover Press
|
1
|
|
|
3
|
0227-30400
|
Front Wheel Rubber Cover
|
1
|
|
|
4
|
0227-30500
|
Front Wheel Rubber Cover (IN)
|
1
|
|
|
5
|
0227-30700
|
Front Axle Cover Left CMP
|
1
|
|
|
6
|
0227-30800
|
Axle Cover Flapper
|
1
|
|
|
7
|
0227-30900
|
Steering Knuckle Arm
|
1
|
|
|
8
|
0227-32600
|
Axle Dust Guard
|
1
|
JW13L00304~
|
|
9
|
89-1111-120952
|
Hexagonal Bolt M12*95
|
1
|
|
|
10
|
89-1113-120352
|
Hexagonal Bolt (8T) M12*35
|
1
|
|
|
11
|
89-1137-060152
|
Hexagonal Bolt
(PW) M6*15
|
2
|
|
|
12
|
89-1631-080042
|
Flange Mini
Hexagonal Nut M8
|
4
|
|
|
13
|
89-1713-080002
|
Flat Washer 8 (large)
|
2
|
|
|
14
|
89-1713-120002
|
Flat Washer 12 (large)
|
2
|
|
|
15
|
89-1750-120002
|
Spring Washer 12
|
2
|
|
|
|
-
|
|
|
34/55
|
Front 4/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-30210
|
Front Wheel Rubber Cover Installation
|
1
|
|
|
2
|
0227-30300
|
Front Wheel Rubber Cover Press
|
1
|
|
|
3
|
0227-30400
|
Front Wheel Rubber Cover
|
1
|
|
|
4
|
0227-30500
|
Front Wheel Rubber Cover (IN)
|
1
|
|
|
5
|
0227-30600
|
Front Axle Cover Right CMP
|
1
|
|
|
6
|
0227-30800
|
Axle Cover Flapper
|
1
|
|
|
7
|
0227-32600
|
Axle Dust Guard
|
1
|
JW13L00304~
|
|
8
|
89-1111-120252
|
Hexagonal Bolt M12*25
|
2
|
|
|
9
|
89-1137-060152
|
Hexagonal Bolt (PW) M6*15
|
2
|
|
|
10
|
89-1631-080042
|
Flange Mini
Hexagonal Nut M8
|
4
|
|
|
11
|
89-1713-080002
|
Flat Washer 8 (large)
|
2
|
|
|
12
|
89-1713-120002
|
Flat Washer 12 (large)
|
2
|
|
|
13
|
89-1750-120002
|
Spring Washer 12
|
2
|
|
|
|
-

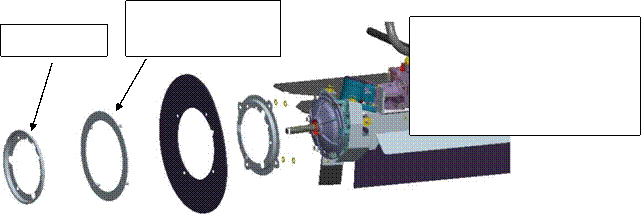

TECHNICAL NOTICE
Please be advised of following modification on OREC machine(s).
|
MODEL
|
RM980F
|
|
Issued Date
|
April 15, 2014
|
|
Issued Number
|
RM980F-133
|
|
New Number
|
Old Number
|
|
0227-31000
|
Front Wheel Rubber Cover Holder Bolt Set
|
0227-30300
|
Front Wheel Rubber Cover
Holder CMP
|
|
Reason of Modification :
To prevent the
rubber cover from interfering to inside of the tire due to the change shape.
|
Interchangeability :
New -> Old (impossible)
|
|
This modification covers following model(s) : RM980F
|
|
(NEW)
Front Wheel Rubber
Cover
Welded Bolt M8x25 Holder t=2.3 Mount the front wheel
rubber cover (IN) on
(89-1390-080252) (0227-31900) the outside (tire side), and fix it with the
welded bolts.
(OLD)
Front Wheel Rubber
Cover Holder CMP t=1.6
(0227-30300)
|
|
Modification Starts
from : RM980F(JW14E00122~)
|
|
Remarks :
|
|
OREC Co.,
Ltd.
548-22, Hiyoshi, Hirokawa-Machi, Yame-Gun, Fukuoka, 834-0195, Japan TEL : 0943-32-5057 FAX
: 0943-32-3518
|
|
|
|
|
|
TECHNICAL NOTICE
Please be advised of following modification on OREC machine(s).
|
MODEL
|
RM980F
|
|
Issued Date
|
June 17,
2015
|
|
Issued Number
|
RM980F-146
|
|
New Number
|
Old Number
|
|
0227-32700
|
Front Wheel Rubber Cover Holder CMP (t=2.3)
|
0227-31900
89-1390-080252
0227-30500
|
Front Wheel Rubber Cover
Holder
Welded Bolt M8 x 25
Front Wheel
Rubber Cover (IN)
|
|
Reason of Modification :
To prevent the front rubber
cover (IN) from interfering to inside of the tire.
|
Interchangeability :
New -> Old (impossible)
|
|
This modification covers following model(s) : RM980F
|
|
(NEW)
Front Wheel Rubber
Cover

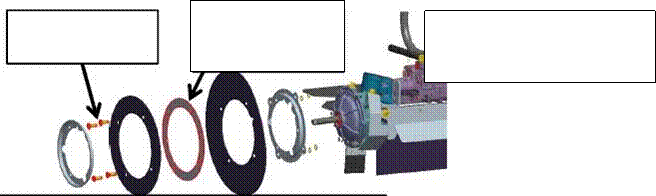

Axle Dust Guard Holder CMP t=2.3 Discontinue the front wheel
rubber cover (IN), and add the
welded bolt to the front
wheel rubber cover holder (0227-31900), use it as the
front wheel rubber
cover holder CMP (t=2.3)
(0227-32700).
(OLD)
Front Wheel Rubber Cover (IN) Front Wheel
Rubber Cover
Holder
Welded Bolt
M8 x 25
|
|
Modification Starts from : RM980F(RA15G00229~)
|
|
Remarks :
|
|
OREC Co.,
Ltd.
548-22, Hiyoshi, Hirokawa-Machi, Yame-Gun, Fukuoka, 834-0195, Japan TEL : 0943-32-5057 FAX
: 0943-32-3518
|
|
|
|
|
|
|
|
|
35/55
|
Front 5/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-00400
|
Oil Pressure Hose 1590
|
1
|
|
|
2
|
0227-00500
|
Hose Joint
|
1
|
|
|
3
|
0227-00600
|
HST Hose
|
1
|
|
|
4
|
0227-00800
|
Joint 3-4-16UNF
|
1
|
|
|
5
|
0227-01300
|
Oil Pressure Hose 1670
|
1
|
|
|
6
|
0227-01600
|
Adjustable Elbow
|
1
|
|
|
7
|
0227-01700
|
Hose Press Board
|
1
|
|
|
8
|
0227-31300
|
Front Axle Holder CMP
|
1
|
|
|
9
|
0228-70200
|
Hose Band 24
|
1
|
|
|
10
|
89-1232-100252
|
Mini Hexagonal Bolt (SW) M10*25
|
6
|
|
|
11
|
89-1232-080202
|
Mini Hexagonal Bolt (SW) M8*20
|
1
|
|
|
12
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
1
|
|
|
13
|
89-1713-100002
|
Flat Washer 10 (large)
|
6
|
|
|
14
|
89-5221-014000
|
O Ring P14
|
1
|
|
|
15
|
0227-01200
|
Front Unit ASSY (KXH10N)
|
1
|
|
|
|
-
|
|
|
36/55
|
Control 1/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0207-72600
|
Lever Grip 8 (black)
|
1
|
|
|
2
|
0215-70600
|
Lever Grip
(Red)
|
1
|
|
|
3
|
0221-13200
|
Change Grip
|
1
|
|
|
4
|
0244-15500
|
Change Lever (S) CMP
|
1
|
|
|
5
|
89-1253-080252
|
Flange Mini Hexagonal Bolt (8T) M8*25
|
1
|
|
|
6
|
89-1561-080002
|
Mini Hexagonal U Nut M8
|
1
|
|
|
|
-
|
|
|
37/55
|

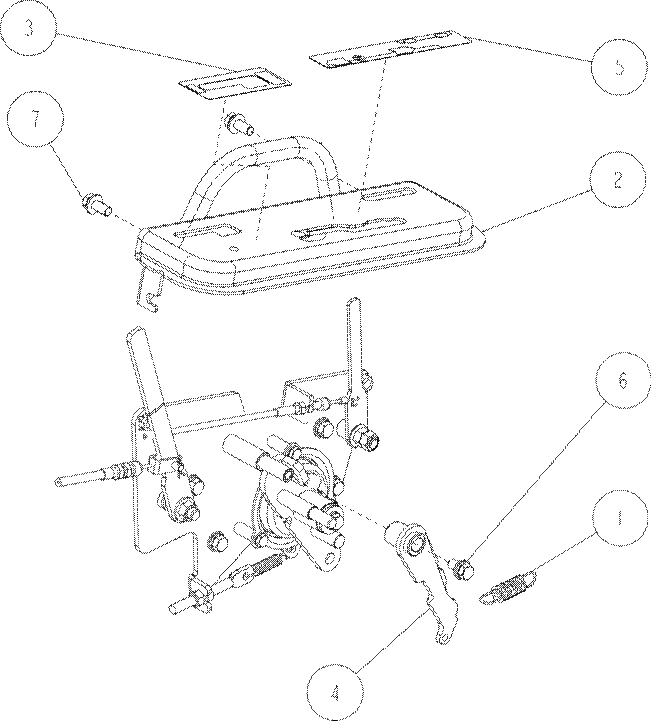

Control 2/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0208-71800
|
Spring, Neutral
|
1
|
|
|
2
|
0227-11200
|
Control Guide CMP
|
1
|
|
|
3
|
0227-74300
|
Label,Deff-lock
|
1
|
|
|
4
|
0244-12300
|
Change Arm
CMP
|
1
|
|
|
5
|
0259-80400
|
Label, Change (13256)
|
1
|
|
|
6
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
1
|
|
|
7
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
2
|
|
|
|
-
|
|
|
38/55
|

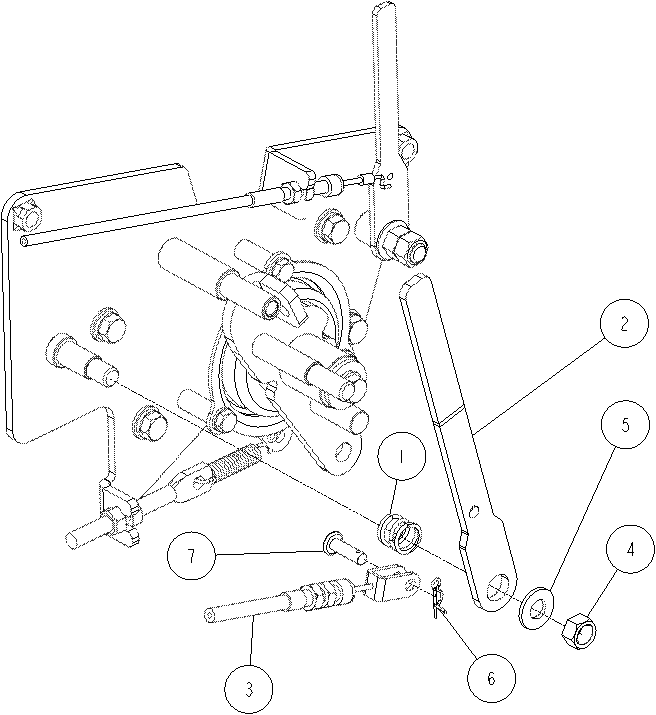

Control 3/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1020-263-00
|
Control Lever Shaft Spring
|
1
|
|
|
2
|
0227-11300
|
Deff-lock Lever
|
1
|
|
|
3
|
0244-72400
|
Differential Lock Wire
|
1
|
|
|
4
|
89-1561-100002
|
Mini Hexagonal U Nut M10
|
1
|
|
|
5
|
89-1712-100000
|
Flat Washer 10
|
1
|
|
|
6
|
89-2132-060002
|
Snap Pin
6 (with stopper)
|
1
|
|
|
7
|
89-2181-060202
|
Flat Head
Pin 6*20
|
1
|
|
|
|
-
|
|
|
39/55
|

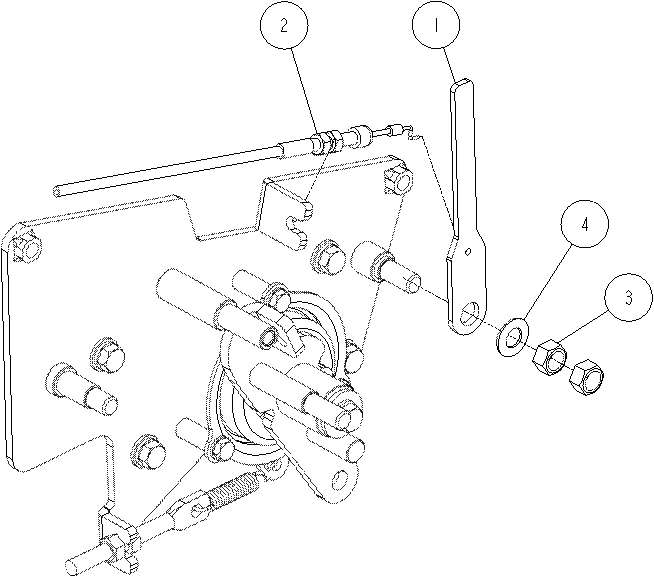

Control 4/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0244-12500
|
Throttle Lever
|
1
|
|
|
2
|
0244-72100
|
Throttle Wire
(B)
|
1
|
|
|
3
|
89-1611-100042
|
Mini Hexagonal Nut M10
|
2
|
|
|
4
|
89-1852-100000
|
Belleville Spring H10
|
1
|
|
|
|
-
|
|
|
40/55
|

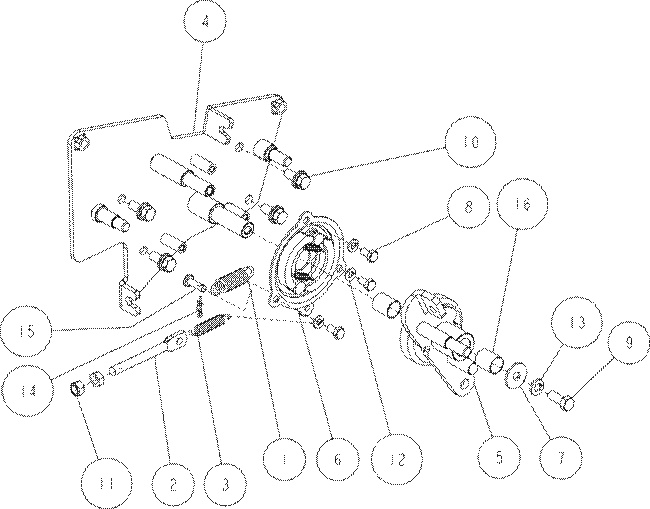

Control 5/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1614-315-00
|
Return Spring
|
1
|
|
|
2
|
0207-72300
|
Change Brake Adjuster
|
1
|
|
|
3
|
0225-11800
|
Spring, Change Brake
|
1
|
|
|
4
|
0227-11400
|
Change Bracket CMP (RM980F)
|
1
|
|
|
5
|
0244-12200
|
Change Brake CMP
|
1
|
|
|
6
|
0244-12800
|
Brake Assy
|
1
|
|
|
7
|
83-1751-311-00
|
Flat Washer 8*25*2.3
|
1
|
|
|
8
|
89-1113-060122
|
Hexagonal Bolt
(8T) M6*12
|
3
|
|
|
9
|
89-1211-080202
|
Mini Hexagonal Bolt M8*20
|
1
|
|
|
10
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
4
|
|
|
11
|
89-1611-080042
|
Mini Hexagonal Nut M8
|
2
|
|
|
12
|
89-1750-060002
|
Spring Washer 6
|
3
|
|
|
13
|
89-1750-080002
|
Spring Washer 8
|
1
|
|
|
14
|
89-2132-060002
|
Snap Pin
6 (with stopper)
|
1
|
|
|
15
|
89-2181-060202
|
Flat Head
Pin 6*20
|
1
|
|
|
16
|
89-3510-015200
|
DU Bush
15.20
|
2
|
|
|
|
-
|
|
|
41/55
|

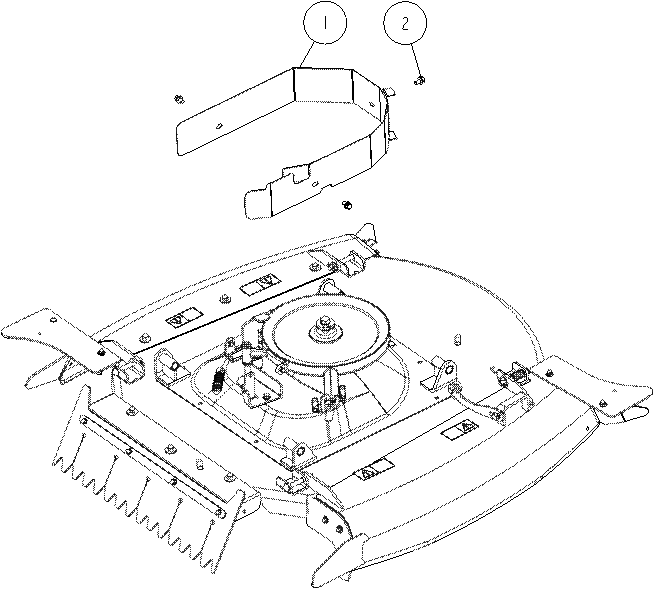

Cutting 1/7
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-81300
|
Knife Belt Cover CMP (4WDEU)
|
1
|
|
|
2
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
3
|
|
|
|
-
|
|
|
42/55
|
Cutting 2/7
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1488-926-10
|
Label, Caution for Knife
|
2
|
|
|
2
|
80-1488-928-10
|
Label, Caution for Belt Involving
|
2
|
|
|
3
|
0244-61200
|
Rear Guard
|
1
|
|
|
4
|
0244-61300
|
Rear Guard Flapper
|
1
|
|
|
5
|
0244-61400
|
Rear Guard Flapper Holder
|
1
|
|
|
6
|
0244-62600
|
Side Flapper (Rear)
|
1
|
|
|
7
|
89-1581-060042
|
Flange Cap
Nut M6
|
6
|
|
|
8
|
89-1137-060152
|
Hexagonal Bolt
(PW) M6*15
|
2
|
|
|
9
|
89-1137-060172
|
Hexagonal Bolt
(PW) M6*17
|
4
|
|
|
10
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
3
|
|
|
11
|
89-1671-080042
|
Mini Cap
Nut M8
|
3
|
|
|
12
|
89-1713-060002
|
Flat Washer 6 (large)
|
2
|
|
|
13
|
89-1714-080002
|
Flat Washer 8
|
3
|
|
|
|
-
|
|
|
43/55
|

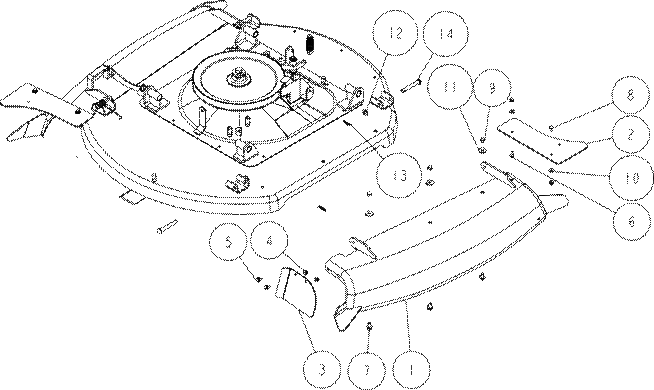

Cutting 3/7
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0227-81600
|
Left Side Cover CMP (4WDEU)
|
1
|
|
|
2
|
0255-60300
|
Right Cover Flapper
|
1
|
|
|
3
|
0259-53200
|
Foot Guard (Front Left)
|
1
|
|
|
4
|
89-1581-060042
|
Flange Cap
Nut M6
|
4
|
|
|
5
|
89-1137-060152
|
Hexagonal Bolt (PW) M6*15
|
2
|
|
|
6
|
89-1137-060172
|
Hexagonal Bolt (PW) M6*17
|
1
|
|
|
7
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
3
|
|
|
8
|
89-1390-060142
|
Welded Bolt
M6*14
|
1
|
|
|
9
|
89-1671-080042
|
Mini Cap
Nut M8
|
3
|
|
|
10
|
89-1713-060002
|
Flat Washer 6 (large)
|
2
|
|
|
11
|
89-1714-080002
|
Flat Washer 8
|
3
|
|
|
12
|
89-1714-100002
|
Flat Washer 10
|
2
|
|
|
13
|
89-2131-100002
|
Snap Pin
10
|
2
|
|
|
14
|
89-2191-100720
|
Round Head Pin 10*72
|
2
|
|
|
|
-
|
|
|
44/55
|
Cutting 4/7
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1488-747-00
|
Bolt for
Right Cover Up/Down Arm
|
1
|
|
|
2
|
0227-81700
|
Right Side Cover CMP (4WDEU)
|
1
|
|
|
3
|
0244-71600
|
Spring for
Right Cover
|
1
|
|
|
4
|
0255-60300
|
Right Cover Flapper
|
1
|
|
|
5
|
0259-51700
|
Right Cover Up/Down Arm
|
1
|
|
|
6
|
0259-53100
|
Foot Guard (Front Right)
|
1
|
|
|
7
|
0290-50200
|
Side Flapper (Back Right)
|
1
|
|
|
8
|
89-1581-060042
|
Flange Cap
Nut M6
|
6
|
|
|
9
|
89-1137-060172
|
Hexagonal Bolt
(PW) M6*17
|
4
|
|
|
10
|
89-1137-060152
|
Hexagonal Bolt
(PW) M6*15
|
2
|
|
|
11
|
89-1253-080202
|
Flange Mini
Hexagonal Bolt (8T) M8*20
|
1
|
|
|
12
|
89-1561-080002
|
Mini Hexagonal U Nut M8
|
1
|
|
|
13
|
89-1713-060002
|
Flat Washer 6 (large)
|
8
|
|
|
14
|
89-1714-100002
|
Flat Washer 10
|
2
|
|
|
15
|
89-1750-080002
|
Spring Washer 8
|
1
|
|
|
16
|
89-2131-100002
|
Snap Pin
10
|
2
|
|
|
17
|
89-2191-100720
|
Round Head Pin 10*72
|
2
|
|
|
|
-
|
|
|
45/55
|
Cutting 5/7
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1485-551-00
|
Driving Tension Spring
|
1
|
|
|
2
|
80-1792-988-00
|
Harness Clip 8
|
1
|
|
|
3
|
0244-42400
|
Knife Pulley Belt Holder (L)
|
1
|
|
|
4
|
0244-42600
|
Knife Pulley Belt Holder
|
1
|
|
|
5
|
0244-50600
|
Knife Brake
|
1
|
|
|
6
|
0244-50710
|
Knife Brake Bracket CMP
|
1
|
|
|
7
|
83-1565-329-00
|
Washer 13*22*2.3
|
4
|
|
|
8
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
6
|
|
|
9
|
89-2120-200152
|
Split Pin
2*15
|
1
|
|
|
10
|
89-2181-060162
|
Flat Head
Pin 6*16
|
1
|
|
|
11
|
89-2521-000100
|
E Type
Ring 10
|
2
|
|
|
12
|
89-3510-012200
|
DU Bush
12.20
|
2
|
|
|
|
-
|
|
|
46/55
|

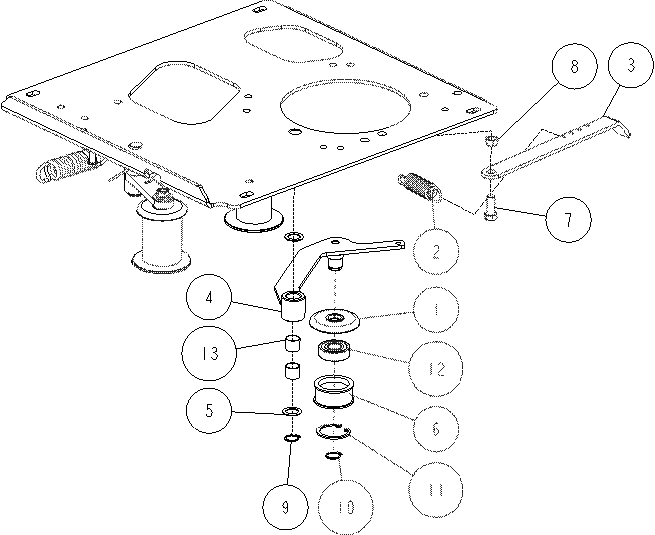

Cutting 6/7
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|

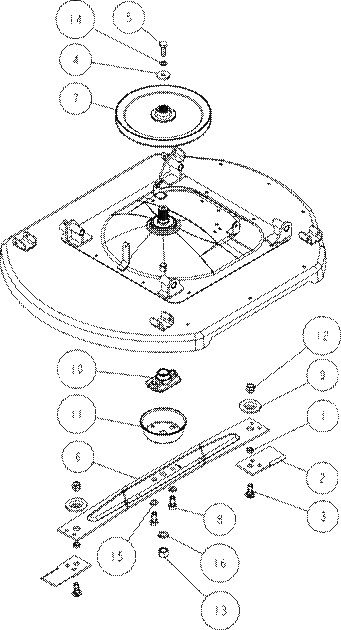

1
|
80-1483-818-00
|
Knife Collar
|
2
|
|
|
2
|
80-1483-821-00
|
Knife
|
2
|
|
|
3
|
0207-50200
|
Knife Setting Bolt M14*34
|
2
|
|
|
4
|
0221-76100
|
Washer 12*40*6
|
1
|
|
|
5
|
0221-76200
|
Mini Hexagonal Bolt (8T) M12*35
|
1
|
|
|
6
|
0244-51200
|
Knife Stay
(R817B)
|
1
|
|
|
7
|
0244-51500
|
Knife Pulley CMP
|
1
|
|
|
8
|
0244-51600
|
Mini Hexagonal Bolt (8T) M14*30 (Knife
|
2
|
|
|
9
|
0244-51800
|
Nut Guard 14
|
2
|
|
|
10
|
0244-51900
|
Knife Bracket
|
1
|
|
|
11
|
0244-52100
|
Knife Neck Guard
|
1
|
|
|
12
|
0244-74600
|
Hard Lock
Nut M14
|
2
|
|
|
13
|
83-1483-175-00
|
Bag Nut
M20 (Lock)
|
1
|
|
|
14
|
89-1750-120002
|
Spring Washer 12
|
1
|
|
|
15
|
89-1750-140002
|
Spring Washer 14
|
2
|
|
|
16
|
89-1750-200002
|
Spring Washer 20
|
1
|
|
|
|
-
|
|
|
47/55
|

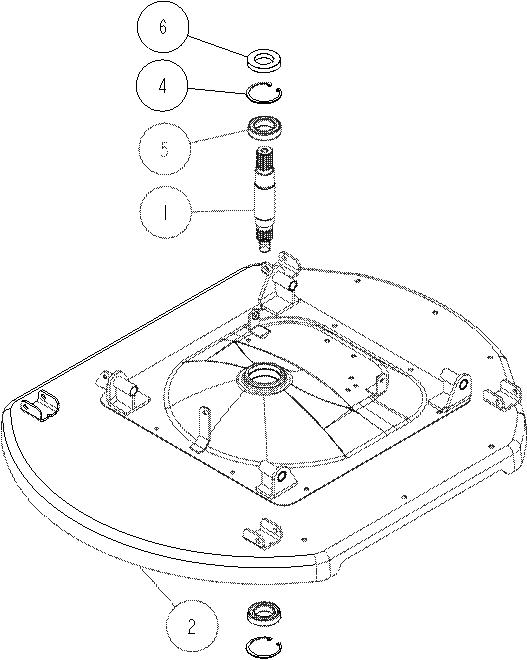

Cutting 7/7
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1493-641-00
|
Vertical Shaft
|
1
|
|
|
2
|
0227-50300
|
Safety Cover CMP
|
1
|
|
|
3
|
0262-50100
|
Dust Plate
|
1
|
|
|
4
|
89-2512-000620
|
Snap Ring (R62)
|
2
|
|
|
5
|
89-3115-060074
|
Bearing 6007
2RS
|
2
|
|
|
6
|
89-5121-356210
|
Oil Seal UE 35.62.10
|
1
|
|
|
7
|
89-5121-406212
|
Oil Seal UE 40.62.12
|
1
|
|
|
|
-
|
|
|
48/55
|

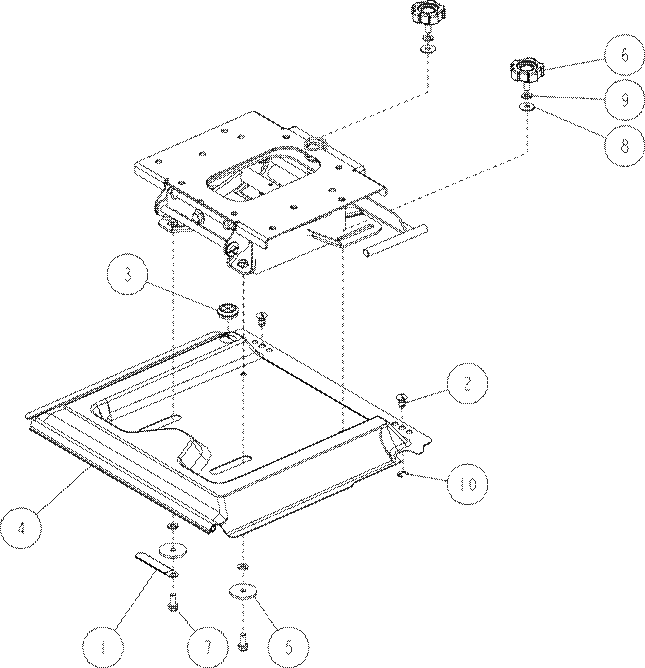

Seat 1/3
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1792-988-00
|
Harness Clip
8
|
1
|
|
|
2
|
0244-71300
|
Sine Fastener T9-170
|
2
|
|
|
3
|
0244-73700
|
Grommet 24
|
1
|
|
|
4
|
0259-22110
|
Seat Bracket CMP
|
1
|
|
|
5
|
83-1020-314-00
|
Washer 8*40*2.3
|
2
|
|
|
6
|
83-1560-101-00
|
Knob Bolt
M8*15
|
2
|
|
|
7
|
89-1232-080202
|
Mini Hexagonal Bolt (SW) M8*20
|
2
|
|
|
8
|
89-1713-080002
|
Flat Washer 8 (large)
|
2
|
|
|
9
|
89-1750-080002
|
Spring Washer 8
|
4
|
|
|
10
|
89-2521-000083
|
E Type Ring 8
|
2
|
|
|
|
-
|
|
|
49/55
|

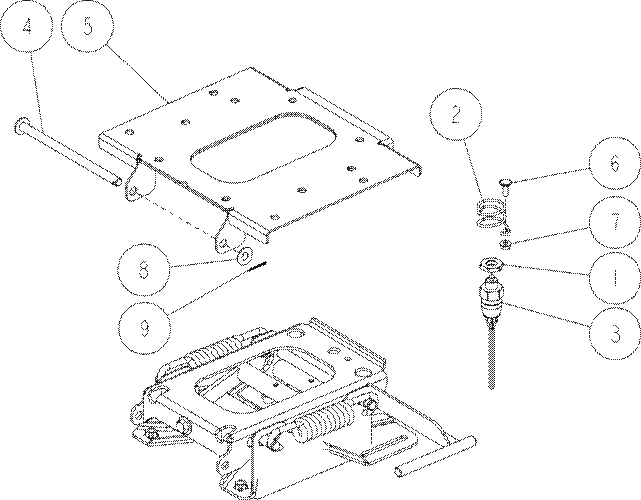

Seat 2/3
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0207-72800
|
Switch Lock Nut
|
1
|
|
|
2
|
0207-72900
|
Seat Switch Spring
|
1
|
|
|
3
|
0207-74400
|
Safety Switch K17850
|
1
|
|
|
4
|
0244-22300
|
Seat Receive Pin CMP
|
1
|
|
|
5
|
0292-80600
|
Seat Receiver CMP (4WD Tel)
|
1
|
JW14A00023～
|
|
0244-21810
|
Seat Receiver (97EU)
|
1
|
～JW13B00088
|
|
6
|
89-1390-060162
|
Welded Bolt
M6*16
|
1
|
|
|
7
|
89-1531-060042
|
Flange Nut
M6
|
1
|
|
|
8
|
89-1714-100002
|
Flat Washer 10
|
1
|
|
|
9
|
89-2120-200202
|
Split Pin
2*20
|
1
|
|
|
|
-
|
|
|

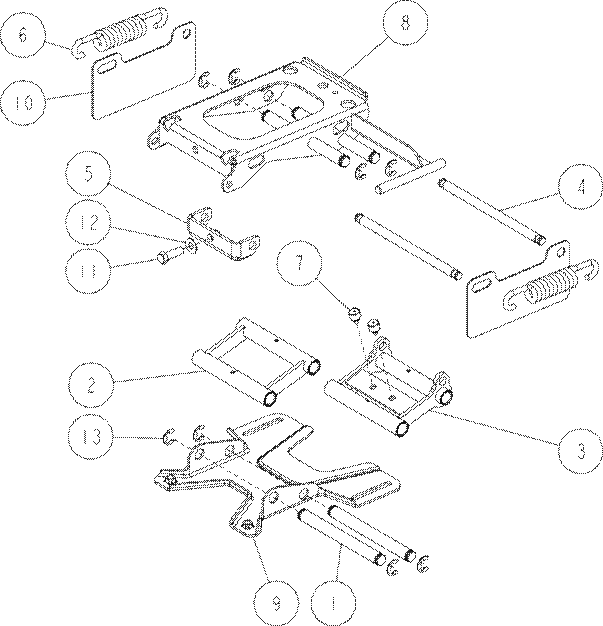

50/55
|
Seat 3/3
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0244-21100
|
Seat Link
Pin
|
4
|
|
|
2
|
0244-21400
|
Seat Link (A) CMP
|
1
|
|
|
3
|
0244-21500
|
Seat Link (B) CMP
|
1
|
|
|
4
|
0244-21600
|
Spring Shaft
|
2
|
|
|
5
|
0244-21700
|
Spring Shaft Hook CMP
|
1
|
|
|
6
|
0244-71200
|
Spring for
Seat Link
|
2
|
|
|
7
|
0244-71400
|
Seat Cushion Rubber
|
2
|
|
|
8
|
0259-21210
|
Link Upper CMP (98E)
|
1
|
|
|
9
|
0262-20400
|
Link Under Bracket
|
1
|
|
|
10
|
0292-80300
|
Seat Link
Shield
|
2
|
|
|
11
|
89-1211-100302
|
Mini Hexagonal Bolt M10*30
|
1
|
|
|
12
|
89-1714-100002
|
Flat Washer 10
|
1
|
|
|
13
|
89-2521-000120
|
E Type Ring 12
|
8
|
|
|
|
-
|
|
|
51/55
|

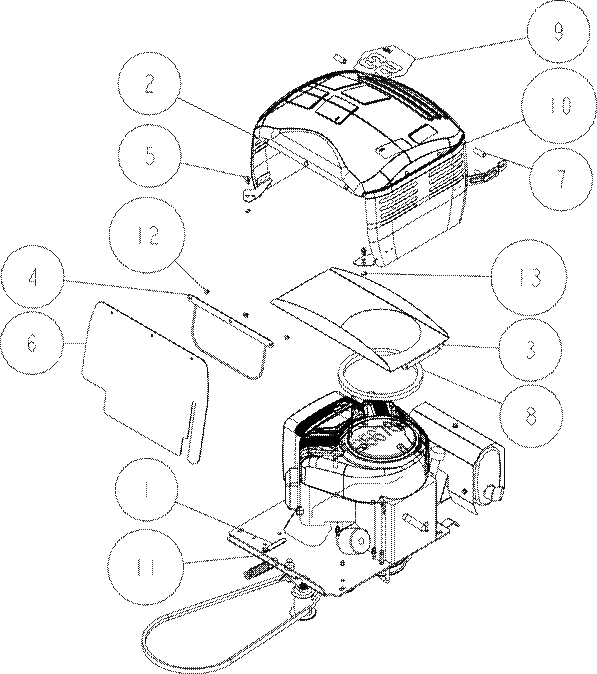

Engine 1/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1792-988-00
|
Harness Clip 8
|
1
|
|
|
2
|
0227-61100
|
Engine Bonnet
|
1
|
|
|
3
|
0244-60500
|
Duct CMP
|
1
|
|
|
4
|
0244-62510
|
Wind Shield Holder CMP
|
1
|
|
|
5
|
0244-71300
|
Sine Fastener T9-170
|
2
|
|
|
6
|
0244-72800
|
Wind Shield
|
1
|
|
|
7
|
0244-76500
|
Rubber Tube
10-14
|
2
|
|
|
8
|
0244-77700
|
Air intake Packing
|
1
|
|
|
9
|
0244-80500
|
Label,Engine 23HP
|
1
|
|
|
10
|
89-1159-060108
|
Truss Mini Screw M6*10
|
4
|
|
|
11
|
89-1233-080162
|
Mini Hexagonal Bolt (PWSW) M8*16
|
1
|
|
|
12
|
89-1581-060042
|
Flange Cap
Nut M6
|
3
|
|
|
13
|
89-2521-000083
|
E Type
Ring 8
|
2
|
|
|
|
-
|
|
|
52/55
|

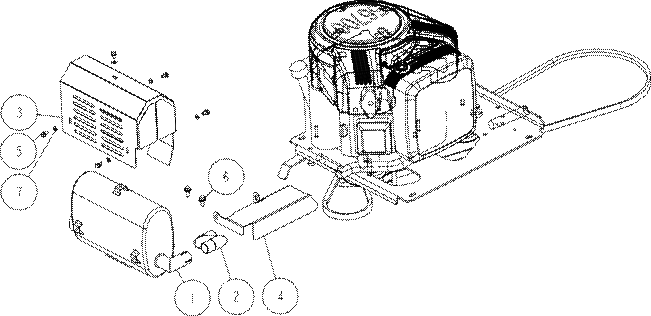

Engine 2/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
0244-40400
|
Muffler
|
1
|
|
|
2
|
0244-40500
|
Exhause Adapter B
|
1
|
|
|
3
|
0244-40800
|
Muffler Cover
|
1
|
|
|
4
|
0244-43100
|
Exhause Cover B
|
1
|
|
|
5
|
89-1132-060122
|
Hexagonal Bolt (SW) M6*12
|
5
|
|
|
6
|
89-1233-080202
|
Mini Hexagonal Bolt (PWSW) M8*20
|
2
|
|
|
7
|
89-1711-060002
|
Flat Washer 6
|
5
|
|
|
|
-
|
|
|
53/55
|

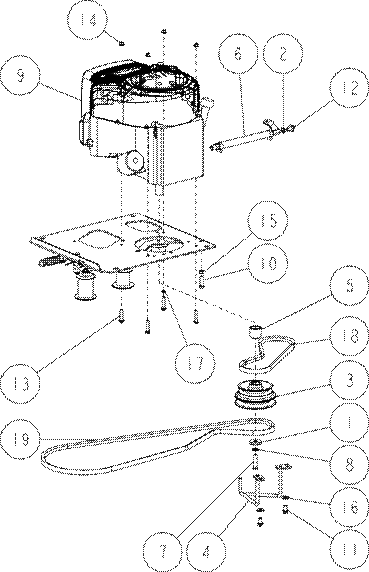

Engine 3/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1487-516-00
|
Washer 11*40*6
|
1
|
|
|
2
|
0207-74900
|
Copper Packing 12.5*19*1.0
|
1
|
|
|
3
|
0227-40500
|
Engine Pulley
|
1
|
|
|
4
|
0227-40700
|
Belt Holder CMP
|
1
|
|
|
5
|
0244-41100
|
Engine Collar
|
1
|
|
|
6
|
0244-41600
|
Oil Drain Assy (B)
|
1
|
|
|
7
|
83-1482-115-00
|
Hexagonal Bolt(8T) UNF7/16-20*45
|
1
|
|
|
8
|
83-1493-300-00
|
Spring Washer 7/16
|
1
|
|
|
9
|
9010-0280
|
BRIGGS ENGINE 386777-0133-B1
|
1
|
|
|
10
|
89-1211-100352
|
Mini Hexagonal Bolt M10*35
|
1
|
|
|
11
|
89-1232-100202
|
Mini Hexagonal Bolt (SW) M10*20
|
2
|
|
|
12
|
89-1251-120152
|
Flange Mini
Hexagonal Bolt M12*15
|
1
|
|
|
13
|
89-1253-080402
|
Flange Mini Hexagonal Bolt (8T) M8*40
|
4
|
|
|
14
|
89-1543-080002
|
Mini Hexagonal Nut (SW) M8
|
4
|
|
|
15
|
89-1611-100042
|
Mini Hexagonal Nut M10
|
1
|
|
|
16
|
89-1713-100002
|
Flat Washer 10 (large)
|
2
|
|
|
17
|
89-1812-080002
|
Toothed washer (inside) 8
|
1
|
|
|
18
|
89-6123-003403
|
V Belt LB-34 (SG1000)
|
1
|
|
|
19
|
89-6123-007803
|
V Belt LB-78 (SG1000)
|
1
|
|
|
|
-
|
|
|
54/55
|
Engine 4/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1482-549-00
|
Rubber Cover 58
|
1
|
|
|
2
|
80-1485-551-00
|
Driving Tension Spring
|
1
|
|
|
3
|
0207-41100
|
Drive Tension Spring Arm
|
1
|
|
|
4
|
0227-40600
|
Drive Tension Arm CMP
|
1
|
|
|
5
|
83-1020-363-00
|
Thrust Washer 16*24*1.0
|
2
|
|
|
6
|
83-1032-765-00
|
Tension Pulley
|
1
|
|
|
7
|
89-1211-100252
|
Mini Hexagonal Bolt M10*25
|
1
|
|
|
8
|
89-1611-100042
|
Mini Hexagonal Nut M10
|
1
|
|
|
9
|
89-2511-000160
|
Snap Ring (S16)
|
1
|
|
|
10
|
89-2511-000170
|
Snap Ring (S17)
|
1
|
|
|
11
|
89-2512-000400
|
Snap Ring (R40)
|
1
|
|
|
12
|
89-3115-062034
|
Bearing 6203
2RS
|
1
|
|
|
13
|
89-3510-016150
|
DU Bush
16.15
|
2
|
|
|
|
-
|
|
|
55/55
|

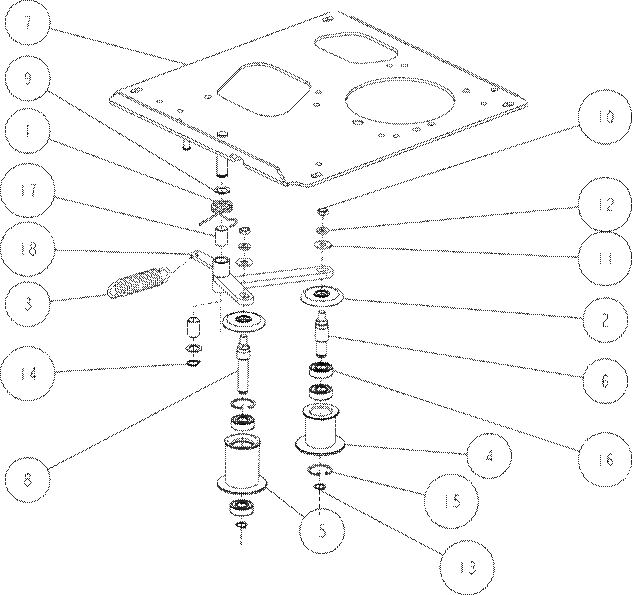

Engine 5/5
|
|
|
|
Ref.
|
Parts Number
|
Parts Name
|
Quantity
|
Remarks
|
|
1
|
80-1481-568-00
|
Knife Tension Return Spring φ26.7
|
1
|
|
|
2
|
80-1482-549-00
|
Rubber Cover 58
|
2
|
|
|
3
|
0207-78400
|
Spring For
Knife Tension Return
|
1
|
|
|
4
|
0227-40200
|
Knife Tension Pulley
|
1
|
|
|
5
|
0227-40300
|
Knife Tension Pulley (A)
|
1
|
|
|
6
|
0227-40400
|
Knife Tension Pulley Axle
|
1
|
|
|
7
|
0244-20300
|
Engine Base
CMP
|
1
|
|
|
8
|
0244-42800
|
Tension Idler Shaft
|
1
|
|
|
9
|
83-1020-363-00
|
Thrust Washer 16*24*1.0
|
2
|
|
|
10
|
89-1613-100042
|
Mini Hexagonal Nut (3 sorts) M10
|
2
|
|
|
11
|
89-1713-100002
|
Flat Washer 10 (large)
|
2
|
|
|
12
|
89-1750-100002
|
Spring Washer 10
|
2
|
|
|
13
|
89-2511-000150
|
Snap Ring (S15)
|
2
|
|
|
14
|
89-2511-000160
|
Snap Ring (S16)
|
1
|
|
|
15
|
89-2512-000350
|
Snap Ring (R35)
|
2
|
|
|
16
|
89-3115-062024
|
Bearing 6202
2RS
|
4
|
|
|
17
|
89-3510-016250
|
DU Bush
16.25
|
2
|
|
|
18
|
0227-40100
|
Knife Tension Arm CMP
|
1
|
|
|
|
-
