OREC                                        ISSUED NO. RM97EU-1

Parts catalogue

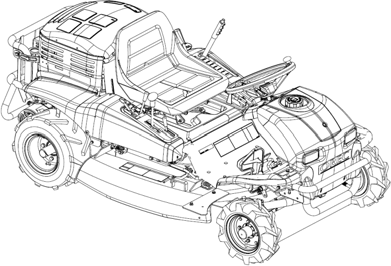

Rabbit Mower

(EXPORT MODEL) RM97

MODEL               CODE

RM97                0292- ○○○○○




CONTENTS



FRAME

1-12

TRANSMISSION

13-21

HST

22-23

HANDLE

24-26

FRONT

27-30

CONTROL

31-35

CUTTING

36-42

SEAT

43-45

ENGINE

46-50



OREC CO.,LTD

Update : Feb 2011

1/50

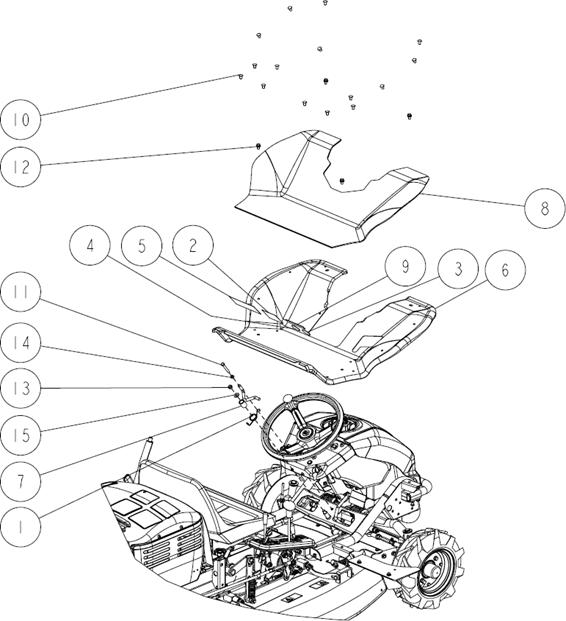

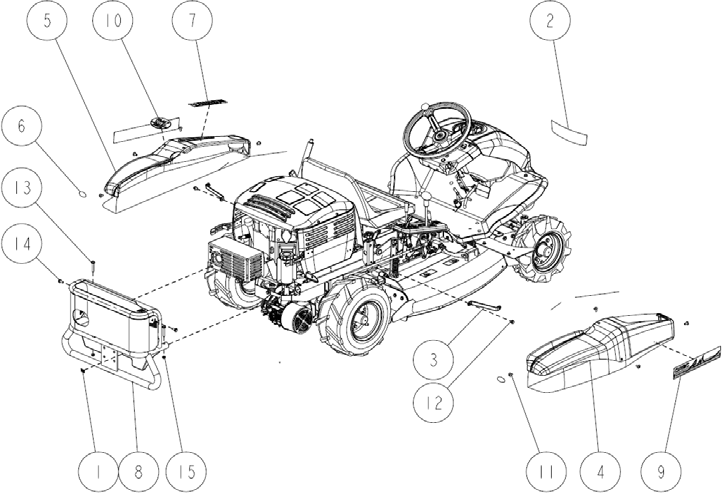

FRAME    1/12

















15

89-1631-080042

Flange Mini Hexagonal Nut M8

3



14

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

2



13

89-1251-080502

Flange Mini Hexagonal Bolt M8*50

2



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



11

89-1159-080168

Truss Mini Screw M8*16

8



10

0292-92200

Label, Model RM97

1



9

0292-92100

Label,Side Cover (Red)

2



8

0292-80100

Sub Frame CMP

1



7

0259-80300

Label, Cutting Height Adjusting (13255)

1



6

0244-81800

Reflection Seat

2



5

0244-60210

Side Cover (L) Red

1



4

0244-60110

Side Cover (R) Red

1



3

0244-22400

Side Cover Stay CMP

2



2

0227-71600

Label, Main (OREC)

1



1

0217-70800

Label, Gear Oil 1.0L

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



2/50

FRAME    2/12



15

89-1714-100002

Flat Washer 10

1



14

89-1611-080042

Mini Hexagonal Nut M8

1



13

89-1561-100002

Mini Hexagonal U Nut M10

1



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



11

89-1211-080552

Mini Hexagonal Bolt M8*55

1



10

83-1484-369-00

Clip (5347)

15



9

83-1310-902-00

OREC Mark

1



8

0244-70900

Step Rubber

1



7

0244-32200

Brake Stopper CMP

1



6

0244-20500

Step

1



5

0223-76100

Label, Caution (Large)

1



4

0215-83200

Label, Protection Equipment

1



3

0215-83100

Attention Mark for Slope

1



2

80-1488-921-00

Label Pedal Stopper (13113)

1



1

80-1484-356-00

Brake Stopper Return Spring

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



3/50

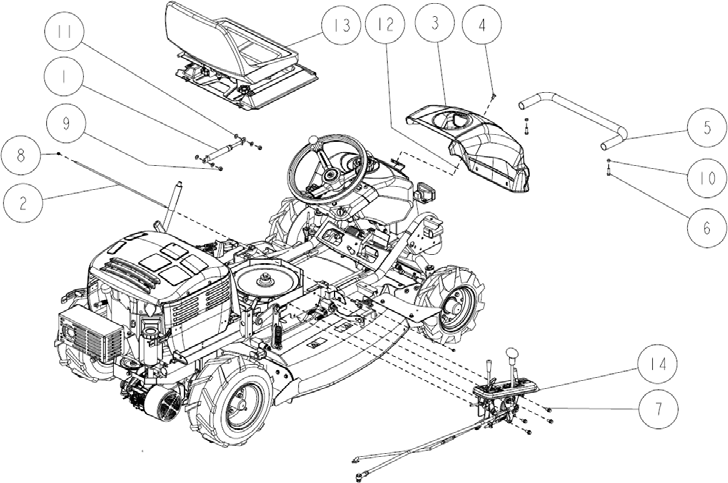

FRAME    3/12



















14

-

Control Part

-

Page 31

13

-

Seat Part

-

Page 43

12

89-2521-000083

E Type Ring 8

1



11

89-1711-100002

Flat Washer 10*18*1.6

4



10

89-1611-080042

Mini Hexagonal Nut M8

2



9

89-1561-100002

Mini Hexagonal U Nut M10

2



8

89-1553-060002

Bag Hexagonal U Nut M6

2



7

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



6

89-1211-080252

Mini Hexagonal Bolt M8*25

2



5

0255-20200

Front Bumper

1



4

0244-71300

Sine Fastener T9-170

1



3

0244-60600

Front Cover

1



2

0244-22200

Seat Bracket Shaft

1



1

0207-72700

Gas Spring KMF 50-40

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



4/50

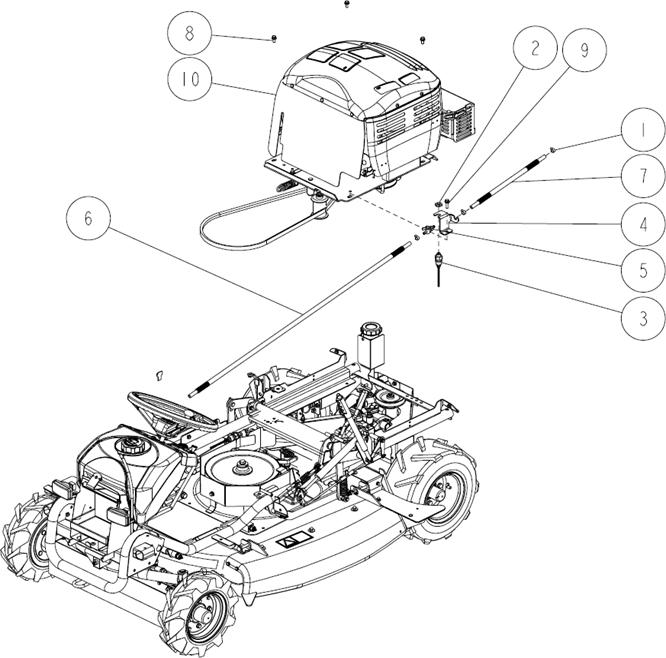

FRAME    4/12











10

-

Engine Part

-

Page 46

9

89-1233-080302

Mini Hexagonal Bolt (PWSW) M8*30

1



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



7

0244-75300

Fuel Hose (B)

1



6

0244-75200

Fuel Hose (Front)

1



5

0244-74500

Fuel Cock

1



4

0244-20400

Fuel Cock Bracket

1



3

0207-74400

Safety Switch K17850

1



2

0207-72800

Switch Lock Nut

1



1

80-1483-988-00

Hose Clip 17

3



Ref.

Parts Number

Parts Name

Quantity

Remarks

5/50

FRAME    5/12



20

80-1751-407-00

Wheel Assy 16*700*8

2



19

80-1751-404-00

Tire Tube 16*700*8

2



18

80-1751-401-00

Tire 16*700*8

2



17

89-2150-070500

Key 7*50 (round)

2



16

89-2120-350352

Split Pin 3.5*35

2



15

89-1750-160002

Spring Washer 16

2



14

89-1750-100002

Spring Washer 10

8



13

89-1658-160042

Low Fluted Nut (2 sorts) M16

2



12

89-1631-080042

Flange Mini Hexagonal Nut M8

3



11

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



10

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



9

89-1113-100252

Hexagonal Bolt (8T) M10*25

8



8

83-1630-335-00

Washer 16*40*4.5

2



7

0292-82100

Rear Belt Cover CMP (R)

1



6

0259-60100

Rear Belt Cover (AV98 CE)

1



5

0244-76200

Wheel Cap (Rear)

2



4

0207-77800

Wheel Boss Dust Seal

2



3

0207-31200

Rear Wheel Boss

2



2

80-1751-412-00

Tire (R) Assy (16*7.00-8)

1



1

80-1751-411-00

Tire (L) Assy (16*7.00-8)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



6/50

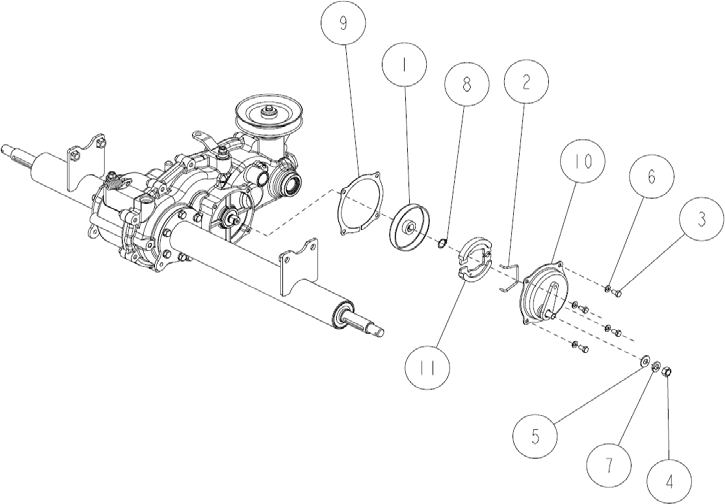

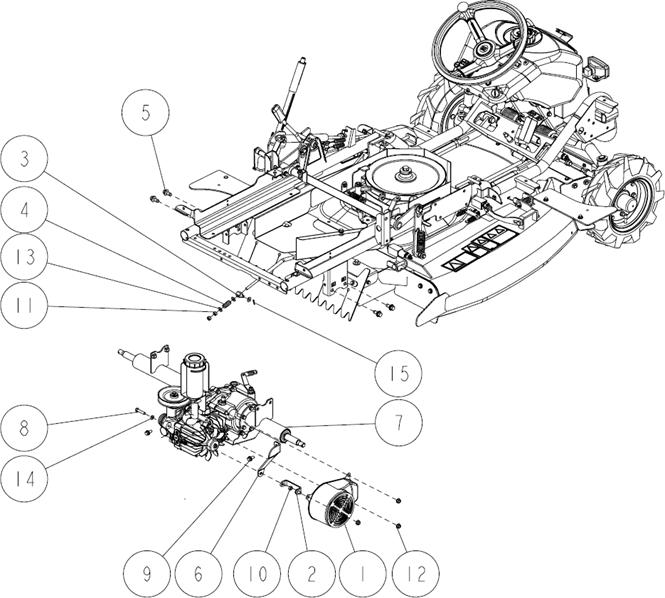

FRAME    6/12







15

89-2120-200152

Split Pin 2*15

1



14

89-1750-080002

Spring Washer 8

1



13

89-1711-080002

Flat Washer 8

3



12

89-1631-080042

Flange Mini Hexagonal Nut M8

3



11

89-1611-080042

Mini Hexagonal Nut M8

1



10

89-1561-080002

Mini Hexagonal U Nut M8

2



9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



8

89-1211-080352

Mini Hexagonal Bolt M8*35

1



7

0281-09010

Transmission Assy (with HST)

1



6

0281-00400

Transmission Hunger Stay

1



5

0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7

4



4

0207-75400

Brake Spring 30

1



3

0207-10300

Brake Joint

1



2

0207-07400

Fan Cover Setting CMP

1



1

0207-07200

Fan Cover CMP

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

7/50

FRAME    7/12



20

0244-77900

Fuse Box Cover

1



19

0244-70600

Wire Harness Assy RM97EU (B&S)

1



18

89-1551-060002

Hexagonal U Nut M6

1



17

89-1159-080168

Truss Mini Screw M8*16

3



16

89-1137-060152

Hexagonal Bolt (PW) M6*15

4



15

0259-61100

Battery Carrier CMP

1



14

0244-77800

Leak Hose

1



13

0244-76900

Filter

1



12

0244-76800

Leak Guide

1



11

0244-76700

Fuel Gauge Assy

1



10

0244-76600

Tank Cap Assy

1



9

0244-76300

Wire Clip

2



8

0244-75100

Blind Rivet

2



7

0244-73400

Fuel Tank Bush

2



6

0244-72900

Head Lamp

2



5

0244-71500

Fastener Spring ST-9

1



4

0244-70100

Fuel Tank

1



3

0244-60810

Battery Setting Stay

1



2

80-1483-988-00

Hose Clip 17

1



1

80-1482-971-00

Cushion Rubber (Battery)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



8/50

FRAME    8/12



9

-

Front Part

-

Page 27

8

-

Handle Part

-

Page 24

7

89-1750-120002

Spring Washer 12

1



6

89-1713-120002

Flat Washer 12 (large)

1



5

89-1551-120002

Hexagonal U Nut M12

1



4

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



3

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



2

83-1415-975-00

Grease Nipple M6

1



1

0207-30700

Center Pin

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



9/50

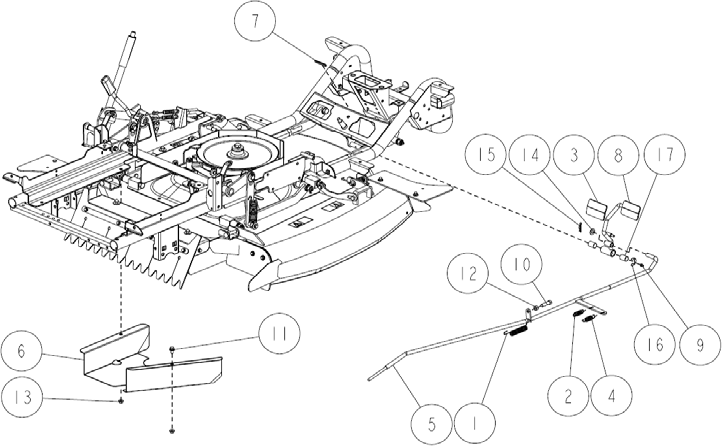

FRAME    9/12















17

89-3510-016250

DU Bush 16.25

2



16

89-2521-000150

E Type Ring 15

1



15

89-2131-120002

Snap Pin 12

1



14

89-1711-120002

Flat Washer 12

1



13

89-1631-080042

Flange Mini Hexagonal Nut M8

2



12

89-1611-100042

Mini Hexagonal Nut M10

1



11

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



10

89-1213-100357

Mini Hexagonal Bolt (8T) M10*35

1



9

83-1415-975-00

Grease Nipple M6

1



8

0292-90100

Brake Pedal Arm CMP

1



7

0289-71100

Rubber L50

1



6

0259-60210

Center Belt Cover (AV98 CE)

1



5

0244-13600

Brake Rod CMP

1



4

0208-71800

Spring, Neutral

1



3

80-1781-943-00

Pedal Rubber

1



2

80-1614-315-00

Return Spring

1



1

80-1493-354-00

Rod Return Spring

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



10/50

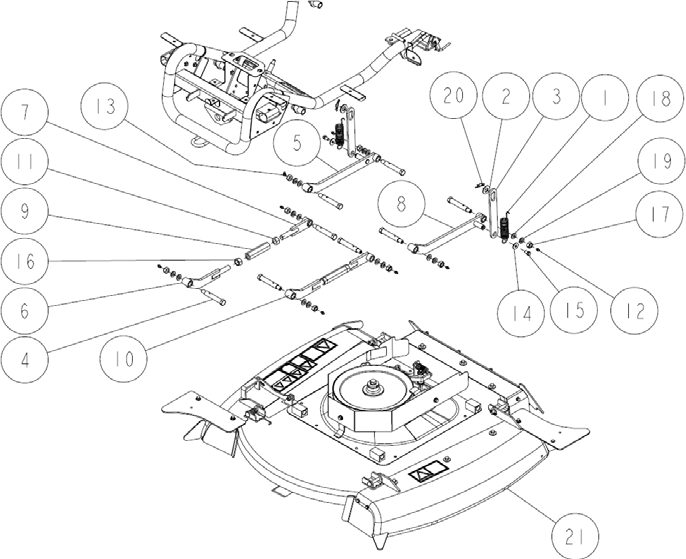

FRAME    10/12





21

-

Cutting Part

-

Page 36

20

89-2131-160002

Snap Pin 16

2



19

89-1750-120002

Spring Washer 12

8



18

89-1711-120002

Flat Washer 12

8



17

89-1551-120002

Hexagonal U Nut M12

8



16

89-1511-160042

Hexagonal Nut M16

2



15

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

2



14

83-1751-311-00

Flat Washer 8*25*2.3

2



13

83-1515-975-00

Grease Nipple C-Type M6

1



12

83-1415-975-00

Grease Nipple M6

7



11

0255-70200

Hexagonal Nut M16(L)

2



10

0255-50800

Front Link Arm L CMP

1



9

0255-50600

Link Arm Adjuster

2



8

0255-50400

Rear Link Arm L CMP

1



7

0255-50300

Front Link Arm B CMP

2



6

0255-50200

Front Link Arm R CMP

1



5

0255-50100

Rear Link Arm R CMP

1



4

0244-52200

Link Bolt

8



3

0244-10400

Connecting Plate

2



2

0207-76800

Washer 16*32*2.3

2



1

0207-76200

Spring (Up/Down)

2



Ref.

Parts Number

Parts Name

Quantity

Remarks



11/50

FRAME    11/12















21

89-3511-010150

DU Bush 10.15.18F

1



20

89-3510-012200

DU Bush 12.20

1



19

89-2181-080602

Flat Head Pin 8*60

1



18

89-2181-080282

Flat Head Pin 8*28

1



17

89-2181-060202

Flat Head Pin 6*20

1



16

89-2132-060002

Snap Pin 6 (with stopper)

3



15

89-2131-080002

Snap Pin 8

2



14

89-1711-080002

Flat Washer 8

2



13

89-1711-060002

Flat Washer 6

3



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



11

89-1511-060042

Hexagonal Nut M6

1



10

83-1020-355-00

Thrust Washer 12*24*1.0

2



9

0255-70100

Gas Spring Free Lock Type(FLC75-35)

1



8

0244-22600

Brake Rod Hung Plate

1



7

0244-11600

Turn Buckle (Pipe Type)

1



6

0244-11500

Adjuster Rod (L)

1



5

0244-11400

Adjuster Rod (R)

1



4

0244-11300

Push Rod Receiver CMP

1



3

0244-10500

Lock Pusher

1



2

0208-72700

Hexagonal Bolt (PW Large,SW) M6*12

1



1

80-1484-354-10

Brake Rod Roller

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



12/50

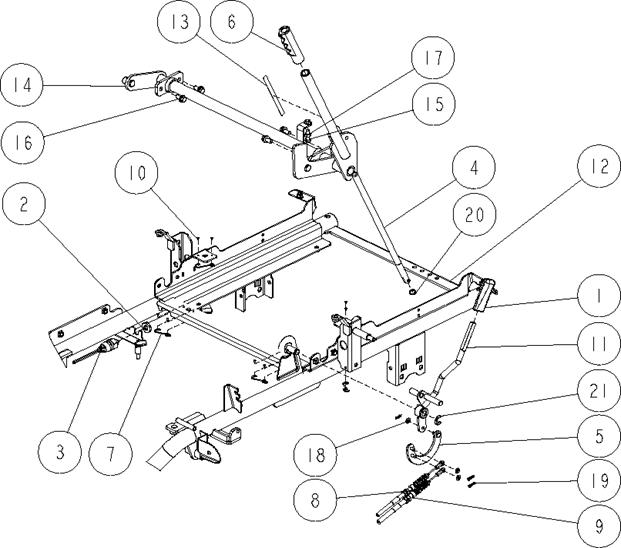

FRAME    12/12



21

89-2521-000120

E Type Ring 12

1



20

89-2511-000130

Snap Ring (S13)

1



19

89-2132-060002

Snap Pin 6 (with stopper)

3



18

89-1711-060002

Flat Washer 6

3



17

89-1611-080042

Mini Hexagonal Nut M8

1



16

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



15

89-1211-080252

Mini Hexagonal Bolt M8*25

1



14

0262-10100

Up/Down Adjusting Shaft CMP

1



13

0259-80700

Label, Cutting Height Line

1



12

0292-91100

Frame CMP (97FB)

1



11

0259-14310

Knife Clutch Lever

1



10

0244-75100

Blind Rivet

8



9

0244-72300

Cutting Clutch Wire

1



8

0244-72200

Knife Brake Wire

1



7

0244-71500

Fastener Spring ST-9

4



6

0244-70200

Adjusting Shaft Grip

1



5

0244-13700

Wire Joint CMP

1



4

0244-11200

Push Rod

1



3

0207-74400

Safety Switch K17850

1



2

0207-72800

Switch Lock Nut

1



1

80-1484-262-00

Arm Grip (Red)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



13/50

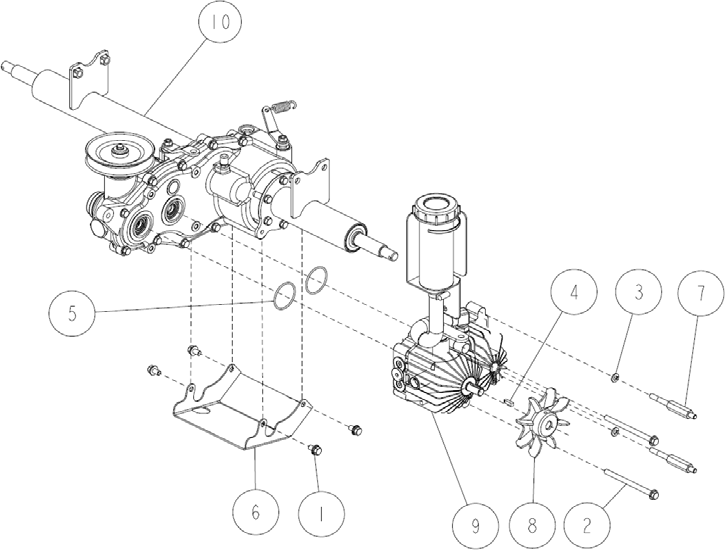

TRANSMISSION     1/9

















10

0281-09110

Transmission Assy (without HST)

-



9

0244-09200

HST Unit Assy

-



8

0207-07500

Fan

1



7

0207-07300

Double Spring Bolt

2



6

0207-03100

Mission Guard CMP

1



5

89-5222-045000

O Ring G45

2



4

89-2150-050200

Key 5*20 (round)

1



3

89-1750-080002

Spring Washer 8

2



2

89-1251-081123

Flange Mini Hexagonal Bolt M8*112

2



1

89-1239-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



Ref.

Parts Number

Parts Name

Quantity

Remarks



14/50

TRANSMISSION     2/9

















1.2.8.9.10.11

0207-73000

Brake Assy

-



11

0244-88100

Brake Shoe Set (PA-7)

1



2.10.11

0207-73200

Brake Cap Assy

1



9

0207-04100

Brake Cover PK (PA-7)

1



8

89-2511-000150

Snap Ring (S15)

1



7

89-1750-100002

Spring Washer 10

1



6

89-1750-060002

Spring Washer 6

4



5

89-1714-100002

Flat Washer 10

1



4

89-1611-100042

Mini Hexagonal Nut M10

1



3

89-1113-060122

Hexagonal Bolt (8T) M6*12

4



2

80-1030-285-00

Spring for Brake Shoe Return

1



1

80-1030-282-00

Brake Drum (PA-7)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



15/50

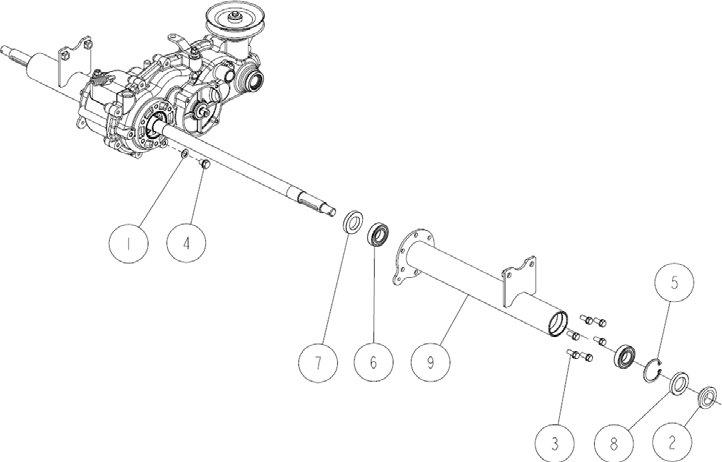

TRANSMISSION     3/9























9

0281-00100

Axle Case CMP (L)

1



8

89-5121-304707

Oil Seal UE 30.47.7

1



7

89-5121-284708

Oil Seal UE 28.47.8

1



6

89-3115-060054

Bearing 6005 2RS

2



5

89-2512-000470

Snap Ring (R47)

1



4

89-1252-100122

Flange Mini Hexagonal Bolt M10*12 (sle

1



3

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

6



2

83-1415-663-00

Oil Seal AP 30.47.7

1



1

83-1020-349-00

Copper Packing 10.5*18*1.6

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



16/50

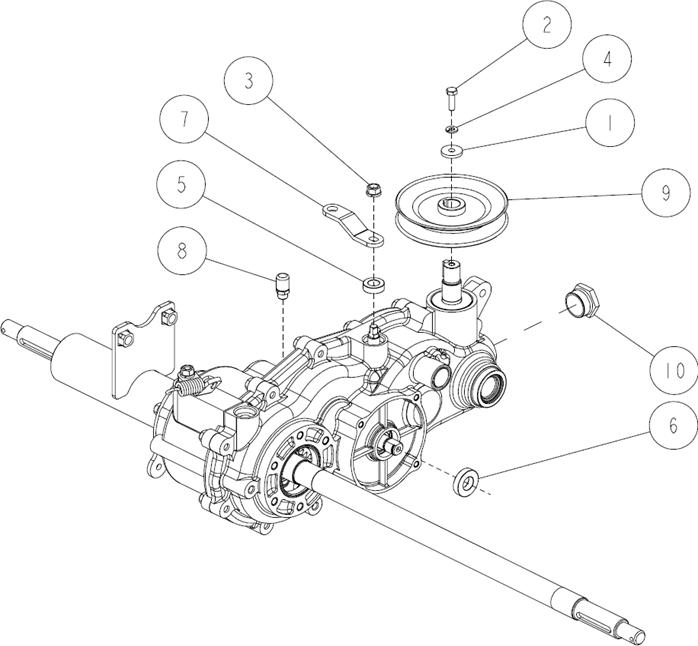

TRANSMISSION     4/9









10

0289-01000

Oil Plug Assy (with O Ring)

1



9

0284-40200

Transmission Pulley(HI)

1



8

0207-06100

Air Bleezer

1



7

0207-02500

Sub Change Arm

1



6

89-5121-153007

Oil Seal UE 15.30.7

1



5

89-5121-122207

Oil Seal UE 12.22.7

1



4

89-1750-060002

Spring Washer 6

1



3

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



2

89-1113-060202

Hexagonal Bolt (8T) M6*20

1



1

83-1482-311-00

Washer 6.5*22*3.2

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



17/50

TRANSMISSION     5/9









16

0281-00300

A Axle

1



15

0207-01900

Shift Spring Holder

1



14

0207-01700

Swing Arm CMP

1



13

0207-00400

20T Spiral Mita Gear(L)

1



12

0207-00100

Transmission Case(L)

1



11

89-5121-204208

Oil Seal UE 20.42.8

1



10

89-3410-080000

Steel Ball 8.0

1



9

89-3115-060044

Bearing 6004 2RS

2



8

89-2512-000420

Snap Ring (R42)

1



7

89-2511-000170

Snap Ring (S17)

1



6

89-2151-050200

Key 5*20 (half round)

1



5

89-2150-050160

Key 5*16 (round)

1



4

83-1482-143-00

Tapping Bolt M8*25

12



3

83-1415-671-00

Blind Cover 22

1



2

83-1020-148-00

Tapping Bolt M6*14

2



1

80-1310-138-00

Spring 1.4

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



18/50

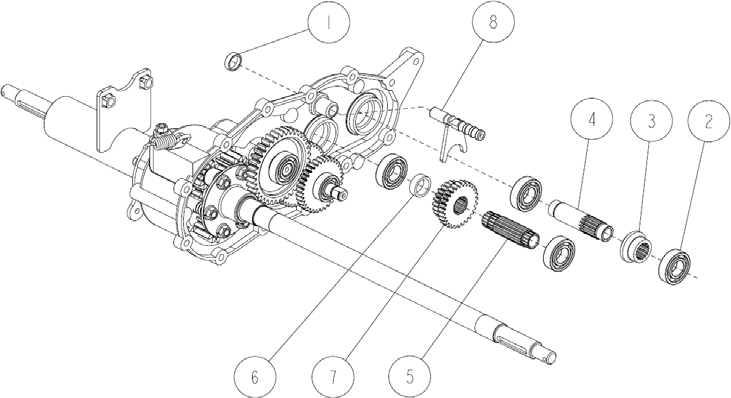

TRANSMISSION     6/9



























8

0207-01600

Shift Fork Shaft CMP

1



7

0207-00910

Shift Gear 22-28

1



6

0207-00800

C Axle Collar 9

1



5

0207-00700

C Axle

1



4

0207-00600

B Axle

1



3

0207-00500

20T Spiral Mita Gear(R)

1



2

89-3111-060044

Bearing 6004

4



1

83-1415-671-00

Blind Cover 22

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



19/50

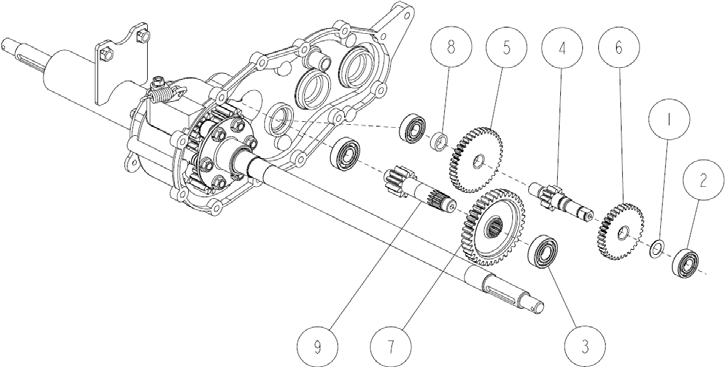

TRANSMISSION     7/9



























9

0244-00400

D Axle

1



8

0207-01500

Brake Shaft Collar 8

1



7

0207-01400

D Axle 37T Gear

1



6

0207-01310

Brake Shaft 34T Gear

1



5

0207-01210

Brake Shaft 40T Gear

1



4

0207-01100

Brake Shaft

1



3

89-3111-062034

Bearing 6203

2



2

89-3111-062024

Bearing 6202

2



1

83-1020-361-00

Thrust Washer 15*24*1.0

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



20/50

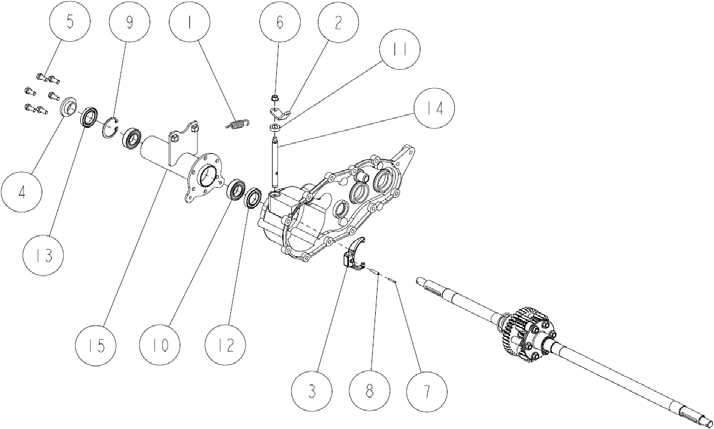

TRANSMISSION     8/9



















15

0281-00200

Axle Case CMP (R)

1



14

0207-01800

Differential Lock Fork Shaft

1



13

89-5121-304707

Oil Seal UE 30.47.7

1



12

89-5121-284708

Oil Seal UE 28.47.8

1



11

89-5121-122207

Oil Seal UE 12.22.7

1



10

89-3115-060054

Bearing 6005 2RS

2



9

89-2512-000470

Snap Ring (R47)

1



8

89-2111-050022

Spring Pin 5*22

1



7

89-2111-030020

Spring Pin 3*20

1



6

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



5

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

6



4

83-1415-663-00

Oil Seal AP 30.47.7

1



3

80-1830-113-00

Differential Lock Fork

1



2

80-1488-153-00

Differential Lock Arm

1



1

80-1425-551-00

Differential Lock Spring

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



21/50

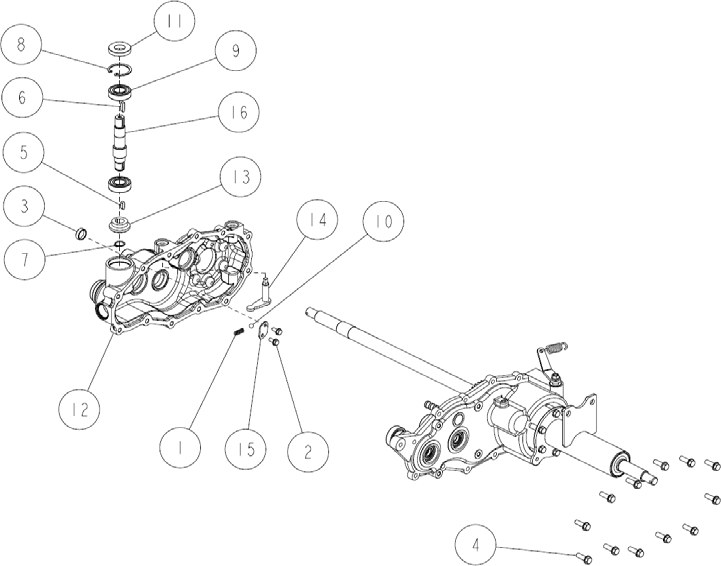

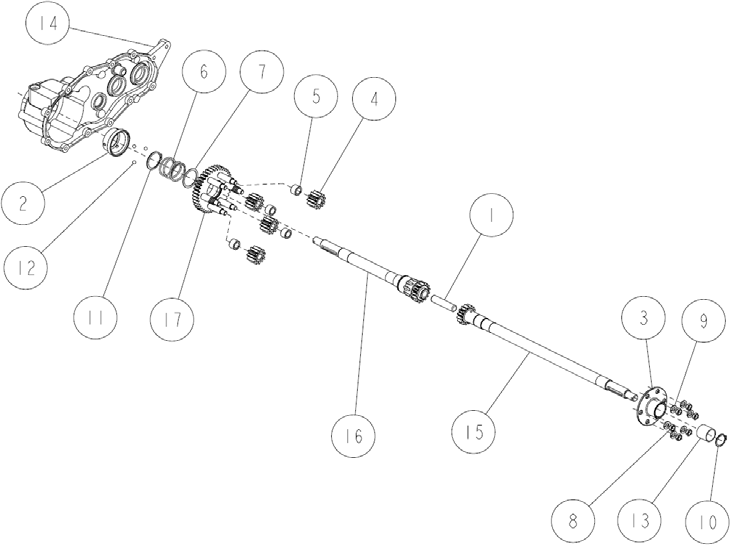

TRANSMISSION     9/9









17

0244-00300

Axle Gear 39T CMP

1



16

0207-02220

Axle(R) CMP

1



15

0207-02120

Axle(L) CMP

1



14

0207-00200

Transmission Case(R)

1



13

89-3510-028300

DU Bush 28.30

1



12

89-3410-075000

Steel Ball 7.5

3



11

89-2511-000400

Snap Ring (S40)

1



10

89-2511-000280

Snap Ring (S28)

1



9

89-1750-100002

Spring Washer 10

6



8

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

6



7

83-1830-382-00

Thrust Washer 40*48*1.0

1



6

80-1751-162-00

Differential Lock Spring

1



5

80-1481-155-00

Differential Gear Shaft Collar

4



4

80-1481-152-00

Differential Lock Gear 11T

4



3

80-1481-151-00

Differential Lock Plate

1



2

80-1425-143-00

Differential Lock Cone

1



1

80-1415-150-00

Axle Pin

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



22/50

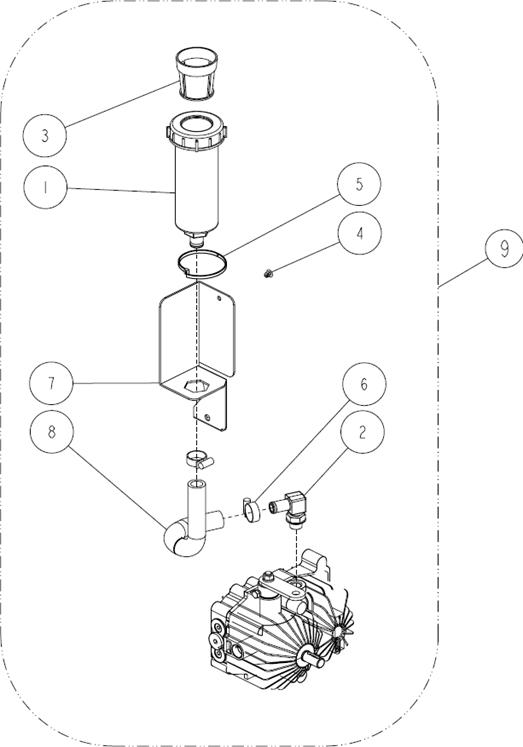

HST    1/2



9

0244-09200

HST Unit Assy

-



8

0244-72700

HST Oil Hose

1



7

0244-01500

HST Oil Tank Setting

1



6

0228-70200

Hose Band 24

2



5

0207-79900

Wire Band 250L

1



4

0207-79800

Push Clip

1



3

0207-71300

Filter (with level)

1



2

0207-07700

Port Joint

1



1

0207-07630

Oil Tank

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



23/50

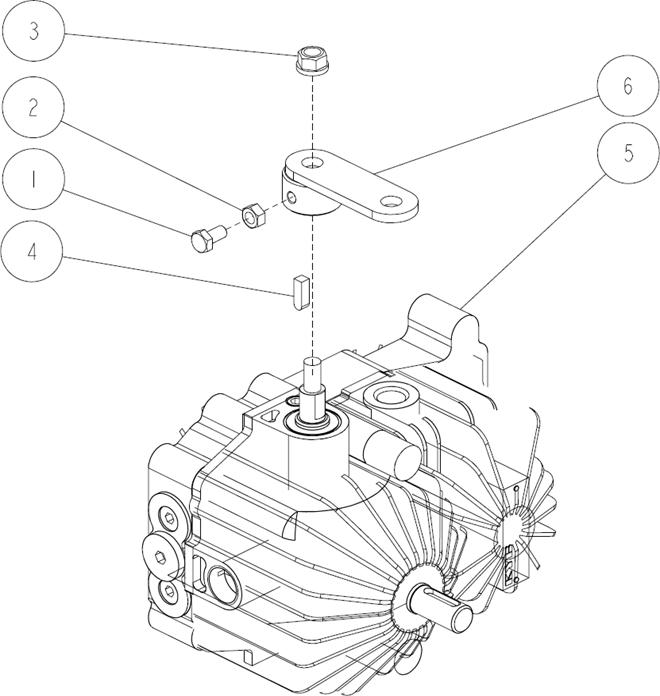

HST    2/2











6

0244-01400

Control Arm CMP

1



5

0244-09200

HST Unit Assy

-



4

89-2151-050160

Key 5*16 (half round)

1



3

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



2

89-1511-060042

Hexagonal Nut M6

1



1

89-1113-060122

Hexagonal Bolt (8T) M6*12

1



Ref.

Parts Number

Parts Name

Quantity

Remarks




24/50

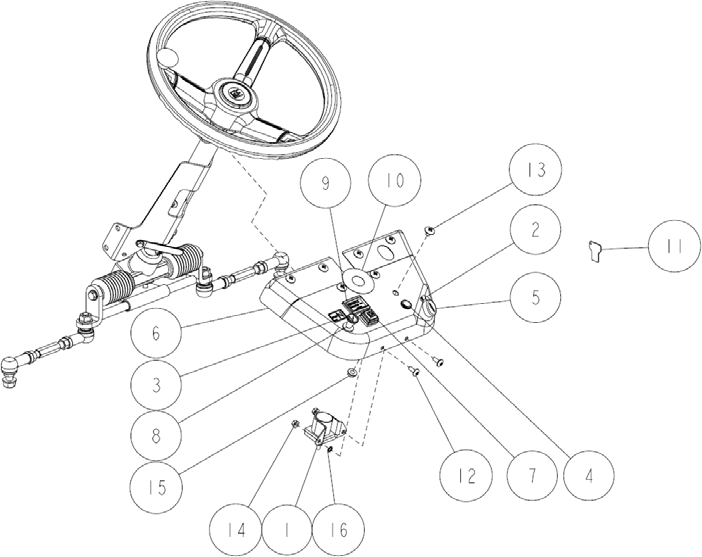

HANDLE    1/3











16

89-1812-060002

Toothed washer (inside) 6

1



15

89-1631-080042

Flange Mini Hexagonal Nut M8

1



14

89-1541-060002

Hexagonal Nut (SW) M6

2



13

89-1159-080108

Truss Mini Screw M8*10

7



12

89-1159-060168

Truss Mini Screw M6*16

2



11

0244-75600

Key Plate

1



10

0244-75400

Blind Washer

1



9

0244-73600

Hour Meter

1



8

0244-72600

Choke Wire B

1



7

0244-70300

Lighting Switch

1



6

0244-15100

Control Panel (B&S)

1



5

0207-79700

Key Switch

1



4

0207-79300

Pilot Lamp

1



3

80-1488-924-00

Label, Chork (13118)

1



2

80-1488-912-00

Label, Key (13121)

1



1

80-1483-978-00

Magnetic Switch (MS2-401)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



25/50

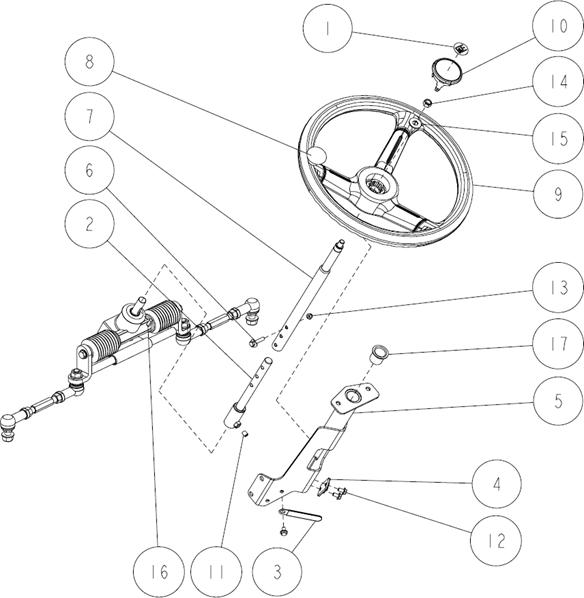

HANDLE    2/3



8.9.10

0262-70100

Steering Wheel Assy

-



17

89-3511-022250

DU Bush 22.25.33F

1



16

89-2150-050200

Key 5*20 (round)

1



15

89-1713-100002

Flat Washer 10 (large)

1



14

89-1561-100002

Mini Hexagonal U Nut M10

1



13

89-1553-060002

Bag Hexagonal U Nut M6

1



12

89-1137-060122

Hexagonal Bolt (PW) M6*12

3



11

83-1493-149-00

Hexagonal Screw M8*10

1



10

0262-70500

Steering Cap

1



9

0262-70400

Steering Wheel

1



8

0262-70300

Sub Handle Assy

1



7

0262-10200

Steering Upper Shaft

1



6

0244-75800

Bolt for Upper Shaft Setting

1



5

0244-20600

Handle Supporter CMP

1



4

0207-79200

Fuse Box Bracket

1



3

80-1792-988-00

Harness Clip 8

1



2

80-1481-324-20

Steering Lower Shaft

1



1

0244-80700

Label, Handle (Blue)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



26/50

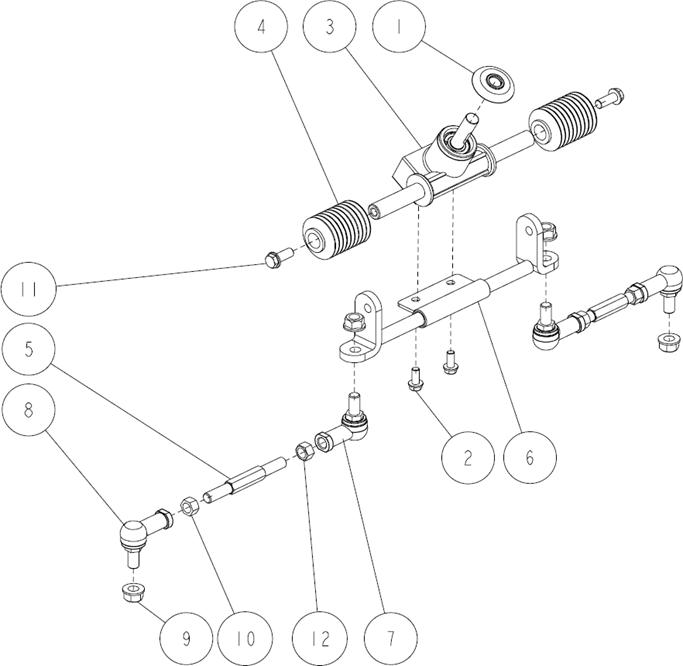

HANDLE    3/3





12

89-1612-120042

Mini Hexagonal Nut (Slender) M12

2



11

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1

2



10

0244-73800

Hexagonal Nut (slender) M12 Left

2



9

0244-71900

Tough Lock Nut M12=P1.25

4



8

0244-71800

Link Ball 12 (L)

2



7

0244-71700

Link Ball 12 (R)

2



6

0244-31400

Rack Support

1



5

0244-31300

Tie Rod Adjuster

2



4

80-1490-967-00

Steering Boots

2



3

80-1484-962-10

Steering Gear Box Assy

1



2

80-1020-719-00

Hexagonal Tap Tight M8*18

2



1

80-1016-461-00

Bearing Cover

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



27/50

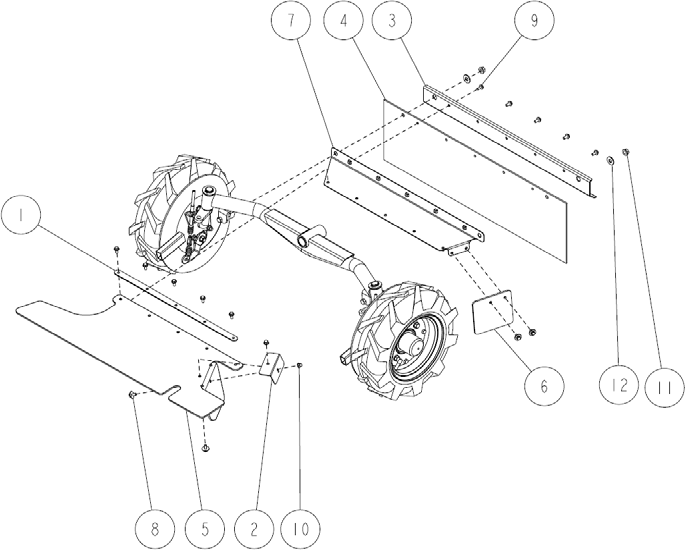

FRONT    1/4

















12

89-1713-100002

Flat Washer 10 (large)

2



11

89-1631-100042

Flange Mini Hexagonal Nut M10

2



10

89-1581-060042

Flange Cap Nut M6

2



9

89-1137-060152

Hexagonal Bolt (PW) M6*15

10



8

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

4



7

0255-60600

Front Upper Guard CMP

1



6

0255-60500

Upper Guard Flapper

1



5

0255-60200

Upper Flapper

1



4

0228-60500

Front Flapper

1



3

0217-63400

Foot Guard

1



2

0207-60900

Upper Flapper Holder (R)

1



1

0207-60800

Upper Flapper Holder

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

28/50

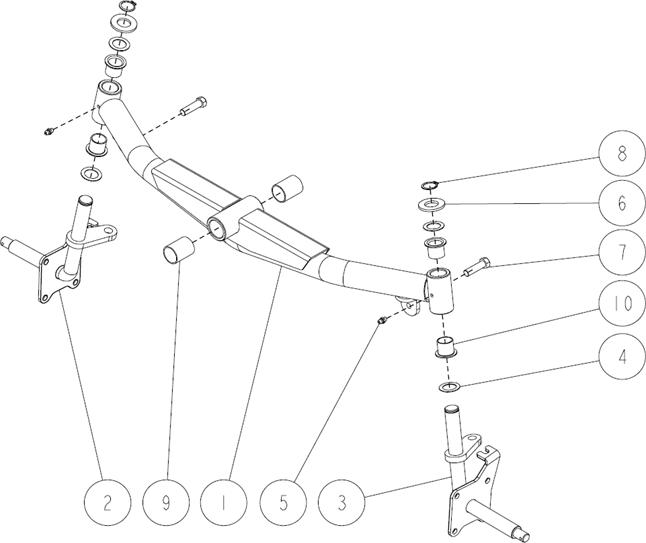

FRONT    2/4

















13

80-1260-407-00

Wheel Assy 3.50-7

2



12

80-1260-404-00

Tire Tube 3.50-7

2



11

80-1260-401-10

Tire (3.50*7)

2



10

89-2120-250252

Split Pin 2.5*25

2



9

89-1750-140002

Spring Washer 14

2



8

89-1668-140042

Mini Low Fluted Nut (2 sorts) M14

2



7

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

8



6

0244-76100

Wheel Cap (Front)

2



5

0240-75100

Front Brake Wire

2



4

0207-30500

Front Wheel Dust Cover

2



3

80-1425-551-00

Differential Lock Spring

2



2

80-1260-412-00

Front Wheel Tire (R) Assy (3.50-7)

1



1

80-1260-411-00

Front Wheel Tire (L) Assy (3.50-7)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



29/50

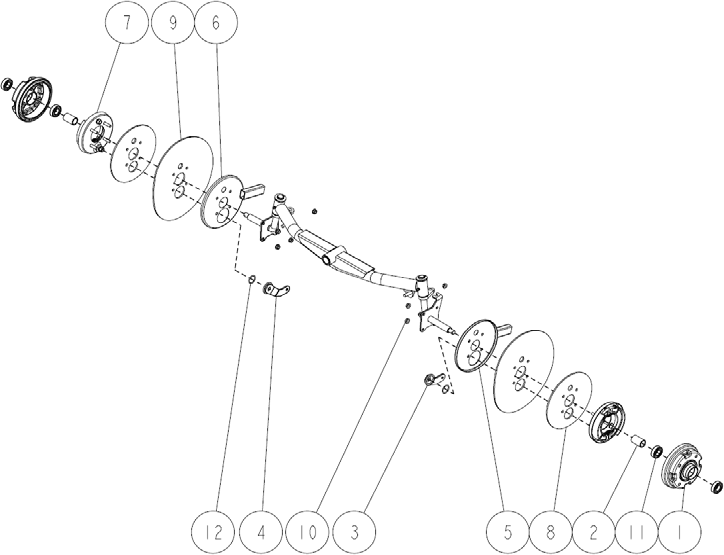

FRONT    3/4















12

89-5221-025000

O Ring P25

2



11

89-3115-060044

Bearing 6004 2RS

4



10

89-1631-080042

Flange Mini Hexagonal Nut M8

8



9

0240-62210

Front Wheel Rubber Cover

2



8

0240-62110

Front Wheel Rubber Cover (IN)

2



7

0240-32100

Brake Shoe φ130

2



6

0240-31500

Brake Cover CMP (R)

1



5

0240-31400

Brake Cover CMP (L)

1



4

0240-31300

Brake Arm CMP (R)

1



3

0240-31200

Brake Arm CMP (L)

1



2

0240-31100

King Pin Collar

2



1

0240-30300

Wheel Boss

2



Ref.

Parts Number

Parts Name

Quantity

Remarks



30/50

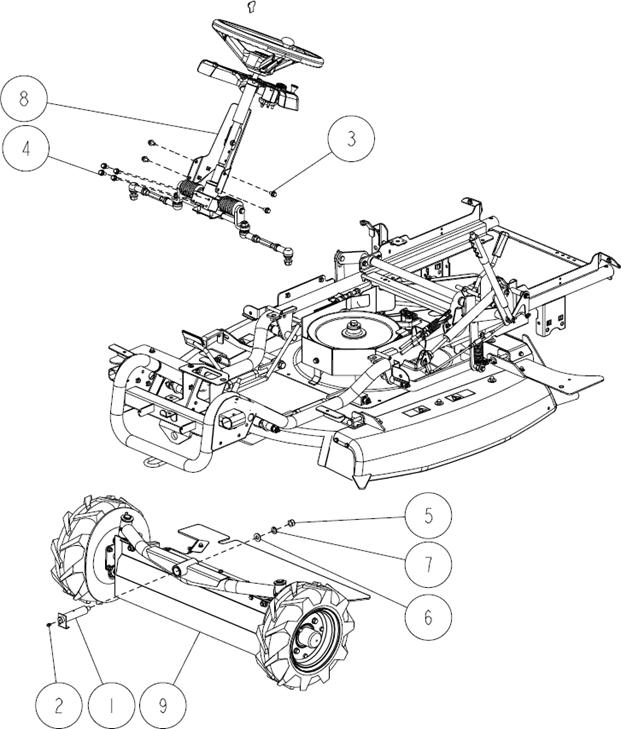

FRONT    4/4















10

89-3511-020200

DU Bush 20.20.31F

4



9

89-3510-025350

DU Bush 25.35

2



8

89-2511-000200

Snap Ring (S20)

2



7

89-1213-100252

Mini Hexagonal Bolt (8T) M10*25

2



6

83-1490-337-00

Washer 20*38*3.2

2



5

83-1415-975-00

Grease Nipple M6

2



4

83-1310-371-00

Thrust Washer 20*30*1.0

4



3

0292-94200

King Pin RM97FB (L)

1



2

0292-94100

King Pin RM97FB (R)

1



1

0244-32100

Front Axle CMP

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



31/50

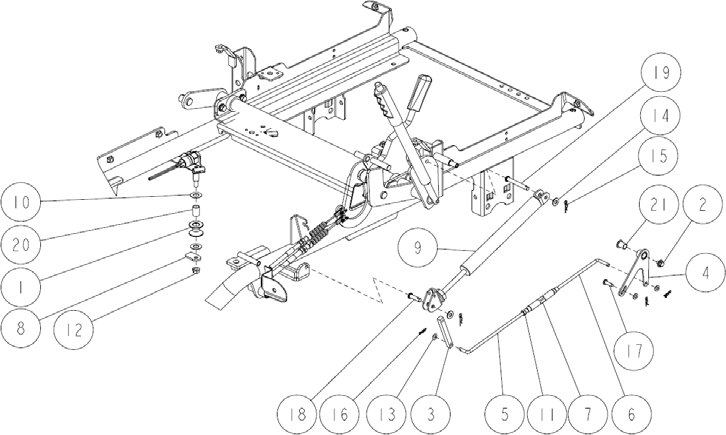

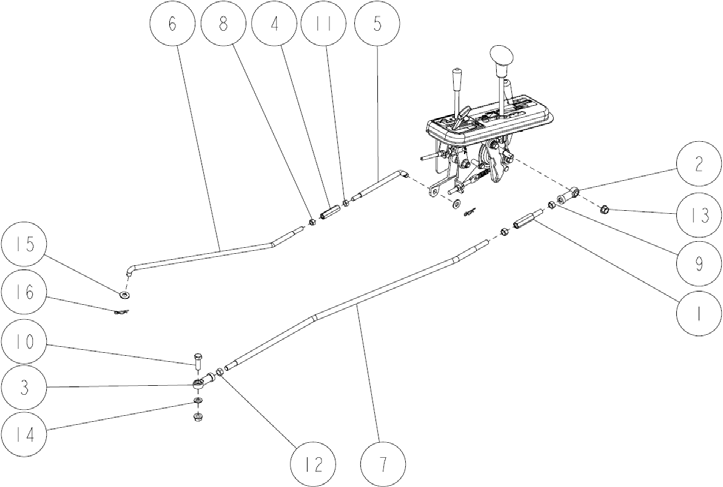

CONTROL    1/5

















16

89-2131-100002

Snap Pin 10

2



15

89-1712-100002

Flat Washer 10*21*2.1

2



14

89-1711-100002

Flat Washer 10*18*1.6

1



13

89-1631-100042

Flange Mini Hexagonal Nut M10

2



12

89-1611-100042

Mini Hexagonal Nut M10

2



11

89-1611-080042

Mini Hexagonal Nut M8

1



10

89-1213-100302

Mini Hexagonal Bolt (8T) M10*30

1



9

83-1488-195-02

Mini Hexagonal Nut M10 (L)

1



8

83-1484-195-00

Mini Hexagonal Nut M8 (L)

1



7

0244-13800

Shift Rod

1



6

0244-13500

Sub Change Rod (rear)

1



5

0207-11100

Sub Change Rod (front)

1



4

80-1791-597-00

Turn Buckle 8*50

1



3

80-1487-964-10

Rod End PHS10EC

1



2

80-1487-962-10

Rod End PHS10ECL

1



1

80-1485-265-00

Shift Rod Adjuster

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



32/50

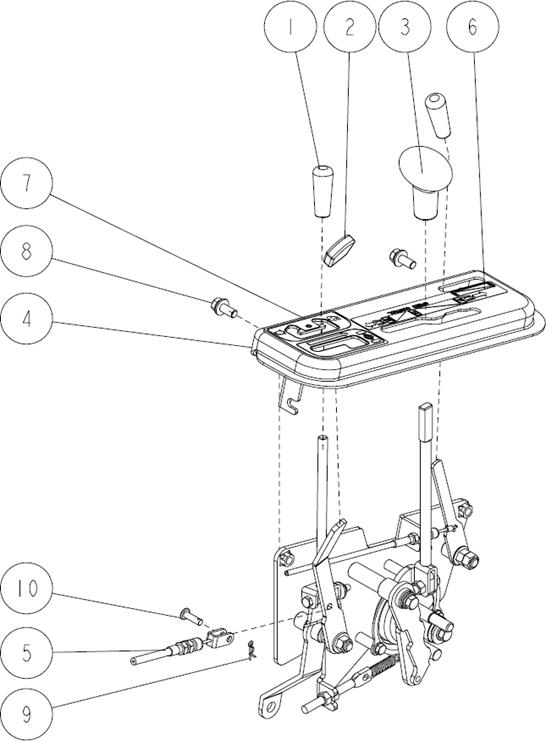

CONTROL    2/5



10

89-2181-060202

Flat Head Pin 6*20

1



9

89-2132-060002

Snap Pin 6 (with stopper)

1



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



7

0259-80500

Label, Differential Lock (13257)

1



6

0259-80400

Label, Change (13256)

1



5

0244-72400

Differential Lock Wire

1



4

0244-13400

Change Guide CMP

1



3

0221-13200

Change Grip

1



2

0215-70600

Lever Grip (Red)

1



1

0207-72600

Lever Grip 8 (black)

2



Ref.

Parts Number

Parts Name

Quantity

Remarks



33/50

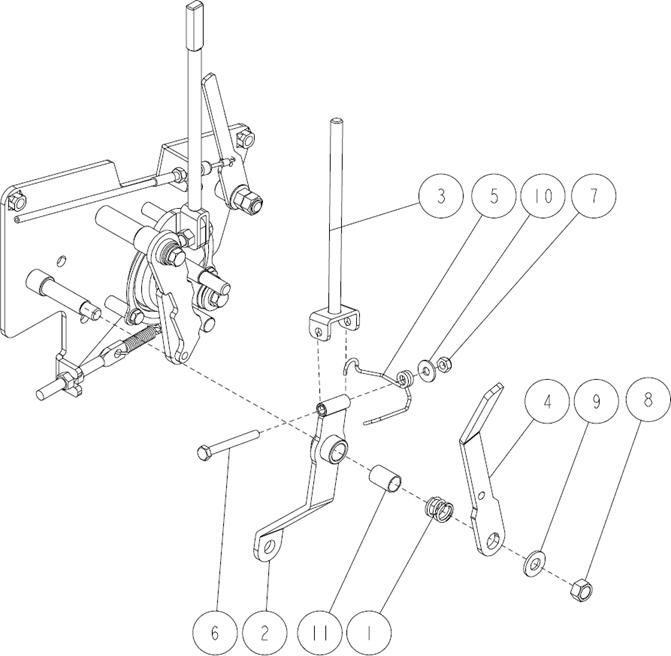

CONTROL    3/5







11

89-3510-012200

DU Bush 12.20

1



10

89-1713-060002

Flat Washer 6 (large)

1



9

89-1712-100000

Flat Washer 10

1



8

89-1561-100002

Mini Hexagonal U Nut M10

1



7

89-1551-060002

Hexagonal U Nut M6

1



6

89-1113-060552

Hexagonal Bolt (8T) M6*55

1



5

0244-73300

Spring for Differential Lock Lever

1



4

0244-13200

Differential Lock Lever CMP

1



3

0244-12700

Sub Change Lever CMP

1



2

0244-12600

Sub Change Arm CMP

1



1

80-1020-263-00

Control Lever Shaft Spring

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



34/50

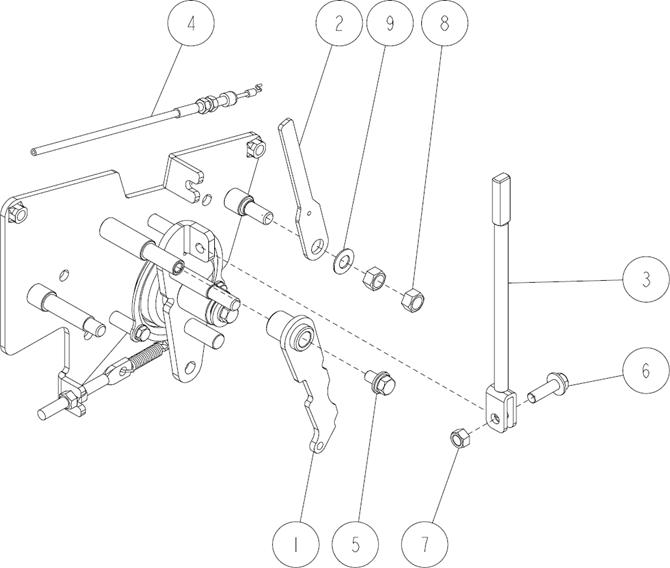

CONTROL    4/5















9

89-1852-100000

Belleville Spring H10

1



8

89-1611-100042

Mini Hexagonal Nut M10

2



7

89-1561-080002

Mini Hexagonal U Nut M8

1



6

89-1253-080252

Flange Mini Hexagonal Bolt (8T) M8*25

1



5

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



4

0244-72100

Throttle Wire (B)

1



3

0244-15500

Change Lever (S) CMP

1



2

0244-12500

Throttle Lever

1



1

0244-12300

Change Arm CMP

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



35/50

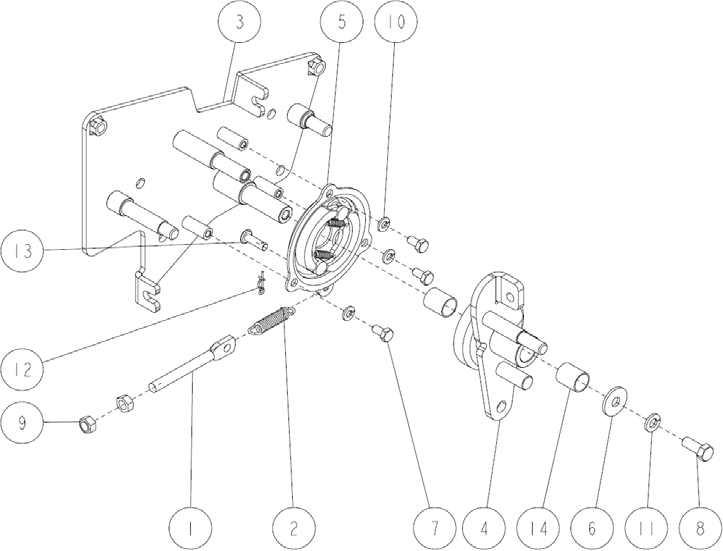

CONTROL    5/5













14

89-3510-015200

DU Bush 15.20

2



13

89-2181-060202

Flat Head Pin 6*20

1



12

89-2132-060002

Snap Pin 6 (with stopper)

1



11

89-1750-080002

Spring Washer 8

1



10

89-1750-060002

Spring Washer 6

3



9

89-1611-080042

Mini Hexagonal Nut M8

2



8

89-1211-080202

Mini Hexagonal Bolt M8*20

1



7

89-1113-060122

Hexagonal Bolt (8T) M6*12

3



6

83-1751-311-00

Flat Washer 8*25*2.3

1



5

0244-12800

Brake Assy

1



4

0244-12200

Change Brake CMP

1



3

0244-12100

Change Bracket CMP

1



2

0225-11800

Spring, Change Brake

1



1

0207-72300

Change Brake Adjuster

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



36/50

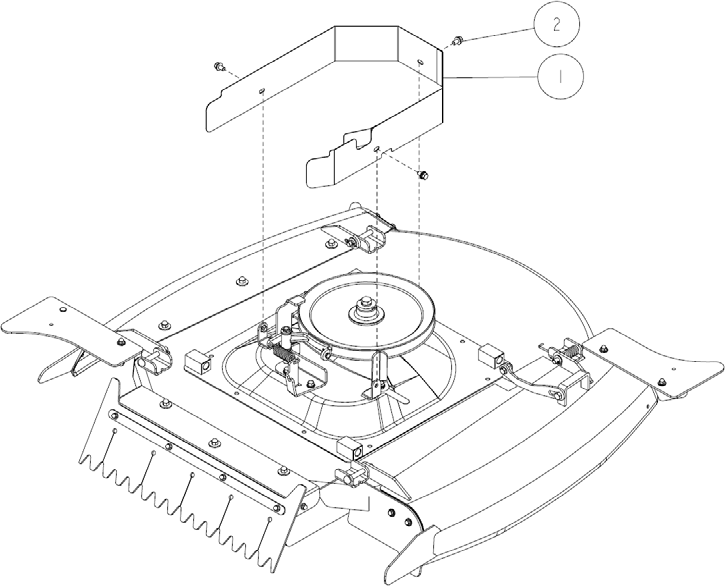

CUTTING    1/7

























2

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



1

0259-60300

Knife Belt Cover (CE) AV98

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



37/50

CUTTING    2/7



















13

89-1714-080002

Flat Washer 8

3



12

89-1713-060002

Flat Washer 6 (large)

2



11

89-1671-080042

Mini Cap Nut M8

3



10

89-1581-060042

Flange Cap Nut M6

6



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



8

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



7

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



6

0244-62600

Side Flapper (Rear)

1



5

0244-61400

Rear Guard Flapper Holder

1



4

0244-61300

Rear Guard Flapper

1



3

0244-61200

Rear Guard

1



2

80-1488-928-10

Label, Caution for Belt Involving

2



1

80-1488-926-10

Label, Caution for Knife

2



Ref.

Parts Number

Parts Name

Quantity

Remarks



38/50

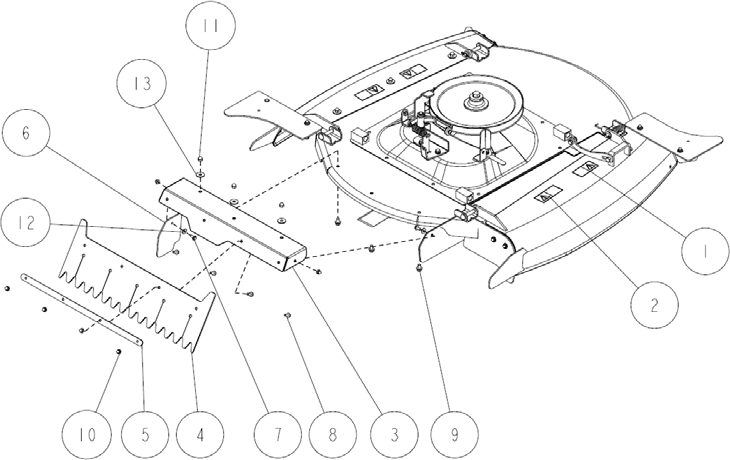

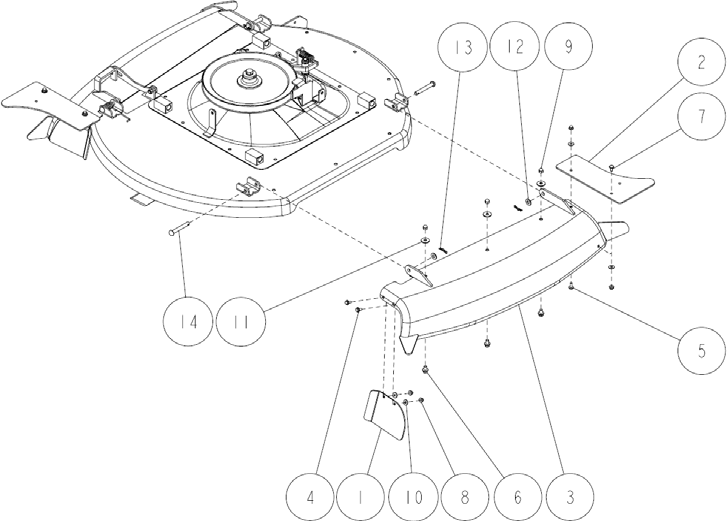

CUTTING    3/7















14

89-2191-100720

Round Head Pin 10*72

2



13

89-2131-100002

Snap Pin 10

2



12

89-1714-100002

Flat Washer 10

2



11

89-1714-080002

Flat Washer 8

3



10

89-1713-060002

Flat Washer 6 (large)

4



9

89-1671-080042

Mini Cap Nut M8

3



8

89-1581-060042

Flange Cap Nut M6

4



7

89-1390-060142

Welded Bolt M6*14

1



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



5

89-1137-060172

Hexagonal Bolt (PW) M6*17

1



4

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



3

0292-81100

Left Cover CMP (97ET)

1



2

0292-60100

Right Cover Flapper (97)

1



1

0259-53200

Foot Guard (Front Left)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



39/50

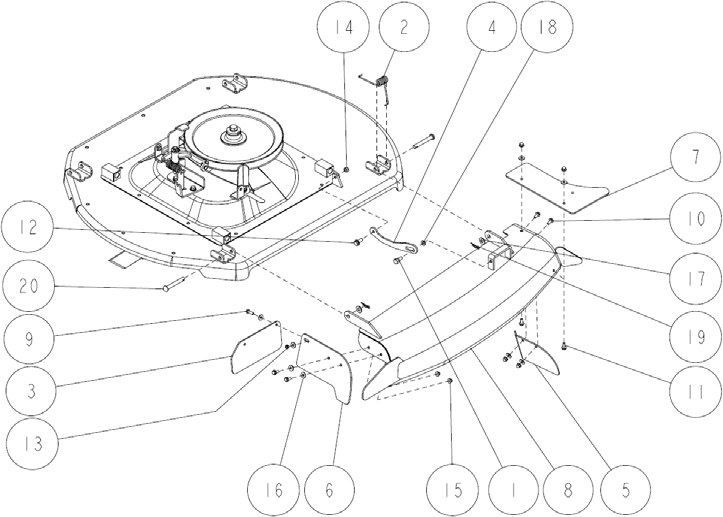

CUTTING    4/7









20

89-2191-100720

Round Head Pin 10*72

2



19

89-2131-100002

Snap Pin 10

2



18

89-1750-080002

Spring Washer 8

1



17

89-1714-100002

Flat Washer 10

2



16

89-1713-060002

Flat Washer 6 (large)

8



15

89-1581-060042

Flange Cap Nut M6

6



14

89-1561-080002

Mini Hexagonal U Nut M8

1



13

89-1551-060002

Hexagonal U Nut M6

1



12

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

1



11

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



10

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



9

89-1111-060202

Hexagonal Bolt M6*20

1



8

0292-81200

Right Cover CMP

1



7

0292-60100

Right Cover Flapper (97)

1



6

0281-60100

Side Flapper (Rear Right) 97

1



5

0259-53100

Foot Guard (Front Right)

1



4

0259-51700

Right Cover Up/Down Arm

1



3

0255-60700

Rear Side Flapper ( Left B)

1



2

0244-71600

Spring for Right Cover

1



1

80-1488-747-00

Bolt for Right Cover Up/Down Arm

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



40/50

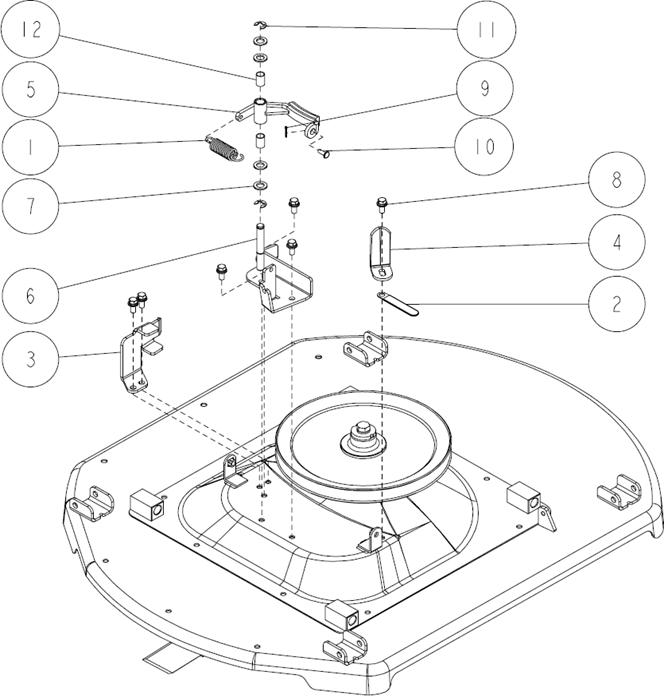

CUTTING    5/7



12

89-3510-012200

DU Bush 12.20

2



11

89-2521-000100

E Type Ring 10

2



10

89-2181-060162

Flat Head Pin 6*16

1



9

89-2120-200152

Split Pin 2*15

1



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



7

83-1565-329-00

Washer 13*22*2.3

4



6

0244-50710

Knife Brake Bracket CMP

1



5

0244-50600

Knife Brake

1



4

0244-42600

Knife Pulley Belt Holder

1



3

0244-42400

Knife Pulley Belt Holder (L)

1



2

80-1792-988-00

Harness Clip 8

1



1

80-1485-551-00

Driving Tension Spring

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



41/50

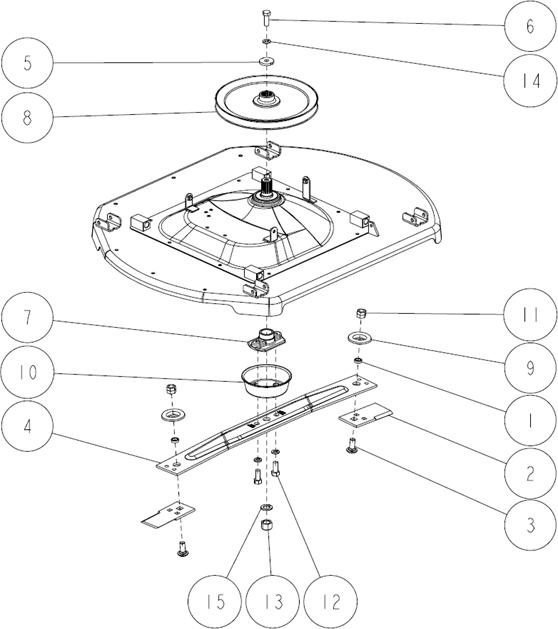

CUTTING    6/7



1.2.3.9.11

0244-78010

Knife & Blade Bolt Set RM85

(1)

No.3 / 4pcs including

3.9.11

0244-78210

Knife Setting Bolt Set M14

(2)

No.3 / 2pcs including

15

89-1750-200002

Spring Washer 20

1



14

89-1750-120002

Spring Washer 12

3



13

83-1483-175-00

Bag Nut M20 (Lock)

1



12

83-1483-129-00

Mini Hexagonal Bolt (8T) M12*30

2



11

0244-74600

Hard Lock Nut M14

2



10

0244-52100

Knife Neck Guard

1



9

0244-51800

Nut Guard 14

2



8

0244-51500

Knife Pulley CMP

1



7

0238-51100

Knife Bracket

1



6

0221-76200

Mini Hexagonal Bolt (8T) M12*35

1



5

0221-76100

Washer 12*40*6

1



4

0217-50500

Knife Stay

1



3

0207-50200

Knife Setting Bolt M14*34

2



2

80-1483-821-00

Knife

2



1

80-1483-818-00

Knife Collar

2



Ref.

Parts Number

Parts Name

Quantity

Remarks



42/50

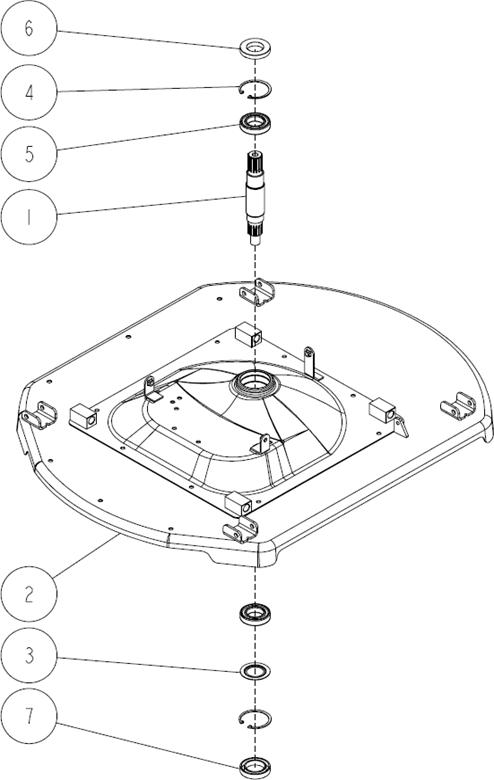

CUTTING    7/7



7

89-5121-406212

Oil Seal UE 40.62.12

1



6

89-5121-356210

Oil Seal UE 35.62.10

1



5

89-3115-069074

Bearing 6907 2RS

2



4

89-2512-000620

Snap Ring (R62)

2



3

0262-50100

Dust Plate

1



2

0244-50300

Safety Cover CMP

1



1

80-1493-641-00

Vertical Shaft

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



43/50

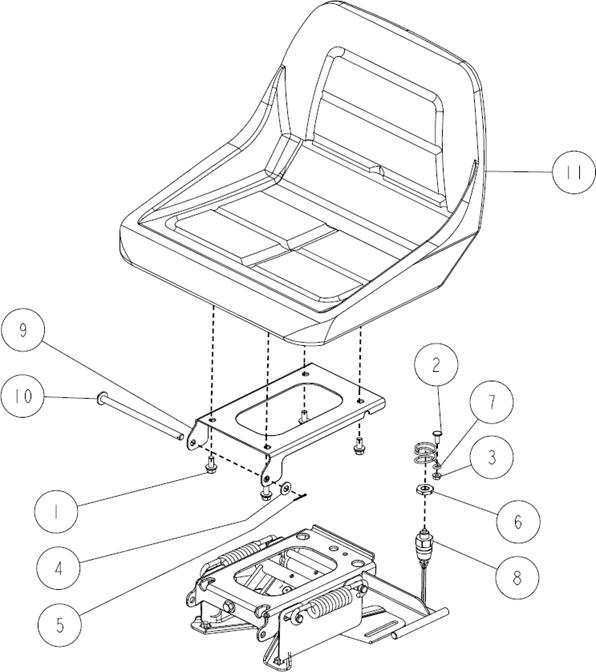

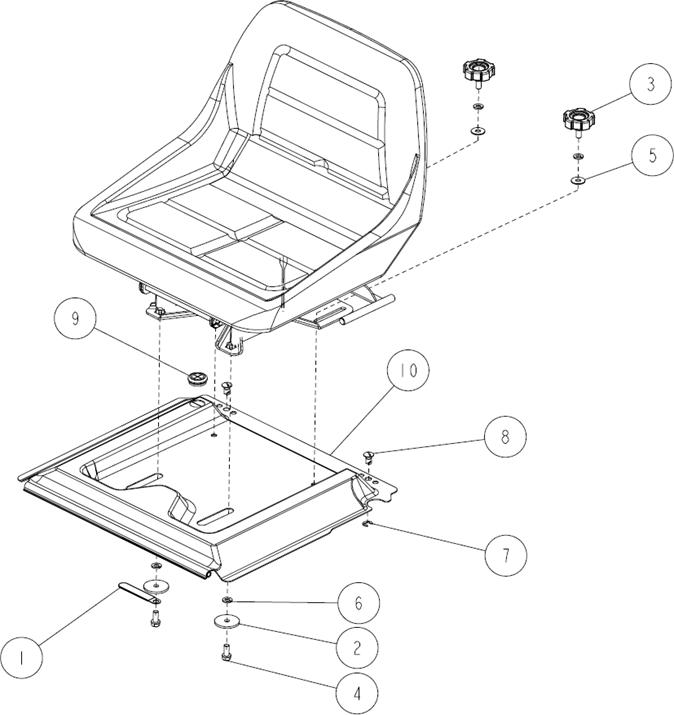

SEAT    1/3





10

0259-22110

Seat Bracket CMP

1



9

0244-73700

Grommet 24

1



8

0244-71300

Sine Fastener T9-170

2



7

89-2521-000083

E Type Ring 8

2



6

89-1750-080002

Spring Washer 8

4



5

89-1713-080002

Flat Washer 8 (large)

2



4

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

2



3

83-1560-101-00

Knob Bolt M8*15

2



2

83-1020-314-00

Washer 8*40*2.3

2



1

80-1792-988-00

Harness Clip 8

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



44/50

SEAT    2/3





11

0284-78100

Seat K4 (Black)

1



10

0244-22300

Seat Receive Pin CMP

1



9

0244-21810

Seat Receiver (97EU)

1



8

0207-74400

Safety Switch K17850

1



7

0207-72900

Seat Switch Spring

1



6

0207-72800

Switch Lock Nut

1



5

89-2120-200202

Split Pin 2*20

1



4

89-1714-100002

Flat Washer 10

1



3

89-1531-060042

Flange Nut M6

1



2

89-1390-060162

Welded Bolt M6*16

1



1

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



Ref.

Parts Number

Parts Name

Quantity

Remarks

45/50

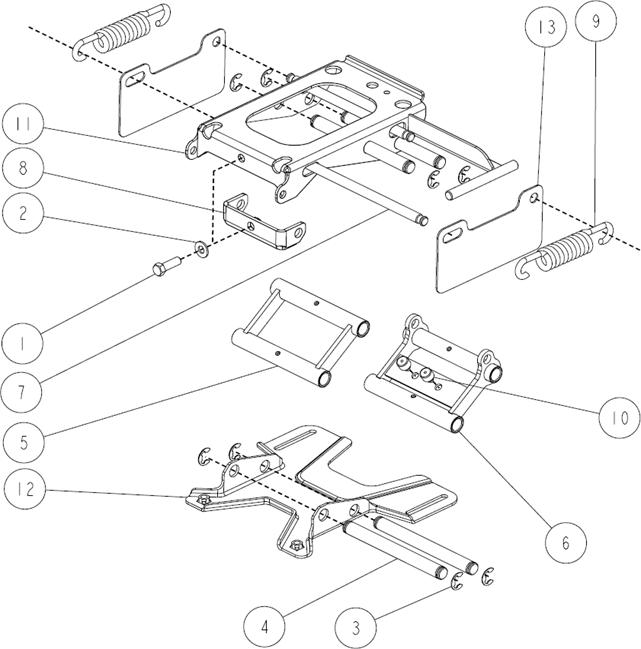

SEAT    3/3





13

0292-80300

Seat Link Shield

2



12

0262-20400

Link Under Bracket

1



11

0259-21210

Link Upper CMP (98E)

1



10

0244-71400

Seat Cushion Rubber

2



9

0244-71200

Spring for Seat Link

2



8

0244-21700

Spring Shaft Hook CMP

1



7

0244-21600

Spring Shaft

2



6

0244-21500

Seat Link (B) CMP

1



5

0244-21400

Seat Link (A) CMP

1



4

0244-21100

Seat Link Pin

4



3

89-2521-000120

E Type Ring 12

8



2

89-1714-100002

Flat Washer 10

1



1

89-1211-100302

Mini Hexagonal Bolt M10*30

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



46/50

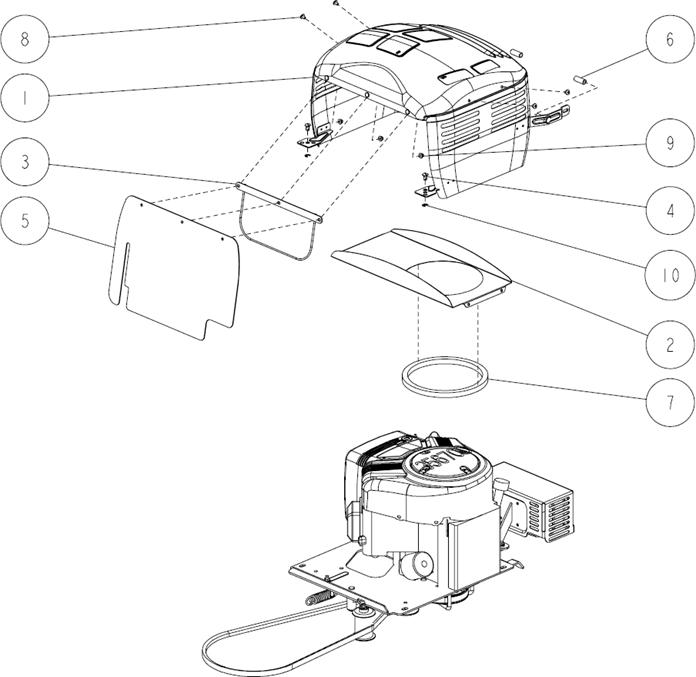

ENGINE    1/5







10

89-2521-000083

E Type Ring 8

2



9

89-1581-060042

Flange Cap Nut M6

3



8

89-1159-060108

Truss Mini Screw M6*10

4



7

0244-77700

Air intake Packing

1



6

0244-76500

Rubber Tube 10-14

2



5

0244-72800

Wind Shield

1



4

0244-71300

Sine Fastener T9-170

2



3

0244-62510

Wind Shield Holder CMP

1



2

0244-60500

Duct CMP

1



1

0244-60310

Engine Bonnet CMP

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



47/50

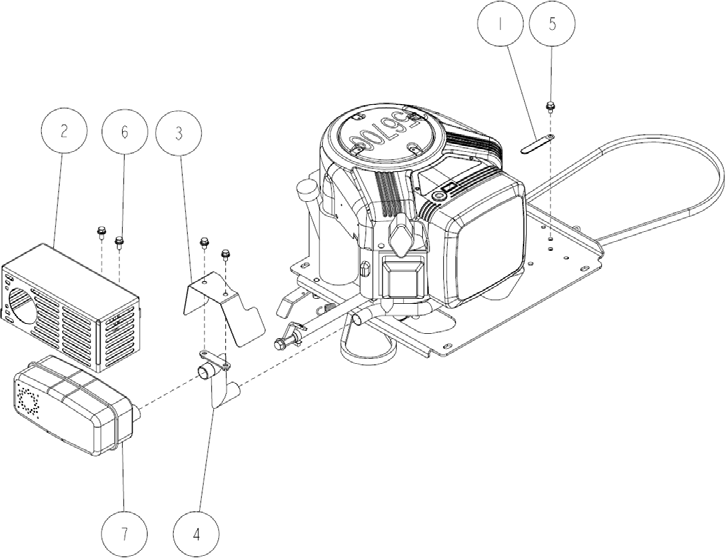

ENGINE    2/5



















7

Engine Parts

Muffler

1



6

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



5

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



4

0281-40200

Exhause Adapter CMP

1



3

0281-40100

Exhaust Cover

1



2

0255-40500

Muffler Cover CMP

1



1

80-1792-988-00

Harness Clip 8

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



48/50

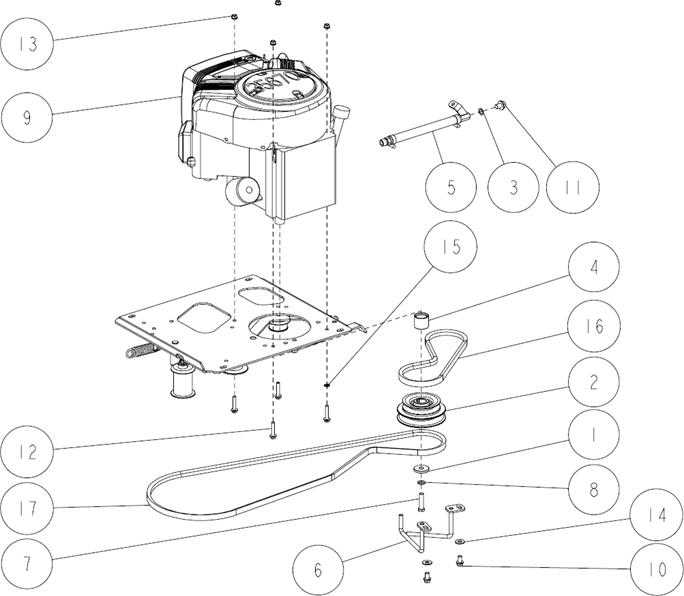

ENGINE    3/5





17

89-6123-007803

V Belt LB-78 (SG1000)

1



16

89-6123-003203

V Belt LB-32 (SG1000)

1



15

89-1812-080002

Toothed washer (inside) 8

1



14

89-1713-100002

Flat Washer 10 (large)

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



12

89-1253-080402

Flange Mini Hexagonal Bolt (8T) M8*40

4



11

89-1251-120152

Flange Mini Hexagonal Bolt M12*15

1



10

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



9

Engine

VANGUARD 356777-0139-G1

1



8

83-1493-300-00

Spring Washer 7/16

1



7

83-1482-115-00

Hexagonal Bolt(8T) UNF7/16-20*45

1



6

0255-40600

Belt Holder (Engine) CMP

1



5

0244-41600

Oil Drain Assy (B)

1



4

0244-41100

Engine Collar

1



3

0207-74900

Copper Packing 12.5*19*1.0

1



2

0207-40110

Engine Pulley

1



1

80-1487-516-00

Washer 11*40*6

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



49/50

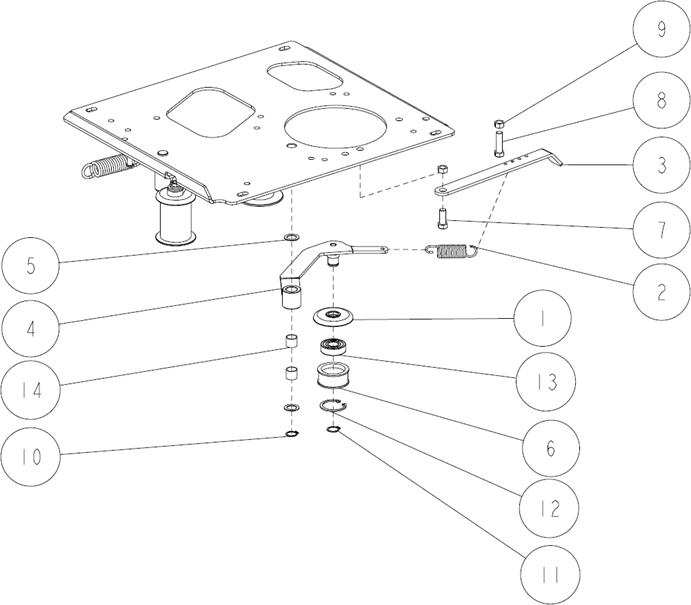

ENGINE    4/5









14

89-3510-016150

DU Bush 16.15

2



13

89-3115-062034

Bearing 6203 2RS

1



12

89-2512-000400

Snap Ring (R40)

1



11

89-2511-000170

Snap Ring (S17)

1



10

89-2511-000160

Snap Ring (S16)

1



9

89-1611-100042

Mini Hexagonal Nut M10

2



8

89-1213-100357

Mini Hexagonal Bolt (8T) M10*35

1



7

89-1211-100252

Mini Hexagonal Bolt M10*25

1



6

83-1032-765-00

Tension Pulley

1



5

83-1020-363-00

Thrust Washer 16*24*1.0

2



4

0244-42300

Drive Tension Arm CMP

1



3

0207-41100

Drive Tension Spring Arm

1



2

80-1485-551-00

Driving Tension Spring

1



1

80-1482-549-00

Rubber Cover 58

1



Ref.

Parts Number

Parts Name

Quantity

Remarks



50/50

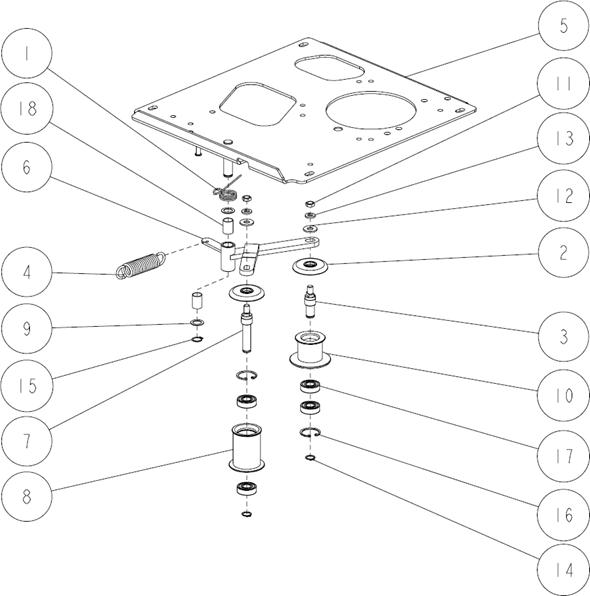

ENGINE    5/5



18

89-3510-016250

DU Bush 16.25

2



17

89-3115-062024

Bearing 6202 2RS

4



16

89-2512-000350

Snap Ring (R35)

2



15

89-2511-000160

Snap Ring (S16)

1



14

89-2511-000150

Snap Ring (S15)

2



13

89-1750-100002

Spring Washer 10

2



12

89-1713-100002

Flat Washer 10 (large)

2



11

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

2



10

83-1483-782-10

Knife Tension Pulley

1



9

83-1020-363-00

Thrust Washer 16*24*1.0

2



8

0259-40100

Knife Tension Pulley (B)

1



7

0244-42800

Tension Idler Shaft

1



6

0244-42200

Knife Tension Arm CMP

1



5

0244-20300

Engine Base CMP

1



4

0207-78400

Spring For Knife Tension Return

1



3

0207-43100

Knife Tension Pulley Shaft

1



2

80-1482-549-00

Rubber Cover 58

2



1

80-1481-568-00

Knife Tension Return Spring φ26.7

1



Ref.

Parts Number

Parts Name

Quantity

Remarks
