OREC

ISSUED NO. RM952(FB)EUO-2

Parts catalogue Rabbit Mower

(EXPORT MODEL) RM952

MODEL               CODE



CONTENTS



Fig.1

Frame ----------------------------

1

Fig.2

Front Link Arm ---------------

15

Fig.3

Transmission & HST -------

16

Fig.4

Handle ---------------------------

25

Fig.5

Front -----------------------------

29

Fig.6

Tire -------------------------------

35

Fig.7

Control --------------------------

36

Fig.8

Cutting --------------------------

39

Fig.9

Seat -------------------------------

45

Fig.10

Engine ---------------------------

48

Fig.11

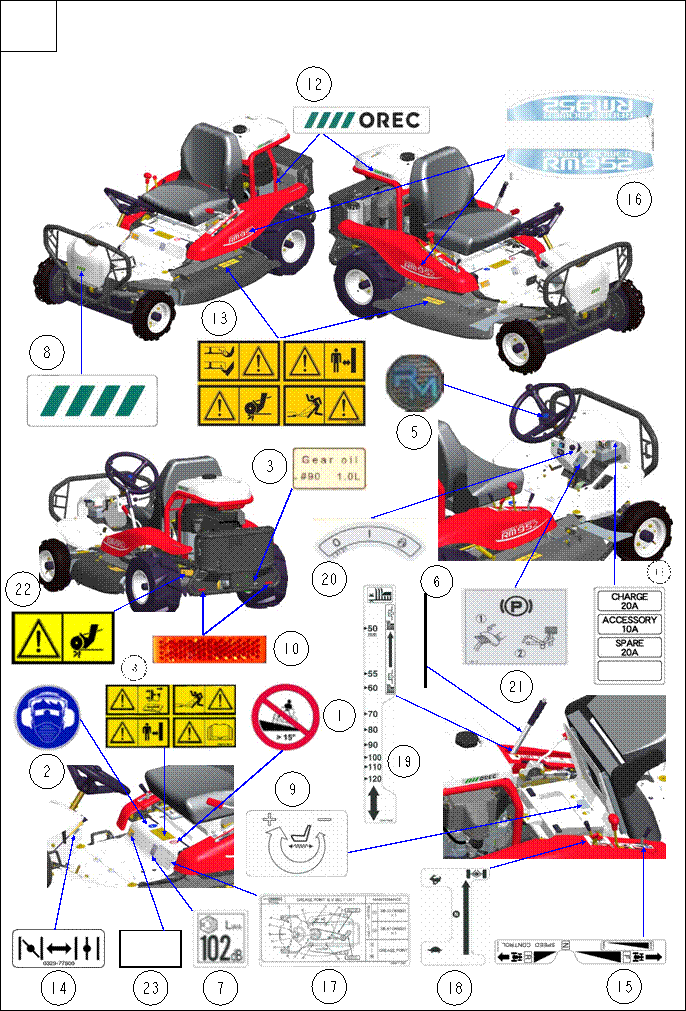

Label -----------------------------

51



RM952EU           0346-○○○○○


































OREC CO.,LTD

Update : Feb. 2018

1/52

Frame 1/14

























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0322-70900

Front Cover

1



2

0322-71200

Wing Stud φ 6*14

1



3

0322-71700

Retainer

1



4

0348-20500

Step Bumper CMP

1



5

89-1211-080252

Mini Hexagonal Bolt M8*25

2



6

89-1611-080042

Mini Hexagonal Nut M8

2



2/52

Frame 2/14

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0267-40900

Double Spring Bolt M

2



2

0312-76800

Side Cover (L) Red

1



3

0312-76700

Side Cover (R) Red

1



4

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

6



5

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



6

89-1714-080002

Flat Washer 8

2



3/52

Frame 3/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0028-70500

Center Step Hinge

4



2

0301-60400

Rubber 110L

2



3

0312-70400

Bonnet Clip

1



4

0348-25100

Step

1



5

0348-25200

Center Step CMP

1



6

0348-70100

Step Rubber

1



7

83-1020-314-00

Washer 8*40*2.3

2



8

83-1484-369-00

Clip (5347)

16



9

89-1137-060172

Hexagonal Bolt (PW) M6*17

2



10

89-1159-080168

Truss Mini Screw M8*16

2



11

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



12

89-1531-060042

Flange Nut M6

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



4/52

Frame 4/14



























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0348-20200

Sub Frame CMP

1



2

89-1213-100652

Mini Hexagpnal Bolt (8T) M10*65

2



3

89-1631-100042

Flange Mini Hexagonal Nut M10

2



4

89-1714-100002

Flat Washer 10

2



5/52

Frame 5/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-71000

Fuel Tank Assy

1

Include : 4,5,6,7,11

1

80-1920-306-00

Stopper Rubber B-4

1



2

0322-60200

Rear Fender Cover (R)

1



3

0322-60400

Fuel Tank Cover Stay

1



4

0322-70100

Fuel Tank CMP

1



5

0322-76000

Fuel Tank Cap Assy (with valve)

1



6

0322-70600

Fuel Gauge

1



7

0322-70700

Fuel Filter

1



8

0322-73200

Tank Cover White

1



9

0348-20300

Fuel Tank Holder CMP

1



10

89-1111-060252

Hexagonal Bolt M6*25

1



11

89-1152-050122

Cross recess Headed Screw M5*12

2



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



14

89-1238-080162

Mini Hexagonal Bolt (SW) M8*16

2



15

89-1531-060042

Flange Nut M6

1



16

89-1711-060002

Flat Washer 6

1



17

89-1713-080002

Flat Washer 8 (large)

2




6/52

Frame 6/14













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-75400

Brake Spring 30

1



2

0301-60400

Rubber 110L

1



3

0348-20400

Rear Belt Cover

1



4

Transmission & HST Part

-

1

Page 16 ~

5

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



6

89-1561-080002

Mini Hexagonal U Nut M8

1



7

89-1611-080042

Mini Hexagonal Nut M8

1



8

89-1631-080042

Flange Mini Hexagonal Nut M8

1



9

89-1711-080002

Flat Washer 8

2



7/52

Frame 7/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-77100

Battery Plus Cord 230

1



2

0322-22100

Battery Carrier

1



3

0322-22200

Battery Holder

1



4

0322-72200

Battery Minus Cord

1



5

0322-72300

Cushion Rubber (Battery)

1



6

Front Part

-

1

Page 29 ~

7

Handle Part

-

1

Page 25 ~

8

83-1484-369-00

Clip (5347)

2



9

89-1631-080042

Flange Mini Hexagonal Nut M8

3



10

0346-70200

Wire Harness (RM952/K)

1



8/52

Frame 8/14



S/N : ~ RJ17D00035















S/N : RJ17M00036 ~

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1493-354-00

Rod Return Spring

1



2

0312-23100

Brake Stopper CMP

1



3

0312-23200

Brake Stopper Return Spring

1



4-2

4-1

0310-73700

Pedal Rubber

1

RJ17D00036 ~

0312-71100

Brake Pedal Rubber

1

~ RJ17D00035

5

0329-60210

Center Belt Cover (RMK150)

1



6-2

6-1

0348-10500

Brake Pedal CMP

1

RJ17D00036 ~

0348-10500

Brake Pedal CMP

1

~ RJ17D00035

7

0348-13100

Brake Rod CMP

1



8

Control Part

-

1

Page 36 ~

9

83-1415-975-00

Grease Nipple M6

1



10

89-1113-100357

Hexagonal Bolt (8T) M10*35

1



11

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



12

89-1611-100042

Mini Hexagonal Nut M10

1



13

89-1711-120002

Flat Washer 12

1



14

89-2131-120002

Snap Pin 12

1



15

89-2132-060002

Snap Pin 6 (with stopper)

2



16

89-2521-000120

E Type Ring 12

2



17

89-3510-016150

DU Bush 16.15

1



18

89-3510-016250

DU Bush 16.25

2




9/52

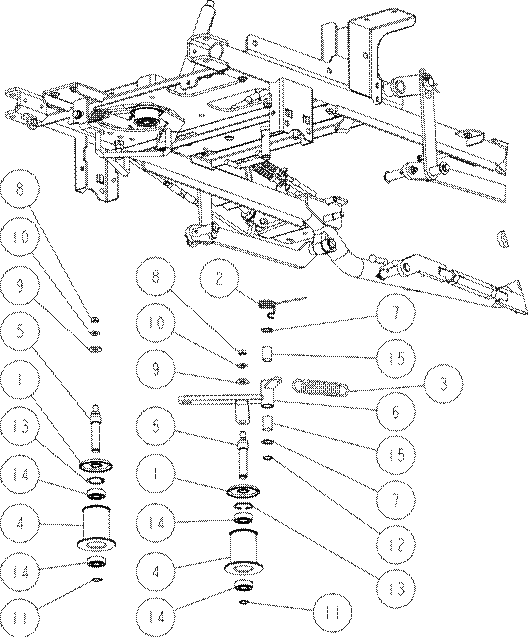

Frame 9/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0227-41000

Knife Tension Pulley (A) Set

2

Include : 4,5,11,13,14

1

80-1482-549-00

Rubber Cover 58

2



2

80-1483-568-00

Knife Tension Return Spring

1



3

0207-78400

Spring For Knife Tension Return

1



4

0227-40300

Knife Tension Pulley (A)

2



5

0244-42800

Tension Idler Shaft

2



6

0329-41200

Knife Tension Arm CMP(RMK150)

1



7

83-1020-363-00

Thrust Washer 16*24*1.0

2



8

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

2



9

89-1713-100002

Flat Washer 10 (large)

2



10

89-1750-100002

Spring Washer 10

2



11

89-2511-000150

Snap Ring (S15)

2



12

89-2511-000160

Snap Ring (S16)

1



13

89-2512-000350

Snap Ring (R35)

2



14

89-3115-062024

Bearing 6202 2RS

4



15

89-3510-016250

DU Bush 16.25

2



10/52

Frame 10/14







Ref.

Parts Number

Parts Name

Quantity

Remarks

-

83-1032-760-00

Tension Pulley Assy

1

Include : 7,13,14

1

80-1482-549-00

Rubber Cover 58

1



2

80-1485-551-00

Driving Tension Spring

1



3

0322-41300

Belt Holder CMP (Engine)

1



4

0322-41100

Driving Tension Arm CMP

1

Include : 4,15

5

0322-41400

Driving Tension Spring Arm

1



6

83-1020-363-00

Thrust Washer 16*24*1.0

2



7

83-1032-765-00

Tension Pulley

1



8

89-1211-100252

Mini Hexagonal Bolt M10*25

1



9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



10

89-1611-100042

Mini Hexagonal Nut M10

1



11

89-2511-000160

Snap Ring (S16)

1



12

89-2511-000170

Snap Ring (S17)

1



13

89-2512-000400

Snap Ring (R40)

1



14

89-3115-062034

Bearing 6203 2RS

1



15

89-3510-016150

DU Bush 16.15

2



11/52

Frame 11/14













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-76800

Washer 16*32*2.3

2



2

0244-10400

Connecting Plate

2



3

0312-55000

Front Link Arm (L) Assy

1



4

0312-56000

Front Link Arm (R) Assy

1



5

0348-50500

Rear Link Arm (R) CMP

1



6

0348-50600

Rear Link Arm (L) CMP

1



7

83-1415-975-00

Grease Nipple M6

8



8

83-1751-311-00

Flat Washer 8*25*2.3

2



9

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

2



10

89-2131-160002

Snap Pin 16

2



11

89-2521-000120

E Type Ring 12

8



12/52

Frame 12/14









Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0255-70400

Gas Spring Free Lock Type(FLC75- 35) set

1

Include : 2,8

-

0244-11000

Adjusting Rod Assy

1

Include : 4,5,6,11

1

80-1484-354-10

Brake Rod Roller

1



2

0244-10500

Lock Pusher

1



3

0244-11300

Push Rod Receiver CMP

1



4

0244-11400

Adjuster Rod (R)

1



5

0244-11500

Adjuster Rod (L)

1



6

0244-11600

Turn Buckle (Pipe Type)

1



7

0244-22600

Brake Rod Hung Plate

1



8

0255-70100

Gas Spring Free Lock Type(FLC75-35)

1



9

83-1020-355-00

Thrust Washer 12*24*1.0

2



10

89-1137-060122

Hexagonal Bolt (PW) M6*12

1



11

89-1511-060042

Hexagonal Nut M6

1



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



13

89-1711-060002

Flat Washer 6

3



14

89-1711-080002

Flat Washer 8

2



15

89-2131-080002

Snap Pin 8

2



16

89-2132-060002

Snap Pin 6 (with stopper)

3



17

89-2181-060202

Flat Head Pin 6*20

1



18

89-2181-080282

Flat Head Pin 8*28

1



19

89-2181-080692

Flat Head Pin 8*69

1



20

89-3510-012200

DU Bush 12.20

1



21

89-3511-010150

DU Bush 10.15.18F

1



13/52

Frame 13/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-72800

Switch Lock Nut

2



2

0207-74400

Safety Switch K17850

2



3

0244-10600

Push Rod

1



4

0244-13700

Wire Joint CMP

1



5

0244-70200

Adjusting Shaft Grip

1



6

0289-71300

Arm Grip (Red)

1



7

0322-75210

Knife Brake Wire

1



8

0322-75110

Knife Clutch Wire

1



9

0322-13300

Safety Switch Setting Plate

1



10

0348-12100

Knife Clutch Lever CMP

1



11

0348-20100

Frame CMP

1



12

0348-50400

Up/Down Adjusting Shaft CMP

1



13

89-1132-060162

Hexagonal Bolt (SW) M6*16

2



14

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



15

89-1711-060002

Flat Washer 6

2



16

89-2132-060002

Snap Pin 6 (with stopper)

3



17

89-2511-000130

Snap Ring (S13)

1



18

89-2521-000120

E Type Ring 12

1



14/52

Frame 14/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0229-13100

Rubber, L20

1



3

0322-22500

Upper Belt Cover

1



4

Engine Part

-

1

Page 48 ~

5

Cutting Part

-

1

Page 39 ~

6

Seat Part

-

1

Page 45 ~

7

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



15/52

Front Link Arm 1/1

























Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0312-56000

Front Link Arm (R) Assy

1

Include : 1,2,4,6,7

-

0312-55000

Front Link Arm (L) Assy

1

Include : 1,2,3,5,7

1

0255-50600

Link Arm Adjuster

2



2

0255-70200

Hexagonal Nut M16(L)

2



3

0312-51100

Front Link (L) CMP

1



4

0312-52100

Front Link (R) CMP

1



5

0312-55100

Front Link Arm Rear (L) CMP

1



6

0312-56100

Front Link Arm Rear (R) CMP

1



7

89-1511-160042

Hexagonal Nut M16

2



16/52

Transmission & HST 1/9













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

1



2

0207-07200

Fan Cover CMP

1



3

0207-07400

Fan Cover Setting CMP

1



4

0207-77800

Wheel Boss Dust Seal

2



5

0227-70600

Rear Wheel Cap (φ42*75L)

2



6

0244-74300

Rear Tire (R) Assy (17×8.00-8)(Include Wheel Boss)

1

Detail : Page 35 ~

7

0244-74400

Rear Tire (L) Assy (17×8.00-8)(Include Wheel Boss)

1

Detail : Page 35 ~

8

0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7

4



9

0322-01500

Transmission Hanger Stay CMP

1



10

83-1630-335-00

Washer 16*40*4.5

2



11

89-1211-080352

Mini Hexagonal Bolt M8*35

1



12

89-1561-080002

Mini Hexagonal U Nut M8

1



13

89-1631-080042

Flange Mini Hexagonal Nut M8

3



14

89-1658-160042

Low Fluted Nut (2 sorts) M16

2



15

89-1750-080002

Spring Washer 8

1



16

89-1750-160002

Spring Washer 16

2



17

89-2120-350352

Split Pin 3.5*35

2



18

89-2150-070500

Key 7*50 (round)

2



17/52

Transmission & HST 2/9















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-03100

Mission Guard CMP

1



2

0207-07300

Double Spring Bolt

2



3

0207-07500

Fan

1



4

89-1232-080122

Mini Hexagonal Bolt (SW) M8*12

4



5

89-1251-081123

Flange Mini Hexagonal Bolt M8*112

2



6

89-1750-080002

Spring Washer 8

2



7

89-2150-050200

Key 5*20 (round)

1



8

89-5222-045000

O Ring G45

2



9

0348-09200

HST Unit (KYB)Assy (RM982)

1

Detail : Page 24 ~

18/52

Transmission & HST 3/9











Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0207-73000

Brake Assy

1

Include : 1,2,4,5,6,7,9,11,13

-

0207-73200

Brake Cap Assy

1

Include : 2,4,5,6,9,11,13

1

80-1030-282-00

Brake Drum (PA-7)

1



2

80-1030-285-00

Spring for Brake Shoe Return

1



3

0207-10300

Brake Joint

1



4

-

-

1



5

0207-73800

Brake Cap Assy

1



6

0244-88100

Brake Shoe Set (PA-7)

1



7

0308-00300

Brake Cover PK (PA-7)

1



8

89-1113-060122

Hexagonal Bolt (8T) M6*12

4



9

89-1611-100042

Mini Hexagonal Nut M10

1



10

89-1711-080002

Flat Washer 8

1



11

89-1712-100000

Flat Washer 10

1



12

89-1750-060002

Spring Washer 6

4



13

89-1750-100002

Spring Washer 10

1



14

89-2120-200152

Split Pin 2*15

1



15

89-2511-000150

Snap Ring (S15)

1



16

89-5125-153007

Oil Seal UE 15.30.07F

1



19/52

Transmission & HST 4/9









Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0289-01000

Oil Plug Assy (with O Ring)

1

Include : 4,16

-

0244-08000

Oil Seal 25.47.15(with DP)

1

Include : 6,15

1

0207-02500

Sub Change Arm

1



2

0207-06100

Air Bleezer

1



3

0244-01100

Axle Case(L) CMP

1



4

0289-01100

Oil Plug Assy (with O Ring)

1



5

83-1020-349-00

Copper Packing 10.5*18*1.6

1



6

83-1415-663-00

Oil Seal DP 25.30.15

1



7

83-1415-671-00

Blind Cover 22

2



8

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

6



9

89-1252-100122

Flange Mini Hexagonal Bolt M10*12 (slen

1



10

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



11

89-2512-000470

Snap Ring (R47)

1



12

89-3115-060054

Bearing 6005 2RS

2



13

89-5121-122207

Oil Seal UE 12.22.7

1



14

89-5121-284708

Oil Seal UE 28.47.8

1



15

89-5121-304707

Oil Seal UE 30.47.7

1



16

89-5221-024000

O Ring P24

1



20/52

Transmission & HST 5/9

























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1310-138-00

Spring 1.4

1



2

0207-00100

Transmission Case(L)

1



3

0207-00300

A Axle

1



4

0207-00400

20T Spiral Mita Gear(L)

1



5

0207-01700

Swing Arm CMP

1



6

0207-01900

Shift Spring Holder

1



7

0284-40200

Transmission Pulley(HI)

1



8

83-1020-148-00

Tapping Bolt M6*14

2



9

83-1482-143-00

Tapping Bolt M8*25

12



10

83-1482-311-00

Washer 6.5*22*3.2

1



11

89-1113-060202

Hexagonal Bolt (8T) M6*20

1



12

89-1750-060002

Spring Washer 6

1



13

89-2150-050160

Key 5*16 (round)

1



14

89-2151-050200

Key 5*20 (half round)

1



15

89-2511-000170

Snap Ring (S17)

1



16

89-2512-000420

Snap Ring (R42)

1



17

89-3115-060044

Bearing 6004 2RS

2



18

89-3410-080000

Steel Ball 8.0

1



19

89-5121-204208

Oil Seal UE 20.42.8

1



21/52

Transmission & HST 6/9















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-00500

20T Spiral Mita Gear(R)

1



2

0207-00600

B Axle

1



3

0207-00700

C Axle

1



4

0207-00800

C Axle Collar 9

1



5

0207-00910

Shift Gear 22-28

1



6

0207-01100

Brake Shaft

1



7

0207-01210

Brake Shaft 40T Gear

1



8

0207-01310

Brake Shaft 34T Gear

1



9

0207-01400

D Axle 37T Gear

1



10

0207-01500

Brake Shaft Collar 8

1



11

0207-01600

Shift Fork Shaft CMP

1



12

0244-00400

D Axle

1



13

83-1020-361-00

Thrust Washer 15*24*1.0

1



14

89-3111-060044

Bearing 6004

4



15

89-3111-062024

Bearing 6202

2



16

89-3111-062034

Bearing 6203

2



22/52

Transmission & HST 7/9















Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0244-08000

Oil Seal 25.47.15(with DP)

1

Include : 6,15

1

80-1488-153-00

Differential Lock Arm

1



2

80-1830-113-00

Differential Lock Fork

1



3

0207-00200

Transmission Case(R)

1



4

0207-01800

Differential Lock Fork Shaft

1



5

0244-01200

Axle Case(R) CMP

1



6

83-1415-663-00

Oil Seal DP 25.30.15

1



7

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

6



8

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



9

89-2111-030020

Spring Pin 3*20

1



10

89-2111-050022

Spring Pin 5*22

1



11

89-2512-000470

Snap Ring (R47)

1



12

89-3115-060054

Bearing 6005 2RS

2



13

89-5121-122207

Oil Seal UE 12.22.7

1



14

89-5121-284708

Oil Seal UE 28.47.8

1



15

89-5121-304707

Oil Seal UE 30.47.7

1



23/52

Transmission & HST 8/9













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-150-00

Axle Pin

1



2

80-1425-143-00

Differential Lock Cone

1



3

80-1481-151-00

Differential Lock Plate

1



4

80-1481-152-00

Differential Lock Gear 11T

4



5

80-1481-155-00

Differential Gear Shaft Collar

4



6

80-1751-162-00

Differential Lock Spring

1



7

0207-02120

Axle(L) CMP

1



8

0207-02220

Axle(R) CMP

1



9

0244-00300

Axle Gear 39T CMP

1



10

83-1830-382-00

Thrust Washer 40*48*1.0

1



11

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

6



12

89-1750-100002

Spring Washer 10

6



13

89-2511-000280

Snap Ring (S28)

1



14

89-2511-000400

Snap Ring (S40)

1



15

89-3410-075000

Steel Ball 7.5

3



16

89-3510-028300

DU Bush 28.30

1



24/52

Transmission & HST 9/9



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0348-09200

HST Unit (KYB)Assy (RM982)

1

Include : 1~17 (without 14)

-

0322-01600

HST Oil Tank Assy (Black Cap)

1

Include : 3,7,8

1

-

HST Unit

1



2

0207-07700

Port Joint

1



3

0207-08610

HST Oil Tank (without Tank Cap)

1



4

0207-79800

Push Clip

1



5

0207-79900

Wire Band 250L

1



6

0244-72700

HST Oil Hose

1



7

0289-71200

Waterproof Packing

1



8

0312-01800

HST Oil Tank Cap (Black)

1



9

0312-74400

Hose Band 16-25

2



10

0322-71600

Moisture Adsorption Sheet

1



11

0348-00100

Control Arm CMP

1



12

0348-00200

HST Oil Tank Setting CMP

1



13

89-1113-060122

Hexagonal Bolt (8T) M6*12

1



14

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



15

89-1511-060042

Hexagonal Nut M6

1



16

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



17

89-2151-050160

Key 5*16 (half round)

1



25/52

Handle 1/4





Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0262-70100

Steering Wheel Assy

1

Include : 5,6,7

1

80-1488-912-00

Label, Key (13121)

1



2

80-1488-921-00

Label Pedal Stopper (13113)

1



3

0207-79200

Fuse Box Bracket

1



4

0244-80700

Label, Handle (Blue)

1



5

0262-70300

Sub Handle Assy

1



6

0262-70400

Steering Wheel

1



7

0262-70500

Steering Cap

1



8

0312-11700

Handle Stay Cover Holder

2



9

0312-77900

Fuse Box Cover

1

Only Cover

10

0322-11500

Meter Panel Cover

1



11

0322-73000

Magnet Switch Set

1



12

0322-78300

Label, Fuse Box

1



13

89-1137-060152

Hexagonal Bolt (PW) M6*15

4



14

89-1159-060108

Truss Mini Screw M6*10

4



15

89-1531-060042

Flange Nut M6

4



16

89-1561-100002

Mini Hexagonal U Nut M10

1



17

89-1713-100002

Flat Washer 10 (large)

1



18

89-1812-060002

Toothed washer (inside) 6

1



26/52

Handle 2/4



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-79300

Pilot Lamp

1



2

0207-79700

Key Switch (NMA03-A020)

1



3

0244-70300

Lighting Switch

1



5

0244-73600

Hour Meter

1



6

0322-10510

Handle Stay CMP

1



7

0322-11100

Tilt Pin CMP

1



8

0322-11700

Head Lamp Stay

1



9

0322-71100

Clip φ 6

1



10

0322-71300

Head Lamp

1



11

0322-71400

Cramp Lever 8*25

1



12

0341-14100

Meter Panel CMP

1



13

0348-14200

Harness Panel CMP

1



14

0348-14700

Fuse Box Bracket

1



15

0348-70200

Choke Wire

1



16

0348-10700

Flat Washer 9*35*3.2

1



17

89-1137-060152

Hexagonal Bolt (PW) M6*15

1



18

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



19

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

8



20

89-1531-060042

Flange Nut M6

1



21

89-1631-080042

Flange Mini Hexagonal Nut M8

3



22

89-1750-080002

Spring Washer 8

1



27/52

Handle 3/4

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0245-74300

Hexagonal Bolt(SW) M8*18 (Meck)

4



2

0314-70100

Mini Hexagonal Bolt (Meck) M8*22

4



3

0322-10110

Steering Joint Shaft CMP

1



4

0322-10800

Steering Gear Box Bracket CMP

1



5

0322-11600

Mini Hexagonal Bolt M8*10 (Meck)

1



6

0348-14310

Handle Support CMP

1



7

0348-14410

Steering Upper Shaft CMP

1



8

0348-14600

Bolt for Upper Shaft Setting

1



9

89-1553-060002

Bag Hexagonal U Nut M6

1



10

89-1750-080002

Spring Washer 8

4



11

89-2150-050200

Key 5*20 (round)

1



12

89-3511-025250

DU Bush 25.25.36F

1



28/52

Handle 4/4













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1016-461-00

Bearing Cover

1



2

80-1020-719-00

Hexagonal Tap Tight M8*18

2



3

80-1484-962-10

Steering Gear Box Assy

1



4

80-1490-967-00

Steering Boots

2



5

0244-31300

Tie Rod Adjuster

2



6

0244-71700

Link Ball 12 (R)

2



7

0244-71800

Link Ball 12 (L)

2



8

0244-71900

Tough Lock Nut M12=P1.25

4



9

0244-73800

Hexagonal Nut (slender) M12 Left

2



10

0348-14500

Rack Support CMP

1



11

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1

2



12

89-1612-120042

Mini Hexagonal Nut (Slender) M12

2



13

0244-31000

Tie Rod Adjuster Assy

2

Include : 5,6,7,9,12


29/52

Front 1/6











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-30700

Center Pin

1



2

0312-74300

Hexagonal Bolt (7T-SW.PW) M10*30 (M

4



3

0322-30300

Front Axle Holder

1



4

83-1415-975-00

Grease Nipple M6

1



5

83-1481-328-00

Washer 12*30*3.2

1



6

89-1551-120002

Hexagonal U Nut M12

1



7

89-1750-120002

Spring Washer 12

1



30/52

Front 2/6













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-62200

Upper Flapper Holder (R)

1



2

0312-33100

Front Upper Guard CMP

1



3

0312-33200

Upper Flapper

1



4

0312-33300

Upper Flapper Holder

1



5

0312-33400

Front Flapper

1



6

0329-83800

Front Flapper Holder (RMK150)

1



7

0329-83900

Foot Guard CMP (RMK150)

1



8

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

4



9

89-1137-060152

Hexagonal Bolt (PW) M6*15

8



10

89-1213-100407

Mini Hexagonal Bolt (8T)M10*40

2



11

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



12

89-1581-060042

Flange Cap Nut M6

4



13

89-1611-100042

Mini Hexagonal Nut M10

2



14

89-1631-100042

Flange Mini Hexagonal Nut M10

2



15

89-1713-100002

Flat Washer 10 (large)

4



31/52

Front 3/6

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-30500

Front Wheel Dust Cover

2



2

0240-30300

Wheel Boss

2



3

0240-31100

King Pin Collar

2



4

0244-76100

Wheel Cap (Front)

2



5

0322-34000

Tire Assy (L) 3.50-7 (TA)

1



6

0322-35000

Tire Assy (R) 3.50-7 (TA)

1



7

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

8



8

89-1668-140042

Mini Low Fluted Nut (2 sorts) M14

2



9

89-1750-140002

Spring Washer 14

2



10

89-2120-250252

Split Pin 2.5*25

2



11

89-3115-060044

Bearing 6004 2RS

4



32/52

Front 4/6





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

1



2

0240-31300

Brake Arm CMP (R)

1



3

0240-32100

Brake Shoe φ130

1



4

0240-32200

Brake Collar

4



5

0240-62110

Front Wheel Rubber Cover (IN)

1



6

0240-62210

Front Wheel Rubber Cover

1



7

0240-75110

Brake Wire

1



8

0292-94100

King Pin RM97FB (R)

1



9

0316-83100

Brake Cover (RM83G FB)

1



10

0348-30500

Foot Guard Stay

1



11

89-1390-080162

Welded Bolt M8*16

2



12

89-1631-080042

Flange Mini Hexagonal Nut M8

6



13

89-5221-025000

O Ring P25

1



33/52

Front 5/6











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

1



2

0240-31200

Brake Arm CMP (L)

1



3

0240-32100

Brake Shoe φ130

1



4

0240-32200

Brake Collar

4



5

0240-62110

Front Wheel Rubber Cover (IN)

1



6

0240-62210

Front Wheel Rubber Cover

1



7

0240-75110

Brake Wire

1



8

0292-94200

King Pin RM97FB (L)

1



9

0316-83100

Brake Cover (RM83G FB)

1



10

0348-30500

Foot Guard Stay

1



11

89-1390-080162

Welded Bolt M8*16

2



12

89-1631-080042

Flange Mini Hexagonal Nut M8

6



13

89-5221-025000

O Ring P25

1



34/52

Front 6/6



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0329-32100

Front Axle CMP (RMK150)

1



2

83-1310-371-00

Thrust Washer 20*30*1.0

4



3

83-1415-975-00

Grease Nipple M6

2



4

83-1490-337-00

Washer 20*38*3.2

2



5

89-2511-000200

Snap Ring (S20)

2



6

89-3510-025350

DU Bush 25.35

2



7

89-3511-020200

DU Bush 20.20.31F

4



35/52

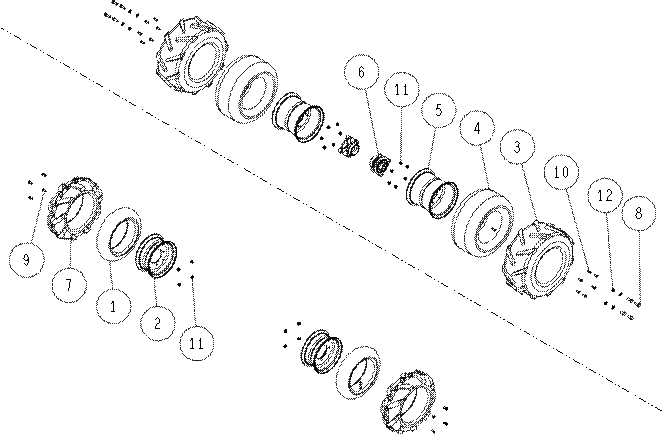

Tire 1/1





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-404-00

Tire Tube 3.50-7

2



2

80-1260-407-00

Wheel Assy 3.50-7

2



3

0244-78610

Tire 17*8.00-8

2



4

0244-78300

Tire Tube 17*8.00-8

2



5

0244-78800

Wheel Assy 17*800-8

4



6

0207-31200

Rear Wheel Boss

2



7

0322-32100

Tire 3.50-7 (TA)

2



8

89-1113-100252

Hexagonal Bolt (8T) M10*25

8



9

89-1211-080162

Mini Hexagonal Bolt M8*16

8



10

89-1213-080162

Mini Hexagonal Bolt (8T) M8*16

12



11

89-1543-080002

Mini Hexagonal Nut (SW) M8

20



12

89-1750-100002

Spring Washer 10

8



36/52

Control 1/3













Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0348-11000-00

Shift Rod Assy

1

Include : 1,2,3,10,11,15

1

80-1485-265-00

Shift Rod Adjuster

1



2

80-1487-962-10

Rod End PHS10ECL

1



3

80-1487-964-10

Rod End PHS10EC

1



4

0207-72600

Lever Grip 8 (black)

2



5

0215-70600

Lever Grip (Red)

1



6

0221-13200

Change Grip

1



7

0322-75400

Throttle Wire

1



8

0312-12900

Throttle Lever

1



9

0348-10200

Control Guide CMP

1



10

0348-11100

Shift Rod

1



11

83-1488-195-02

Mini Hexagonal Nut M10 (L)

1



12

89-1213-100302

Mini Hexagonal Bolt (8T) M10*30

1



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



14

89-1561-100002

Mini Hexagonal U Nut M10

1



15

89-1611-100042

Mini Hexagonal Nut M10

3



16

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

1



17

89-1631-100042

Flange Mini Hexagonal Nut M10

2



18

89-1711-100002

Flat Washer 10*18*1.6

1



19

89-1852-100001

Belleville Spring H10

2



37/52

Control 2/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0312-17010

Change Brake Assy

1

Include : 9,10,13,14

-

0244-14500

Sub Change Rod Assy

1

Include : 1,2,6,15,19

1

80-1791-597-00

Turn Buckle 8*50

1



2

0207-11100

Sub Change Rod (front)

1



3

0207-72300

Change Brake Adjuster

1



4

0225-11800

Spring, Change Brake

1



5

0244-12700

Sub Change Lever CMP

1



6

0244-13500

Sub Change Rod (rear)

1



7

0312-13700

Spring for Change Lever

1



8

0312-14200

Spring for Brake Pulling

1



9

0312-17100

Brake Cover

1



10

0312-17200

Brake Drum

1



11

0348-10400

Sub Change Arm CMP

1



12

83-1675-375-00

Thrust Washer 14*23*1.0

1



13

85-1711-317-00

Shoe Return Spring

2



14

85-1711-318-00

Brake Shoe Set

1



15

83-1484-195-00

Mini Hexagonal Nut M8 (L)

1



16

89-1113-060122

Hexagonal Bolt (8T) M6*12

3



17

89-1113-060552

Hexagonal Bolt (8T) M6*55

1



18

89-1551-060002

Hexagonal U Nut M6

1



19

89-1611-080042

Mini Hexagonal Nut M8

3



20

89-1711-060002

Flat Washer 6

1



21

89-1712-100002

Flat Washer 10*21*2.1

2



22

89-1713-060002

Flat Washer 6 (large)

1



23

89-1750-060002

Spring Washer 6

3



24

89-2131-100002

Snap Pin 10

2



25

89-2132-060002

Snap Pin 6 (with stopper)

1



26

89-2150-050100

Key 5*10 (round)

1



27

89-2181-060122

Flat Head Pin 6*12

1



28

89-2511-000140

Snap Ring (S14)

1



29

89-2521-000100

E Type Ring 10

1



30

89-3510-012200

DU Bush 12.20

1



38/52

Control 3/3







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1020-263-00

Control Lever Shaft Spring

1



2

0244-13200

Differential Lock Lever CMP

1



3

0244-72410

Defferential Lock Wire

1



4

0312-12100

Change Bracket CMP

1



5

0312-12310

Neutral Arm

2



6

0312-12420

Change Lever Base CMP

1



7

0312-13700

Spring for Change Lever

1



8

0312-13800

Spring for Change Return Arm

1



9

0322-12400

Change Return Arm CMP

1



10

0329-12500

Spring for Change Pedal

1



11

0348-10100

Change Lever Guide CMP

1



12

0348-10300

Change Lever CMP

1



13

89-1113-060552

Hexagonal Bolt (8T) M6*55

1



14

89-1551-060002

Hexagonal U Nut M6

1



15

89-1561-100002

Mini Hexagonal U Nut M10

1



16

89-1711-100002

Flat Washer 10*18*1.6

1



17

89-1713-060002

Flat Washer 6 (large)

1



18

89-2132-060002

Snap Pin 6 (with stopper)

1



19

89-2181-060162

Flat Head Pin 6*16

1



20

89-2521-000100

E Type Ring 10

1



21

89-2521-000120

E Type Ring 12

2



22

89-3510-016150

DU Bush 16.15

6



39/52

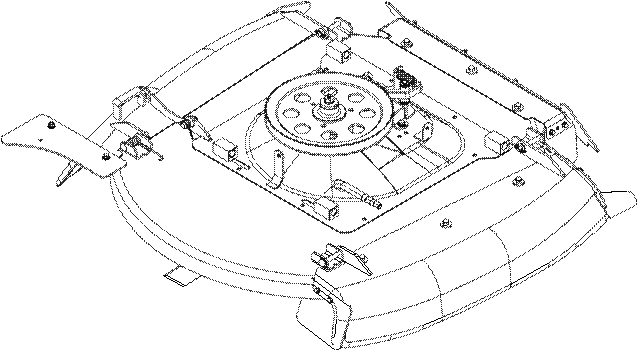

Cutting 1/6









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0244-42400

Knife Pulley Belt Holder (L)

1



3

0244-42600

Knife Pulley Belt Holder

1



4

0348-50100

Knife Belt Cover CMP

1



5

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



6

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



7

89-6123-008002

V Belt SB-80 (W800)

1



40/52

Cutting 2/6











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1488-747-00

Bolt for Right Cover Up/Down Arm

1



2

0244-63900

Round Head Pin 10*72

2



3

0244-71600

Spring for Right Cover

1



4

0255-60300

Right Cover Flapper

1



5

0259-51700

Right Cover Up/Down Arm

1



6

0290-50200

Side Flapper (Back Right)

1



7

0312-77500

Flange Cap Nut M6 (Meck)

4



8

0348-50200

Right Cover CMP

1



9

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



10

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

1



11

89-1561-080002

Mini Hexagonal U Nut M8

1



12

89-1711-100002

Flat Washer 10*18*1.6

1



13

89-1713-060002

Flat Washer 6 (large)

4



14

89-1714-100002

Flat Washer 10

2



15

89-1750-080002

Spring Washer 8

1



16

89-2131-100002

Snap Pin 10

2



41/52

Cutting 3/6

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-61800

Side Flapper (Front)

1



2

0244-63900

Round Head Pin 10*72

2



3

0255-60800

Rear Side Flapper ( Left A)

1



4

0312-77500

Flange Cap Nut M6 (Meck)

4



5

0348-50300

Left Cover CMP

1



6

83-1751-312-00

Washer 8*25*3.2

3



7

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



9

89-1671-080042

Mini Cap Nut M8

3



10

89-1713-060002

Flat Washer 6 (large)

4



11

89-1714-100002

Flat Washer 10

4



12

89-2131-100002

Snap Pin 10

2



42/52

Cutting 4/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1485-551-00

Driving Tension Spring

1



2

0244-50600

Knife Brake

1



3

0244-50710

Knife Brake Bracket CMP

1



4

0244-61200

Rear Guard

1



5

0244-61300

Rear Guard Flapper

1



6

0244-61400

Rear Guard Flapper Holder

1



7

0312-50700

Side Rear Flapper (L)

1



8

0312-77500

Flange Cap Nut M6 (Meck)

2



9

83-1565-329-00

Washer 13*22*2.3

4



10

83-1751-312-00

Washer 8*25*3.2

3



11

83-1754-329-00

Washer 13*22*1.0

2



12

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



13

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



14

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



15

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

3



16

89-1581-060042

Flange Cap Nut M6

4



17

89-1671-080042

Mini Cap Nut M8

3



18

89-1713-060002

Flat Washer 6 (large)

2



19

89-2120-200152

Split Pin 2*15

1



20

89-2181-060162

Flat Head Pin 6*16

1



21

89-2521-000100

E Type Ring 10

2



22

89-3510-012200

DU Bush 12.20

2



43/52

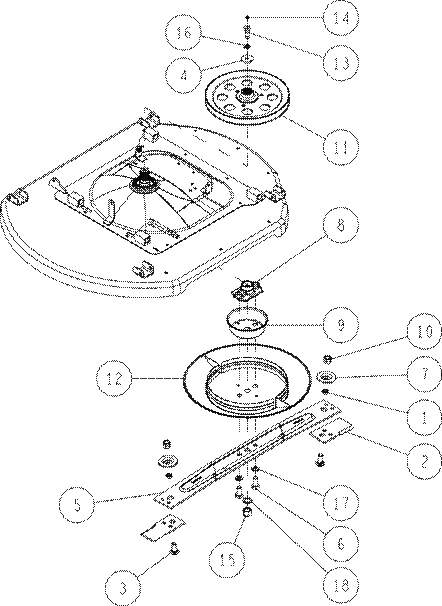

Cutting 5/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1483-818-00

Knife Collar

2



2

80-1483-821-00

Knife

2



3

0207-50200

Knife Setting Bolt M14*34

1



4

0221-76100

Washer 12*40*6

1



5

0217-50500

Knife Stay (RM95E)

1



6

83-1483-129-00

Mini Hexagonal Bolt (8T) M12*30

2



7

0244-51800

Nut Guard 14

2



8

0238-51100

Knife Bracket

1



9

0244-52100

Knife Neck Guard

1



10

0244-74600

Hard Lock Nut M14

2



11

0312-50300

Knife Pulley CMP

1



12

0312-51800

Washer Plate CMP

1



13

0322-52200

Nipple Bolt M12*35 (8T)

1



14

83-1415-975-00

Grease Nipple M6

1



15

83-1483-175-00

Bag Nut M20 (Lock)

1



16

89-1750-120002

Spring Washer 12

3



18

89-1750-200002

Spring Washer 20

1



44/52

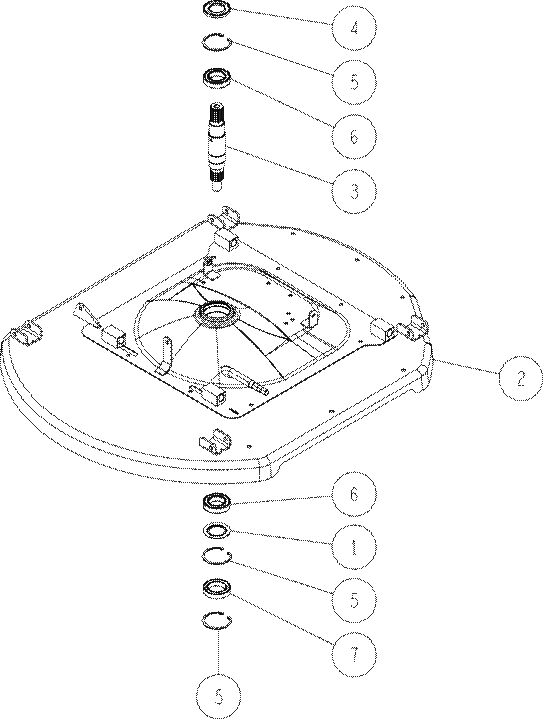

Cutting 6/6







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0262-50100

Dust Plate

1



2

0312-53110

Safety Cover CMP

1



3

0322-52100

Vertical Shaft

1



4

0322-72700

Oil Seal UE 35.62.6

1



5

89-2512-000620

Snap Ring (R62)

4



6

89-3115-060074

Bearing 6007 2RS

2



7

89-5121-406212

Oil Seal UE 40.62.12

1



45/52

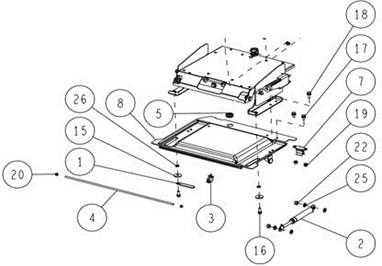

Seat 1/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0207-72700

Gas Spring KMF 50-40

1



3

0221-71900

Clip CT-339

1



4

0244-22200

Seat Bracket Shaft

1



5

0244-73700

Grommet 24

1



7

0312-70700

Bonnet Clip

1

RH17M00103 ~

0312-70400

Bonnet Clip

1

~ RH17D00067

8

0322-21600

Seat Bracket CMP

1



10

0341-21200

Lower Slide CMP

2



11

0341-21300

Upper Slide CMP (R)

1



12

0341-21400

Upper Slide CMP (L)

1



13

0341-21500

Seat Lever Spring

1



14

0341-21800

Slide Lever CMP

1



15

83-1415-312-00

Washer 8*30*3.2

2



16

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

2



17

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



18

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



19

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



20

89-1553-060002

Bag Hexagonal U Nut M6

2



21

89-1561-080002

Mini Hexagonal U Nut M8

1



22

89-1561-100002

Mini Hexagonal U Nut M10

2



23

89-1631-080042

Flange Mini Hexagonal Nut M8

8



24

89-1711-080002

Flat Washer 8

1



25

89-1711-100002

Flat Washer 10*18*1.6

4



26

89-1750-080002

Spring Washer 8

2



27

0348-24100

Upper Seat Receiver CMP

1



28

CR532150891

Seat Cobo






46/52

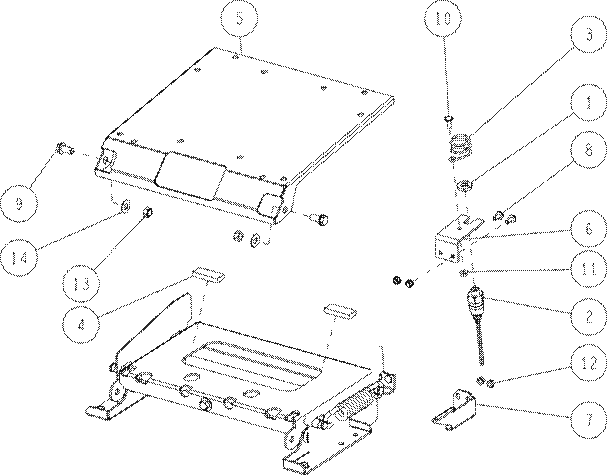

Seat 2/3



S/N : ~ RJ17D00035

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-72800

Switch Lock Nut

1



2

0207-74400

Safety Switch K17850

1



3

0207-72900

Seat Switch Spring

1

OTHER SEAT

0341-21700

Seat Switch Spring

1

OREC SEAT

4

0312-22300

Rubber, Seat Spacer

2



5

0341-21100

Seat Receiver

1



6

0341-21600

Seat Switch Stay

1



7

0348-21510

Clutch Cancellation Stay

1

RJ17M00036 ~

0348-21500

Clutch Cancellation Stay

1

~ RJ17D00035

8

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



9

89-1137-060172

Hexagonal Bolt (PW) M6*17

2



10

89-1253-100202

Flange Mini Hexagonal Bolt (8T) M10*20

2



11

89-1390-060162

Welded Bolt M6*16

1



12

89-1531-060042

Flange Nut M6

3



13

89-1561-100002

Mini Hexagonal U Nut M10

2



14

89-1714-100002

Flat Washer 10

2



15

89-1541-060002

Hexagonal Nut (SW) M6

2




47/52

Seat 3/3

























































S/N : ~ RJ17D00035

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-71200

Spring for Seat Link

2



2

0312-21600

Parallel Seat Link CMP

1



3

0312-21700

Seat Parallel Link (B)

2



4

0312-21800

Spring Shaft

2



5

0312-22100

Spring Shaft Hook CMP

1



6

0329-80300

Seat Link Shield (RMK150)

2



7

0348-21100

Link Upper Bracket (R) CMP

1



8

0348-21200

Link Upper Bracket (L) CMP

1



9

0348-21310

Link Upper Bracket CMP

1

RJ17M00036 ~

0348-21300

Link Upper Bracket CMP

1

~ RJ17D00035

10

83-1020-363-00

Thrust Washer 16*24*1.0

12



11

89-1211-100302

Mini Hexagonal Bolt M10*30

1



12

89-1714-100002

Flat Washer 10

1



13

89-2521-000120

E Type Ring 12

6




48/52

Engine 1/3









Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-74000

Fuel Cock Assy (K)

1

Include : 1,5,11

-

0322-72500

Fuel Hose 270L & Clip

1

Include : 1,11

-

0322-72400

Fuel Hose 600L & Clip

1

Include : 1,10

-

0312-44100

Oil Drain Assy (K)

1

Include : 4,6,7,8,9,16

1

80-1483-988-00

Hose Clip 17

4



2

80-1792-988-00

Harness Clip 8

1



3

0207-74900

Copper Packing 12.5*19*1.0

1



4

0244-40700

Drain Bolt (K)

1



5

0244-74500

Fuel Cock

1



6

0244-75700

Hose Band 22

1



7

0271-73300

Socket

1



8

0312-44200

Oil Drain Hose (K)

1



9

0312-44300

Drain End CMP (K)

1



10

0322-70400

Fuel Hose 600L

1



11

0322-70500

Fuel Hose 270L

1



12

89-1137-060122

Hexagonal Bolt (PW) M6*12

1



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



14

89-1251-120152

Flange Mini Hexagonal Bolt M12*15

1



15

89-1581-060042

Flange Cap Nut M6

1



16

89-5221-016000

O Ring P16

1



49/52

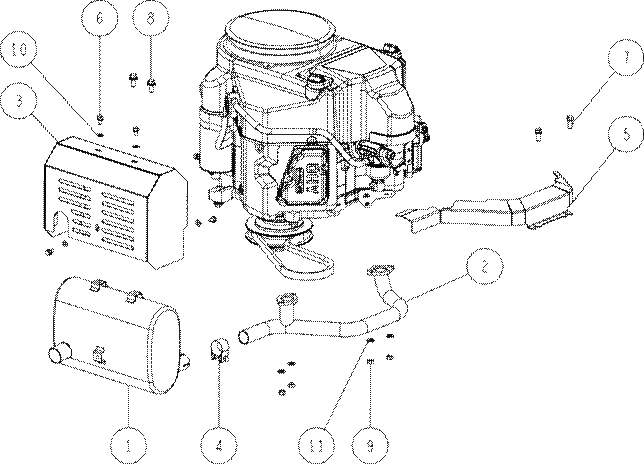

Engine 2/3



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0312-40100

Muffler

1



2

0322-40100

Exhaust Pipe CMP (FS481V)

1



3

0312-40500

Muffler Cover CMP

1



4

0312-70500

Muffler Band

1



5

0329-40600

Exhaust Pipe Cover (RMK150)

1



6

89-1132-060122

Hexagonal Bolt (SW) M6*12

4



7

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

2



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



9

89-1611-080042

Mini Hexagonal Nut M8

4



10

89-1711-060002

Flat Washer 6

4



11

89-1750-080002

Spring Washer 8

4



50/52

Engine 3/3























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1487-516-00

Washer 11*40*6

1



2

0207-76300

Nut UNF 1/4

1



3

0322-42100

Engine Pulley

1



4

0240-51300

Engine Collar 33

1



6

0312-42100

Hexagonal Bolt (8T) UNC 3/8-16*38

4



7

83-1437-115-00

Hexagonal Bolt (8T) UNF7/16*35

1



8

83-1493-300-00

Spring Washer 7/16

1



9

89-1750-060002

Spring Washer 6

1



10

89-1750-100002

Spring Washer 10

4



11

89-1812-100002

Toothed washer (inside) 10

1



12

89-6123-003202

V Belt SB-32 (W800)

1



13

9024-0010

Kawasaki Engine FS541V-AG82

1




51/52

Label 1/2



















































































































Serial Number

52/52

Label 2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0215-83100

Attention Mark for Slope

1



2

0215-83200

Label, Protection Equipment

1



3

0217-70800

Label, Gear Oil 1.0L

1



4

0223-76100

Label, Caution (Large)

1



5

0244-80700

Label, Handle (Blue)

1



6

0259-80700

Label, Cutting Height Line

1



7

0310-71300

Label, Noise 102db

1



8

0312-76900

Label, OREC B05

1



9

0312-86100

Label, Seat Spring Adjusting

1



10

0322-77900

Reflection Seat (Red)

2



11

0322-78300

Label, Fuse Box

1



12

0322-78800

Label, OREC B03

2



13

0329-76200

Label, Caution for Hand and Leg etc

2



14

0329-77500

Label, Choke (RMK150)

1



15

0329-78400

Label, Control (RMK150)

1



16

0346-71100

Label, Side RM952

2



17

0346-71300

Label, Maintenance & Belt Size

1



18

0348-72100

Label, Differential Lock

1



19

0348-72400

Label, Cutting Height Adjusting

1



20

80-1488-912-00

Label, Key (13121)

1



21

80-1488-921-00

Label Pedal Stopper (13113)

1



22

80-1488-928-10

Label, Caution for Belt Involving

1



23

-

Serial Number

1
