OREC ISSUED NO. RM88EUT(FB)-2
Parts catalogue
Rabbit Mower
(EXPORT MODEL) RM88
MODEL CODE
RM88EU 0284-○○○○○
|
CONTENTS |
|
|
FRAME |
1-14 |
|
TRANSMISSION |
15-23 |
|
HST |
24-25 |
|
HANDLE |
26-27 |
|
FRONT |
28-30 |
|
CONTROL |
31-33 |
|
CUTTING |
34-40 |
|
SEAT |
41-44 |
|
ENGINE |
45-50 |
OREC CO.,LTD
Update : May 2014
|
1/50 |
Frame 1/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1488-928-10 |
Label, Caution
for Belt Involving |
1 |
|
|
2 |
0215-80400 |
Driving Clutch
ON-OFF Label |
1 |
|
|
3 |
0217-70800 |
Label, Gear Oil 1.0L |
1 |
|
|
4 |
0244-60110 |
Side Cover (R) Red |
1 |
|
|
5 |
0244-60210 |
Side Cover (L) Red |
1 |
|
|
7 |
0284-63100 |
Rear Belt Cover 88 |
1 |
|
|
8 |
0284-85300 |
Rear Bumper
CMP (88) |
1 |
|
|
9 |
0284-87300 |
Pipe Cap (105-13103) |
2 |
|
|
10 |
0284-88300 |
Label, Cutting
Height Adjusting |
1 |
|
|
11 |
0284-98200 |
Label, Model RM900 |
1 |
|
|
12 |
89-1159-080168 |
Truss Mini Screw M8*16 |
8 |
|
|
13 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
|
|
14 |
89-1251-080502 |
Flange Mini Hexagonal Bolt M8*50 |
2 |
|
|
15 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
3 |
|
|
16 |
|
Label, HIGH QUALITY |
2 |
Supplied by TELSNIG |
|
2/50 |
Frame 2/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1484-356-00 |
Brake Stopper
Return Spring |
1 |
|
|
2 |
0207-76500 |
Long Knob Bolt M8*20 |
1 |
|
|
3 |
0244-32200 |
Brake Stopper
CMP |
1 |
|
|
4 |
0284-20700 |
Front Cover (Lower) |
1 |
|
|
5 |
0284-23100 |
Side Cover
Stay CMP |
2 |
|
|
6 |
0284-61100 |
Front Cover (Upper) |
1 |
|
|
7 |
0284-62100 |
Mat Guard |
2 |
|
|
8 |
0284-72300 |
Battery Pad (88) |
1 |
|
|
9 |
89-1137-060172 |
Hexagonal Bolt (PW) M6*17 |
4 |
|
|
10 |
89-1159-080168 |
Truss Mini Screw M8*16 |
2 |
|
|
11 |
89-1211-080552 |
Mini Hexagonal Bolt M8*55 |
1 |
|
|
12 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
|
|
13 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
|
|
14 |
89-1581-060042 |
Flange Cap Nut M6 |
4 |
|
|
15 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
|
|
16 |
89-1713-060002 |
Flat Washer
6 (large) |
4 |
|
|
17 |
89-1714-100002 |
Flat Washer
10 |
1 |
|
|
18 |
|
Label, Herkules
Middle |
1 |
Supplied by TELSNIG |
|
3/50 |
Frame 3/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0201-52700 |
Tension Spring for Blade |
1 |
|
|
2 |
0207-21200 |
Seat Bracket
Shaft |
1 |
|
|
3 |
0207-72300 |
Change Brake Adjuster |
1 |
|
|
4 |
0207-72700 |
Gas Spring
KMF 50-40 |
1 |
|
|
5 |
0284-21400 |
Step CMP (88) |
1 |
|
|
6 |
0284-71500 |
Step Rubber (88) |
1 |
|
|
7 |
83-1484-369-00 |
Clip (5347) |
17 |
|
|
8 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
3 |
|
|
9 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
5 |
|
|
10 |
89-1553-060002 |
Bag Hexagonal U Nut M6 |
2 |
|
|
11 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
2 |
|
|
12 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
2 |
|
|
13 |
89-1713-100002 |
Flat Washer 10 (large) |
4 |
|
|
14 |
Seat Part |
- |
1 |
Page 41～ |
|
15 |
Control Part |
- |
1 |
Page 31～ |
|
4/50 |
Frame 4/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1483-988-00 |
Hose Clip 17 |
4 |
|
|
2 |
0207-82800 |
Fuel Cock |
1 |
|
|
3 |
0284-60100 |
Fuel Tank Holder CMP (RM88/K) |
1 |
|
|
4 |
0284-60400 |
Fuel Gauge Cover |
1 |
|
|
5 |
0284-70100 |
Fuel Tank Assy |
1 |
|
|
6 |
0284-70400 |
Fuel Hose (Tank) |
1 |
|
|
7 |
0284-72100 |
Wind Shield
(RM88) |
1 |
|
|
8 |
0284-87200 |
Fuel Hose (Engine) |
1 |
|
|
9 |
89-1159-060108 |
Truss Mini Screw M6*10 |
5 |
|
|
10 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
3 |
|
|
11 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
4 |
|
|
12 |
89-1514-120042 |
Hexagonal Nut (3 sorts)
M12 (slender) |
1 |
|
|
13 |
89-1713-060002 |
Flat Washer
6 (large) |
3 |
|
|
14 |
89-1714-120002 |
Flat Washer
12 |
1 |
|
|
15 |
|
Label, Herkules
Small |
2 |
Supplied by TELSNIG |
|
5/50 |
Frame 5/14 |
|||
|
1223 |
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1483-978-00 |
Magnetic Switch
(MS2-401) |
1 |
JE14A00001～ |
|
Engine Parts |
Magnetic Switch |
1 |
～JE13B00069 |
|
|
2 |
0207-79200 |
Fuse Box Bracket |
1 |
|
|
3 |
0207-79300 |
Pilot Lamp |
1 |
|
|
4 |
0244-72900 |
Head Lamp |
1 |
|
|
5 |
0284-20600 |
Head Lamp Stay CMP |
1 |
|
|
6 |
89-1111-060142 |
Hexagonal Bolt M6*14 |
2 |
|
|
89-1155-050142 |
Cross recess
Headed Screw (PW) M5*14 |
2 |
|
|
|
7 |
89-1137-060122 |
Hexagonal Bolt (PW) M6*12 |
4 |
|
|
8 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
|
|
9 |
89-1541-060002 |
Hexagonal Nut (SW) M6 |
2 |
|
|
89-1541-050002 |
Hexagonal Nut (SW) M5 |
2 |
|
|
|
10 |
89-1581-080042 |
Flange Cap Nut M8 |
2 |
|
|
11 |
89-1812-060002 |
Toothed washer
(inside) 6 |
1 |
|
|
12 |
0308-70200 |
Wire Harness
Assy (950/B) |
1 |
JE14A00001～ |
|
0284-71000 |
Wire Harness
Assy (88-FH) |
1 |
～JE13B00069 |
|
|
6/50 |
Frame 6/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1482-971-00 |
Cushion Rubber (Battery) |
1 |
|
|
2 |
80-1484-337-00 |
Lighting Switch
(B15930) |
1 |
|
|
3 |
80-1792-976-00 |
Battery (32A-19L) |
1 |
|
|
4 |
80-1792-988-00 |
Harness Clip 8 |
2 |
|
|
5 |
80-1488-921-00 |
Label Pedal Stopper (13113) |
1 |
|
|
6 |
0284-22100 |
Battery Carrier |
1 |
|
|
7 |
89-1111-060142 |
Hexagonal Bolt M6*14 |
1 |
|
|
8 |
89-1111-060252 |
Hexagonal Bolt M6*25 |
1 |
|
|
9 |
89-1541-060002 |
Hexagonal Nut (SW) M6 |
1 |
|
|
10 |
89-1581-060042 |
Flange Cap Nut M6 |
1 |
|
|
11 |
89-1713-060002 |
Flat Washer
6 (large) |
3 |
|
|
12 |
89-1750-060002 |
Spring Washer 6 |
2 |
|
|
13 |
89-1812-060002 |
Toothed washer
(inside) 6 |
1 |
|
|
7/50 |

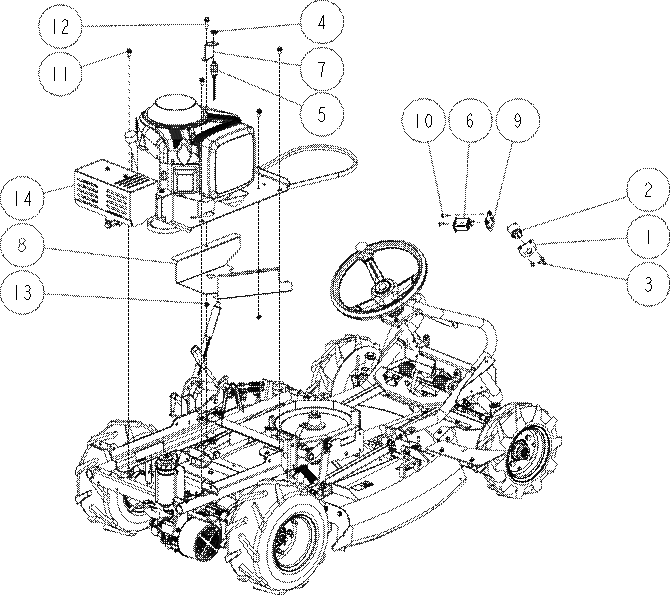

Frame 7/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1482-332-00 |
Key Switch Bracket |
1 |
|
|
2 |
80-1484-977-00 |
Key
Switch (E1635H) |
1 |
JE14A00001～ |
|
Engine Parts |
Key Switch (K) |
1 |
～JE13B00069 |
|
|
3 |
80-1488-912-00 |
Label, Key (13121) |
1 |
|
|
4 |
0207-72800 |
Switch Lock Nut |
1 |
|
|
5 |
0207-74400 |
Safety Switch K17850 |
1 |
|
|
6 |
0244-73600 |
Hour Meter |
1 |
|
|
7 |
0284-20500 |
Safety Switch Stay |
1 |
|
|
8 |
0284-86300 |
Center Belt Cover (88) |
1 |
|
|
9 |
85-1484-943-10 |
Hour Meter
Bracket |
1 |
|
|
10 |
89-1159-060168 |
Truss Mini Screw M6*16 |
4 |
|
|
11 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
4 |
|
|
12 |
89-1233-080352 |
Mini Hexagonal Bolt (PWSW) M8*35 |
1 |
|
|
13 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
2 |
|
|
14 |
Engine Part |
- |
|
Page 45～ |
|
8/50 |

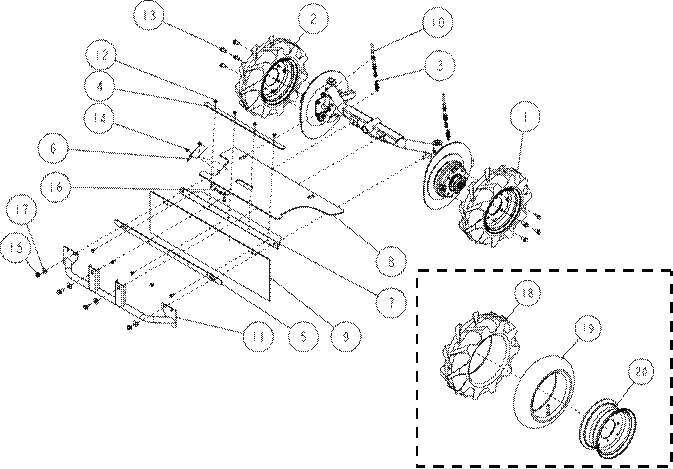

Frame 8/14 |
|||
|
12 13 14 |
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1751-411-00 |
Tire (L) Assy (16*7.00-8) |
1 |
|
|
2 |
80-1751-412-00 |
Tire (R) Assy (16*7.00-8) |
1 |
|
|
3 |
0207-77800 |
Wheel Boss Dust Seal |
2 |
|
|
4 |
0215-30100 |
Rear Wheel
Boss |
2 |
|
|
5 |
83-1630-335-00 |
Washer 16*40*4.5 |
2 |
|
|
6 |
89-1213-100252 |
Mini Hexagonal Bolt (8T) M10*25 |
8 |
|
|
7 |
89-1658-160042 |
Low Fluted Nut (2 sorts)
M16 |
2 |
|
|
8 |
89-1750-100002 |
Spring Washer 10 |
8 |
|
|
9 |
89-1750-160002 |
Spring Washer 16 |
2 |
|
|
10 |
89-2120-350352 |
Split Pin 3.5*35 |
2 |
|
|
11 |
89-2150-070500 |
Key 7*50 (round) |
2 |
|
|
12 |
80-1751-401-00 |
Tire 16*700*8 |
2 |
|
|
13 |
80-1751-404-00 |
Tire Tube 16*700*8 |
2 |
|
|
14 |
80-1751-407-00 |
Wheel Assy 16*700*8 |
2 |
|
|
9/50 |

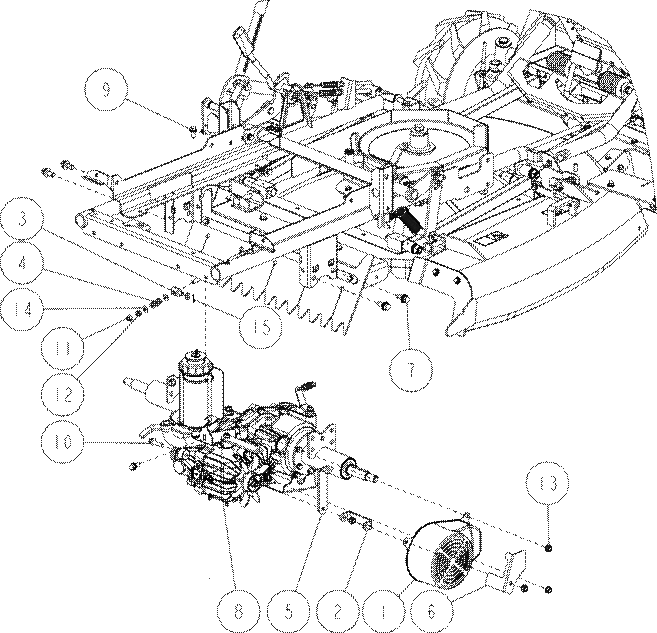

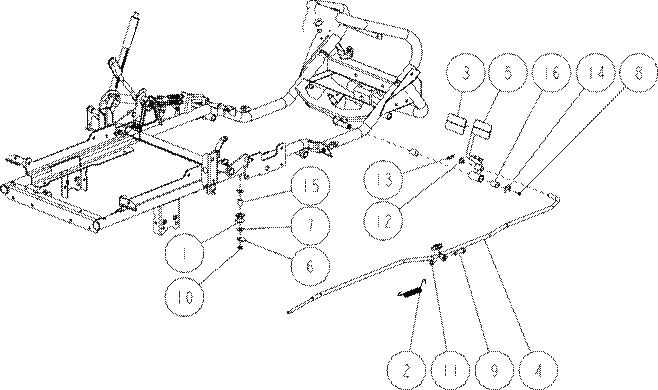

Frame 9/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-07200 |
Fan Cover
CMP |
1 |
|
|
2 |
0207-07400 |
Fan Cover Setting CMP |
1 |
|
|
3 |
0207-10300 |
Brake Joint |
1 |
|
|
4 |
0207-75400 |
Brake Spring
30 |
1 |
|
|
5 |
0215-05100 |
Transmission Hunger
Stay CMP |
1 |
|
|
6 |
0217-66300 |
Rear Belt Cover (R) AK85, RM95.RM86B C |
1 |
|
|
7 |
0244-83200 |
Mini Hexagonal Bolt (PWSW) M10*25
(7T |
4 |
|
|
8 |
0284-09010 |
Transmission Assy (with HST) |
1 |
|
|
9 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
2 |
|
|
10 |
89-1233-080352 |
Mini Hexagonal Bolt (PWSW) M8*35 |
1 |
|
|
11 |
89-1561-080002 |
Mini Hexagonal U Nut M8 |
1 |
|
|
12 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
|
|
13 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
4 |
|
|
14 |
89-1711-080002 |
Flat Washer
8 |
3 |
|
|
15 |
89-2120-200152 |
Split Pin 2*15 |
1 |
|
|
10/50 |

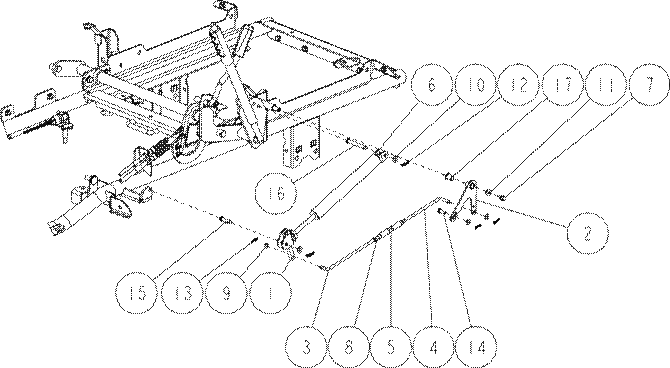

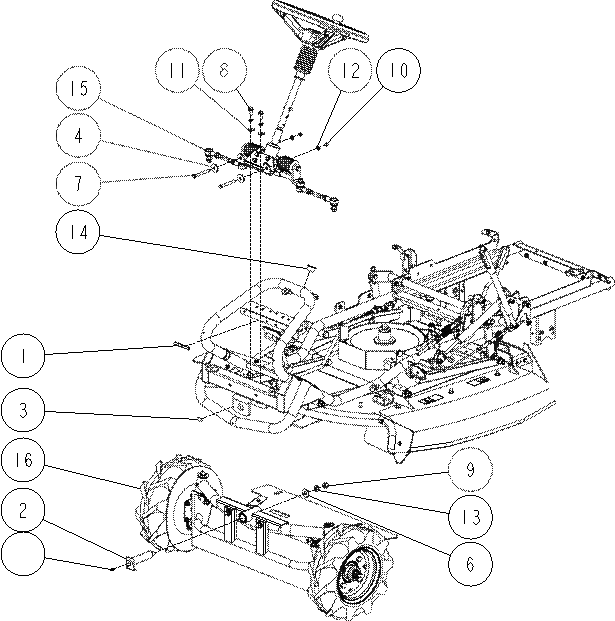

Frame 10/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1482-493-00 |
Ditch Gum L73 |
1 |
|
|
2 |
0207-30700 |
Center Pin |
1 |
|
|
3 |
0215-81500 |
Label Grease |
1 |
|
|
4 |
83-1415-312-00 |
Washer 8*30*3.2 |
2 |
|
|
5 |
83-1415-975-00 |
Grease Nipple
M6 |
1 |
|
|
6 |
83-1481-328-00 |
Washer 12*30*3.2 |
1 |
|
|
7 |
89-1211-080702 |
Mini Hexagonal Bolt M8*70 |
2 |
|
|
8 |
89-1253-080202 |
Flange Mini Hexagonal Bolt (8T) M8*20 |
2 |
|
|
9 |
89-1551-120002 |
Hexagonal U Nut M12 |
1 |
|
|
10 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
2 |
|
|
11 |
89-1713-080002 |
Flat Washer
8 (large) |
2 |
|
|
12 |
89-1750-080002 |
Spring Washer 8 |
4 |
|
|
13 |
89-1750-120002 |
Spring Washer 12 |
1 |
|
|
14 |
89-3511-022150 |
DU Bush 22.15.33F |
1 |
|
|
15 |
Handle Part |
- |
1 |
Page 26～ |
|
16 |
Front Part |
- |
1 |
Page 28～ |
|
11/50 |

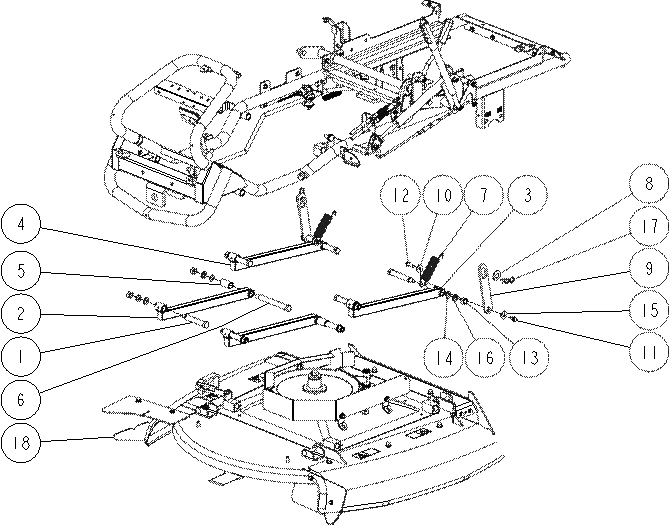

Frame 11/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1481-709-10 |
Link Bolt |
6 |
|
|
2 |
80-1482-707-00 |
Link Arm (Front) |
2 |
|
|
3 |
80-1482-708-00 |
Link Arm (Rear) |
1 |
|
|
4 |
80-1485-707-00 |
Link Arm (Right-rear) |
1 |
|
|
5 |
0207-51500 |
Link Collar |
2 |
|
|
6 |
0207-51600 |
Link Bolt |
2 |
|
|
7 |
0207-76200 |
Spring (Up/Down) |
2 |
|
|
8 |
0207-76800 |
Washer 16*32*2.3 |
2 |
|
|
9 |
0284-10300 |
Connecting Plate (88) |
2 |
|
|
10 |
83-1751-311-00 |
Flat Washer
8*25*2.3 |
2 |
|
|
11 |
89-1232-080162 |
Mini Hexagonal Bolt (SW) M8*16 |
2 |
|
|
12 |
89-1238-080252 |
Mini Hexagonal Bolt (SW) M8*25 |
2 |
|
|
13 |
89-1551-120002 |
Hexagonal U Nut M12 |
8 |
|
|
14 |
89-1711-120002 |
Flat Washer
12 |
8 |
|
|
15 |
89-1713-100002 |
Flat Washer 10 (large) |
2 |
|
|
16 |
89-1750-120002 |
Spring Washer 12 |
8 |
|
|
17 |
89-2131-160002 |
Snap Pin 16 |
2 |
|
|
18 |
Cutting Part |
- |
1 |
Page 34～ |
|
12/50 |
Frame 12/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1484-354-10 |
Brake Rod Roller |
1 |
|
|
2 |
80-1493-354-00 |
Rod Return
Spring |
1 |
|
|
3 |
80-1781-943-00 |
Pedal Rubber |
1 |
|
|
4 |
0215-10200 |
Brake Rod CMP |
1 |
|
|
5 |
0240-13100 |
Brake Pedal Arm CMP |
1 |
|
|
6 |
0244-22600 |
Brake Rod Hung Plate |
1 |
|
|
7 |
83-1020-355-00 |
Thrust Washer 12*24*1.0 |
2 |
|
|
8 |
83-1415-975-00 |
Grease Nipple
M6 |
1 |
|
|
9 |
89-1213-100357 |
Mini Hexagonal Bolt (8T) M10*35 |
2 |
|
|
10 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
1 |
|
|
11 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
2 |
|
|
12 |
89-1711-120002 |
Flat Washer
12 |
1 |
|
|
13 |
89-2131-120002 |
Snap Pin 12 |
1 |
|
|
14 |
89-2521-000150 |
E Type Ring 15 |
1 |
|
|
15 |
89-3510-012200 |
DU Bush 12.20 |
1 |
|
|
16 |
89-3510-016250 |
DU Bush 16.25 |
2 |
|
|
13/50 |
Frame 13/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0244-10500 |
Lock Pusher |
1 |
|
|
2 |
0244-11300 |
Push Rod Receiver CMP |
1 |
|
|
3 |
0244-11400 |
Adjuster Rod (R) |
1 |
|
|
4 |
0244-11500 |
Adjuster Rod (L) |
1 |
|
|
5 |
0244-11600 |
Turn Buckle (Pipe Type) |
1 |
|
|
6 |
0255-70100 |
Gas Spring
Free Lock Type(FLC75-35) |
1 |
|
|
7 |
89-1132-060122 |
Hexagonal Bolt (SW) M6*12 |
1 |
|
|
8 |
89-1511-060042 |
Hexagonal Nut M6 |
1 |
|
|
9 |
89-1711-060002 |
Flat Washer
6 |
3 |
|
|
10 |
89-1711-080002 |
Flat Washer
8 |
2 |
|
|
11 |
89-1713-060002 |
Flat Washer
6 (large) |
1 |
|
|
12 |
89-2131-080002 |
Snap Pin 8 |
2 |
|
|
13 |
89-2132-060002 |
Snap Pin 6 (with stopper) |
3 |
|
|
14 |
89-2181-060202 |
Flat Head Pin 6*20 |
1 |
|
|
15 |
89-2181-080282 |
Flat Head Pin 8*28 |
1 |
|
|
16 |
89-2181-080602 |
Flat Head Pin 8*60 |
1 |
|
|
17 |
89-3511-010150 |
DU Bush 10.15.18F |
1 |
|
|
14/50 |

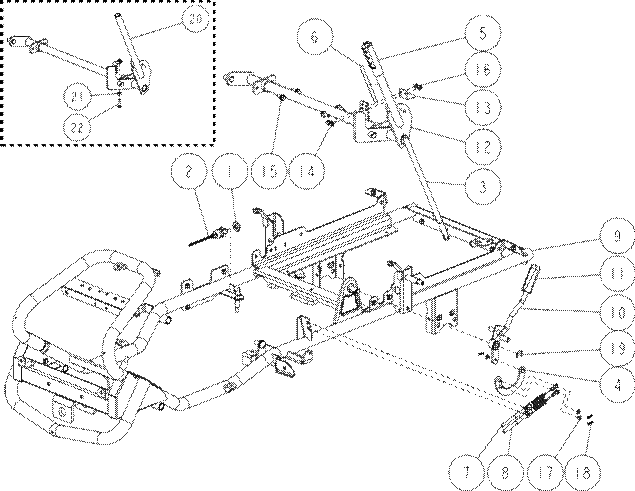

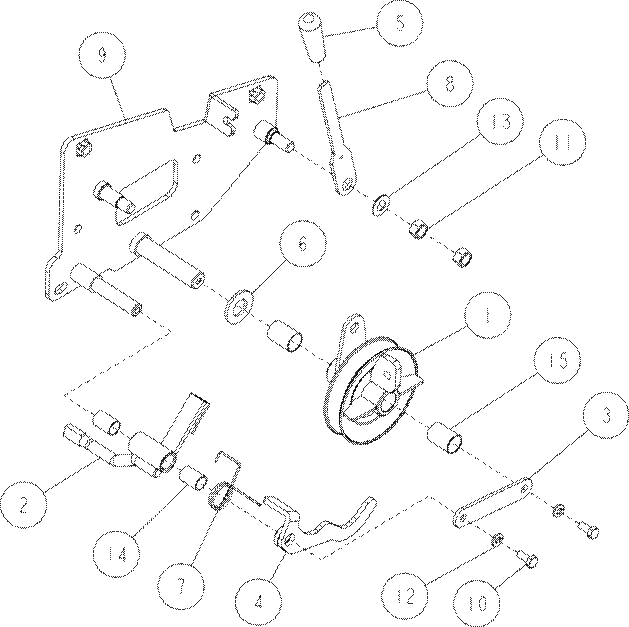

Frame 14/14 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-72800 |
Switch Lock Nut |
1 |
|
|
2 |
0207-74400 |
Safety Switch K17850 |
1 |
|
|
3 |
0244-11200 |
Push Rod |
1 |
|
|
4 |
0244-13700 |
Wire Joint
CMP |
1 |
|
|
5 |
0244-70200 |
Adjusting Shaft Grip |
1 |
|
|
6 |
0259-80700 |
Label, Cutting
Height Line |
1 |
|
|
7 |
0284-71100 |
Knife Brake Wire |
1 |
|
|
8 |
0284-71300 |
Cutting Clutch Wire |
1 |
|
|
9 |
0284-95300 |
Frame CMP |
1 |
|
|
10 |
0284-96500 |
Knife Clutch Lever CMP (Tel) |
1 |
JE14A00001～ |
|
0284-85100 |
Knife Clutch Lever CMP |
1 |
～JE13B00069 |
|
|
11 |
0289-71300 |
Arm Grip (Red) |
1 |
|
|
12 |
0310-10410 |
Up/Down Adjusting Shaft CMP |
1 |
JE14A00001～ |
|
13 |
0310-72200 |
Safety Switch Push Plate |
1 |
JE14A00001～ |
|
14 |
89-1137-060152 |
Hexagonal Bolt (PW) M6*15 |
2 |
JE14A00001～ |
|
15 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
4 |
|
|
16 |
89-1531-060042 |
Flange Nut M6 |
2 |
JE14A00001～ |
|
17 |
89-1711-060002 |
Flat Washer
6 |
3 |
|
|
18 |
89-2132-060002 |
Snap Pin 6 (with stopper) |
3 |
|
|
19 |
89-2521-000120 |
E Type Ring 12 |
1 |
|
|
20 |
0284-10200 |
Up/Down Adjusting Shaft CMP |
1 |
～JE13B00069 |
|
21 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
～JE13B00069 |
|
22 |
89-1211-080252 |
Mini Hexagonal Bolt M8*25 |
1 |
～JE13B00069 |
|
15/50 |

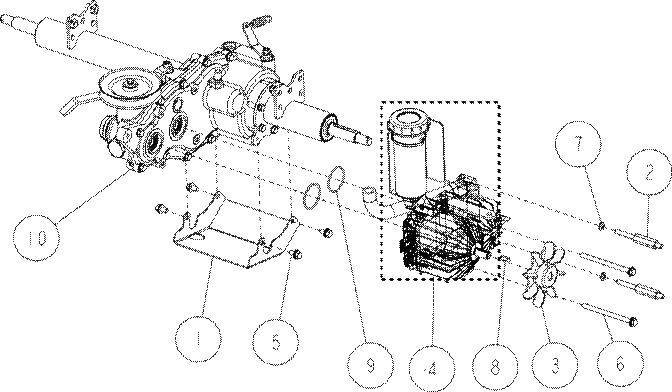

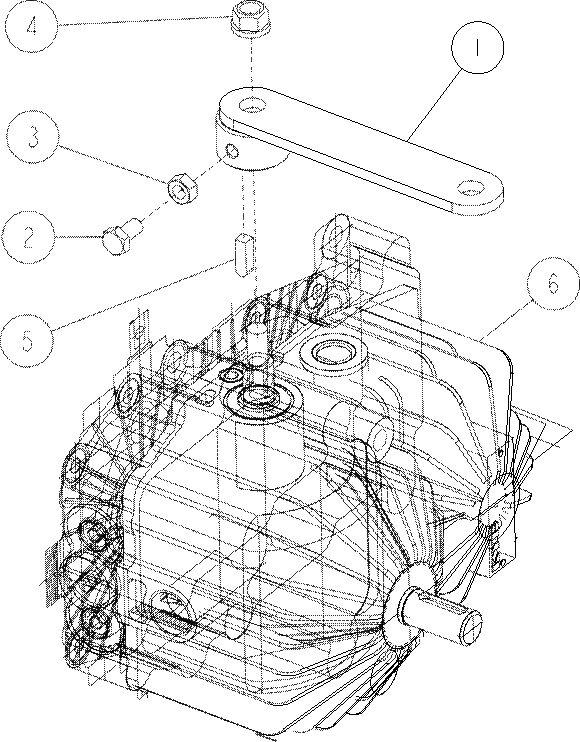

Transmission 1/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-03100 |
Mission Guard CMP |
1 |
|
|
2 |
0207-07300 |
Double Spring
Bolt |
2 |
|
|
3 |
0207-07500 |
Fan |
1 |
|
|
4 |
0207-09730 |
HST Unit Assy |
1 |
|
|
5 |
89-1239-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
4 |
|
|
6 |
89-1251-081123 |
Flange Mini Hexagonal Bolt M8*112 |
2 |
|
|
7 |
89-1750-080002 |
Spring Washer 8 |
2 |
|
|
8 |
89-2150-050200 |
Key 5*20 (round) |
1 |
|
|
9 |
89-5222-045000 |
O Ring G45 |
2 |
|
|
10 |
0284-09120 |
Transmission Assy (without HST) RM88 |
1 |
|
|
16/50 |

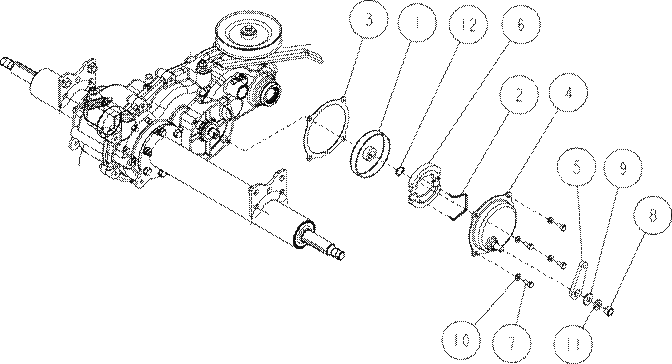

Transmission 2/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1030-282-00 |
Brake Drum (PA-7) |
1 |
|
|
2 |
80-1030-285-00 |
Spring for Brake Shoe Return |
1 |
|
|
3 |
0207-04100 |
Brake Cover PK (PA-7) |
1 |
|
|
4 |
0207-73200 |
Brake Cap Assy |
1 |
Include : 2,4,5,6,8,9,11 |
|
5 |
- |
Brake Arm |
1 |
|
|
6 |
0244-88100 |
Brake Shoe Set (PA-7) |
1set |
|
|
7 |
89-1113-060122 |
Hexagonal Bolt (8T) M6*12 |
4 |
|
|
8 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
1 |
|
|
9 |
89-1714-100002 |
Flat Washer
10 |
1 |
|
|
10 |
89-1750-060002 |
Spring Washer 6 |
4 |
|
|
11 |
89-1750-100002 |
Spring Washer 10 |
1 |
|
|
12 |
89-2511-000150 |
Snap Ring (S15) |
1 |
|
|
|
0207-73000 |
Brake Assy |
1 |
Include : 1,2,3,4,5,6,8,9,11 |
|
17/50 |
Transmission 3/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
|
0244-08000 |
Oil Seal 20.47.15(with DP) |
|
Include : 3,9 |
|
1 |
0215-00600 |
Axle Case (L) CMP |
1 |
|
|
2 |
83-1020-349-00 |
Copper Packing
10.5*18*1.6 |
1 |
|
|
3 |
83-1415-663-00 |
Oil Seal DP 25.30.15 |
1 |
|
|
4 |
89-1232-080202 |
Mini Hexagonal Bolt (SW) M8*20 |
6 |
|
|
5 |
89-1252-100122 |
Flange Mini Hexagonal Bolt M10*12 (slend |
1 |
|
|
6 |
89-2512-000470 |
Snap Ring (R47) |
1 |
|
|
7 |
89-3115-060054 |
Bearing 6005 2RS |
2 |
|
|
8 |
89-5121-284708 |
Oil Seal UE 28.47.8 |
1 |
|
|
9 |
89-5121-304707 |
Oil Seal UE 30.47.7 |
1 |
|
|

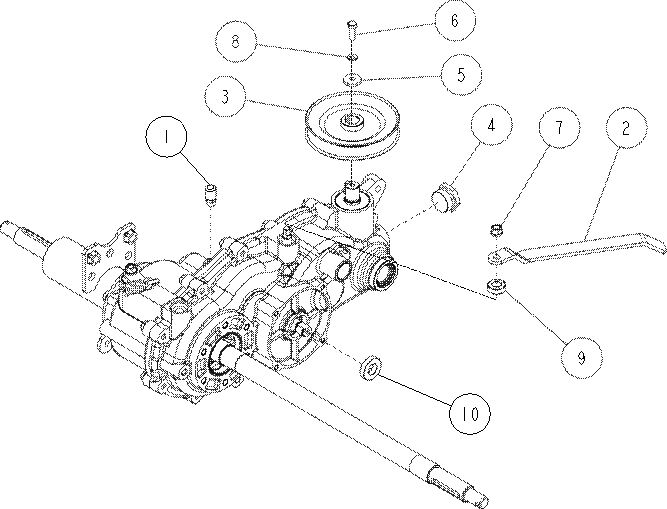

18/50 |
Transmission 4/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-06100 |
Air Bleezer |
1 |
|
|
2 |
0215-00100 |
Driving Clutch
Arm |
1 |
|
|
3 |
0284-40200 |
Transmission Pulley(HI) |
1 |
|
|
4 |
0289-01000 |
Oil Plug Assy
(with O Ring) |
1 |
|
|
5 |
83-1482-311-00 |
Washer 6.5*22*3.2 |
1 |
|
|
6 |
89-1113-060202 |
Hexagonal Bolt (8T) M6*20 |
1 |
|
|
7 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
1 |
|
|
8 |
89-1750-060002 |
Spring Washer 6 |
1 |
|
|
9 |
89-5121-122207 |
Oil Seal UE 12.22.7 |
1 |
|
|
10 |
89-5121-153007 |
Oil Seal UE 15.30.7 |
1 |
|
|
19/50 |

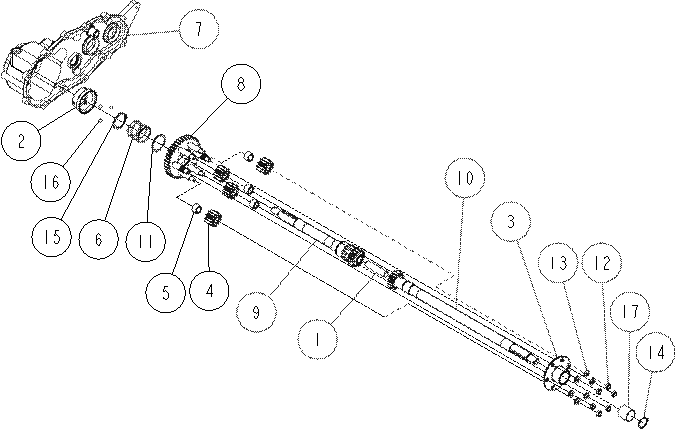

Transmission 5/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1310-138-00 |
Spring 1.4 |
1 |
|
|
2 |
0207-00100 |
Transmission Case(L) |
1 |
|
|
3 |
0207-00300 |
A Axle |
1 |
|
|
4 |
0207-00400 |
20T Spiral Mita Gear(L) |
1 |
|
|
5 |
0207-01700 |
Swing Arm CMP |
1 |
|
|
6 |
0207-01900 |
Shift Spring Holder |
1 |
|
|
7 |
83-1020-148-00 |
Tapping Bolt M6*14 |
2 |
|
|
8 |
83-1415-671-00 |
Blind Cover
22 |
1 |
|
|
9 |
83-1482-143-00 |
Tapping Bolt M8*25 |
12 |
|
|
10 |
89-2150-050160 |
Key 5*16 (round) |
1 |
|
|
11 |
89-2151-050200 |
Key 5*20
(half round) |
1 |
|
|
12 |
89-2511-000170 |
Snap Ring (S17) |
1 |
|
|
13 |
89-2512-000420 |
Snap Ring (R42) |
1 |
|
|
14 |
89-3115-060044 |
Bearing 6004 2RS |
2 |
|
|
15 |
89-3410-080000 |
Steel Ball 8.0 |
1 |
|
|
16 |
89-5121-204208 |
Oil Seal UE 20.42.8 |
1 |
|
|
20/50 |
Transmission 6/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-00500 |
20T Spiral Mita Gear(R) |
1 |
|
|
2 |
0207-00600 |
B Axle |
1 |
|
|
3 |
0207-00700 |
C Axle |
1 |
|
|
4 |
0207-01600 |
Shift Fork Shaft CMP |
1 |
|
|
5 |
0215-00400 |
Shift Gear 28 |
1 |
|
|
6 |
0215-00500 |
C Axle Collar 26 |
1 |
|
|
7 |
83-1415-671-00 |
Blind Cover
22 |
1 |
|
|
8 |
89-3111-060044 |
Bearing 6004 |
4 |
|
|
21/50 |
Transmission 7/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-01310 |
Brake Shaft
34T Gear |
1 |
|
|
2 |
0207-01400 |
D Axle 37T Gear |
1 |
|
|
3 |
0244-00400 |
D Axle |
1 |
JE14A00001～ |
|
0207-02700 |
D Axle |
1 |
～JE13B00069 |
|
|
4 |
0215-00300 |
Brake Shaft |
1 |
|
|
5 |
83-1020-361-00 |
Thrust Washer 15*24*1.0 |
1 |
|
|
6 |
89-3111-062024 |
Bearing 6202 |
2 |
|
|
7 |
89-3111-062034 |
Bearing 6203 |
2 |
|
|
22/50 |
Transmission 8/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
|
0244-08000 |
Oil Seal 20.47.15(with DP) |
|
Include : 6,15 |
|
1 |
80-1425-551-00 |
Differential Lock Spring |
1 |
|
|
2 |
80-1488-153-00 |
Differential Lock Arm |
1 |
|
|
3 |
80-1830-113-00 |
Differential Lock Fork |
1 |
|
|
4 |
0207-01800 |
Differential Lock Fork Shaft |
1 |
|
|
5 |
0215-00700 |
Axle Case (R) CMP |
1 |
|
|
6 |
83-1415-663-00 |
Oil Seal DP 25.30.15 |
1 |
|
|
7 |
89-1232-080202 |
Mini Hexagonal Bolt (SW) M8*20 |
6 |
|
|
8 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
1 |
|
|
9 |
89-2111-030020 |
Spring Pin 3*20 |
1 |
|
|
10 |
89-2111-050022 |
Spring Pin 5*22 |
1 |
|
|
11 |
89-2512-000470 |
Snap Ring (R47) |
1 |
|
|
12 |
89-3115-060054 |
Bearing 6005 2RS |
2 |
|
|
13 |
89-5121-122207 |
Oil Seal UE 12.22.7 |
1 |
|
|
14 |
89-5121-284708 |
Oil Seal UE 28.47.8 |
1 |
|
|
15 |
89-5121-304707 |
Oil Seal UE 30.47.7 |
1 |
|
|
23/50 |
Transmission 9/9 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1415-150-00 |
Axle Pin |
1 |
|
|
2 |
80-1425-143-00 |
Differential Lock Cone |
1 |
|
|
3 |
80-1481-151-00 |
Differential Lock Plate |
1 |
|
|
4 |
80-1481-152-00 |
Differential Lock Gear 11T |
4 |
|
|
5 |
80-1481-155-00 |
Differential Gear Shaft Collar |
4 |
|
|
6 |
80-1751-162-00 |
Differential Lock Spring |
1 |
|
|
7 |
0207-00200 |
Transmission Case(R) |
1 |
|
|
8 |
0244-00300 |
Axle Gear 39T CMP |
1 |
JE14A00001～ |
|
0207-02800 |
Axle Gear 40T CMP |
1 |
～JE13B00069 |
|
|
9 |
0215-00800 |
Axle (R) CMP |
1 |
|
|
10 |
0215-00900 |
Axle (L) CMP |
1 |
|
|
11 |
83-1830-382-00 |
Thrust Washer 40*48*1.0 |
1 |
|
|
12 |
89-1613-100042 |
Mini Hexagonal Nut (3 sorts)
M10 |
6 |
|
|
13 |
89-1750-100002 |
Spring Washer 10 |
6 |
|
|
14 |
89-2511-000280 |
Snap Ring (S28) |
1 |
|
|
15 |
89-2511-000400 |
Snap Ring (S40) |
1 |
|
|
16 |
89-3410-075000 |
Steel Ball 7.5 |
3 |
|
|
17 |
89-3510-028300 |
DU Bush 28.30 |
1 |
|
|
24/50 |
HST 1/2 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
|
0322-01600 |
HST Oil Tank Assy (Black
Cap) |
1 |
Include : 2,6,8 |
|
1 |
0207-07700 |
Port Joint |
1 |
|
|
2 |
0207-08610 |
HST Oil Tank (without Tank Cap) |
1 |
|
|
3 |
0207-79800 |
Push Clip |
1 |
|
|
4 |
0207-79900 |
Wire Band 250L |
1 |
|
|
5 |
0228-70100 |
Oil Hose |
1 |
|
|
6 |
0289-71200 |
Waterproof Packing |
1 |
|
|
7 |
0207-08220 |
Oil Tank Setting |
1 |
|
|
8 |
0312-01800 |
HST Oil Tank Cap |
1 |
|
|
9 |
0312-74400 |
Hose Band 16-25 |
2 |
|
|
10 |
0322-71600 |
Moisture Adsorption Sheet |
1 |
|
|
11 |
0207-09730 |
HST Unit Assy |
1 |
|
|
25/50 |
HST 2/2 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-02610 |
Control Arm CMP |
1 |
|
|
2 |
89-1113-060122 |
Hexagonal Bolt (8T) M6*12 |
1 |
|
|
3 |
89-1511-060042 |
Hexagonal Nut M6 |
1 |
|
|
4 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
1 |
|
|
5 |
89-2151-050160 |
Key 5*16
(half round) |
1 |
|
|
6 |
- |
HST Unit |
1 |
|
|
26/50 |
Handle 1/2 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
|
0262-70100 |
Steering Wheel Assy |
1 |
Include : 5,6,7 |
|
1 |
80-1481-324-20 |
Steering Lower
Shaft |
1 |
|
|
2 |
80-1484-325-00 |
Steering Shaft Cover |
1 |
|
|
3 |
0244-80700 |
Label, Handle (Blue) |
1 |
|
|
4 |
0262-10200 |
Steering Upper
Shaft |
1 |
|
|
5 |
0262-70300 |
Sub Handle
Assy |
1 |
|
|
6 |
0262-70400 |
Steering Wheel |
1 |
|
|
7 |
0262-70500 |
Steering Cap |
1 |
|
|
8 |
83-1020-363-00 |
Thrust Washer 16*24*1.0 |
1 |
|
|
9 |
83-1493-149-00 |
Hexagonal Screw
M8*10 |
1 |
|
|
10 |
89-1113-060302 |
Hexagonal Bolt (8T) M6*30 |
1 |
|
|
11 |
89-1553-060002 |
Bag Hexagonal U Nut M6 |
1 |
|
|
12 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
|
|
13 |
89-1713-100002 |
Flat Washer 10 (large) |
1 |
|
|
14 |
89-2150-050200 |
Key 5*20 (round) |
1 |
|
|
27/50 |
Handle 2/2 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1016-461-00 |
Bearing Cover |
1 |
|
|
2 |
80-1020-719-00 |
Hexagonal Tap Tight M8*18 |
2 |
|
|
3 |
80-1484-321-30 |
Rack Support |
1 |
|
|
4 |
80-1484-327-20 |
Steering Bracket |
1 |
|
|
5 |
80-1484-329-10 |
Tie Rod Adjuster |
2 |
|
|
6 |
80-1484-962-10 |
Steering Gear Box Assy |
1 |
|
|
7 |
80-1490-967-00 |
Steering Boots |
2 |
|
|
8 |
80-1493-962-00 |
Link Ball LHSA 10DE21 |
2 |
|
|
9 |
80-1493-963-00 |
Link Ball LHSA 10DLE21 |
2 |
|
|
10 |
83-1493-195-00 |
Hexagonal Nut (slender) M10 Left |
2 |
|
|
11 |
83-1493-255-00 |
Flange Lock Nut M10 (slender) |
4 |
|
|
12 |
89-1254-100252 |
Flange Mini Hexagonal Bolt M10*25 P=1.25 |
2 |
|
|
13 |
89-1612-100042 |
Mini Hexagonal Nut (Slender) M10 |
2 |
|
|
14 |
89-1750-080002 |
Spring Washer 8 |
4 |
|
|
15 |
0314-70100 |
Mini Hexagonal Bolt (Meck) M8X22 |
4 |
|
|
28/50 |
Front 1/3 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1260-411-00 |
Front Wheel Tire (L) Assy (3.50-7) |
1 |
|
|
2 |
80-1260-412-00 |
Front Wheel Tire (R) Assy (3.50-7) |
1 |
|
|
3 |
80-1425-551-00 |
Differential Lock Spring |
2 |
|
|
4 |
80-1437-785-10 |
Supporter for Flapper |
1 |
|
|
5 |
80-1484-416-20 |
Front Guard |
1 |
|
|
6 |
0207-60900 |
Upper Flapper
Holder (R) |
1 |
|
|
7 |
0215-60500 |
Front Upper Guard CMP |
1 |
|
|
8 |
0215-60600 |
Upper Flapper |
1 |
|
|
9 |
0215-61200 |
Front Flapper |
1 |
|
|
10 |
0240-75100 |
Front Brake Wire |
2 |
|
|
11 |
0310-60500 |
Foot Guard CMP(RM830) |
1 |
|
|
12 |
89-1137-060152 |
Hexagonal Bolt (PW) M6*15 |
11 |
|
|
13 |
89-1232-100202 |
Mini Hexagonal Bolt (SW) M10*20 |
10 |
|
|
14 |
89-1581-060042 |
Flange Cap Nut M6 |
2 |
|
|
15 |
89-1631-100042 |
Flange Mini Hexagonal Nut M10 |
2 |
|
|
16 |
89-1713-060002 |
Flat Washer
6 (large) |
2 |
|
|
17 |
89-1713-100002 |
Flat Washer 10 (large) |
4 |
|
|
18 |
80-1260-401-10 |
Tire (3.50*7) |
2 |
|
|
19 |
80-1260-404-00 |
Tire Tube 3.50-7 |
2 |
|
|
20 |
80-1260-407-00 |
Wheel Assy 3.50-7 |
2 |
|
|
29/50 |
Front 2/3 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-30500 |
Front Wheel Dust Cover |
2 |
|
|
2 |
0240-30300 |
Wheel Boss |
2 |
|
|
3 |
0240-31100 |
King Pin Collar |
2 |
|
|
4 |
0240-31200 |
Brake Arm CMP (L) |
1 |
|
|
5 |
0240-31300 |
Brake Arm CMP (R) |
1 |
|
|
6 |
0240-31400 |
Brake Cover
CMP (L) |
1 |
|
|
7 |
0240-31500 |
Brake Cover
CMP (R) |
1 |
|
|
8 |
0240-32100 |
Brake Shoe φ130 |
2 |
|
|
9 |
0240-32200 |
Brake Collar |
8 |
|
|
10 |
0240-62110 |
Front Wheel Rubber Cover
(IN) |
2 |
|
|
11 |
0240-62210 |
Front Wheel Rubber Cover |
2 |
|
|
12 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
8 |
|
|
13 |
89-1668-140042 |
Mini Low Fluted Nut (2 sorts) M14 |
2 |
|
|
14 |
89-1750-140002 |
Spring Washer 14 |
2 |
|
|
15 |
89-2120-250252 |
Split Pin 2.5*25 |
2 |
|
|
16 |
89-3115-060044 |
Bearing 6004 2RS |
4 |
|
|
17 |
89-5221-025000 |
O Ring P25 |
2 |
|
|
30/50 |
Front 3/3 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0284-95600 |
King Pin RM88FB (R) |
1 |
|
|
2 |
0284-95700 |
King Pin RM88FB (L) |
1 |
|
|
3 |
0310-30100 |
Front Axle CMP |
1 |
|
|
4 |
83-1310-371-00 |
Thrust Washer 20*30*1.0 |
4 |
|
|
5 |
83-1415-975-00 |
Grease Nipple
M6 |
2 |
|
|
6 |
83-1490-337-00 |
Washer 20*38*3.2 |
2 |
|
|
7 |
89-1213-100352 |
Mini Hexagonal Bolt (8T) M10*35 |
2 |
|
|
8 |
89-2511-000200 |
Snap Ring (S20) |
2 |
|
|
9 |
89-3510-025350 |
DU Bush 25.35 |
2 |
|
|
10 |
89-3511-020200 |
DU Bush 20.20.31F |
4 |
|
|
31/50 |

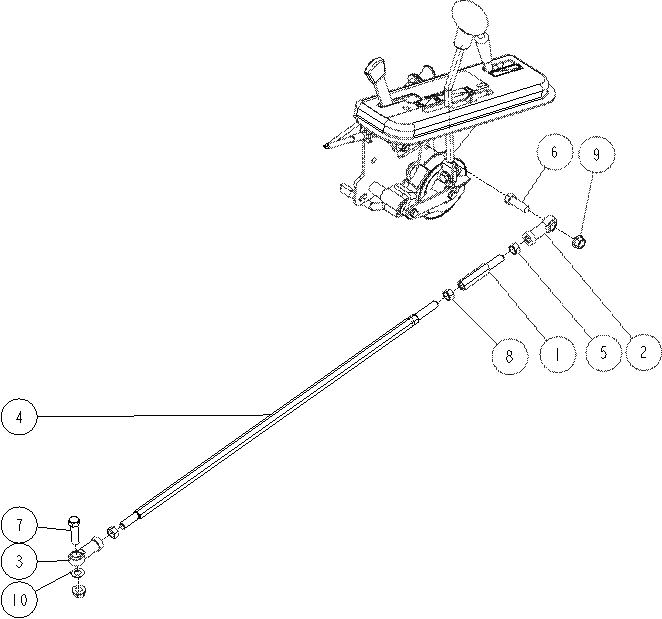

Control 1/3 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
|
0215-10010 |
Shift Rod Assy |
1 |
Include : 1,2,3,4,5,8 |
|
1 |
80-1485-265-00 |
Shift Rod Adjuster |
1 |
|
|
2 |
80-1487-962-10 |
Rod End PHS10ECL |
1 |
|
|
3 |
80-1487-964-10 |
Rod End PHS10EC |
1 |
|
|
4 |
0215-10110 |
Shift Rod |
1 |
|
|
5 |
83-1488-195-02 |
Mini Hexagonal Nut M10 (L) |
1 |
|
|
6 |
89-1213-100302 |
Mini Hexagonal Bolt (8T) M10*30 |
1 |
|
|
7 |
89-1213-100357 |
Mini Hexagonal Bolt (8T) M10*35 |
1 |
|
|
8 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
2 |
|
|
9 |
89-1631-100042 |
Flange Mini Hexagonal Nut M10 |
2 |
|
|
10 |
89-1711-100002 |
Flat Washer
10*18*1.6 |
1 |
|
|
32/50 |

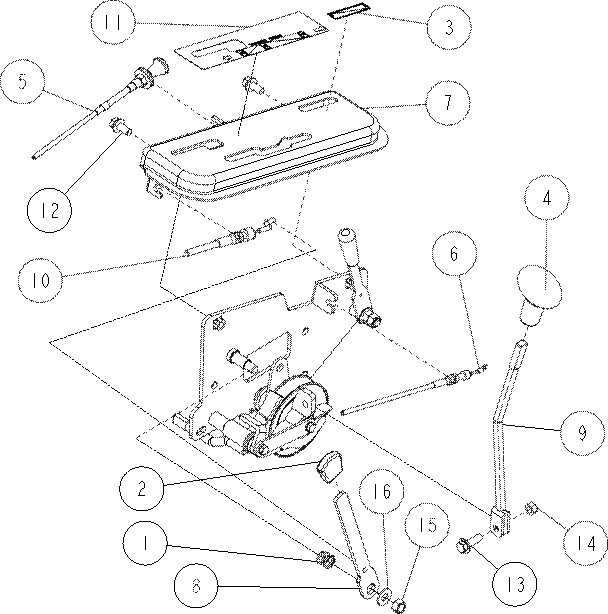

Control 2/3 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1020-263-00 |
Control Lever Shaft Spring |
1 |
|
|
2 |
0215-70600 |
Lever Grip (Red) |
1 |
|
|
3 |
0217-70200 |
Label, Throttle (13169) |
1 |
|
|
4 |
0221-13200 |
Change Grip |
1 |
|
|
5 |
0238-70200 |
Chork Wire |
1 |
|
|
6 |
0244-72100 |
Throttle Wire (B) |
1 |
|
|
7 |
0284-10100 |
Change Guide
CMP |
1 |
|
|
8 |
0284-10500 |
Differential Lock Lever CMP |
1 |
|
|
9 |
0284-10600 |
Change Lever
CMP |
1 |
|
|
10 |
0284-71200 |
Differential Lock Wire |
1 |
|
|
11 |
0284-88400 |
Label, Control |
1 |
|
|
12 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
2 |
|
|
13 |
89-1253-080252 |
Flange Mini Hexagonal Bolt (8T) M8*25 |
1 |
|
|
14 |
89-1561-080002 |
Mini Hexagonal U Nut M8 |
1 |
|
|
15 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
|
|
16 |
89-1712-100000 |
Flat Washer
10 |
1 |
|
|
33/50 |
Control 3/3 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-11310 |
Change Boss CMP |
1 |
|
|
2 |
0207-11400 |
Change Brake |
1 |
|
|
3 |
0207-11610 |
Change Beam |
1 |
|
|
4 |
0207-13400 |
Change Return
Arm |
1 |
|
|
5 |
0207-72600 |
Lever Grip 8 (black) |
1 |
|
|
6 |
0207-76800 |
Washer 16*32*2.3 |
1 |
|
|
7 |
0207-79100 |
Spring For Change Return Arm |
1 |
|
|
8 |
0244-12500 |
Throttle Lever |
1 |
|
|
9 |
0284-11100 |
Change Bracket
CMP |
1 |
|
|
10 |
89-1111-060142 |
Hexagonal Bolt M6*14 |
2 |
|
|
11 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
2 |
|
|
12 |
89-1750-060002 |
Spring Washer 6 |
2 |
|
|
13 |
89-1852-100000 |
Belleville Spring H10 |
1 |
|
|
14 |
89-3510-012200 |
DU Bush 12.20 |
2 |
|
|
15 |
89-3510-016250 |
DU Bush 16.25 |
2 |
|
|
34/50 |

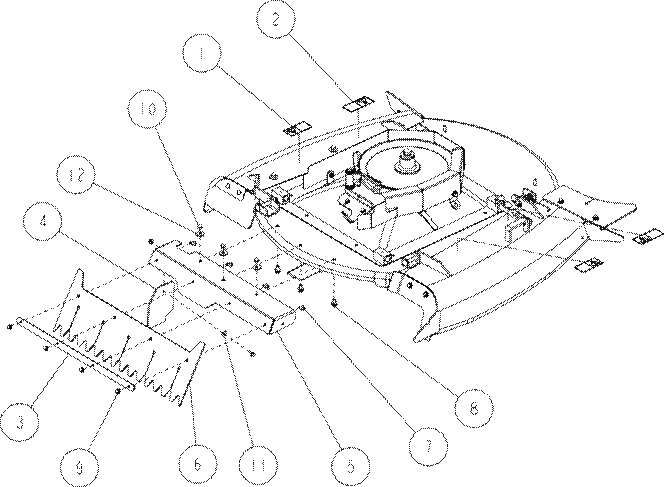

Cutting 1/7 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1488-926-10 |
Label, Caution
for Knife |
2 |
|
|
2 |
80-1488-928-10 |
Label, Caution
for Belt Involving |
2 |
|
|
3 |
0244-61400 |
Rear Guard Flapper Holder |
1 |
|
|
4 |
0244-62600 |
Side Flapper
(Rear) |
1 |
|
|
5 |
0284-50200 |
Rear Guard |
1 |
|
|
6 |
0284-50300 |
Rear Flapper |
1 |
|
|
7 |
89-1137-060172 |
Hexagonal Bolt (PW) M6*17 |
5 |
|
|
8 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
3 |
|
|
9 |
89-1581-060042 |
Flange Cap Nut M6 |
5 |
|
|
10 |
89-1671-080042 |
Mini Cap Nut M8 |
3 |
|
|
11 |
89-1713-060002 |
Flat Washer
6 (large) |
1 |
|
|
12 |
89-1714-080002 |
Flat Washer
8 |
3 |
|
|
35/50 |

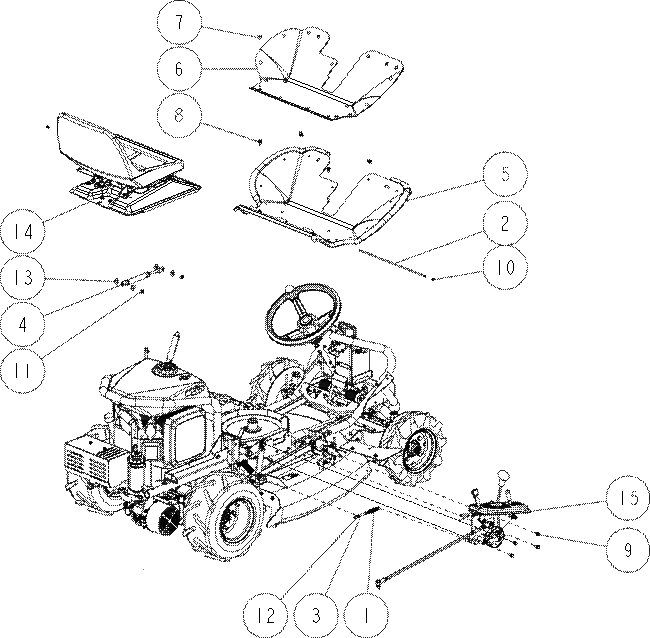

Cutting 2/7 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0255-60800 |
Rear Side Flapper ( Left A) |
1 |
|
|
2 |
0284-51300 |
Side Flapper
(Front Left 88) |
1 |
|
|
3 |
0284-96100 |
Left Cover CMP |
1 |
|
|
4 |
89-1137-060172 |
Hexagonal Bolt (PW) M6*17 |
2 |
|
|
5 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
3 |
|
|
6 |
89-1390-060142 |
Welded Bolt M6*14 |
2 |
|
|
7 |
89-1581-060042 |
Flange Cap Nut M6 |
4 |
|
|
8 |
89-1671-080042 |
Mini Cap Nut M8 |
3 |
|
|
9 |
89-1713-060002 |
Flat Washer
6 (large) |
4 |
|
|
10 |
89-1714-080002 |
Flat Washer
8 |
3 |
|
|
11 |
89-1714-100002 |
Flat Washer
10 |
2 |
|
|
12 |
89-2131-100002 |
Snap Pin 10 |
2 |
|
|
13 |
89-2191-100720 |
Round Head Pin 10*72 |
2 |
|
|
36/50 |

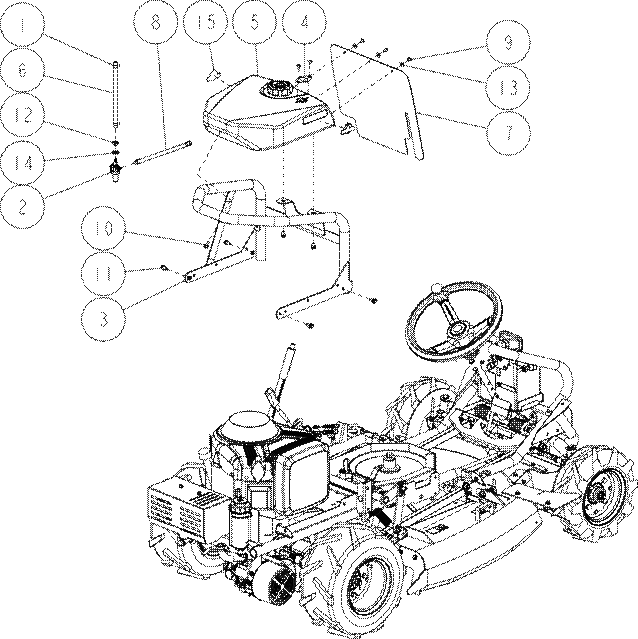

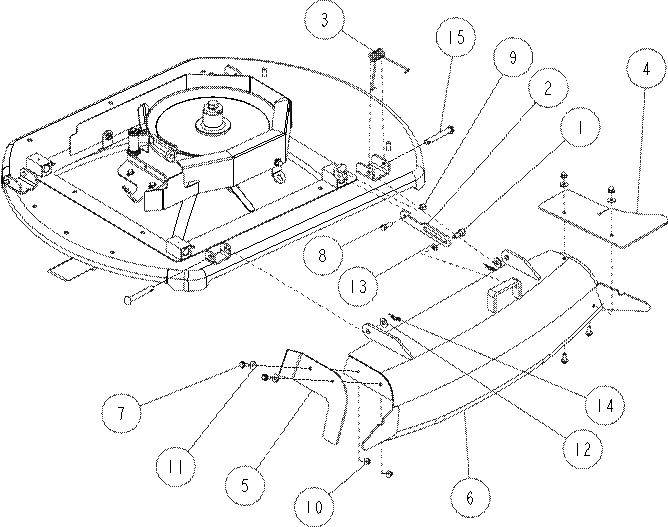

Cutting 3/7 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1488-747-00 |
Bolt for Right Cover
Up/Down Arm |
1 |
|
|
2 |
0221-52400 |
Right Cover Up/Down Arm |
1 |
|
|
3 |
0244-71600 |
Spring for Right Cover |
1 |
|
|
4 |
0284-51500 |
Side Flapper
(Front Right 88) |
1 |
|
|
5 |
0284-51600 |
Side Flapper
(Rear Right 88) |
1 |
|
|
6 |
0284-96200 |
Right Cover CMP |
1 |
|
|
7 |
89-1137-060172 |
Hexagonal Bolt (PW) M6*17 |
4 |
|
|
8 |
89-1213-080202 |
Mini Hexagonal Bolt (8T) M8*20 |
1 |
|
|
9 |
89-1561-080002 |
Mini Hexagonal U Nut M8 |
1 |
|
|
10 |
89-1581-060042 |
Flange Cap Nut M6 |
4 |
|
|
11 |
89-1713-060002 |
Flat Washer
6 (large) |
4 |
|
|
12 |
89-1714-100002 |
Flat Washer
10 |
2 |
|
|
13 |
89-1750-080002 |
Spring Washer 8 |
1 |
|
|
14 |
89-2131-100002 |
Snap Pin 10 |
2 |
|
|
15 |
89-2191-100720 |
Round Head Pin 10*72 |
2 |
|
|
37/50 |

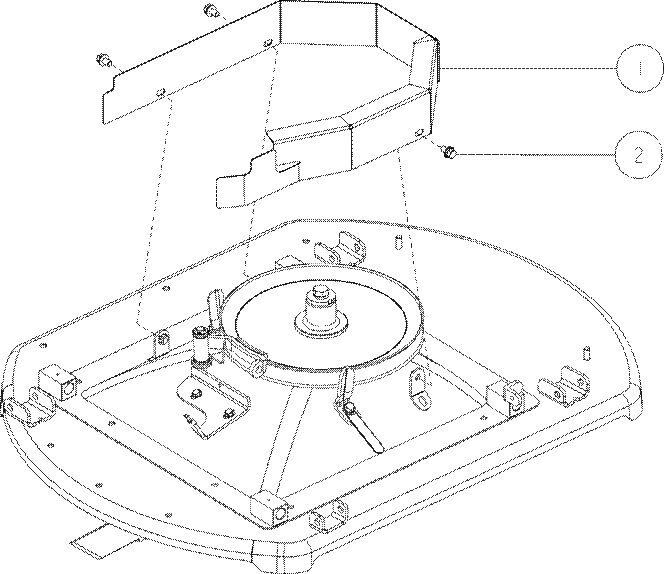

Cutting 4/7 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0284-86400 |
Knife Belt Cover CMP |
1 |
|
|
2 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
3 |
|
|
38/50 |
Cutting 5/7 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1482-371-30 |
Knife Brake (6t) |
1 |
|
|
2 |
80-1482-373-00 |
Brake Return
Spring |
1 |
|
|
3 |
80-1484-617-00 |
Knife Pulley
Belt Holder |
2 |
|
|
4 |
80-1792-988-00 |
Harness Clip 8 |
1 |
|
|
5 |
0207-52120 |
Knife Brake Bracket CMP (NEW) |
1 |
|
|
6 |
83-1565-329-00 |
Washer 13*22*2.3 |
4 |
|
|
7 |
83-1754-329-00 |
Washer 13*22*1.0 |
1 |
|
|
8 |
89-1137-060152 |
Hexagonal Bolt (PW) M6*15 |
2 |
|
|
9 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
2 |
|
|
10 |
89-2521-000100 |
E Type Ring 10 |
2 |
|
|
11 |
89-3510-012200 |
DU Bush 12.20 |
2 |
|
|
39/50 |

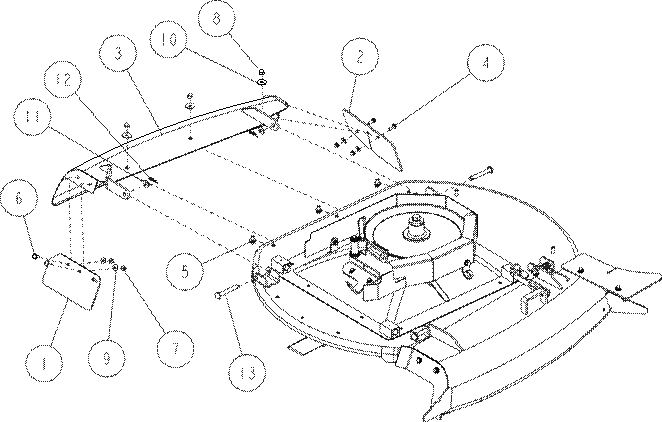

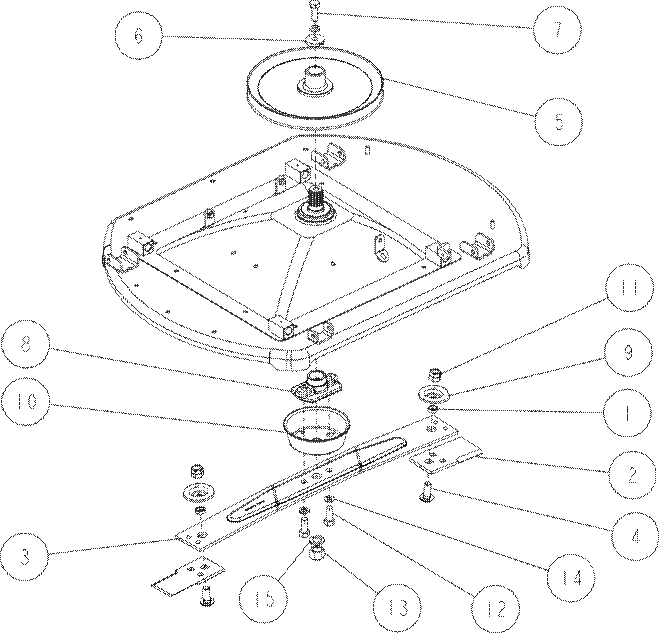

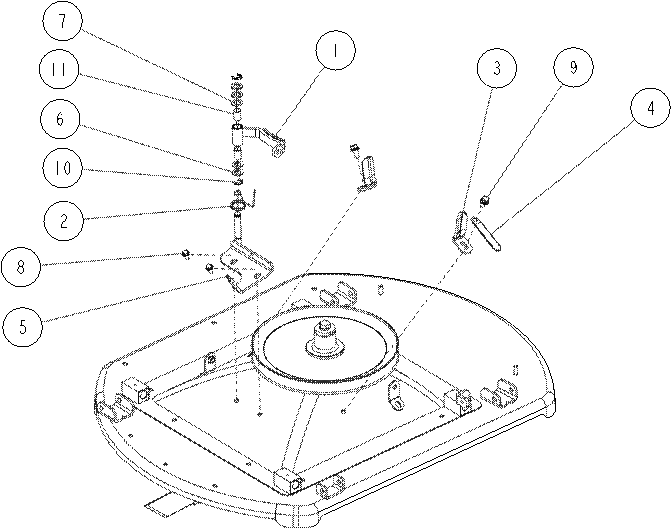

Cutting 6/7 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1483-818-00 |
Knife Collar |
2 |
|
|
2 |
80-1483-821-00 |
Knife |
2 |
|
|
3 |
80-1493-A17-00 |
Knife Stay |
1 |
|
|
4 |
0207-50200 |
Knife Setting
Bolt M14*34 |
2 |
|
|
5 |
0207-50400 |
Knife Pulley CMP |
1 |
|
|
6 |
0221-76100 |
Washer 12*40*6 |
1 |
|
|
7 |
0221-76200 |
Mini Hexagonal Bolt (8T) M12*35 |
1 |
|
|
8 |
0238-51100 |
Knife Bracket |
1 |
|
|
9 |
0244-51800 |
Nut Guard
14 |
2 |
|
|
10 |
0244-52100 |
Knife Neck Guard |
1 |
|
|
11 |
0244-74600 |
Hard Lock Nut M14 |
2 |
|
|
12 |
83-1483-129-00 |
Mini Hexagonal Bolt (8T) M12*30 |
2 |
|
|
13 |
83-1483-175-00 |
Bag Nut M20 (Lock) |
1 |
|
|
14 |
89-1750-120002 |
Spring Washer 12 |
3 |
|
|
15 |
89-1750-200002 |
Spring Washer 20 |
1 |
|
|
40/50 |

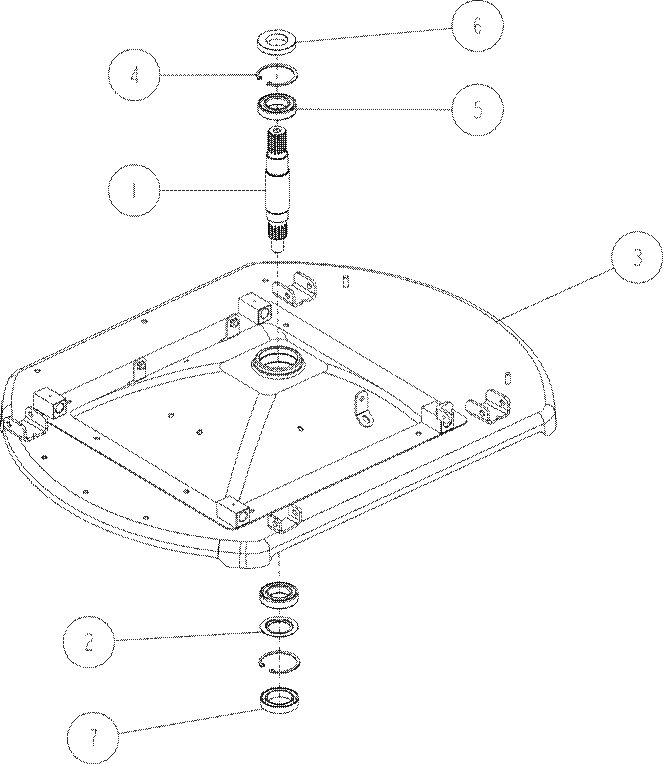

Cutting 7/7 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1493-641-00 |
Vertical Shaft |
1 |
|
|
2 |
0262-50100 |
Dust Plate |
1 |
|
|
3 |
0284-50100 |
Safety Cover CMP |
1 |
|
|
4 |
89-2512-000620 |
Snap Ring (R62) |
2 |
|
|
5 |
89-3115-069074 |
Bearing 6907 2RS |
2 |
|
|
6 |
89-5121-356210 |
Oil Seal UE 35.62.10 |
1 |
|
|
7 |
89-5121-406212 |
Oil Seal UE 40.62.12 |
1 |
|
|
41/50 |

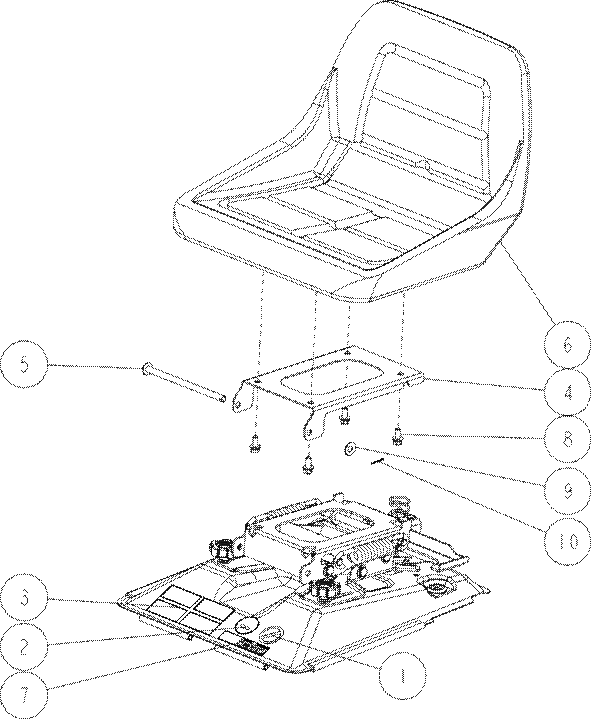

Seat 1/4 JE14A00001～ |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0215-83100 |
Attention Mark for Slope |
1 |
|
|
2 |
0215-83200 |
Label, Protection Equipment |
1 |
|
|
3 |
0223-76100 |
Label, Caution
(Large) |
1 |
|
|
4 |
0244-21810 |
Seat Receiver
(97EU) |
1 |
|
|
5 |
0244-22300 |
Seat Receive
Pin CMP |
1 |
|
|
6 |
0284-78100 |
Seat K4 (Black) |
1 |
|
|
7 |
83-1310-902-00 |
OREC Mark |
1 |
|
|
8 |
89-1233-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
4 |
|
|
9 |
89-1714-100002 |
Flat Washer
10 |
1 |
|
|
10 |
89-2120-200202 |
Split Pin 2*20 |
1 |
|
|
42/50 |

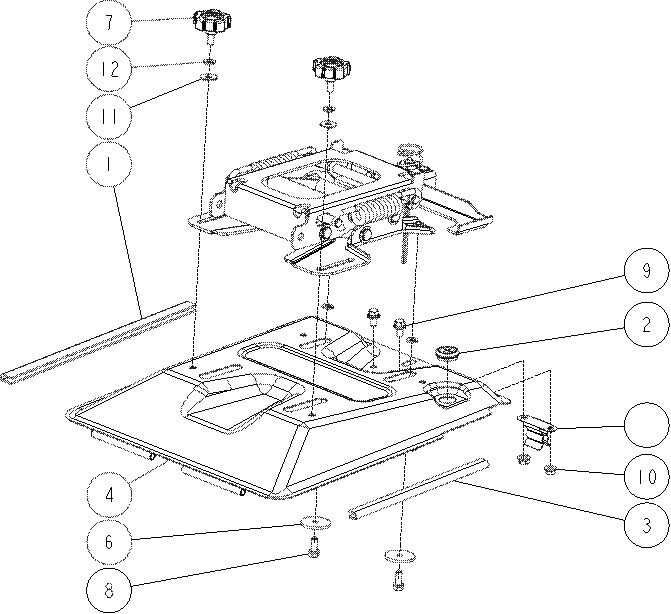

Seat 2/4 JE14A00001～ |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-76100 |
Trim 15*350 |
1 |
|
|
2 |
0244-73700 |
Grommet 24 |
1 |
|
|
3 |
0284-72200 |
Seat Trim (L) 15×L250 |
1 |
|
|
4 |
0308-21100 |
Seat Bracket
CMP |
1 |
|
|
5 |
0312-70400 |
Bonnet Clip |
1 |
|
|
6 |
83-1020-314-00 |
Washer 8*40*2.3 |
2 |
|
|
7 |
83-1560-101-00 |
Knob Bolt M8*15 |
2 |
|
|
8 |
89-1232-080202 |
Mini Hexagonal Bolt (SW) M8*20 |
2 |
|
|
9 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
|
|
10 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
2 |
|
|
11 |
89-1713-080002 |
Flat Washer
8 (large) |
2 |
|
|
12 |
89-1750-080002 |
Spring Washer
8 |
4 |
|
|
43/50 |

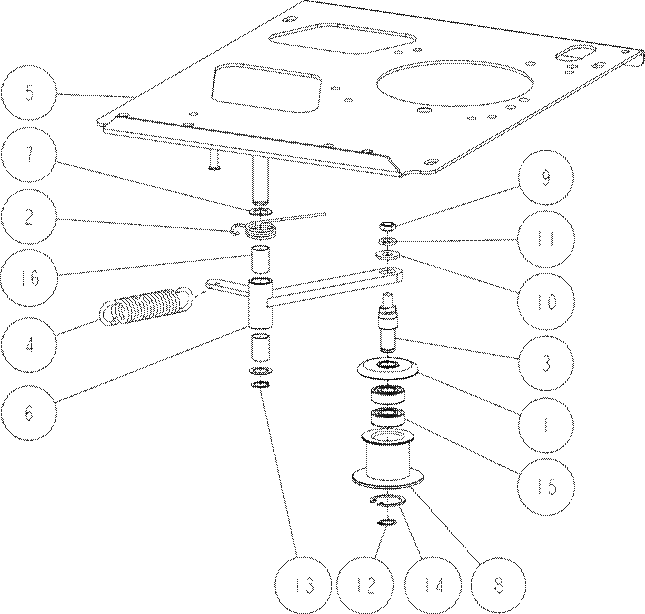

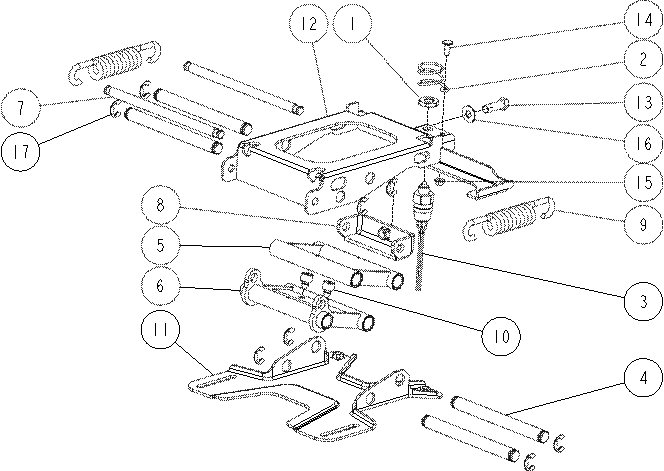

Seat 3/4 JE14A00001～ |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-72800 |
Switch Lock Nut |
1 |
|
|
2 |
0207-72900 |
Seat Switch
Spring |
1 |
|
|
3 |
0207-74400 |
Safety Switch
K17850 |
1 |
|
|
4 |
0244-21100 |
Seat Link Pin |
4 |
|
|
5 |
0244-21400 |
Seat Link (A) CMP |
1 |
|
|
6 |
0244-21500 |
Seat Link (B) CMP |
1 |
|
|
7 |
0244-21600 |
Spring Shaft |
2 |
|
|
8 |
0244-21700 |
Spring Shaft
Hook CMP |
1 |
|
|
9 |
0244-71200 |
Spring for Seat Link |
2 |
|
|
10 |
0244-71400 |
Seat Cushion
Rubber |
2 |
|
|
11 |
0262-20400 |
Link Under Bracket |
1 |
|
|
12 |
0284-96400 |
Link Upper
CMP (RM88Tel) |
1 |
|
|
13 |
89-1211-100302 |
Mini Hexagonal Bolt M10*30 |
1 |
|
|
14 |
89-1390-060162 |
Welded Bolt M6*16 |
1 |
|
|
15 |
89-1531-060042 |
Flange Nut M6 |
1 |
|
|
16 |
89-1714-100002 |
Flat Washer
10 |
1 |
|
|
17 |
89-2521-000120 |
E Type Ring 12 |
8 |
|
|
44/50 |

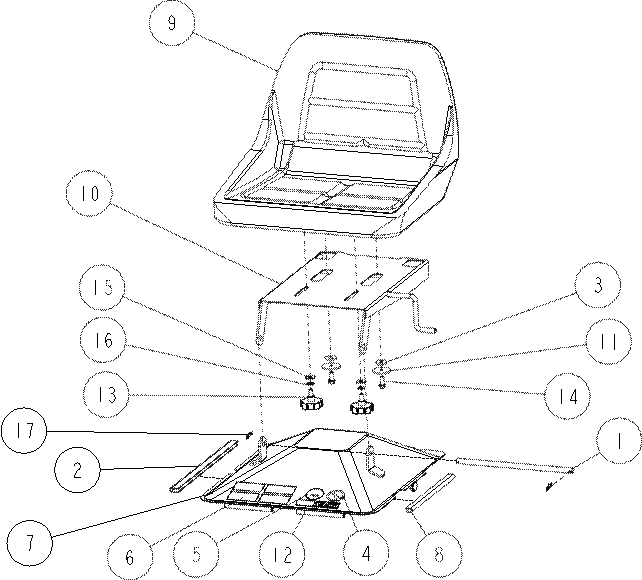

Seat 4/4 ～JE13B00069 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1481-487-00 |
Seat Receive
Pin |
1 |
|
|
2 |
0207-76100 |
Trim 15*350 |
1 |
|
|
3 |
0207-76400 |
Washer 9*25*3.2 |
2 |
|
|
4 |
0215-83100 |
Attention Mark for Slope |
1 |
|
|
5 |
0215-83200 |
Label, Protection Equipment |
1 |
|
|
6 |
0223-76100 |
Label, Caution
(Large) |
1 |
|
|
7 |
0284-21200 |
Seat Blacket
CMP |
1 |
|
|
8 |
0284-72200 |
Seat Trim (L) 15×L250 |
1 |
|
|
9 |
0284-78100 |
Seat K4 (Black) |
1 |
|
|
10 |
0284-95400 |
Seat Receiver
CMP (RM88/K) |
1 |
|
|
11 |
83-1020-314-00 |
Washer 8*40*2.3 |
2 |
|
|
12 |
83-1310-902-00 |
OREC Mark |
1 |
|
|
13 |
83-1560-101-00 |
Knob Bolt M8*15 |
2 |
|
|
14 |
89-1232-080202 |
Mini Hexagonal Bolt (SW) M8*20 |
2 |
|
|
15 |
89-1713-080002 |
Flat Washer
8 (large) |
2 |
|
|
16 |
89-1750-080002 |
Spring Washer
8 |
2 |
|
|
17 |
89-2131-120002 |
Snap Pin 12 |
2 |
|
|
45/50 |

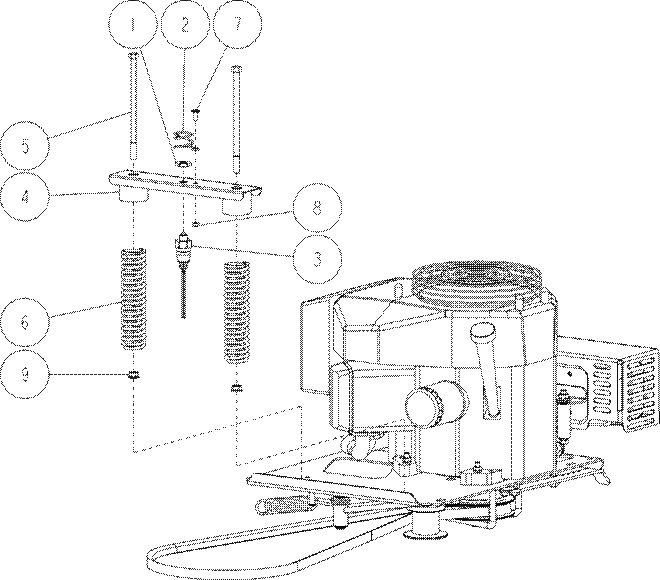

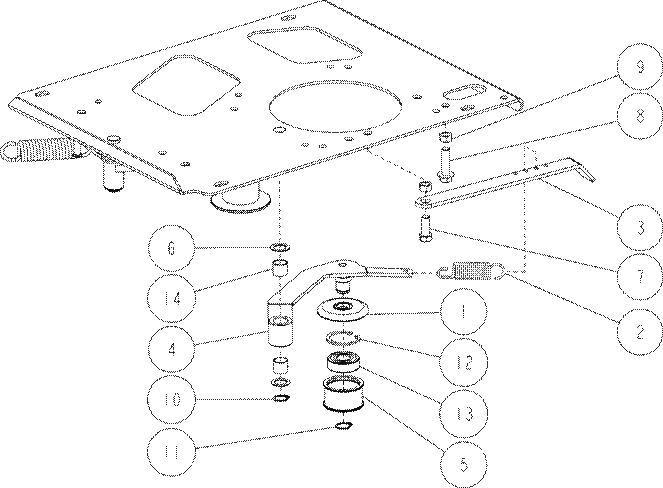

Engine 1/6 ～JE13B00069 (Kawasaki FH480V BG80) |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-72800 |
Switch Lock Nut |
1 |
|
|
2 |
0207-72900 |
Seat Switch
Spring |
1 |
|
|
3 |
0207-74400 |
Safety Switch
K17850 |
1 |
|
|
4 |
0215-81800 |
Seat Receiver
CMP |
1 |
|
|
5 |
0215-82500 |
Seat Receiving Bolt M10 |
2 |
|
|
6 |
0284-21300 |
Seat Spring |
2 |
|
|
7 |
89-1390-060162 |
Welded Bolt M6*16 |
1 |
|
|
8 |
89-1511-060042 |
Hexagonal Nut M6 |
1 |
|
|
9 |
89-1631-100042 |
Flange Mini Hexagonal Nut M10 |
2 |
|
|
46/50 |

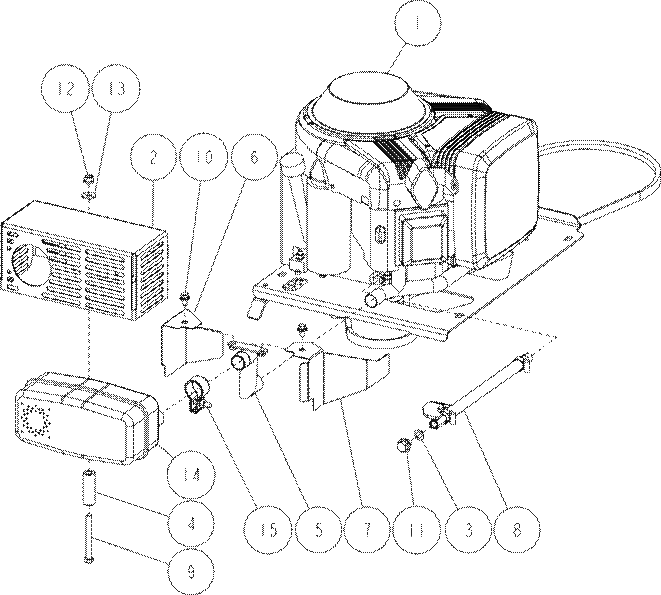

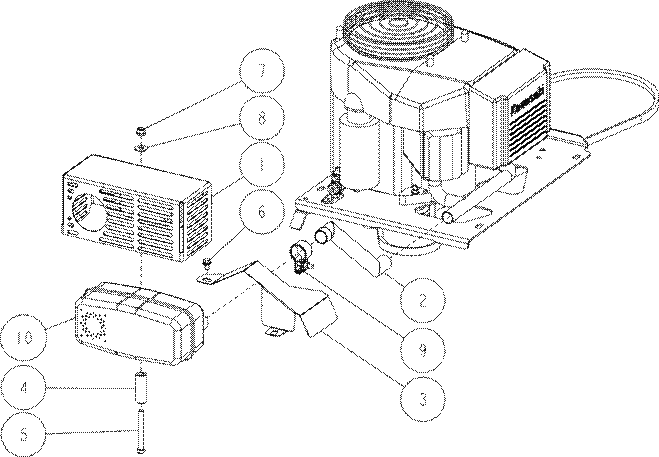

Engine 2/6 JE14A00001～ (Briggs) |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
9012-0281 |
Briggs Engine
305777 0151-B1 |
1 |
|
|
2 |
0207-40500 |
Muffler Cover
CMP |
1 |
|
|
3 |
0207-74900 |
Copper Packing
12.5*19*1.0 |
1 |
|
|
4 |
0284-60300 |
Muffler Fixing
Pipe (60L) |
1 |
|
|
5 |
0284-85400 |
Exhause Adapter
CMP |
1 |
|
|
6 |
0284-85500 |
Exhaust Cover
(R) |
1 |
|
|
7 |
0284-85600 |
Exhaust Cover
(L) |
1 |
|
|
8 |
0308-40200 |
Oil Drain Assy (RM950B) |
1 |
|
|
9 |
89-1211-100852 |
Mini Hexagonal Bolt M10*85 |
1 |
|
|
10 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
|
|
11 |
89-1251-120152 |
Flange Mini Hexagonal Bolt M12*15 |
1 |
|
|
12 |
89-1543-100002 |
Mini Hexagonal Nut (SW) M10 |
1 |
|
|
13 |
89-1713-100002 |
Flat Washer 10 (large) |
1 |
|
|
14 |
Engine Parts |
Muffler |
1 |
|
|
15 |
Engine Parts |
Exhause Band |
1 |
|
|
47/50 |

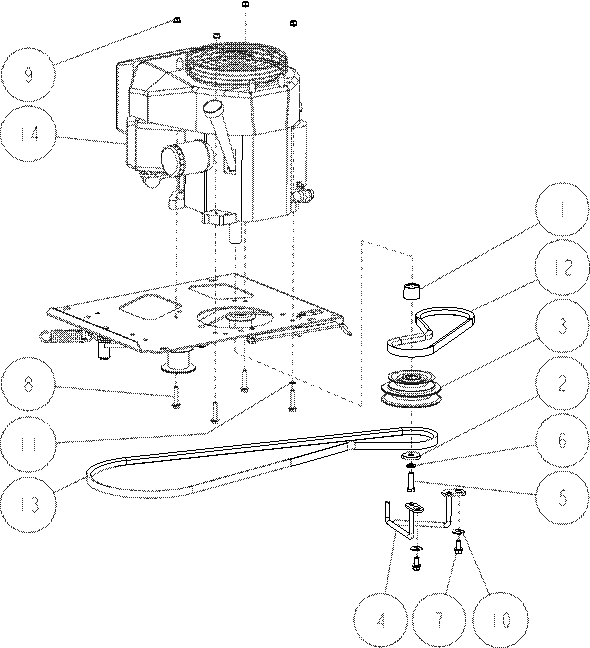

Engine 3/6 ～JE13B00069 (Kawasaki FH480V BG80) |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
0207-40500 |
Muffler Cover
CMP |
1 |
|
|
2 |
0238-40200 |
Exhaust Adapter
CMP |
1 |
|
|
3 |
0284-60200 |
Exhaust Cover
(RM88/K) |
1 |
|
|
4 |
0284-60300 |
Muffler Fixing
Pipe (60L) |
1 |
|
|
5 |
89-1211-100852 |
Mini Hexagonal Bolt M10*85 |
1 |
|
|
6 |
89-1233-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
1 |
|
|
7 |
89-1543-100002 |
Mini Hexagonal Nut (SW) M10 |
1 |
|
|
8 |
89-1713-100002 |
Flat Washer 10 (large) |
1 |
|
|
9 |
Engine Parts |
Exhause Band |
1 |
|
|
10 |
Engine Parts |
Muffler |
1 |
|
|
48/50 |
Engine 4/6 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1485-513-00 |
Engine Collar
26 |
1 |
|
|
2 |
80-1487-516-00 |
Washer 11*40*6 |
1 |
|
|
3 |
0207-40110 |
Engine Pulley |
1 |
|
|
4 |
0207-41310 |
Knife Belt Holder (Engine)
CMP |
1 |
|
|
5 |
83-1437-115-00 |
Hexagonal Bolt (8T) UNF7/16*35 |
1 |
|
|
6 |
83-1493-300-00 |
Spring Washer
7/16 |
1 |
|
|
7 |
89-1232-100202 |
Mini Hexagonal Bolt (SW) M10*20 |
2 |
|
|
8 |
89-1253-080402 |
Flange Mini Hexagonal Bolt (8T) M8*40 |
4 |
|
|
9 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
4 |
|
|
10 |
89-1713-100002 |
Flat Washer 10 (large) |
2 |
|
|
11 |
89-1812-080002 |
Toothed washer
(inside) 8 |
1 |
|
|
12 |
89-6123-003103 |
V Belt LB-31 (SG1000) |
1 |
|
|
13 |
89-6123-007503 |
V Belt LB-75 (SG1000) |
1 |
|
|
14 |
- |
Engine |
1 |
|
|
49/50 |
Engine 5/6 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1482-549-00 |
Rubber Cover 58 |
1 |
|
|
2 |
80-1485-551-00 |
Driving Tension
Spring |
1 |
|
|
3 |
0207-41100 |
Drive Tension
Spring Arm |
1 |
|
|
4 |
0207-42100 |
Drive Tension
Arm CMP |
1 |
|
|
5 |
0284-40300 |
Tension Pulley |
1 |
|
|
6 |
83-1020-363-00 |
Thrust Washer 16*24*1.0 |
2 |
|
|
7 |
89-1211-100252 |
Mini Hexagonal Bolt M10*25 |
1 |
|
|
8 |
89-1253-100353 |
Flange Mini Hexagonal Bolt (8T) M8*35 |
1 |
|
|
9 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
2 |
|
|
10 |
89-2511-000160 |
Snap Ring (S16) |
1 |
|
|
11 |
89-2511-000170 |
Snap Ring (S17) |
1 |
|
|
12 |
89-2512-000400 |
Snap Ring (R40) |
1 |
|
|
13 |
89-3115-062034 |
Bearing 6203 2RS |
1 |
|
|
14 |
89-3510-016150 |
DU Bush 16.15 |
2 |
|
|
50/50 |
Engine 6/6 |
|||
|
|
||||
|
Ref. |
Parts Number |
Parts Name |
Quantity |
Remarks |
|
1 |
80-1482-549-00 |
Rubber Cover 58 |
1 |
|
|
2 |
80-1483-568-00 |
Knife Tension
Return Spring |
1 |
|
|
3 |
0207-43100 |
Knife Tension
Pulley Shaft |
1 |
|
|
4 |
0207-78400 |
Spring For Knife Tension
Return |
1 |
|
|
5 |
0284-20300 |
Engine Base CMP |
1 |
|
|
6 |
0284-40100 |
Knife Tension
Arm CMP |
1 |
|
|
7 |
83-1020-363-00 |
Thrust Washer 16*24*1.0 |
2 |
|
|
8 |
83-1483-782-10 |
Knife Tension
Pulley |
1 |
|
|
9 |
89-1613-100042 |
Mini Hexagonal Nut (3 sorts)
M10 |
1 |
|
|
10 |
89-1713-100002 |
Flat Washer 10 (large) |
1 |
|
|
11 |
89-1750-100002 |
Spring Washer
10 |
1 |
|
|
12 |
89-2511-000150 |
Snap Ring (S15) |
1 |
|
|
13 |
89-2511-000160 |
Snap Ring (S16) |
1 |
|
|
14 |
89-2512-000350 |
Snap Ring (R35) |
1 |
|
|
15 |
89-3115-062024 |
Bearing 6202 2RS |
2 |
|
|
16 |
89-3510-016250 |
DU Bush 16.25 |
2 |
|
