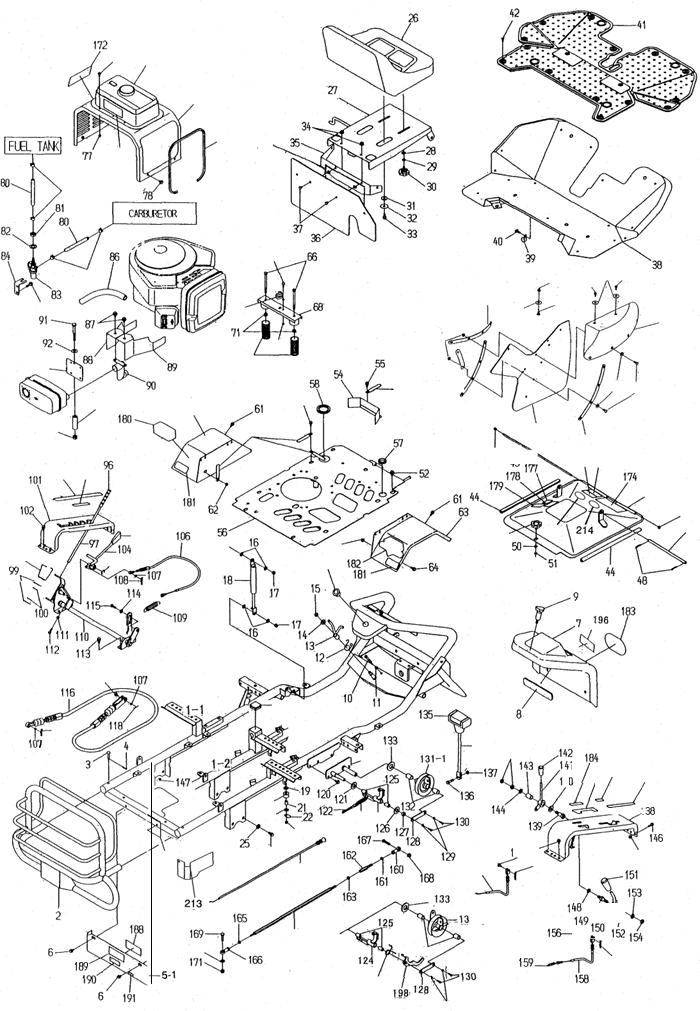

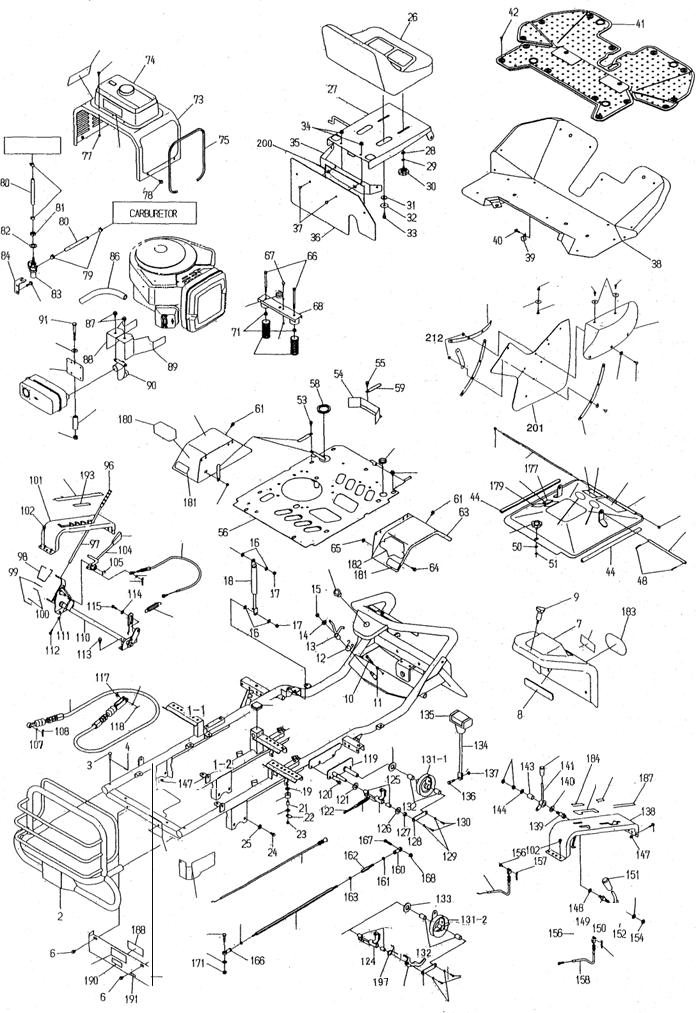

Fig.1 FRAME & CONTROL
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
1-1 |
0215-20100 |
Frame CMP |
1 |
1 |
*4) |
|
1-2 |
0215-20110 |
Frame CMP |
1 |
1 |
*5) |
|
2 |
0215-80100 |
Sub Frame CMP |
1 |
1 |
|
|
3 |
89-2191-080502 |
Flat Head Pin 8*50 |
2 |
2 |
|
|
4 |
89-2131-080002 |
Snap Pin 8 |
2 |
2 |
|
|
5-1 |
0207-61900 |
Rear Belt
Cover |
1 |
1 |
*11) |
|
5-2 |
0215-84100 |
Rear Belt Cover |
1 |
1 |
*12) |
|
6 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
2 |
2 |
|
|
7 |
80-1484-213-00 |
Front Cover |
1 |
|
|
|
|
0207-63100 |
Front Cover |
|
1 |
|
|
8 |
80-1482-214-00 |
Battery Pad |
1 |
1 |
|
|
9 |
0207-76500 |
Long Knob
Bolt M8*20 |
1 |
1 |
|
|
10 |
89-1211-080552 |
Mini Hexagonal
Bolt M8*55 |
1 |
1 |
|
|
11 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
1 |
|
|
12 |
80-1484-356-00 |
Brake Stopper
Return Spring |
1 |
1 |
|
|
13 |
80-1484-355-00 |
Brake Stopper |
1 |
1 |
|
|
14 |
89-1713-100002 |
Flat Washer
10 |
1 |
1 |
|
|
15 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
1 |
|
|
16 |
89-1713-100002 |
Flat Washer
10 |
4 |
4 |
|
|
17 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
2 |
2 |
|
|
18 |
0207-72700 |
Gas Spring
KMF 50-40 |
1 |
1 |
|
|
19 |
83-1020-355-00 |
Thrust Washer
12*24*1.0 |
2 |
2 |
|
|
20 |
80-1484-354-10 |
Brake Rod Roller |
1 |
1 |
|
|
21 |
89-3510-012200 |
DU Bush
12.20 |
1 |
1 |
|
|
22 |
80-1484-364-00 |
Brake Rod Hung Plate |
1 |
1 |
|
|
23 |
89-1543-080002 |
Mini Hexagonal Nut(SW) M8 |
1 |
1 |
|
|
24 |
89-1232-100202 |
Mini Hexagonal
Bolt(SW) M10*20 |
4 |
4 |
|
|
25 |
89-1713-100002 |
Flat Washer
10 |
4 |
4 |
|
|
26 |
80-1481-944-00 |
Seat GTP-4(black) |
1 |
1 |
|
|
27 |
0215-81700 |
Seat Receiver CMP |
1 |
1 |
|
|
28 |
89-1713-080002 |
Flat Washer 8 |
2 |
2 |
|
|
29 |
89-1750-080002 |
Spring Washer 8 |
2 |
2 |
|
|
30 |
83-1560-101-00 |
Knob Bolt M8*15 |
2 |
2 |
|
|
31 |
0207-76400 |
Washer 9X25X3.2 |
2 |
2 |
|
|
32 |
83-1020-314-00 |
Washer 8X40X2.3 |
2 |
2 |
|
|
33 |
89-1232-080202 |
Mini Hexagonal
Bolt (SW) M8*20 |
2 |
2 |
|
|
34 |
89-1631-080042 |
Flange Mini
Hexagonal Nut M8 |
2 |
2 |
|
|
35 |
0207-21500 |
Wind Shield
Setting Plate |
1 |
1 |
|
|
36 |
0207-21600 |
Wind Shield |
1 |
1 |
|
|
37 |
83-1484-369-00 |
Clip (5347) |
4 |
4 |
|
|
38 |
0215-20700 |
Step CMP |
1 |
1 |
*11) |
|
|
0215-20710 |
Step CMP |
1 |
1 |
*12) |
|
39 |
80-1792-988-00 |
Harness Clip |
4 |
4 |
|
|
40 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
1 |
1 |
|
|
41 |
0215-20800 |
Step Rubber |
1 |
1 |
|
|
42 |
83-1484-369-00 |
Clip(5347) |
16 |
16 |
|
|
43 |
0207-20400 |
Seat Bracket |
1 |
1 |
|
|
44 |
0207-76100 |
Trim 15*350 |
2 |
2 |
|
|
45 |
0207-21200 |
Seat Bracket
Shaft |
1 |
1 |
|
|
46 |
89-1553-060002 |
Bag Hexagonal U Nut M6 |
2 |
2 |
|
|
47 |
80-1481-487-00 |
Seat Receive Pin |
1 |
1 |
|
|
48 |
89-2131-120002 |
Snap Pin 12 |
2 |
2 |
|
|
49 |
0207-76700 |
Knob
Bolt(KG-B2) M8*20 |
1 |
1 |
|
|
50 |
89-1713-080002 |
Flat Washer 8 |
1 |
1 |
|
-2-

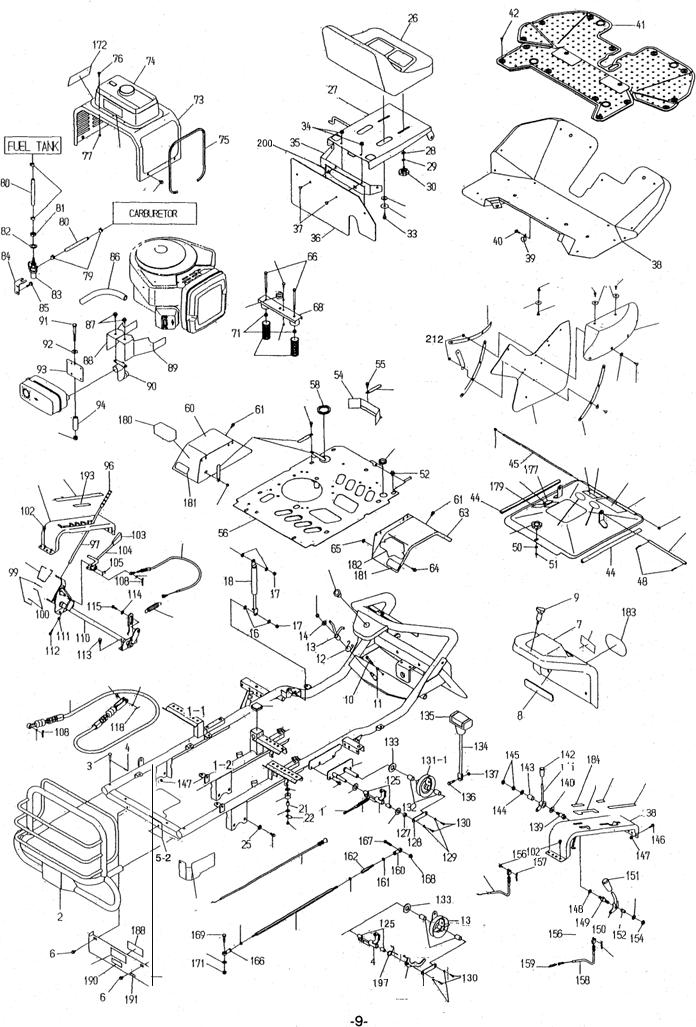

Fig.1 FRAME & CONTROL
173
79
79
B5 69
92 70
72
93
9# 60 53
95 59
212
202
59 205 ,
212 208 0 .209
zoo .10 211
207 206
201
204
ioi 1Ü4
205
Ó5 ł 7ğ US
178
î74
98
108 107
65
ł92
gg 215 214
100
1.09
116
199
ł19
20 ' ' 12Ót :
#0 186
jq 22 123 124
23
189
5-1
213
169
i70 171
195
16î
163
-s-
197
1 29
] 30
A8
'150

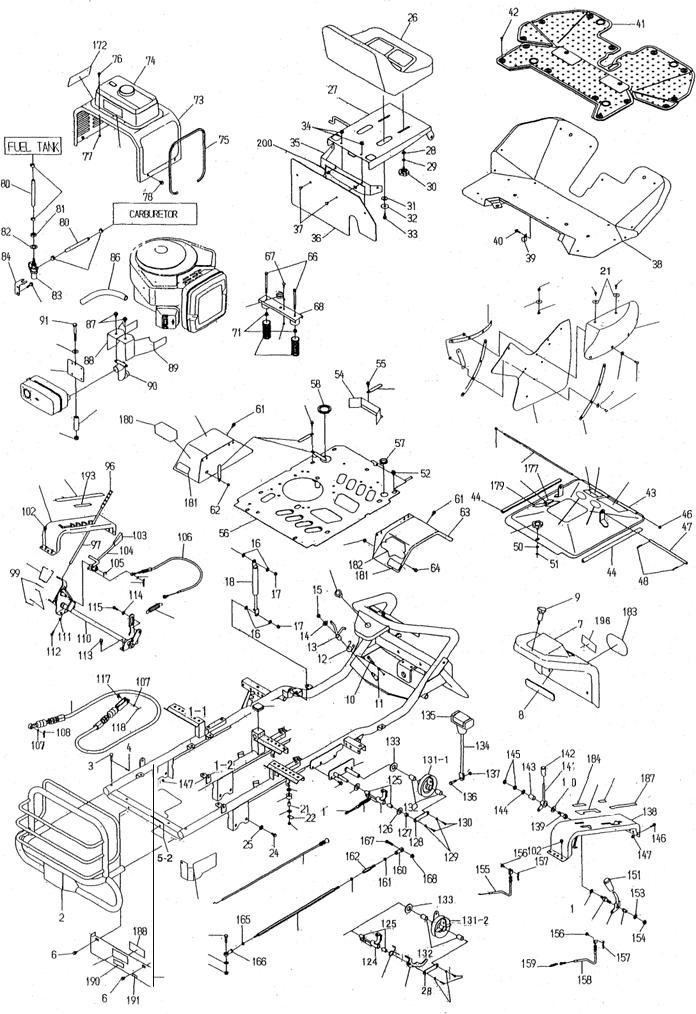

Fig.1 FRAME & CONTROL
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
51 |
0207-76900 |
Bonded Washer
8 |
1 |
1 |
|
|
52 |
83-1490-114-00 |
Mini Hexagonal Bolt(PWSW) M8*20 |
3 |
3 |
|
|
53 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
4 |
4 |
|
|
54 |
0215-20500 |
Protection Guard
(B) |
1 |
1 |
|
|
55 |
89-1236-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
2 |
|
|
56 |
0215-20300 |
Engine Base |
1 |
1 |
|
|
57 |
0207-70900 |
Grommet 30-3.2(KG-G79QB) |
1 |
1 |
|
|
58 |
0207-70800 |
Grommet 45-3.5 |
1 |
1 |
|
|
59 |
80-1792-988-00 |
Harness Clip |
4 |
4 |
|
|
60 |
80-1484-461-00 |
Fender(L) |
1 |
1 |
*13) |
|
|
0238-60100 |
Fender(L) |
1 |
1 |
*1) *14) |
|
61 |
89-1236-080162 |
Mini Hexagonal Bolt(PWSW) M8*16 |
4 |
4 |
|
|
62 |
89-1671-080042 |
Mini Bag Nut M8 |
1 |
1 |
|
|
63 |
80-1485-462-00 |
Fender(R) |
1 |
1 |
*13) |
|
|
0238-60200 |
Fender(R) |
1 |
1 |
*1) *14) |
|
64 |
89-1236-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
2 |
2 |
|
|
65 |
89-1631-080042 |
Flange Mini
Hexagonal Nut M8 |
1 |
1 |
|
|
66 |
0215-82500 |
Seat Receiving
Bolt M10 |
2 |
2 |
|
|
67 |
89-1390-060162 |
Welded Bolt M6*16 |
1 |
1 |
|
|
68 |
0215-81800 |
Seat Receiver CMP |
1 |
1 |
|
|
69 |
0207-72900 |
Seat Switch Spring |
1 |
1 |
|
|
70 |
89-1511-060042 |
Hexagonal Nut M6 |
1 |
1 |
|
|
71 |
89-1631-100042 |
Flange Mini
Hexagonal Nut M8 |
2 |
2 |
|
|
72 |
0215-81600 |
Seat Spring 167 |
2 |
2 |
|
|
73 |
0215-60100 |
Tank Bracket CMP |
1 |
1 |
*13) |
|
|
0215-60110 |
Tank Bracket CMP |
1 |
1 |
*14) |
|
74 |
|
Fuel Tank Assy |
|
|
|
|
|
51001-2258-9H |
Fuel Tank CMP (KAWASAKI) |
1 |
1 |
|
|
|
49019-2107 |
Filter (KAWASAKI) |
1 |
1 |
|
|
|
52005-2100 |
Gauge (KAWASAKI) |
1 |
1 |
|
|
|
221C0512 |
Screw5*12 (KAWASAKI) |
2 |
2 |
|
|
|
51048-2052 |
Cap Assy
(KAWASAKI) |
1 |
1 |
|
|
75 |
0215-70900 |
Trim 9*770 |
1 |
1 |
|
|
|
0207-74610 |
Trim 9*770 |
1 |
1 |
*1) |
|
76 |
89-1159-060168 |
Truss Mini
Screw M6*16 |
6 |
6 |
|
|
77 |
89-1631-060042 |
Flange Mini
Hexagonal Nut M6 |
6 |
6 |
|
|
78 |
89-1236-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
4 |
4 |
|
|
79 |
80-1487-487-00 |
Hose Clip |
4 |
4 |
|
|
80 |
80-1487-488-00 |
Fuel Hose |
2 |
2 |
|
|
81 |
89-1514-120042 |
Hexagonal Nut
(3 Sorts,Slender) M12 |
1 |
1 |
|
|
82 |
89-1714-120002 |
Flat Washer
12 |
1 |
1 |
|
|
83 |
80-1487-486-00 |
Fuel Cock |
1 |
1 |
|
|
|
0207-79600 |
Fuel Cock |
1 |
1 |
*1) |
|
84 |
80-1483-479-10 |
Fuel Cock
BK |
1 |
1 |
*6) |
|
|
0215-40900 |
Fuel Cock
BK |
1 |
1 |
*7) *13) |
|
|
0238-60300 |
Fuel Cock BK |
1 |
1 |
*14) |
|
85 |
89-1236-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
2 |
*6) |
|
|
89-1159-080168 |
Truss Mini
Screw M6*16 |
2 |
2 |
*7) |
|
86 |
0215-70300 |
Drain Hose |
1 |
1 |
|
|
87 |
89-1236-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
2 |
2 |
|
|
88 |
0215-40500 |
Exhaust Cover (L) |
1 |
1 |
|
|
89 |
0215-40600 |
Exhaust Cover
(R) |
1 |
1 |
|
|
90 |
0215-40400 |
Exhause Adapter |
1 |
1 |
|
-4-
Fig.1 FRAME & CONTROL
FLEL TANK
172
76
173
79
85
92
93
9A 60
95
69
’/0
72
59
202
205
57
212 208 210 .209
203 210 211
207 206
205
204
194
62
A6
45^
52 178
176 yş
174
Ó3
6
103 106
108 l07
łfi9
192
tg 215 214
7
196
ł16
199
i33
}45
1A2
186
20
19 123 12?

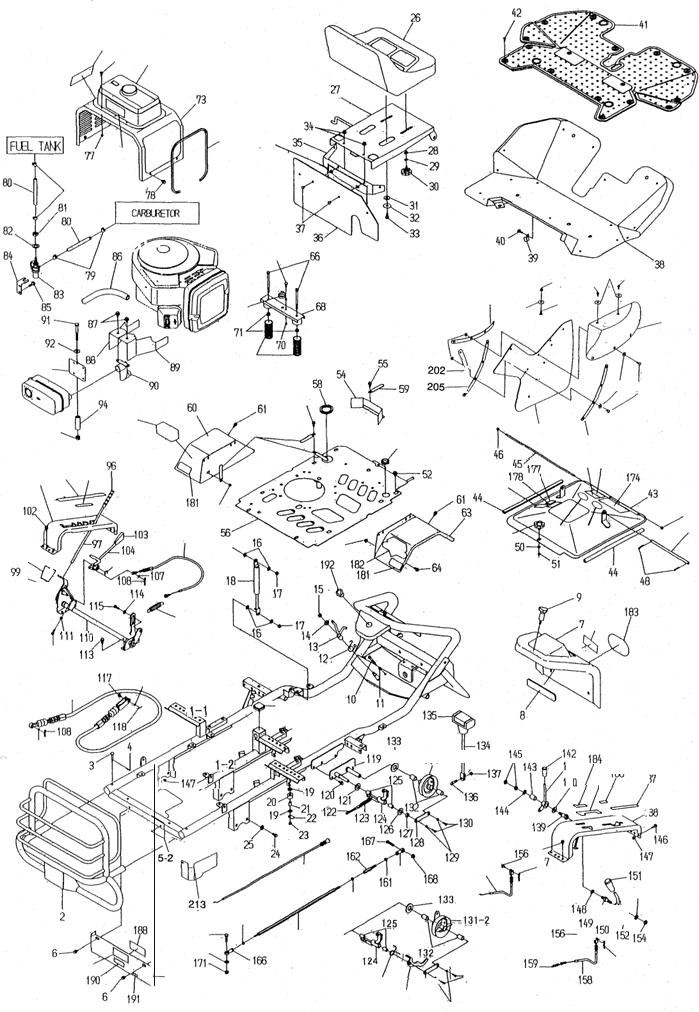

Fig.1 FRAME & CONTROL
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
91 |
89-1211-100952 |
Mini Hexagonal Bolt M10*95 |
1 |
1 |
|
|
92 |
89-1711-100002 |
Flat Washer
10 |
1 |
1 |
|
|
93 |
80-1488-792-00 |
Plate for Fixing Muffler |
1 |
1 |
|
|
94 |
80-1485-393-00 |
Pipe for Fixing Muffler |
1 |
1 |
|
|
95 |
89-1543-100002 |
Mini Hexagonal Nut (SW) M10 |
1 |
1 |
|
|
96 |
80-1515-339-00 |
Handle Grip
15 |
1 |
1 |
|
|
97 |
80-1483-272-00 |
Cutting Height
Adjustment Lever |
1 |
1 |
|
|
98 |
80-1487-274-00 |
Cutting Height
Lever Spring |
1 |
1 |
|
|
99 |
89-2120-300252 |
Split Pin 3*25 |
2 |
2 |
|
|
100 |
0207-76800 |
Washer 16*32*2.3 |
2 |
2 |
|
|
101 |
0207-10510 |
Cutting Height
Guide |
1 |
1 |
|
|
102 |
89-1236-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
4 |
4 |
|
|
103 |
80-1484-262-00 |
Arm Grip (Red) |
1 |
1 |
|
|
104 |
0207-13800 |
Knife Clutch
Lever |
1 |
1 |
|
|
105 |
89-2521-000120 |
E Type Ring 12 |
1 |
1 |
|
|
106 |
0207-70310 |
Cutting Clutch
Wire |
1 |
1 |
|
|
107 |
89-1711-060002 |
Flat Washer 6 |
3 |
3 |
|
|
108 |
89-2132-060002 |
Snap Pin 6 |
2 |
2 |
|
|
109 |
0207-78400 |
Spring For Knife Tension |
1 |
1 |
|
|
110 |
0207-10400 |
Up/Down Adjusting Shaft CMP |
1 |
1 |
|
|
111 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
1 |
|
|
112 |
89-1211-080257 |
Mini Hexagonal
Bolt M8*25 |
1 |
1 |
|
|
113 |
89-1232-100202 |
Mini Hexagonal
Bolt (SW) M10*20 |
4 |
4 |
|
|
114 |
83-1020-312-00 |
Washer 8*30*3.2 |
2 |
2 |
|
|
115 |
89-1232-080252 |
Mini Hexagonal
Bolt (SW) M8*25 |
2 |
2 |
|
|
116 |
0207-77510 |
Knife Brake
Wire |
1 |
1 |
|
|
117 |
89-2181-060162 |
Flat Head Pin 6*16 |
1 |
1 |
|
|
118 |
89-2120-200152 |
Split Pin 2*15 |
1 |
1 |
|
|
119 |
0207-11710 |
Change Bracket CMP |
1 |
1 |
|
|
120 |
89-1236-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
3 |
3 |
|
|
121 |
83-1565-329-00 |
Washer 13*22*2.3 |
2 |
2 |
*2) |
|
122 |
0207-72300 |
Change Brake
Adjuster |
1 |
1 |
|
|
123 |
0207-72200 |
Change Brake
Spring |
1 |
1 |
|
|
124 |
0207-11400 |
Change Brake |
1 |
1 |
|
|
125 |
89-3510-012200 |
DU Bush
12.20 |
2 |
2 |
|
|
126 |
83-1754-329-00 |
Washer 13*22*1.0 |
1 |
1 |
*2) |
|
127 |
0207-12600 |
Change Brake
Collar |
1 |
1 |
*2) |
|
128 |
0207-11610 |
Change Beam |
1 |
1 |
|
|
129 |
89-1750-060002 |
Spring Washer 6 |
2 |
2 |
|
|
130 |
89-1111-060142 |
Hexagonal Bolt
M6*14 |
2 |
2 |
|
|
131-1 |
0207-11300 |
Change Boss CMP |
1 |
1 |
*2) |
|
131-2 |
0207-11310 |
Change Boss CMP |
1 |
1 |
*1) *3) |
|
132 |
89-3510-016250 |
DU Bush
16.25 |
2 |
2 |
|
|
133 |
0207-76800 |
Washer 16*32*2.3 |
1 |
1 |
|
|
134 |
0207-12900 |
Change Lever
CMP |
1 |
1 |
|
|
135 |
83-1417-435-00 |
Lever Grip
(red) |
1 |
1 |
|
|
|
0221-13200 |
Change Grip |
1 |
1 |
*1) |
|
136 |
89-1213-080302 |
Mini Hexagonal
Bolt (8T) M8*30 |
1 |
1 |
|
|
137 |
89-1561-080002 |
Mini Hexagonal U Nut M8 |
1 |
1 |
|
|
138 |
0215-10400 |
Change Guide
CMP |
1 |
1 |
|
|
139 |
0207-12200 |
Throttle Lever
Shaft |
1 |
1 |
|
|
140 |
89-1852-140001 |
Belleville
Spring H14 |
1 |
1 |
|
|
141 |
0207-12100 |
Throttle Lever
CMP |
1 |
1 |
|
-6-
Fig.1 FRAME & GONTROL
172
76 7#
173
Y5 200
79
67
69
212
72
93
212 208 210 .209
203 210 211
204
95
i or 94 193
98
\ 80
i05
53
59
57
62
106
65
179
49
201
205
176.175
215 214
207 206
46
#7
\00
1ó9 9 6
1 \ 2
116
lD7
199
07
\0
189
5-1
169
ï70
165
195
16#
163
160
155
q 130
1D2
15
157
153
-7-
197 ist128
129
Fig.1 FRAME & CONTROL
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
142 |
0207-72600 |
Lever Grip
8(black) |
1 |
1 |
|
|
143 |
89-3510-014150 |
DU Bush
14.15 |
1 |
1 |
|
|
144 |
89-1714-100002 |
Flat Washer
10 |
1 |
1 |
|
|
145 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
2 |
2 |
|
|
146 |
89-1236-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
4 |
4 |
|
|
147 |
89-1631-080042 |
Flange Mini
Hexagonal Nut M8 |
5 |
5 |
|
|
148 |
89-1750-100002 |
Spring Washer
10 |
1 |
1 |
|
|
149 |
0207-12400 |
Differential Lock
Lever Shaft |
1 |
1 |
|
|
150 |
0207-12300 |
Differential Lock
Lever CMP |
1 |
1 |
|
|
151 |
83-1210-425-00 |
Lever Grip
10 |
1 |
1 |
|
|
152 |
80-1020-263-00 |
Control Lever
Shaft Spring |
1 |
1 |
|
|
153 |
89-1714-100002 |
Flat Washer
10 |
1 |
1 |
|
|
154 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
1 |
|
|
155 |
0207-70200 |
Throttle Wire (B) |
1 |
1 |
|
|
156 |
89-2181-060162 |
Flat Head Pin 6*16 |
4 |
4 |
|
|
157 |
89-2132-060002 |
Snap Pin 6 |
4 |
4 |
|
|
158 |
0207-70700 |
Differential Lock Wire |
1 |
1 |
|
|
159 |
80-1425-551-00 |
Differential Lock Spring |
1 |
1 |
|
|
160 |
80-1487-962-10 |
Rod End
PHS10ECL |
1 |
1 |
|
|
161 |
83-1488-195-02 |
Mini Hexagonal Nut M10 (L) |
1 |
1 |
|
|
162 |
80-1485-265-00 |
Shift Rod Adjuster |
1 |
1 |
|
|
163 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
1 |
1 |
|
|
164 |
0215-10110 |
Shift Rod |
1 |
1 |
|
|
165 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
1 |
1 |
|
|
166 |
80-1487-964-10 |
Rod End PHS10EC |
1 |
1 |
|
|
167 |
89-1213-100302 |
Mini Hexagonal
Bolt (8T) M10*30 |
1 |
1 |
|
|
168 |
89-1631-100042 |
Flange Mini
Hexagonal Nut M10 |
1 |
1 |
|
|
169 |
89-1213-100352 |
Mini Hexagonal
Bolt (8T) M10*35 |
1 |
1 |
|
|
170 |
89-1711-100002 |
Flat Washer
10 |
1 |
1 |
|
|
171 |
89-1631-100042 |
Flange Mini
Hexagonal Nut M10 |
1 |
1 |
|
|
172 |
0207-73700 |
Label, HST |
1 |
1 |
|
|
173 |
83-1415-909-00 |
Sticker for
Engine (Z18-6) |
1 |
1 |
*13) |
|
|
0223-76200 |
Label, Caution for Engine etc |
1 |
1 |
*1) *14) |
|
174 |
80-1484-A47-00 |
Label, Caution (large) |
1 |
1 |
*13) |
|
|
0223-76100 |
Label, Caution(large) |
1 |
1 |
*1) *14) |
|
175 |
83-1310-902-00 |
OREC Mark |
1 |
|
|
|
176 |
83-1488-907-00 |
Attention Mark for Slope |
1 |
1 |
*13) |
|
177 |
80-1010-933-00 |
Label, CE |
1 |
1 |
|
|
178 |
Not for sale |
Label, Serial No. |
1 |
1 |
|
|
179 |
80-1020-932-00 |
Label, Noise
100db |
1 |
1 |
|
|
180 |
Not for sale |
Label, Model RM86 |
1 |
|
|
|
|
Not for sale |
Label, Model RM90 |
|
1 |
|
|
181 |
80-1484-907-00 |
Reflection Seat
(Yellow) |
2 |
2 |
|
|
182 |
80-1484-903-00 |
Label, Rabbit |
1 |
1 |
|
|
183 |
80-1484-904-00 |
Label, Main |
1 |
|
|
|
184 |
0217-70200 |
Label, Throttle (13169) |
1 |
1 |
|
|
185 |
0217-70100 |
Label, Differential Lock (13168) |
1 |
1 |
|
|
186 |
80-1488-924-00 |
Label, Chork
(13118) |
1 |
1 |
|
|
187 |
80-1488-911-00 |
Label, Change
Lever (13110) |
1 |
1 |
|
|
188 |
0207-73500 |
Label, Belt |
1 |
1 |
|
|
189 |
80-1488-928-00 |
Label, Caution
for Belt Involving |
1 |
1 |
*13) |
|
|
80-1488-928-10 |
Label, Caution for Belt Involving |
1 |
1 |
*1) *14) |
|
190 |
0215-80400 |
Driving Clutch
ON-OFF Label |
1 |
1 |
|
|
191 |
0217-70800 |
Oil Label 1.0L |
1 |
1 |
|
-8-
Fig.1 FRAME &
CONTROL
173
79 yg
32
95
101 19A
67
69
70
72
202
sv 205
53
59
57
212
203 211
210
201
ś6
178
210
209
208 A
207 206
205
176 175
174
204
98
ł07
62
106 16
iD9
i92
#3
A6
49 215 214 47
196
116
199
10’/
119
)7
20 '” 120i
p 22 123i2
23 *26
2Œ
189
5-1
213
170
ł 65
ł64
ì 63
12
132
j pg, î 28 ’
129
1-2
i53
157
Fig.1 FRAME & CONTROL
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
192 |
89-3511-022150 |
DU Bush 22.15.33F |
1 |
1 |
|
|
193 |
80-1488-915-00 |
Label, Knife
(13114) |
1 |
1 |
|
|
194 |
80-1484-A45-00 |
Label, Cutting
Height Adjustment |
1 |
1 |
|
|
195 |
83-1483-957-00 |
Choke Wire |
1 |
1 |
|
|
196 |
80-1484-909-00 |
Label, RM |
1 |
|
|
|
197 |
0207-79100 |
Spring For
Change Return Arm |
1 |
1 |
*3) |
|
198 |
0207-13400 |
Change Return
Arm |
1 |
1 |
*3) |
|
199 |
0207-79500 |
Square Pipe Cap
38 |
2 |
2 |
*5) |
|
200 |
0228-21700 |
Shield Reinforce Plate |
1 |
1 |
*8) |
|
201 |
0215-21100 |
Rubber for Fender
Cover |
1 |
1 |
*12) |
|
202 |
0217-20300 |
Bar for Connecting Reinforce |
1 |
1 |
*12) |
|
203 |
0217-20400 |
Fender Cover Holder |
1 |
1 |
*12) |
|
204 |
0217-20500 |
Fender Cover (R) |
1 |
1 |
*12) |
|
205 |
0217-20800 |
Reinforce for Rubber
Cover |
2 |
2 |
*12) |
|
206 |
0217-72200 |
Hexagonal Hole
Screw M6*18 |
8 |
8 |
*12) |
|
207 |
0217-72300 |
Flat Washer 6*13*1.0 |
8 |
8 |
*12) |
|
208 |
89-1111-060162 |
Hexagonal Bolt M6*16 |
2 |
2 |
*12) |
|
209 |
89-1111-060202 |
Hexagonal Bolt M6*20 |
1 |
1 |
*12) |
|
210 |
89-1713-060002 |
Flat Washer 6 |
4 |
4 |
*12) |
|
211 |
89-1390-060142 |
Welded Bolt M6*14 |
1 |
1 |
*12) |
|
212 |
83-1575-189-00 |
Flange Cap Nut
M6 |
12 |
12 |
*12) |
|
213 |
0240-61100 |
Rear Belt Cover
(B) |
1 |
1 |
*14) |
|
214 |
0215-83200 |
Label, Protection Equipment |
1 |
1 |
*14) |
|
215 |
0215-83100 |
Attention Mark for Slope |
1 |
1 |
*14) |
|
*1) Interchangeable *2) Serial Number : ~ XW01F00037 *3) Serial Number : XW01K00038~ *4) Serial Number : ~XW01K00065 *5) Serial Number : XW01L00066~ *6) Serial Number : ~XW01L00081 *7) Serial Number : XW01M00082~ *8) Serial Number : XW02J00012~ *9) Serial Number : ~XW02J00013 *10) Serial
Number : XW02L00014~ *11) Serial
Number : ~XW03A00060 *12) Serial
Number : XW03B00001~ *13) Serial
Number : ~XW03B00044 *14) Serial
Number : XW03J00045~ |
|||||
-10-
107
82
86 83
82
j gy
70
g 8A 92
" 90
02
80
97
108
-11-

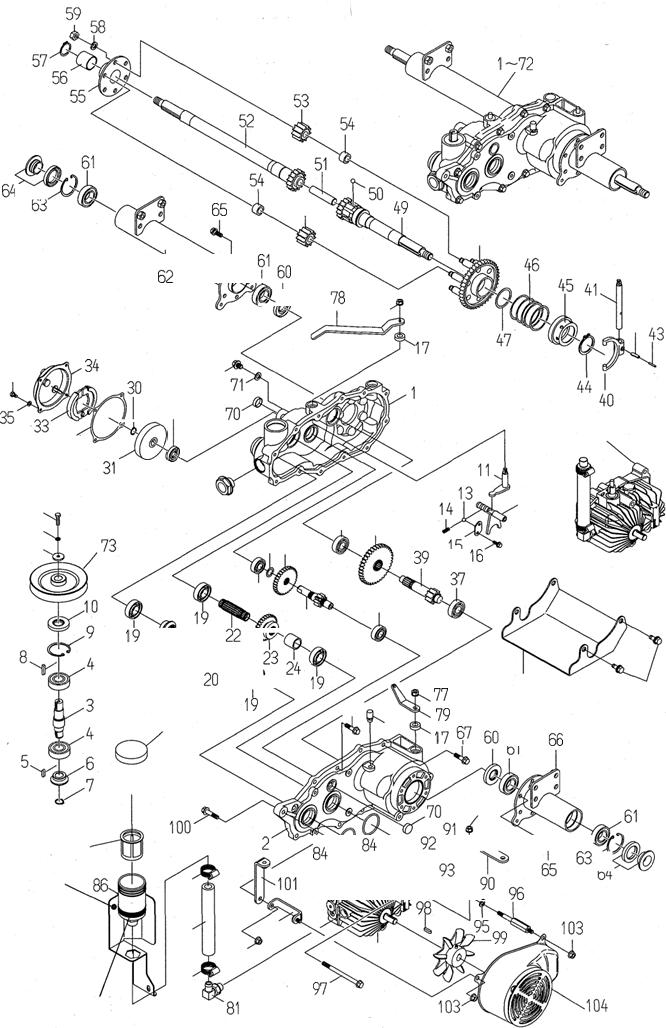

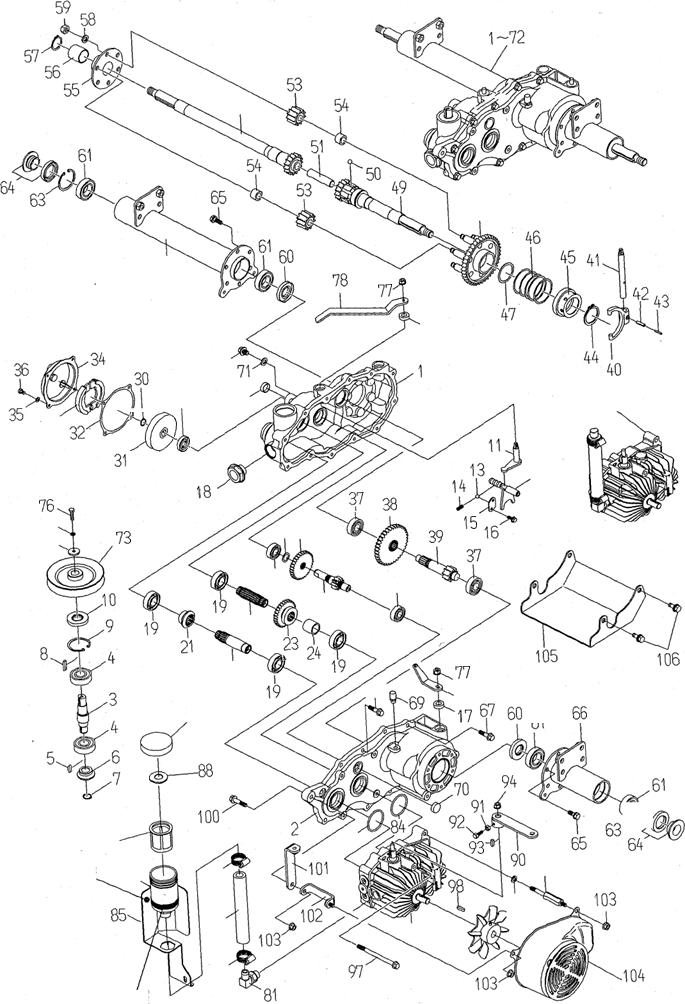

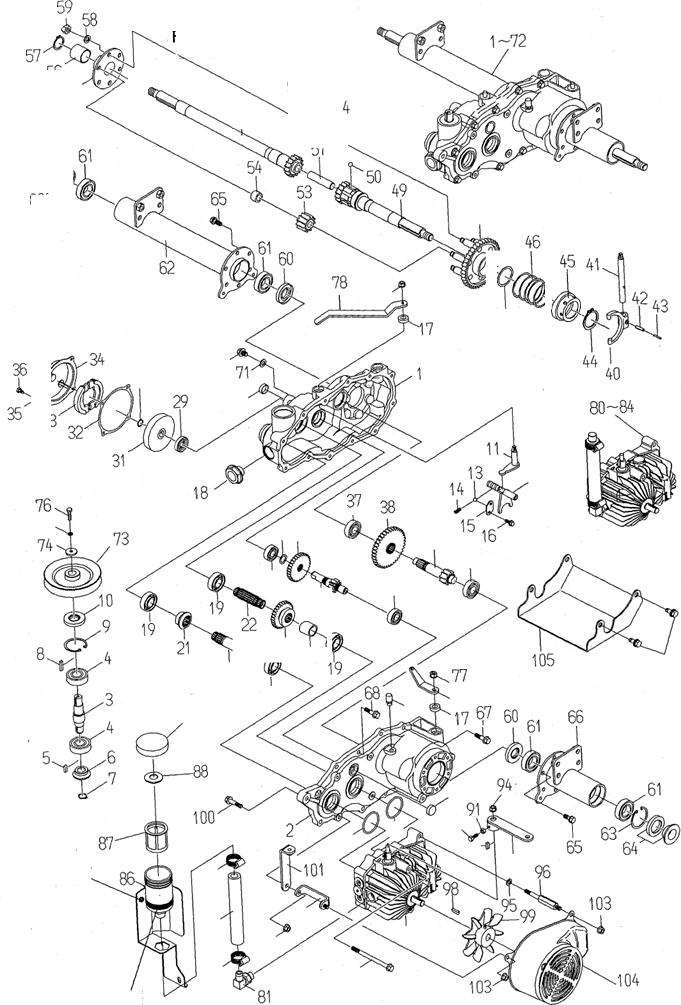

Fig.2 TRANSMISSION
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
1~106 |
0215-00000 |
Transmission Assy |
1 |
1 |
|
|
1~72 |
0215-01000 |
Gear Case
Assy |
1 |
1 |
|
|
80~84 |
0215-02000 |
HST Unit Assy |
1 |
1 |
|
|
1 |
0207-00100 |
Transmission Case(L) |
1 |
1 |
|
|
2 |
0207-00200 |
Transmission Case(R) |
1 |
1 |
|
|
3 |
0207-00300 |
A Axle |
1 |
1 |
|
|
4 |
89-3115-060044 |
Bearing 6004
2RS |
2 |
2 |
|
|
5 |
89-2150-050160 |
Key 5*16(round) |
1 |
1 |
|
|
6 |
0207-00400 |
20T Spiral
Mita Gear(L) |
1 |
1 |
|
|
7 |
89-2511-000170 |
Snap Ring S17 |
1 |
1 |
|
|
8 |
89-2151-050200 |
Key 5*20(harf round) |
1 |
1 |
|
|
9 |
89-2512-000420 |
Snap Ring R42 |
1 |
1 |
|
|
10 |
89-5121-204208 |
Oil Seal UE 20.42.8 |
1 |
1 |
|
|
11 |
0207-01700 |
Swing Arm
CMP |
1 |
1 |
|
|
12 |
0207-01600 |
Shift Fork
Shaft CMP |
1 |
1 |
|
|
13 |
89-3410-080000 |
Steel Ball 8 |
1 |
1 |
|
|
14 |
80-1310-138-00 |
Spring 1.4 |
1 |
1 |
|
|
15 |
0207-01900 |
Shift Spring
Holder |
1 |
1 |
|
|
16 |
83-1020-148-00 |
Hexagonal Tap Tight M6*14 |
2 |
2 |
|
|
17 |
89-5121-122207 |
Oil Seal UE 12.22.7 |
2 |
2 |
|
|
18 |
83-1032-689-00 |
Oil Gauge KMS28A |
1 |
1 |
|
|
19 |
89-3111-060044 |
Bearing 6004 |
4 |
4 |
|
|
20 |
0207-00600 |
B Axle |
1 |
1 |
|
|
21 |
0207-00500 |
20T Spiral
Mita Gear(R) |
1 |
1 |
|
|
22 |
0207-00700 |
C Axle |
1 |
1 |
|
|
23 |
0215-00400 |
Shift Gear 28 |
1 |
1 |
|
|
24 |
0215-00500 |
C Axle
Collar 26 |
1 |
1 |
|
|
25 |
89-3111-062024 |
Bearing 6202 |
2 |
2 |
|
|
26 |
83-1020-361-00 |
Thrust Washer
15*24*1.0 |
1 |
1 |
|
|
27 |
0207-01310 |
Brake Shaft
34T Gear |
1 |
1 |
|
|
28 |
0215-00300 |
Brake Shaft |
1 |
1 |
|
|
29 |
89-5121-153007 |
Oil Seal UE 15.30.7 |
1 |
1 |
|
|
30 |
89-2511-000150 |
Snap Ring S15 |
1 |
1 |
|
|
31~34 |
0207-73000 |
Brake Assy |
1 |
1 |
|
|
31 |
80-1030-282-00 |
Brake Durm(PA-7) |
1 |
1 |
|
|
32 |
80-1030-288-00 |
Brake Cover
PK(PA-7) |
1 |
1 |
|
|
33 |
80-1030-284-00 |
Brake Shoe(PA-7) |
1 |
1 |
|
|
34 |
0207-73100 |
Brake Cap Assy |
1 |
1 |
|
|
35 |
89-1750-060002 |
Spring Washer 6 |
4 |
4 |
|
|
36 |
89-1113-060122 |
Hexagonal Bolt
(8T) M6*12 |
4 |
4 |
|
|
37 |
89-3111-062034 |
Bearing 6203 |
2 |
2 |
|
|
38 |
0207-01400 |
D Axle 37T Gear |
1 |
1 |
|
|
39 |
80-1487-142-00 |
D Axle |
1 |
1 |
*2) |
|
|
0207-02700 |
D Axle |
1 |
1 |
*3) |
|
40 |
80-1830-113-00 |
Differential Lock
Fork |
1 |
1 |
|
|
41 |
0207-01800 |
Differential Lock
Fork Shaft |
1 |
1 |
|
|
42 |
89-2111-050020 |
Spring Pin 5*20 |
1 |
1 |
|
|
43 |
89-2111-030020 |
Spring Pin 3*20 |
1 |
1 |
|
|
44 |
89-2511-000400 |
Snap Ring S40 |
1 |
1 |
|
|
45 |
80-1425-143-00 |
Differential Lock Cone |
1 |
1 |
|
|
46 |
80-1751-162-00 |
Side Clutch Spring |
1 |
1 |
|
|
47 |
83-1830-382-00 |
Thrust Washer
40*48*1.0 |
1 |
1 |
|
|
48 |
80-1481-148-20 |
Axle Gear
CMP |
1 |
1 |
*2) |
|
|
0207-02800 |
Axle Gear
CMP |
1 |
1 |
*3) |
-12-
Fig.2 TRANSMISSION
53
8
3s 72
29
32
A2
80-8
76 18
75
7A
89
2627
25
28
38
25
68 ss
12
105
106
88
107
87
85+
108
82
83
103
82
102
80
—13—
Fig.2 TRANSMISSION
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
49 |
80-1493-147-00 |
Axle(R) CMP |
1 |
1 |
*2) |
|
|
0215-00800 |
Axle(R) CMP |
1 |
1 |
*3) |
|
50 |
89-3410-075000 |
Steel Ball 7.5 |
3 |
3 |
|
|
51 |
80-1415-150-00 |
Axle Pin |
1 |
1 |
|
|
52 |
80-1493-146-00 |
Axle(L) CMP |
1 |
1 |
*2) |
|
|
0215-00900 |
Axle(L) CMP |
1 |
1 |
*3) |
|
53 |
80-1481-152-00 |
Differential Lock
Gear 11T |
4 |
4 |
|
|
54 |
80-1481-155-00 |
Differential Gear
Shaft Collar |
4 |
4 |
|
|
55 |
80-1481-151-00 |
Differential Lock Plate |
1 |
1 |
|
|
56 |
89-3510-028300 |
DU Bush
28.30 |
1 |
1 |
|
|
57 |
89-2511-000280 |
Snap Ring S28 |
1 |
1 |
|
|
58 |
89-1750-100002 |
Spring Washer
10 |
6 |
6 |
|
|
59 |
89-1613-100042 |
Mini Hexagonal Nut (3 sort)
M10 |
6 |
6 |
|
|
60 |
89-5121-284708 |
Oil Seal UE 28.47.8. |
2 |
2 |
|
|
61 |
89-3115-060054 |
Bearing 6005
2RS |
4 |
4 |
|
|
62 |
0215-00600 |
Axle Case(L) CMP |
1 |
1 |
|
|
63 |
89-2512-000470 |
Snap Ring R47 |
2 |
2 |
|
|
64 |
83-1415-663-00 |
Oil Seal AP 30.47.7 |
2 |
2 |
|
|
65 |
89-1235-080202 |
Mini Hexagonal
Bolt (SW) M8*20 |
12 |
12 |
|
|
66 |
0215-00700 |
Axle Case(R) CMP |
1 |
1 |
|
|
67 |
89-1251-080253 |
Flange
Hexagonal Bolt M8*25 |
9 |
9 |
|
|
68 |
83-1482-143-00 |
Hexagonal Tap Tight M8*25 |
3 |
3 |
|
|
69 |
0207-06100 |
Air Bleezer |
1 |
1 |
|
|
70 |
83-1415-671-00 |
Black Cap 22 |
2 |
2 |
|
|
71 |
83-1020-349-00 |
Packing 10.5*18*1.6 |
1 |
1 |
|
|
72 |
89-1252-100122 |
Flange Mini
Hexagonal Bolt M10*12 |
1 |
1 |
|
|
73 |
0207-40200 |
Transmission Pulley |
1 |
1 |
|
|
74 |
83-1482-311-00 |
Washer 6.5*22*3.2 |
1 |
1 |
|
|
75 |
89-1750-060002 |
Spring Washer 6 |
1 |
1 |
|
|
76 |
89-1113-060202 |
Hexagonal Bolt
(8T) M6*20 |
1 |
1 |
|
|
77 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
2 |
2 |
|
|
78 |
0215-00100 |
Driving Clutch
Arm |
1 |
1 |
|
|
79 |
80-1488-153-00 |
Differential Lock
Arm |
1 |
1 |
|
|
80 |
0207-07110 |
HST Unit |
1 |
1 |
|
|
81 |
0207-07700 |
Port Joint |
1 |
1 |
|
|
82 |
0207-08100 |
Horse Band 30 |
2 |
2 |
*9) |
|
|
0228-70200 |
Horse Band 24 |
2 |
2 |
*10) |
|
83 |
0207-07910 |
Oil Horse
L-195 |
1 |
1 |
*9) |
|
|
0228-70100 |
Oil Horse |
1 |
1 |
*10) |
|
84 |
89-5222-045000 |
O Ring G45 |
2 |
2 |
|
|
85 |
0207-08210 |
Oil Tank Setting |
1 |
1 |
*9) |
|
|
0207-08220 |
Oil Tank Setting |
1 |
1 |
*10) |
|
86 |
0207-07620 |
Oil Tank |
1 |
1 |
*9) |
|
|
0207-07630 |
Oil Tank |
1 |
1 |
*10) |
|
87 |
0207-71300 |
Filter(with level) |
1 |
1 |
|
|
88 |
0207-08400 |
Cap Packing |
1 |
1 |
|
|
89 |
0207-08300 |
Oil Tank Cap |
1 |
1 |
|
|
90 |
0207-02610 |
Control Arm
CMP |
1 |
1 |
|
|
91 |
89-1511-060042 |
Hexagonal Nut M6 |
1 |
1 |
|
|
92 |
89-1113-060162 |
Hexagonal Bolt
(8T) M6*16 |
1 |
1 |
|
|
93 |
89-2151-050160 |
Key 5*16(harf round) |
1 |
1 |
|
|
94 |
89-1543-080002 |
Mini Hexagonal Nut (SW) M8 |
1 |
1 |
|
|
95 |
89-1750-080002 |
Spring Washer 8 |
2 |
2 |
|
-14-
Fig.2 TRANSMïSStOK
52
#8
62
72
29 70
3
8J-8
12
vs 2627
25 25
28
22
20
68 79
89
87
107 g§ 82
82
108
84
9s
-15-
Fig.2 TRANSMISSION
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
96 |
0207-07300 |
Double Spring
Bolt |
2 |
2 |
|
|
97 |
89-1251-081123 |
Flange
Hexagonal Bolt M8*112 |
2 |
2 |
|
|
98 |
89-2150-050200 |
Key 5*20(round) |
1 |
1 |
|
|
99 |
0207-07500 |
Fan |
1 |
1 |
|
|
100 |
89-1251-080352 |
Flange
Hexagonal Bolt M8*35 |
1 |
1 |
|
|
101 |
0215-05100 |
Transmission
Hunger Stay CMP |
1 |
1 |
|
|
102 |
0207-07400 |
Fan Cover
Setting CMP |
1 |
1 |
|
|
103 |
89-1631-080042 |
Flange Mini
Hexagonal Nut M8 |
4 |
4 |
|
|
104 |
0207-07200 |
Fan Cover
CMP |
1 |
1 |
|
|
105 |
0207-03100 |
Mission Guard CMP |
1 |
1 |
|
|
106 |
89-1239-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
4 |
4 |
|
|
107 |
0207-79800 |
Push Clip |
1 |
1 |
*10) |
|
108 |
0207-79900 |
Wire Band 250L |
1 |
1 |
*10) |
|
*1) Interchangeable *2) Serial Number : ~ XW01F00037 *3) Serial Number : XW01K00038~ *4) Serial Number : ~XW01K00065 *5) Serial Number : XW01L00066~ *6) Serial Number : ~XW01L00081 *7) Serial Number : XW01M00082~ *8) Serial Number : XW02J00012~ *9) Serial Number : ~XW02J00013 *10) Serial
Number : XW02L00014~ *11) Serial
Number : ~XW03A00060 *12) Serial
Number : XW03B00001~ *13) Serial
Number : ~XW03B00044 *14) Serial
Number : XW03J00045~ |
|||||
-16-
1A6 )50 137
139
85 87
86 88
89 90
28
27
116 ł 5
112
24
ś9 25
á8
ss
50 35
32
92 98
S3
95 99
102
68
38
gg 12d 152 96
60 52
57 20
19
18
78
79 77
3
78
72
22 12
70 55
g 58
57 p
60
62
L-67
Fig.3 FRONT AXLE & TIRE
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
1 |
0215-30200 |
Front Axle
CMP |
1 |
1 |
|
|
2 |
89-3510-025350 |
DU Bush
25.35 |
2 |
2 |
|
|
3 |
0207-30700 |
Center Pin |
1 |
1 |
|
|
4 |
83-1415-975-00 |
Grease Nipple
M6 |
1 |
1 |
|
|
5 |
89-1713-120002 |
Flat
Washer(Large) 12 |
1 |
1 |
|
|
6 |
89-1750-120002 |
Spring Washer
12 |
1 |
1 |
|
|
7 |
89-1551-120002 |
Hexagonal U Nut M12 |
1 |
1 |
|
|
8 |
83-1515-975-00 |
Grease Nipple
C-Type M6 |
2 |
2 |
|
|
9 |
84-1783-791-00 |
Nipple Bolt
M14 |
2 |
2 |
|
|
10 |
89-1750-140002 |
Spring Washer
14 |
2 |
2 |
|
|
11 |
84-1783-729-00 |
Fork Shaft
Dust Cover |
2 |
2 |
|
|
12 |
83-1310-371-00 |
Thrust Washer
20*30*1.0(80-1310-133- |
4 |
4 |
|
|
13 |
89-3511-020200 |
DU Bush
20.20.31F |
4 |
4 |
|
|
14 |
83-1493-255-00 |
Washer Based
Rock Nut(slender)M10 |
4 |
4 |
|
|
15 |
80-1493-963-00 |
Link Ball
LHSA 10DLE21 |
2 |
2 |
|
|
16 |
83-1493-195-00 |
Hexagonal Nut (slender)M10 Left |
2 |
2 |
|
|
17 |
0207-13100 |
Tie Rod Adjuster |
2 |
2 |
|
|
18 |
89-1512-100042 |
Hexagonal Nut (slender)M10 |
2 |
2 |
|
|
19 |
80-1493-962-00 |
Link Ball LHSA 10DE21 |
2 |
2 |
|
|
20 |
80-1484-321-30 |
Rack Support |
1 |
1 |
|
|
21 |
89-1124-100253 |
Washer Based
Bolt(slender)M10x25 |
2 |
2 |
|
|
22 |
83-1020-143-00 |
Hexagonal Tap Tight M8*18 |
2 |
2 |
|
|
23~28 |
80-1484-962-10 |
Steering Gear
Box Assy |
1 |
1 |
|
|
23 |
80-1484-963-00 |
Steering Gear
Box |
1 |
1 |
|
|
24 |
80-1484-965-00 |
Steering
Horizontal Shaft |
1 |
1 |
|
|
25 |
89-3111-062024 |
Bearing 6202 |
1 |
1 |
|
|
26 |
80-1484-964-00 |
Steering Vartical Shaft |
1 |
1 |
|
|
27 |
89-3114-062024 |
Bearing 6202
ZZ |
1 |
1 |
|
|
28 |
89-2512-000350 |
Snap Ring R35 |
1 |
1 |
|
|
29 |
80-1490-967-00 |
Steering Boots |
2 |
2 |
|
|
30 |
80-1484-327-20 |
Steering Bracket |
1 |
1 |
|
|
31 |
89-1232-080162 |
Mini Hexagonal
Bolt (SW) M8*16 |
4 |
4 |
|
|
32 |
89-1211-080702 |
Mini Hexagonal
Bolt M8*70 |
2 |
2 |
|
|
33 |
83-1020-312-00 |
Washer 8*30*3.2 |
2 |
2 |
|
|
34 |
89-1213-080202 |
Mini Hexagonal
Bolt (8T) M8*20 |
2 |
2 |
|
|
35 |
89-1750-080002 |
Spring Washer 8 |
4 |
4 |
|
|
36 |
89-1713-080002 |
Flat
Washer(Large) 8 |
2 |
2 |
|
|
37 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
2 |
2 |
|
|
38 |
80-1016-461-00 |
Bearing Cover |
1 |
1 |
|
|
39 |
89-2150-050200 |
Key 5*20(round) |
1 |
1 |
|
|
40 |
83-1493-149-00 |
Hexagonal Screw
M8*10 |
1 |
1 |
|
|
41 |
80-1481-324-10 |
Steering Lower
Shaft |
1 |
1 |
|
|
42 |
80-1481-323-20 |
Steering Upper
Shaft |
1 |
1 |
|
|
43 |
89-1113-060352 |
Hexagonal Bolt
(8T) M6*35 |
1 |
1 |
|
|
44 |
89-1553-060002 |
Bag Hexagonal U Nut M6 |
1 |
1 |
|
|
45 |
80-1484-325-00 |
Steering Shaft Cover |
1 |
1 |
|
|
46 |
83-1020-363-00 |
Thrust Washer
16*24*1.0 |
1 |
1 |
|
|
47 |
80-1484-221-00 |
Steering Wheel |
1 |
1 |
|
|
48 |
80-1484-222-00 |
Steering Cap |
1 |
1 |
|
|
49 |
89-1713-100002 |
Flat
Washer(Large) 10 |
1 |
1 |
|
|
50 |
89-1561-100002 |
Mini Hexagonal U Nut M10 |
1 |
1 |
|
|
51 |
80-1484-914-00 |
Label, Handle
(25330) |
1 |
1 |
|
|
52 |
80-1487-223-00 |
Sub Handle
Assy |
1 |
1 |
|
|
53 |
0207-30310 |
King Pin(R)
CMP |
1 |
1 |
|
-18-
Fig.3 FRONT AXLE & TIRE
125
i26
120
122
12
l22
138
\0
1A2
y 85 87
86
136 88
135 89 90
28
11s
12
112
2A
49 25
23
8
50
52 ‹2 32
43 37
68
92 98
S3
95
97
93 0ł
102
99
60
29 12 '''
152
12
gj 61 57 20
58
2 152 12
103
15
78
77 79
73
78
72
69
73
—19-
53
70 55 62
7A
Fig.3 FRONT AXLE & TIRE
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
54 |
0207-30210 |
King Pin(L)
CMP |
1 |
1 |
|
|
55 |
0207-30600 |
Front Wheel Rubber
Cover |
2 |
2 |
|
|
56 |
0207-30800 |
Front Wheel
Rubber Cover (IN) |
2 |
2 |
|
|
57 |
0207-30900 |
Front Wheel
Rubber Cover Support |
2 |
2 |
|
|
58 |
0207-31100 |
King Pin Collar |
2 |
2 |
|
|
59 |
89-1631-080042 |
Flange Mini
Hexagonal Nut M8 |
8 |
8 |
|
|
60 |
0207-30410 |
Front Wheel Boss CMP |
2 |
2 |
|
|
61 |
89-3115-060044 |
Bearing 6004
2RS |
4 |
4 |
|
|
62 |
80-1260-412-00 |
Front Wheel Tire(R) Assy 3.50-7 |
1 |
1 |
|
|
63 |
80-1260-411-00 |
Front Wheel Tire(L) Assy 3.50-7 |
1 |
1 |
|
|
64 |
0207-30500 |
Front Wheel Dust Cover |
2 |
2 |
|
|
65 |
89-1750-140002 |
Spring Washer
14 |
2 |
2 |
|
|
66 |
89-1668-140042 |
Mini Ditch Nut(low 2 sort) M14 |
2 |
2 |
|
|
67 |
89-2120-250252 |
Split Pin 2.5*25 |
2 |
2 |
|
|
68 |
89-1232-100202 |
Mini Hexagonal
Bolt (SW) M10*20 |
8 |
8 |
|
|
69 |
80-1751-412-00 |
Rear Wheel
Tire(R) Assy 16*7.00-8 |
1 |
1 |
|
|
70 |
89-1750-100002 |
Spring Washer
10 |
8 |
8 |
|
|
71 |
89-1213-100252 |
Mini Hexagonal
Bolt (8T) M10*25 |
8 |
8 |
|
|
72 |
80-1751-411-00 |
Rear Wheel
Tire(L) Assy 16*7.00-8 |
1 |
1 |
|
|
73 |
83-1630-335-00 |
Washer 16*40*4.5 |
2 |
2 |
|
|
74 |
89-1750-160002 |
Spring Washer
16 |
2 |
2 |
|
|
75 |
89-1658-160042 |
Low Fluted
Nut (2 Sorts)
M16 |
2 |
2 |
|
|
76 |
89-2120-350352 |
Split Pin 3.5*35 |
2 |
2 |
|
|
77 |
0215-30100 |
Rear Wheel Boss |
2 |
2 |
|
|
78 |
0207-77800 |
Wheel Boss Dust Seal |
2 |
2 |
|
|
79 |
89-2150-070500 |
Key 7*50(round) |
2 |
2 |
|
|
80 |
80-1485-513-00 |
Engine Collar 26 |
1 |
1 |
|
|
81 |
80-1488-514-00 |
Engine Pulley |
1 |
1 |
|
|
82 |
89-6123-003203 |
V Belt
(driving) LB-32SG1000 |
1 |
1 |
|
|
83 |
89-6123-007502 |
V belt
(Cutting) SB-75W800 |
1 |
1 |
|
|
84 |
80-1485-518-00 |
Knife Belt
Holder(engine) CMP |
1 |
1 |
|
|
85 |
89-1713-100002 |
Flat
Washer(Large) 10 |
2 |
2 |
|
|
86 |
89-1232-100202 |
Mini Hexagonal
Bolt (SW) M10*20 |
2 |
2 |
|
|
87 |
83-1437-205-00 |
Key 1/4 inch*40 |
1 |
1 |
|
|
88 |
80-1487-516-00 |
Washer 11*40*6 |
1 |
1 |
|
|
89 |
83-1493-300-00 |
Spring Washer
7/16 |
1 |
1 |
|
|
90 |
83-1482-115-00 |
Hexagonal Bolt(8T) UNF7/16-20*45 |
1 |
1 |
|
|
91 |
0215-60600 |
Upper Flapper |
1 |
1 |
|
|
92 |
80-1437-785-10 |
Upper Flapper
Holder |
1 |
1 |
|
|
93 |
89-1137-060152 |
Hexagonal Bolt
(PW) M6*15 |
9 |
9 |
|
|
94 |
0207-60900 |
Upper Flapper
Holder(R) |
1 |
1 |
|
|
95 |
83-1575-189-00 |
Flange Cap Nut M6 |
1 |
1 |
|
|
96 |
89-1137-060172 |
Hexagonal Bolt
(PW) M6*17 |
1 |
1 |
|
|
97 |
89-1713-060002 |
Flat
Washer(Large) 6 |
1 |
1 |
|
|
98 |
0215-60500 |
Front Upper
Guard CMP |
1 |
1 |
|
|
99 |
80-1484-417-20 |
Front Flapper |
1 |
1 |
*11) |
|
|
0215-61200 |
Front Flapper |
1 |
1 |
*1) *12) |
|
100 |
80-1484-416-20 |
Front Guard |
1 |
1 |
|
|
101 |
89-1713-100002 |
Flat
Washer(Large) 10 |
2 |
2 |
|
|
102 |
89-1543-100002 |
Mini Hexagonal Nut (SW) M10 |
2 |
2 |
|
|
103 |
89-1213-100357 |
Mini Hexagonal
Bolt (8T) M10*35 |
2 |
2 |
|
|
104 |
0215-80600 |
Food Guard |
1 |
1 |
|
|
105 |
80-1781-943-00 |
Pedal Rubber |
1 |
1 |
|
|
106 |
0207-10100 |
Brake Pedal |
1 |
1 |
|
-20-
Fig.3 FRONT AXLE & TIRE
152
120
122
120
12A
(19
118
108
106
18
1A9
g 150
139
80 ’123
8A 81 83 129
82
87
88
89 90
109
1A2
á9
8
0
52 J2
28
27
2A 25
23
ss
13 35'* 32
112
92 98
93 1
102
68
P67
10 37
38
60 29
152
97
94
152 ç
20
19
18 kg
78
77
78
2 ‹s2
2z 103
12
60
62
70 55 68
69 73 75
-21-
g g’ 58
1—67
Fig.3 FRONT AXLE & TIRE
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
107 |
89-3510-016250 |
DU Bush 16.25 |
2 |
2 |
|
|
108 |
89-2521-000150 |
E Type Ring 15 |
1 |
1 |
|
|
109 |
0215-10200 |
Brake Rod CMP |
1 |
1 |
|
|
110 |
89-1213-100352 |
Mini Hexagonal
Bolt (8T) M10*35 |
2 |
2 |
|
|
111 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
2 |
2 |
|
|
112 |
89-1711-080002 |
Flat Washer 8 |
3 |
3 |
|
|
113 |
89-2120-200152 |
Split Pin 2*15 |
1 |
1 |
|
|
114 |
0207-75400 |
Brake Spring 30 |
1 |
1 |
|
|
115 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
1 |
|
|
116 |
83-1490-198-00 |
Hexagonal U Nut M8 |
1 |
1 |
|
|
117 |
0207-10300 |
Brake Joint |
1 |
1 |
|
|
118 |
89-1711-120002 |
Flat Washer
12 |
1 |
1 |
|
|
119 |
89-2131-120002 |
Snap Pin 12 |
1 |
1 |
|
|
120 |
83-1020-363-00 |
Flat Washer 8 |
2 |
2 |
|
|
121 |
80-1483-568-00 |
Knife Tension
Return Spring f 29 |
1 |
1 |
|
|
122~133 |
0207-41010 |
Knife Tension
Arm Assy |
1 |
1 |
|
|
122 |
89-3510-016250 |
DU Bush
16.25 |
2 |
2 |
|
|
123 |
89-2511-000160 |
Snap Ring S16 |
1 |
1 |
|
|
124 |
0207-41210 |
Knife Tension
Arm |
1 |
1 |
|
|
125 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
1 |
1 |
|
|
126 |
89-1750-100002 |
Spring Washer
10 |
1 |
1 |
|
|
127 |
89-1713-100002 |
Flat
Washer(Large) 10 |
1 |
1 |
|
|
128 |
83-1482-763-00 |
Tension Pulley
Shaft |
1 |
1 |
|
|
129 |
80-1482-549-00 |
Rubber Cover
58 |
1 |
1 |
|
|
130 |
83-1483-782-00 |
Knife Tension
Pulley |
1 |
1 |
|
|
131 |
89-3114-062024 |
Bearing 6202
ZZ |
2 |
2 |
|
|
132 |
89-2512-000350 |
Snap Ring R35 |
1 |
1 |
|
|
133 |
89-2511-000150 |
Snap Ring S15 |
1 |
1 |
|
|
134 |
83-1415-975-00 |
Grease Nipple
M6 |
1 |
1 |
|
|
135 |
89-2511-000160 |
Snap Ring S16 |
1 |
1 |
|
|
136 |
83-1020-363-00 |
Thrust Washer
16*24*1.0 |
2 |
2 |
|
|
137~143 |
80-1488-541-00 |
Drive Tension
Arm CMP Assy |
1 |
1 |
|
|
137 |
89-3510-016150 |
DU Bush
16.15 |
2 |
2 |
|
|
138 |
80-1482-549-00 |
Rubber Cover
58 |
1 |
1 |
|
|
139 |
80-1488-543-00 |
Drive Tension Arm CMP |
1 |
1 |
|
|
140 |
89-2512-000400 |
Snap Ring R40 |
1 |
1 |
|
|
141 |
89-3115-062034 |
Bearing 6203
2RS |
1 |
1 |
|
|
142 |
83-1032-765-00 |
Tension Pulley |
1 |
1 |
|
|
143 |
89-2511-000170 |
Snap Ring S17 |
1 |
1 |
|
|
144 |
80-1485-551-00 |
Driving Tension Spring |
1 |
1 |
|
|
145 |
89-1211-100252 |
Mini Hexagonal
Bolt M10*25 |
1 |
1 |
|
|
146 |
89-1611-100042 |
Mini Hexagonal Nut M10 |
1 |
1 |
|
|
147 |
0215-40100 |
Drive Tension Spring Arm |
1 |
1 |
|
|
148 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
1 |
1 |
|
|
149 |
89-1211-080352 |
Mini Hexagonal
Bolt M8*35 |
1 |
1 |
|
|
150 |
89-1213-080402 |
Mini Hexagonal
Bolt (8T) M8*40 |
4 |
4 |
|
|
151 |
80-1493-354-00 |
Rod Return
Spring |
1 |
1 |
|
|
152 |
0215-81500 |
Label Grease |
4 |
4 |
|
|
|
|||||
-22-
4J 42
38
43 37
› 44
25
26
12 29
28
22
27
32
8
17—1
18
46
18
45
1-2
17—2
—23—

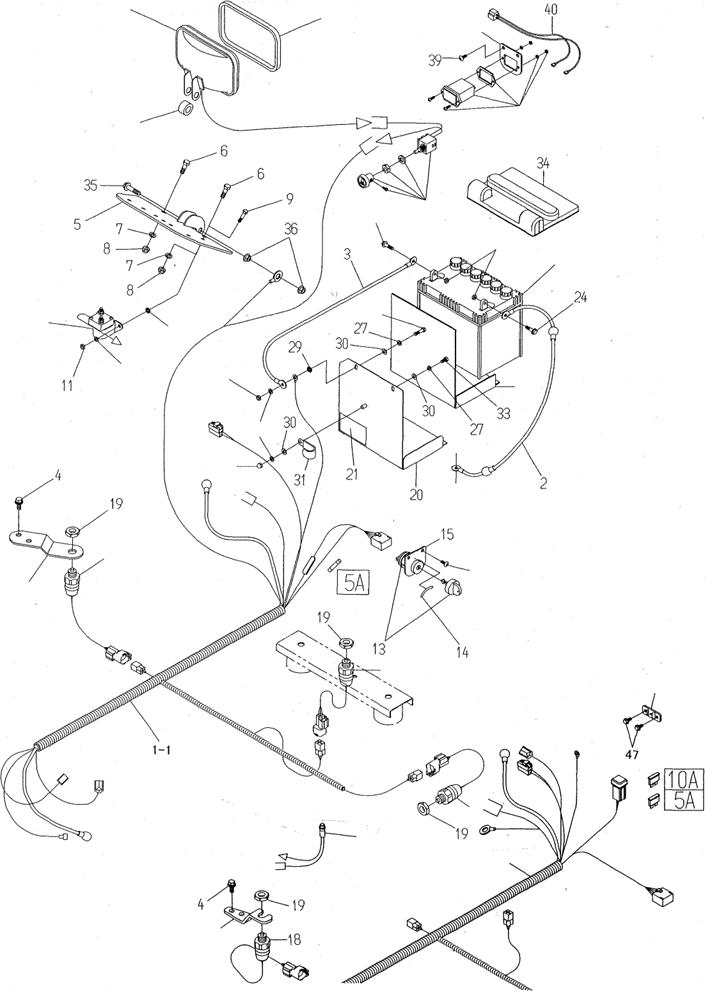

Fig.4 ELECTRIC EQUIPMENT
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
1-1 |
0215-72100 |
Wire Harness
(B) |
1 |
1 |
*4) |
|
1-2 |
0215-72110 |
Wire Harness
(B) |
1 |
1 |
*1) *5) |
|
2 |
0207-77100 |
Battery Plus
Cord 230 |
1 |
1 |
|
|
3 |
0207-77200 |
Battery Minus
Cord 230 |
1 |
1 |
|
|
4 |
89-1236-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
2 |
2 |
|
|
5 |
0207-20800 |
Light Bracket |
1 |
1 |
|
|
6 |
89-1211-080162 |
Mini Hexagonal
Bolt M8*16 |
2 |
2 |
|
|
7 |
89-1750-080002 |
Spring Washer 8 |
2 |
2 |
|
|
8 |
89-1671-080042 |
Mini Hexagonal Cap Nut M8 |
2 |
2 |
|
|
9 |
89-1111-060142 |
Hexagonal Bolt
M6*14 |
2 |
2 |
|
|
10 |
89-1750-060002 |
Spring Washer 6 |
2 |
2 |
|
|
11 |
89-1511-060042 |
Hexagonal Nut M6 |
2 |
2 |
|
|
12 |
80-1483-978-00 |
Magnetic Switch
(MS2-401) |
1 |
1 |
|
|
13 |
80-1484-977-00 |
Key Switch(E1635H) |
1 |
1 |
|
|
|
0207-79700 |
Key Switch |
1 |
1 |
*1) *8) |
|
14 |
80-1488-912-00 |
Label, Key (13121) |
1 |
1 |
|
|
15 |
80-1482-332-00 |
Key Switch
BK |
1 |
1 |
|
|
16 |
89-1159-060168 |
Truss Mini
Screw M6*16 |
2 |
2 |
|
|
17-1 |
0207-10600 |
Cutting Height
Switch Bracket |
1 |
1 |
*4) |
|
17-2 |
0207-10610 |
Cutting Height
Switch Bracket |
1 |
1 |
*5) |
|
18 |
0207-74400 |
Safety Switch K17850 |
3 |
3 |
|
|
19 |
0207-72800 |
Switch Lock Nut |
3 |
3 |
|
|
20 |
80-1490-383-30 |
Battery Carrier |
1 |
1 |
*4) |
|
|
80-1490-383-40 |
Battery Carrier |
1 |
1 |
*1) *5) |
|
21 |
80-1488-921-00 |
Label Pedal
Stopper (13113) |
1 |
1 |
|
|
22 |
80-1482-971-00 |
Cushion Rubber
(Battery) |
1 |
1 |
|
|
23 |
80-1792-976-00 |
Battery(32A-19L) |
1 |
1 |
|
|
24 |
Battery Parts |
Battery Parts |
2 |
2 |
|
|
25 |
Battery Parts |
Battery Parts |
2 |
2 |
|
|
26 |
89-1111-060302 |
Hexagonal Bolt
M6*30 |
1 |
1 |
|
|
27 |
89-1750-060002 |
Spring Washer 6 |
4 |
4 |
|
|
28 |
89-1511-060042 |
Hexagonal Nut M6 |
1 |
1 |
|
|
29 |
89-1812-060002 |
Toothed washer
(inside) 6 |
2 |
2 |
|
|
30 |
89-1713-060002 |
Flat
Washer(Large) 6 |
3 |
3 |
|
|
31 |
80-1792-988-00 |
Harness Clip
8 |
2 |
2 |
|
|
32 |
89-1571-060042 |
Cap Nut
M6 |
1 |
1 |
|
|
33 |
89-1111-060252 |
Hexagonal Bolt
M6*25 |
1 |
1 |
|
|
34 |
0207-63200 |
Battery Cover |
1 |
1 |
|
|
35 |
89-1211-080352 |
Mini Hexagonal
Bolt M8*35 |
1 |
1 |
|
|
36 |
89-1631-080042 |
Flange Mini
Hexagonal Nut M8 |
2 |
2 |
|
|
37~40 |
85-1484-940-00 |
Hour Meter
Assy |
1 |
1 |
|
|
37 |
85-1484-941-00 |
Hour Meter |
1 |
1 |
|
|
38 |
85-1484-943-10 |
Hour Meter
Bracket |
1 |
1 |
|
|
39 |
89-1159-060168 |
Truss Mini
Screw M6*16 |
2 |
2 |
|
|
40 |
85-1484-942-00 |
Wire Harness for Hour Meter |
1 |
1 |
|
|
41 |
0207-74300 |
Head Lamp |
|
1 |
|
|
42 |
0207-75300 |
Tape |
|
1 |
|
|
43 |
0207-21100 |
Light Setting Collar |
|
1 |
|
|
44 |
80-1484-337-00 |
Lighting Switch(B15930) |
|
1 |
|
|
45 |
0207-79300 |
Pilot Lamp |
1 |
1 |
*5) |
|
46 |
0207-79200 |
Fuse Box Bracket |
1 |
1 |
*7) |
|
47 |
89-1137-060122 |
Hexagonal Bolt
(PW) M6*12 |
2 |
2 |
*7) |
|
|
|||||
-24-
ş A8
A9 67
53
28
6A
65
79
70
75 gg
78
25 76 72
3S
42
2
—25—
Fig.5 CUTTING PARTS & COVER
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
1 |
80-1481-709-10 |
Link Bolt |
6 |
6 |
|
|
2 |
89-1711-120002 |
Flat Washer
12 |
8 |
8 |
|
|
3 |
89-1750-120002 |
Spring Washer
12 |
8 |
8 |
|
|
4 |
89-1551-120002 |
Hexagonal U Nut M12 |
8 |
8 |
|
|
5 |
0207-51600 |
Link Bolt |
2 |
2 |
|
|
6 |
0207-51500 |
Link Collar |
2 |
2 |
|
|
7 |
0215-81900 |
Label, Oiling |
6 |
6 |
|
|
8 |
80-1482-707-00 |
Link Arm(front) |
2 |
2 |
|
|
9 |
80-1484-708-00 |
Link Arm (Left-rear) |
1 |
1 |
|
|
10 |
80-1485-707-00 |
Link Arm
(Right-rear) |
1 |
1 |
|
|
11 |
80-1484-275-20 |
Connecting Plate
(Left) |
1 |
1 |
|
|
12 |
80-1487-276-00 |
Connecting Plate
(Right) |
1 |
1 |
|
|
13 |
83-1751-311-00 |
Washer 8*25*2.3 |
4 |
4 |
|
|
14 |
89-1232-080252 |
Mini Hexagonal
Bolt (SW) M8*25 |
2 |
2 |
|
|
15 |
80-1484-276-00 |
Spring (Up/Down) |
2 |
2 |
|
|
16 |
89-1232-080162 |
Mini Hexagonal
Bolt (SW) M8*16 |
2 |
2 |
|
|
17 |
80-1484-501-20 |
Knife Belt Cover |
1 |
1 |
|
|
18 |
89-1236-080162 |
Mini Hexagonal Bolt (PWSW) M8*16 |
3 |
3 |
|
|
19 |
89-1213-120302 |
Mini Hexagonal
Bolt (8T) M12*30 |
1 |
1 |
|
|
20 |
89-1750-120002 |
Spring Washer
12 |
1 |
1 |
|
|
21 |
83-1483-328-00 |
Washer 12*36*4.5 |
1 |
1 |
|
|
22 |
0207-50400 |
Knife Pulley CMP |
1 |
1 |
|
|
23 |
89-5121-356210 |
Oil Seal UE 35.62.10 |
1 |
1 |
|
|
24 |
89-2512-000620 |
Snap Ring R62 |
2 |
2 |
|
|
25 |
89-3115-060074 |
Bearing 6007
2RS |
2 |
2 |
|
|
26 |
80-1493-641-00 |
Vertical Shaft |
1 |
1 |
|
|
27 |
80-1493-824-00 |
Dust Plate |
1 |
1 |
|
|
28 |
89-5121-406212 |
Oil Seal UE 40.62.12 |
1 |
1 |
|
|
29 |
80-1493-833-00 |
Knife Bracket |
1 |
1 |
|
|
30 |
80-1493-836-00 |
Knife Neck Guard |
1 |
1 |
|
|
31 |
80-1493-A17-00 |
Knife Stay |
1 |
1 |
|
|
32 |
80-1483-821-00 |
Brade RM85 |
2 |
2 |
|
|
33 |
80-1483-818-00 |
Knife Collar |
2 |
2 |
|
|
34~38 |
0207-50910 |
Knife Bolt Set |
2 |
2 |
|
|
34 |
0207-50200 |
Round Head
Bolt M14X34 |
2 |
2 |
|
|
35 |
0207-50310 |
Nut Guard |
2 |
2 |
|
|
36 |
89-1750-140002 |
Spring Washer
14 |
2 |
2 |
|
|
37 |
89-1658-140042 |
Low Fluted
Nut (2 Sorts)
M14 |
2 |
2 |
|
|
38 |
89-2120-300252 |
Split Pin 3*25 |
2 |
2 |
|
|
39 |
83-1483-329-00 |
Washer 14*30*3.2 |
2 |
2 |
|
|
40 |
80-1483-845-00 |
Bag Nut M20 |
1 |
1 |
|
|
41 |
89-1750-200002 |
Spring Washer
20 |
1 |
1 |
|
|
42 |
83-1483-129-00 |
Mini Hexagonal
Bolt(8T) M12*30 |
2 |
2 |
|
|
43 |
89-1750-120002 |
Spring Washer
12 |
2 |
2 |
|
|
44 |
80-1493-731-00 |
Safety Cover
CMP |
1 |
1 |
|
|
45 |
80-1482-373-00 |
Brake Return Spring |
1 |
1 |
|
|
46 |
83-1565-329-00 |
Washer 13*22*2.3 |
4 |
4 |
|
|
47 |
80-1482-371-30 |
Knife Brake
(6t) |
1 |
1 |
|
|
48 |
89-2521-000100 |
E Type Ring 10 |
2 |
2 |
|
|
49 |
0207-52120 |
Knife Brake
Bracket CMP(NEW) |
1 |
1 |
|
|
50 |
89-1236-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
2 |
2 |
|
|
51 |
89-3510-012200 |
DU Bush
12.20 |
2 |
2 |
|
|
52 |
83-1754-329-00 |
Washer 13*22*1.0 |
1 |
1 |
|
|
53 |
89-1137-060152 |
Hexagonal Bolt
(PW) M6*15 |
7 |
7 |
|
-26-
Fig.5 CUTTING PARTS & COVER
12
13
16 15 18
18
19
2D
22
A7
49 67
23
2
25
26 Ü
63
62
79
81 75 g9
80
55 53
27
28
78 77 75
25 76 72
b7
66
36
35
A2
32
42
-27-
Fig.5 CUTTING PARTS & COVER
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
|
RM86B |
RM86TB |
||||
|
B&S 14HP |
B&S 14HP |
||||
|
54 |
83-1575-189-00 |
Flange Cap Nut M6 |
7 |
7 |
|
|
55 |
0215-60400 |
Rear Guard
Flapper 560 |
1 |
1 |
|
|
56 |
80-1493-782-00 |
Rear Guard
Flapper Holder |
1 |
1 |
|
|
57 |
0215-80800 |
Left Cover
CMP |
1 |
1 |
|
|
58 |
89-1671-080042 |
Mini Hexagonal Cap Nut M8 |
4 |
4 |
|
|
59 |
89-1750-080002 |
Spring Washer 8 |
4 |
4 |
|
|
60 |
89-1714-080002 |
Flat Washer 8 |
2 |
2 |
|
|
61 |
0215-80700 |
Left Front
Cover |
1 |
1 |
|
|
62 |
89-1211-080202 |
Mini Hexagonal
Bolt M8*20 |
1 |
1 |
|
|
63 |
80-1484-617-00 |
Knife Pulley
Belt Holder |
2 |
2 |
|
|
64 |
89-1236-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
2 |
2 |
|
|
65 |
80-1792-988-00 |
Harness Clip
8 |
1 |
1 |
|
|
66 |
80-1488-928-00 |
Label, Caution
for Belt Involving |
2 |
2 |
*13) |
|
|
80-1488-928-10 |
Label, Caution for Belt Involving |
2 |
2 |
*1) *14) |
|
67 |
80-1488-926-00 |
Attention Mark for Blade
(13062) |
2 |
2 |
*13) |
|
|
80-1488-926-10 |
Label, Caution for Knife |
2 |
2 |
*1) *14) |
|
68 |
80-1493-A53-00 |
Right Cover
CMP |
1 |
1 |
*11) |
|
|
0215-60700 |
Right Cover CMP |
1 |
1 |
*1) *12) |
|
69 |
0215-81200 |
Right Front
Cover |
1 |
1 |
|
|
70 |
80-1484-757-10 |
Cover Flapper
(Right) |
1 |
1 |
|
|
71 |
80-1484-758-00 |
Flapper Holder(Right) |
1 |
1 |
|
|
72 |
89-1137-060172 |
Hexagonal Bolt
(PW) M6*17 |
3 |
3 |
|
|
73 |
83-1575-189-00 |
Flange Cap Nut M6 |
3 |
3 |
|
|
74 |
80-1493-748-00 |
Right Cover
Receiver Bolt |
2 |
2 |
|
|
75 |
80-1488-749-00 |
Spring for
Right Cover |
2 |
2 |
*11) |
|
|
80-1488-749-00 |
Spring for Right
Cover |
1 |
1 |
*12) |
|
76 |
80-1488-747-00 |
Bolt for Right
Cover Up/Down Arm |
1 |
1 |
|
|
77 |
80-1488-746-00 |
Right Cover
Up/Down Arm |
1 |
1 |
|
|
78 |
89-1213-080202 |
Mini Hexagonal
Bolt (8T) M8*20 |
1 |
1 |
|
|
79 |
89-1561-080002 |
Mini Hexagonal U Nut M8 |
1 |
1 |
|
|
80 |
89-1671-120042 |
Mini Hexagonal Cap Nut M12 |
2 |
2 |
|
|
81 |
89-1750-120002 |
Spring Washer
12 |
2 |
2 |
|
|
82 |
89-1211-080162 |
Mini Hexagonal
Bolt M8*16 |
5 |
5 |
|
|
*1) Interchangeable *2) Serial Number : ~ XW01F00037 *3) Serial Number : XW01K00038~ *4) Serial Number : ~XW01K00065 *5) Serial Number : XW01L00066~ *6) Serial Number : ~XW01L00081 *7) Serial Number : XW01M00082~ *8) Serial Number : XW02J00012~ *9) Serial Number : ~XW02J00013 *10) Serial
Number : XW02L00014~ *11) Serial
Number : ~XW03A00060 *12) Serial
Number : XW03B00001~ *13) Serial
Number : ~XW03B00044 *14) Serial
Number : XW03J00045~ |
|||||
-28-
