OREC                            ISSUED NO. RMK150/OK-1

Parts catalogue

Winery Mower

(EXPORT MODEL) RMK150

MODEL              CODE

RMK150/K           0329-○○○○○





















CONTENTS



Fig. 1

FRAME ------------------------------

1

Fig. 2

TRANSMISSION & HST --------

15

Fig. 3

HANDLE -----------------------------

24

Fig. 4

ROTARY COVER -----------------

28

Fig. 5

TIRE ----------------------------------

32

Fig. 6

CONTROL --------------------------

33

Fig. 7

CUTTING ----------------------------

36

Fig. 8

CUTTING OFFSET ---------------

44

Fig. 9

SEAT ---------------------------------

54

Fig. 10

ENGINE ------------------------------

57

Fig. 11

LABEL -------------------------------

OREC CO.,LTD

61



Update : Dec 2015



1/62

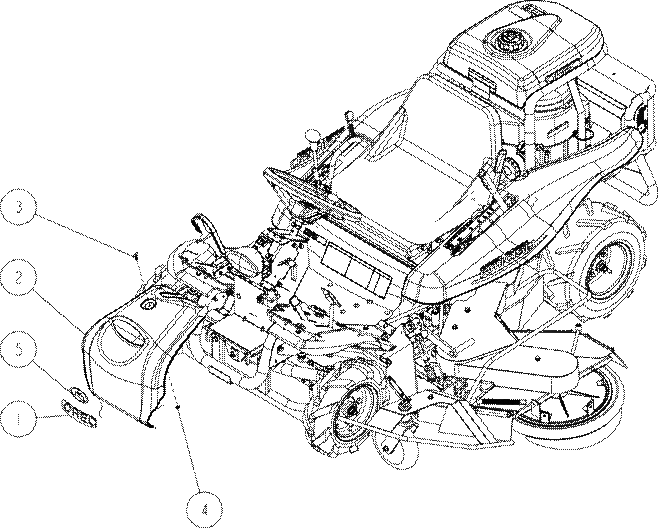

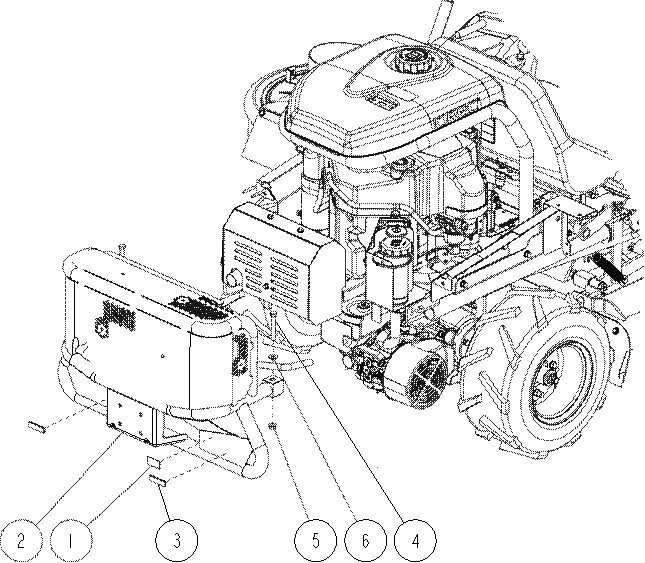

FRAME    1/14



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0312-79900

Label, OREC (Front Cover)

1



2

0322-70900

Front Cover

1



3

0322-71200

Wing Stud φ 6*14

1



4

0322-71700

Retainer

1



5

0322-77200

Label, RM Emblem

1



2/62

FRAME    2/14













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0217-70100

Label, Differential Lock (13168)

1



2

0267-40900

Double Spring Bolt M

1



3

0312-76800

Side Cover (L) Red

1



4

0312-76700

Side Cover (R) Red

1



5

0329-71100

Double Spring Bolt 85L

1



6

0329-77300

Label, Side RMK150

1



7

0329-77500

Label, Choke (RMK150)

1



8

0329-78300

Label, Cutting Height Adjusting (RMK150

1



9

0329-78400

Label, Control (RMK150)

1



10

0919-01200

Belt Cover Setting Bolt A

2



11

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



12

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



14

89-1714-080002

Flat Washer 8

2



3/62

FRAME    3/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0028-70500

Center Step Hinge

4



2

0215-83100

Attention Mark for Slope

1



3

0215-83200

Label, Protection Equipment

1



4

0223-76100

Label, Caution (Large)

1



5

0312-10500

Change Pedal CMP

1



6

0312-15200

Pedal Stay CMP

1



7

0312-70400

Bonnet Clip

1



8

0312-71200

Change Pedal Rubber

1



9

0322-25200

Center Step CMP (RMK150)

1



10

0329-25100

Step CMP (RMK150)

1



11

0329-70100

Step Rubber (RMK150)

1



12

83-1020-314-00

Washer 8*40*2.3

2



13

83-1310-902-00

OREC Mark

1



14

83-1484-369-00

Clip (5347)

20



15

83-1515-975-00

Grease Nipple C-Type M6

1



16

89-1137-060172

Hexagonal Bolt (PW) M6*17

2



17

89-1159-080168

Truss Mini Screw M8*16

2



18

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



19

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



20

89-1531-060042

Flange Nut M6

2



21

89-1631-080042

Flange Mini Hexagonal Nut M8

2



22

89-2521-000120

E Type Ring 12

1



23

89-3510-016250

DU Bush 16.25

2



4/62

FRAME    4/14

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0217-70800

Label, Gear Oil 1.0L

1



2

0322-20300

Sub Frame CMP

1



3

0322-77900

Reflection Seat (Red)

2



4

89-1213-100652

Mini Hexagpnal Bolt (8T) M10*65

2



5

89-1631-100042

Flange Mini Hexagonal Nut M10

2



6

89-1714-100002

Flat Washer 10

2



5/62

FRAME    5/14





Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-71000

Fuel Tank Assy

1

Include : 3,4,5,7,11

1

0322-60200

Rear Fender Cover (R)

1



2

0322-60400

Fuel Tank Cover Stay

1



3

0322-70100

Fuel Tank CMP

1



4

0322-70600

Fuel Gauge

1



5

0322-70700

Fuel Filter

1



6

0322-73200

Tank Cover White

1



7

0322-76000

Fuel Tank Cap Assy (with valve)

1



8

0322-77500

Label, OREC (Fuel Tank Cover)

2



9

0329-60700

Fuel Tank Holder CMP (RMK150)

1



10

83-1711-719-00

Wire Band 200L

3



11

89-1152-050122

Cross recess Headed Screw M5*12

2



12

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

10



13

Cutting Part

-

1

Page 36～

14

Engine Part

-

1

Page 57～

15

Seat Part

-

1

Page 54～

6/62

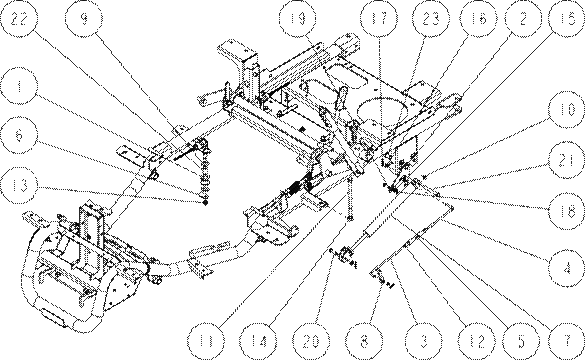

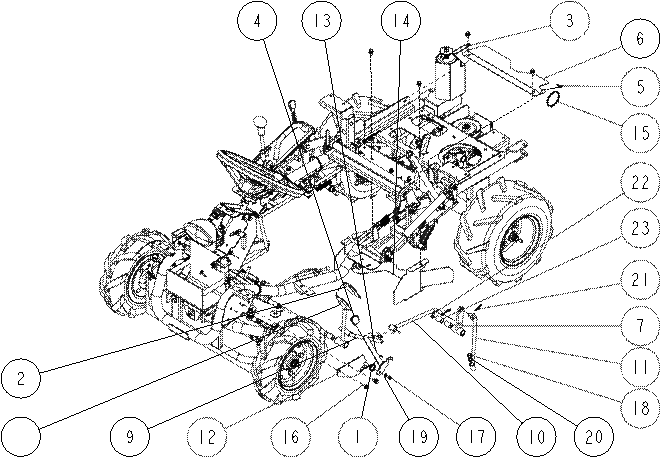

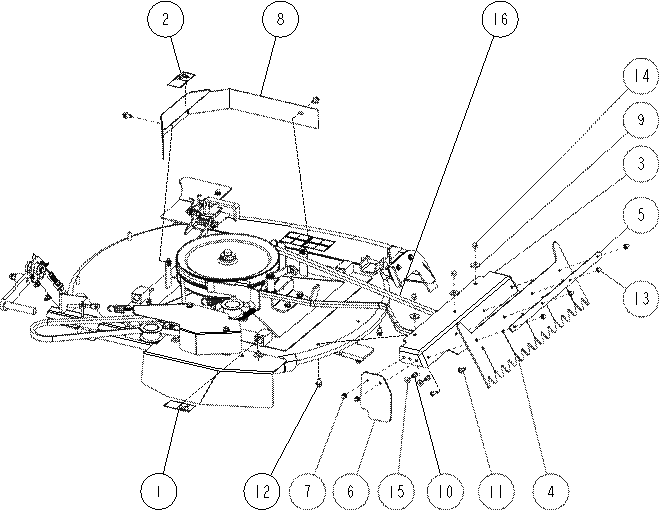

FRAME    6/14





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1751-248-10

Brake Spring

1



2

80-1781-943-00

Pedal Rubber

1



3

80-1792-988-00

Harness Clip 8

1



4

0215-70600

Lever Grip (Red)

1



5

0229-13100

Rubber, L20

1



6

0322-22500

Upper Belt Cover

1



7

0329-56500

Joint Link (RMK150)

1



8

0329-57100

Offset Pedal CMP (RMK150)

1



9

0329-57200

Offset Pedal Rod (RMK150)

1



10

0329-57300

Offset Pedal Rod (B) CMP (RMK150)

1



11

0329-57400

Offset Pedal Rod (C) CMP (RMK150)

1



12

0329-58100

Pedal Stopper Bracket (RMK150)

1



13

0329-58200

Pedal Stopper (RMK150)

1



14

0329-60200

Center Belt Cover (RMK150)

1

～XR15D00087



0329-60210

Center Belt Cover (RMK150)

1

XR15L00091～

15

83-1711-719-00

Wire Band 200L

1



16

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



17

89-1561-100002

Mini Hexagonal U Nut M10

1



18

89-1561-080002

Mini Hexagonal U Nut M8

1



19

89-1711-080002

Flat Washer 8

1



20

89-1711-100002

Flat Washer 10*18*1.6

1



21

89-2131-120002

Snap Pin 12

4



22

89-2521-000120

E Type Ring 12

1



23

89-3510-016250

DU Bush 16.25

4



7/62

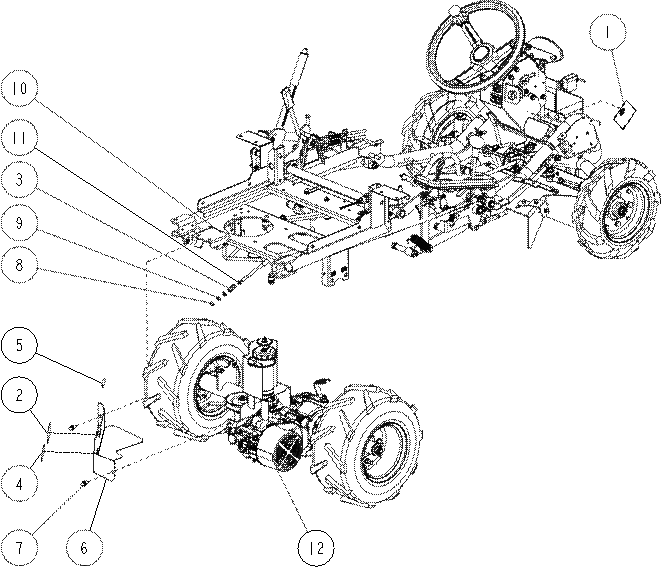

FRAME    7/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1488-921-00

Label Pedal Stopper (13113)

1



2

80-1488-928-10

Label, Caution for Belt Involving

1



3

0207-75400

Brake Spring 30

1



4

0215-80400

Driving Clutch ON-OFF Label

1



5

0289-71100

Rubber L50

1



6

0329-60300

Rear Belt Cover (RMK150)

1



7

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



8

89-1561-080002

Mini Hexagonal U Nut M8

1



9

89-1611-080042

Mini Hexagonal Nut M8

1



10

89-1631-080042

Flange Mini Hexagonal Nut M8

1



11

89-1711-080002

Flat Washer 8

2



12

Transmission & HST Part

-

1

Page 15～


8/62

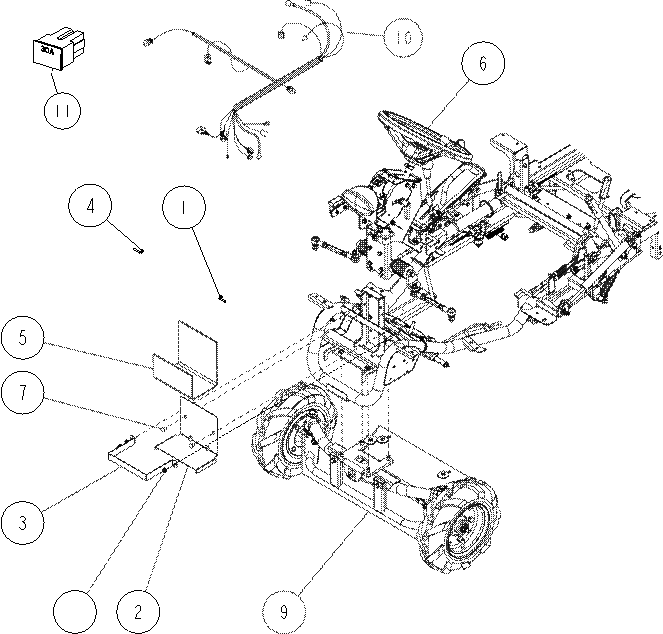

FRAME    8/14



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-72000

Wire Harness Assy (RM881/K)

1

Include : 1,4,10

1

0207-77100

Battery Plus Cord 230

1



2

0322-22100

Battery Carrier

1



3

0322-22200

Battery Holder

1



4

0322-72200

Battery Minus Cord

1



5

0322-72300

Cushion Rubber (Battery)

1



6

Handle Part

-

1

Page 24～

7

83-1484-369-00

Clip (5347)

2



8

89-1631-080042

Flange Mini Hexagonal Nut M8

3



9

Front Part

-

1

Page 28～

10

0322-72100

Wire Harness (RM881/K)

1



11

0312-75900

Fuse 30 A

1



9/62

FRAME    9/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1493-354-00

Rod Return Spring

1



2

0259-80700

Label, Cutting Height Line

1



3

0312-23100

Brake Stopper CMP

1



4

0312-23200

Brake Stopper Return Spring

1



5

0312-71100

Brake Pedal Rubber

1



6

0322-10400

Brake Pedal CMP

1



7

0322-13200

Brake Rod CMP

1



8

Control Part

-

1

Page 33～

9

83-1415-975-00

Grease Nipple M6

1



10

83-1711-719-00

Wire Band 200L

5



11

89-1213-100302

Mini Hexagonal Bolt (8T) M10*30

1



12

89-1213-100352

Mini Hexagonal Bolt (8T) M10*35

1



13

89-1611-100042

Mini Hexagonal Nut M10

2



14

89-1711-120002

Flat Washer 12

1



15

89-2131-120002

Snap Pin 12

1



16

89-2521-000120

E Type Ring 12

2



17

89-3510-016150

DU Bush 16.15

1



18

89-3510-016250

DU Bush 16.25

2



10/62

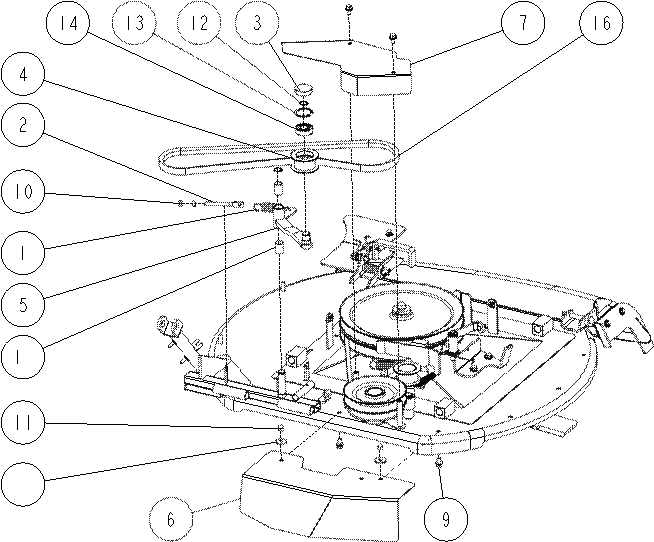

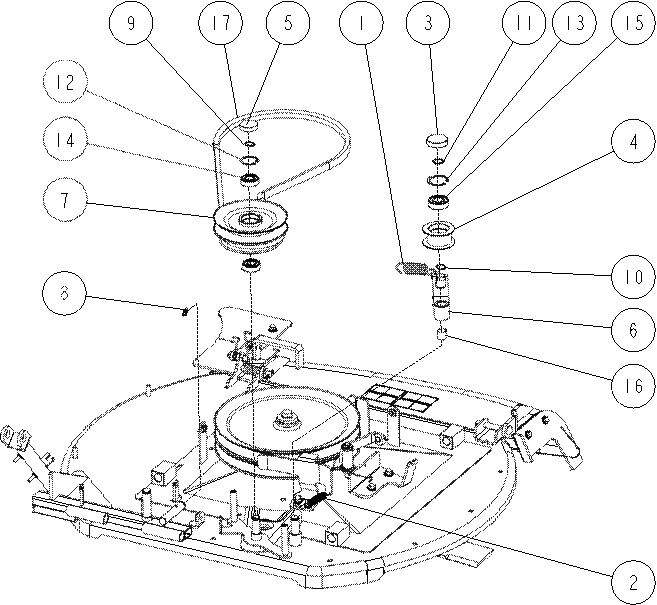

FRAME    10/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0227-42000

Knife Tension Pulley Set

1

Include : 4,6,13,15,16

-

0227-41000

Knife Tension Pulley (A) Set

1

Include : 5,7,13,15,16

1

80-1482-549-00

Rubber Cover 58

2



2

80-1483-568-00

Knife Tension Return Spring

1



3

0207-78400

Spring For Knife Tension Return

1



4

0227-40200

Knife Tension Pulley

1



5

0227-40300

Knife Tension Pulley (A)

1



6

0227-40400

Knife Tension Pulley Axle

1



7

0244-42800

Tension Idler Shaft

1



8

0329-41200

Knife Tension Arm CMP(RMK150)

1



9

83-1020-363-00

Thrust Washer 16*24*1.0

2



10

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

2



11

89-1713-100002

Flat Washer 10 (large)

2



12

89-1750-100002

Spring Washer 10

2



13

89-2511-000150

Snap Ring (S15)

2



14

89-2511-000160

Snap Ring (S16)

1



15

89-2512-000350

Snap Ring (R35)

2



16

89-3115-062024

Bearing 6202 2RS

4



17

89-3510-016250

DU Bush 16.25

2



11/62

FRAME    11/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

-

83-1032-760-00

Tension Pulley Assy

1

Include : 7,13,14

1

80-1482-549-00

Rubber Cover 58

1



2

80-1485-551-00

Driving Tension Spring

1



3

0207-41100

Drive Tension Spring Arm

1



4

0312-41400

Belt Holder CMP (Engine)

1



5

0322-41100

Driving Tension Arm CMP

1



6

83-1020-363-00

Thrust Washer 16*24*1.0

2



7

83-1032-765-00

Tension Pulley

1



8

89-1211-100252

Mini Hexagonal Bolt M10*25

1



9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



10

89-1611-100042

Mini Hexagonal Nut M10

1



11

89-2511-000160

Snap Ring (S16)

1



12

89-2511-000170

Snap Ring (S17)

1



13

89-2512-000400

Snap Ring (R40)

1



14

89-3115-062034

Bearing 6203 2RS

1



12/62

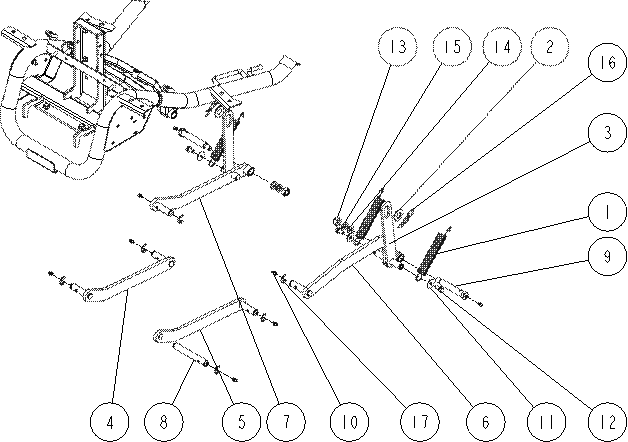

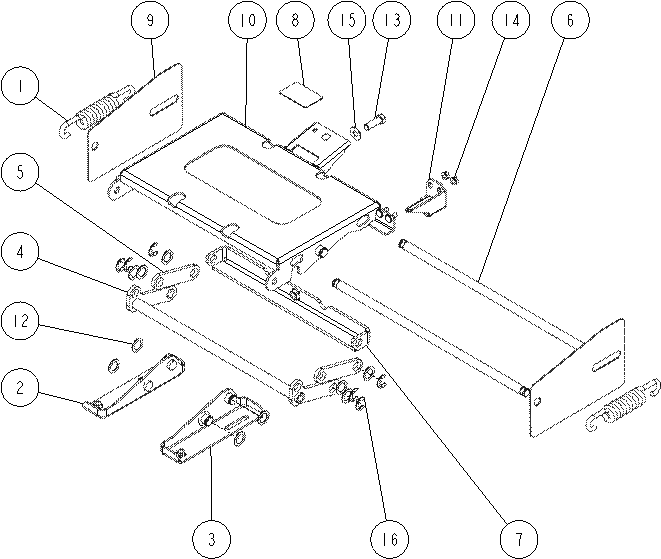

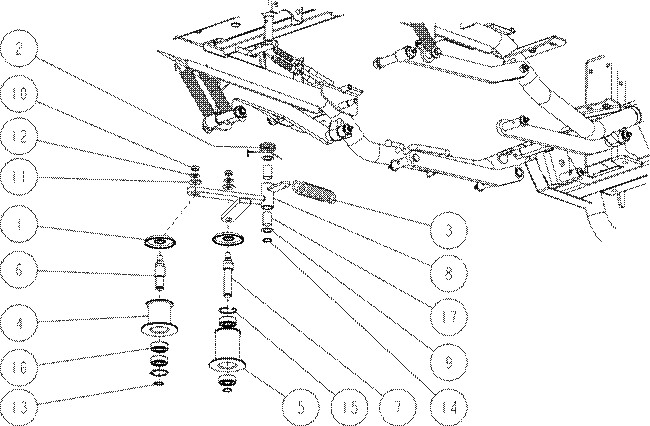

FRAME    12/14













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-76200

Spring (Up/Down)

3



2

0207-76800

Washer 16*32*2.3

2



3

0244-10400

Connecting Plate

2



4

0322-51400

Front Link Arm CMP(R)

1



5

0329-50100

Front Link Arm CMP(L) (RMK150)

1



6

0329-50400

Rear Link Arm CMP(L) (RMK150)

1



7

0329-50500

Rear Link Arm CMP(R) (RMK150)

1



8

0329-51100

Link Pin(RMK150)

1



9

0329-51200

Link Bolt

2



10

83-1415-975-00

Grease Nipple M6

8



11

83-1751-311-00

Flat Washer 8*25*2.3

3



12

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

3



13

89-1551-120002

Hexagonal U Nut M12

2



14

89-1711-120002

Flat Washer 12

2



15

89-1750-120002

Spring Washer 12

2



16

89-2131-160002

Snap Pin 16

2



17

89-2521-000120

E Type Ring 12

7



13/62

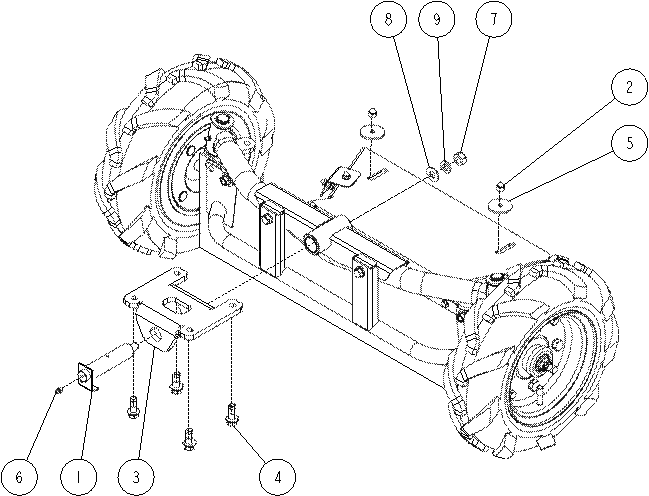

FRAME    13/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1484-354-10

Brake Rod Roller

1



2

0244-11300

Push Rod Receiver CMP

1



3

0244-11400

Adjuster Rod (R)

1



4

0244-11500

Adjuster Rod (L)

1



5

0244-11600

Turn Buckle (Pipe Type)

1



6

0244-22600

Brake Rod Hung Plate

1



7

0303-71100

Gas Spring Free Lock Type (FLC75-75)

1



8

0329-10500

Lock Pusher(RMK150)

1



9

83-1020-355-00

Thrust Washer 12*24*1.0

2



10

89-1137-060122

Hexagonal Bolt (PW) M6*12

1



11

89-1213-101402

Mini Hexagonal Bolt (8T) M10*140

1



12

89-1511-060042

Hexagonal Nut M6

1



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



14

89-1611-100042

Mini Hexagonal Nut M10

1



15

89-1711-060002

Flat Washer 6

3



16

89-1711-080002

Flat Washer 8

2



17

89-2131-080002

Snap Pin 8

2



18

89-2132-060002

Snap Pin 6 (with stopper)

3



19

89-2181-060202

Flat Head Pin 6*20

1



20

89-2181-080282

Flat Head Pin 8*28

1



21

89-2181-080692

Flat Head Pin 8*69

1



22

89-3510-012200

DU Bush 12.20

1



23

89-3511-010150

DU Bush 10.15.18F

1



14/62

FRAME    14/14





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

2



2

0207-72800

Switch Lock Nut

2



3

0207-74400

Safety Switch K17850

2



4

0244-10600

Push Rod

1



5

0244-13700

Wire Joint CMP

1



6

0244-70200

Adjusting Shaft Grip

1



7

0284-71110

Knife Brake Wire

1



8

0289-71300

Arm Grip (Red)

1



9

0322-13100

Up/Down Adjusting Shaft CMP

1



10

0322-13300

Safety Switch Setting Plate

1



11

0322-20100

Frame CMP

1



12

0322-75110

Knife Clutch Wire

1



13

0329-13400

Knife Clutch Lever CMP (RMK150)

1



14

83-1415-975-00

Grease Nipple M6

1



15

89-1132-060162

Hexagonal Bolt (SW) M6*16

2



16

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



17

89-1631-080042

Flange Mini Hexagonal Nut M8

1



18

89-1711-060002

Flat Washer 6

3



19

89-2132-060002

Snap Pin 6 (with stopper)

3



20

89-2511-000130

Snap Ring (S13)

1



21

89-2521-000120

E Type Ring 12

1



15/62

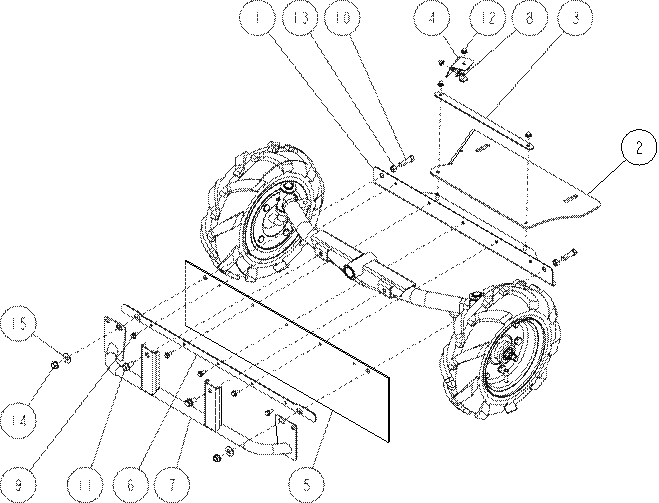

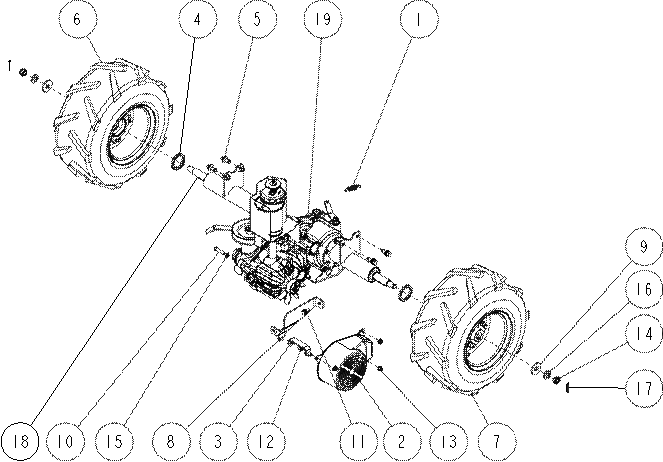

TRANSMISSION & HST     1/9









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

1



2

0207-07200

Fan Cover CMP

1



3

0207-07400

Fan Cover Setting CMP

1



4

0207-77800

Wheel Boss Dust Seal

2



5

0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7T Lock)

4



6

0272-33000

Rear Tire (L) ASSY (16×7.00-8) (Include Wheel Boss)

1

Detail : Page 32

7

0272-34000

Rear Tire (R) ASSY (16×7.00-8) (Include Wheel Boss)

1

Detail : Page 32

8

0329-01500

Transmission Hunger Stay CMP (RMK15

1



9

83-1630-335-00

Washer 16*40*4.5

1



10

89-1211-080352

Mini Hexagonal Bolt M8*35

2



11

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



12

89-1561-080002

Mini Hexagonal U Nut M8

1



13

89-1631-080042

Flange Mini Hexagonal Nut M8

3



14

89-1658-160042

Low Fluted Nut (2 sorts) M16

2



15

89-1750-080002

Spring Washer 8

1



16

89-1750-160002

Spring Washer 16

2



17

89-2120-350352

Split Pin 3.5*35

2



18

89-2150-070500

Key 7*50 (round)

2



19

0329-09000

Transmission Assy (with HST) (RMK150

1

Detail : Page 16

16/62

TRANSMISSION & HST     2/9



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-03100

Mission Guard CMP

1



2

0207-07300

Double Spring Bolt

2



3

0207-07500

Fan

1



4

0329-09100

Transmission Assy (without HST) (RMK

1

Detail : Page 17～

5

0322-09200

HST Unit (KYB)Assy (RMK150)

1

Detail : Page 23

6

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



7

89-1232-080122

Mini Hexagonal Bolt (SW) M8*12

4



8

89-1251-081123

Flange Mini Hexagonal Bolt M8*112

2



9

89-1750-080002

Spring Washer 8

2



10

89-2150-050200

Key 5*20 (round)

1



11

89-5222-045000

O Ring G45

2



17/62

TRANSMISSION & HST     3/9













Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0207-73000

Brake Assy

1

Include : 1,2,4,5,7,9,11

,15

-

0207-73200

Brake Cap Assy

1

Include : 2,4,7,9,11,

15

1

80-1030-282-00

Brake Drum (PA-7)

1



2

80-1030-285-00

Spring for Brake Shoe Return

1



3

0207-10300

Brake Joint

1



4

0244-88100

Brake Shoe Set (PA-7)

1



5

0308-00300

Brake Cover PK (PA-7)

1



6

89-1113-060122

Hexagonal Bolt (8T) M6*12

4



7

89-1611-100042

Mini Hexagonal Nut M10

1



8

89-1711-080002

Flat Washer 8

1



9

89-1712-100000

Flat Washer 10

1



10

89-1750-060002

Spring Washer 6

4



11

89-1750-100002

Spring Washer 10

1



12

89-2120-200152

Split Pin 2*15

1



13

89-2511-000150

Snap Ring (S15)

1



14

89-5125-153007

Oil Seal UE 15.30.07F

1




18/62

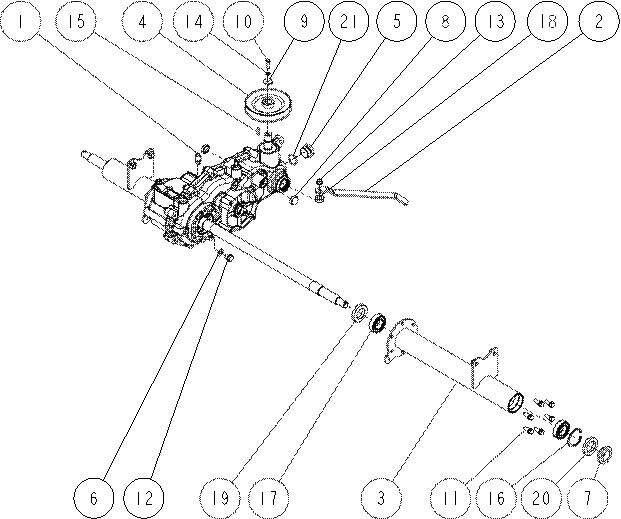

TRANSMISSION & HST     4/9



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0289-01000

Oil Plug Assy (with O Ring)

1

Include : 5,21

-

0244-08000

Oil Seal 25.47.15(with DP)

1

Include : 7.20

1

0207-06100

Air Bleezer

1



2

0215-00100

Driving Clutch Arm

1



3

0281-00100

Axle Case CMP (L)

1



4

0284-40200

Transmission Pulley(HI)

1



5

0289-01100

Oil Plug Assy (with O Ring)

1



6

83-1020-349-00

Copper Packing 10.5*18*1.6

1



7

83-1415-663-00

Oil Seal DP 25.30.15

1



8

83-1415-671-00

Blind Cover 22

2



9

83-1482-311-00

Washer 6.5*22*3.2

1



10

89-1113-060202

Hexagonal Bolt (8T) M6*20

1



11

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

6



12

89-1252-100122

Flange Mini Hexagonal Bolt M10*12 (slen

1



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



14

89-1750-060002

Spring Washer 6

1



15

89-2151-050200

Key 5*20 (half round)

1



16

89-2512-000470

Snap Ring (R47)

1



17

89-3115-060054

Bearing 6005 2RS

2



18

89-5121-122207

Oil Seal UE 12.22.7

1



19

89-5121-284708

Oil Seal UE 28.47.8

1



20

89-5121-304707

Oil Seal UE 30.47.7

1



21

89-5221-024000

O Ring P24

1



19/62

TRANSMISSION & HST     5/9



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1310-138-00

Spring 1.4

1



2

0207-00100

Transmission Case(L)

1



3

0207-00400

20T Spiral Mita Gear(L)

1



4

0207-01700

Swing Arm CMP

1



5

0207-01900

Shift Spring Holder

1



6

0281-00300

A Axle

1



7

83-1020-148-00

Tapping Bolt M6*14

2



8

83-1482-143-00

Tapping Bolt M8*25

12



9

89-2150-050160

Key 5*16 (round)

1



10

89-2511-000170

Snap Ring (S17)

1



11

89-2512-000420

Snap Ring (R42)

1



12

89-3115-060044

Bearing 6004 2RS

2



13

89-3410-080000

Steel Ball 8.0

1



14

89-5121-204208

Oil Seal UE 20.42.8

1




20/62

TRANSMISSION & HST     6/9





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-00500

20T Spiral Mita Gear(R)

1



2

0207-00600

B Axle

1



3

0207-00700

C Axle

1



4

0207-01310

Brake Shaft 34T Gear

1



5

0207-01400

D Axle 37T Gear

1



6

0207-01600

Shift Fork Shaft CMP

1



7

0215-00300

Brake Shaft

1



8

0215-00400

Shift Gear 28

1



9

0215-00500

C Axle Collar 26

1



10

0244-00400

D Axle

1



11

83-1020-361-00

Thrust Washer 15*24*1.0

1



12

89-3111-060044

Bearing 6004

4



13

89-3111-062024

Bearing 6202

2



14

89-3111-062034

Bearing 6203

2



21/62

TRANSMISSION & HST     7/9















Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0244-08000

Oil Seal 25.47.15(with DP)

1

Include : 6,15

1

80-1488-153-00

Differential Lock Arm

1



2

80-1830-113-00

Differential Lock Fork

1



3

0207-00200

Transmission Case(R)

1



4

0207-01800

Differential Lock Fork Shaft

1



5

0281-00200

Axle Case CMP (R)

1



6

83-1415-663-00

Oil Seal DP 25.30.15

1



7

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

6



8

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



9

89-2111-030020

Spring Pin 3*20

1



10

89-2111-050022

Spring Pin 5*22

1



11

89-2512-000470

Snap Ring (R47)

1



12

89-3115-060054

Bearing 6005 2RS

2



13

89-5121-122207

Oil Seal UE 12.22.7

1



14

89-5121-284708

Oil Seal UE 28.47.8

1



15

89-5121-304707

Oil Seal UE 30.47.7

1




22/62

TRANSMISSION & HST     8/9













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-150-00

Axle Pin

1



2

80-1425-143-00

Differential Lock Cone

1



3

80-1481-151-00

Differential Lock Plate

1



4

80-1481-152-00

Differential Lock Gear 11T

4



5

80-1481-155-00

Differential Gear Shaft Collar

4



6

80-1751-162-00

Differential Lock Spring

1



7

0207-02220

Axle(R) CMP

1



8

0207-02120

Axle(L) CMP

1



9

0244-00300

Axle Gear 39T CMP

1



10

83-1830-382-00

Thrust Washer 40*48*1.0

1



11

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

6



12

89-1750-100002

Spring Washer 10

6



13

89-2511-000280

Snap Ring (S28)

1



14

89-2511-000400

Snap Ring (S40)

1



15

89-3410-075000

Steel Ball 7.5

3



16

89-3510-028300

DU Bush 28.30

1



23/62

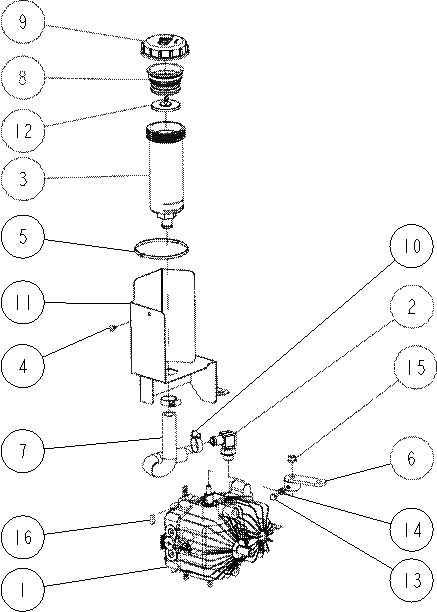

TRANSMISSION & HST     9/9



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-01600

HST Oil Tank Assy (Black Cap)

1

Include : 3,8,9

1

HST Unit

-

1

Detail : Page 16

2

0207-07700

Port Joint

1



3

0207-08610

HST Oil Tank (without Tank Cap)

1



4

0207-79800

Push Clip

1



5

0227-74200

Wire Band 300

1



6

0244-01400

Control Arm CMP

1



7

0244-72700

HST Oil Hose

1



8

0289-71200

Waterproof Packing

1



9

0312-01800

HST Oil Tank Cap

1



10

0312-74400

Hose Band 16-25

2



11

0322-01400

HST Oil Tank Setting CMP

1



12

0322-71600

Moisture Adsorption Sheet

1



13

89-1113-060122

Hexagonal Bolt (8T) M6*12

1



14

89-1511-060042

Hexagonal Nut M6

1



15

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



16

89-2151-050160

Key 5*16 (half round)

1



24/62

HANDLE    1/4



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0262-70100

Steering Wheel Assy

1

Include : 4,5,6

1

80-1488-912-00

Label, Key (13121)

1



2

0244-80700

Label, Handle (Blue)

1



3

0207-79200

Fuse Box Bracket

1



4

0262-70300

Sub Handle Assy

1



5

0262-70400

Steering Wheel

1



6

0262-70500

Steering Cap

1



7

0312-11700

Handle Stay Cover Holder

2



8

0312-77900

Fuse Box Cover

1

Only Cover

9

0322-11500

Meter Panel Cover

1



10

0322-73000

Magnet Switch Set

1



11

0322-78300

Label, Fuse Box

1



12

89-1137-060102

Hexagonal Bolt (PW) M6*10

2



13

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



14

89-1159-060108

Truss Mini Screw M6*10

4



15

89-1531-060042

Flange Nut M6

2



16

89-1561-100002

Mini Hexagonal U Nut M10

1



17

89-1713-100002

Flat Washer 10 (large)

1



18

89-1812-060002

Toothed washer (inside) 6

1



25/62

HANDLE    2/4



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0207-79300

Pilot Lamp

1



3

0207-79700

Key Switch (NMA03-A020)

1



4

0244-70300

Lighting Switch

1



5

0244-73600

Hour Meter

1



6

0322-10510

Handle Stay CMP

1



7

0322-11100

Tilt Pin CMP

1



8

0322-11700

Head Lamp Stay

1



9

0322-11300

Harness Panel CMP

1



10

0322-11400

Meter Panel CMP

1



11

0322-71100

Clip φ 6

1



12

0322-71300

Head Lamp

1



13

0322-71400

Cramp Lever 8*25

1



14

83-1751-312-00

Washer 8*25*3.2

1



15

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

7



16

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

6



17

89-1631-080042

Flange Mini Hexagonal Nut M8

2



18

89-1750-080002

Spring Washer 8

1



19

83-1711-719-00

Wire Band 200L

1



26/62

HANDLE    3/4











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0245-74300

Hexagonal Bolt(SW) M8*18 (Meck)

4



2

0312-74000

Handle Height Pipe Pin Assy

1



3

0314-70100

Mini Hexagonal Bolt (Meck) M8*22

4



4

0322-10110

Steering Joint Shaft CMP

1



5

0322-10210

Steering Upper Shaft CMP

1



6

0322-10700

Handle Support CMP

1



7

0322-10800

Steering Gear Box Bracket CMP

1



8

0322-11600

Mini Hexagonal Bolt M8*10 (Meck)

1



9

89-1750-080002

Spring Washer 8

4



10

89-2150-050200

Key 5*20 (round)

1



11

89-3511-022250

DU Bush 22.25.33F

1



27/62

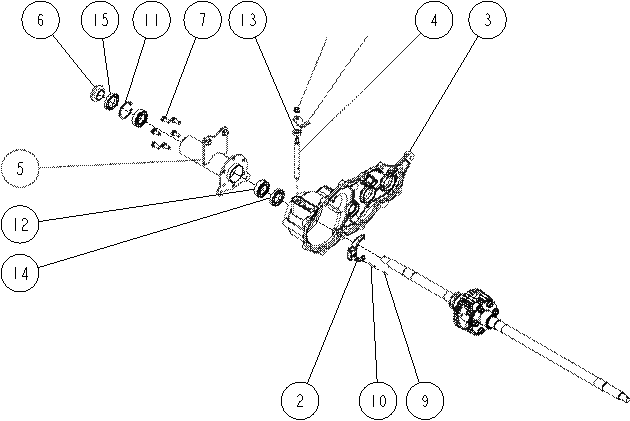

HANDLE    4/4



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0207-13000

Tie Rod Adjuster Assy

2

Include : 5,6,7,9,12

1

80-1016-461-00

Bearing Cover

1



2

80-1020-719-00

Hexagonal Tap Tight M8*18

2



3

80-1484-962-10

Steering Gear Box Assy

1



4

80-1490-967-00

Steering Boots

2



5

80-1493-962-00

Link Ball LHSA 10DE21

2



6

80-1493-963-00

Link Ball LHSA 10DLE21

2



7

0207-13100

Tie Rod Adjuster

2



8

0322-10600

Rack Support (RM881)

1



9

83-1493-195-00

Hexagonal Nut (slender) M10 Left

2



10

83-1493-255-00

Flange Lock Nut M10 (slender)

4



11

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1

2



12

89-1612-100042

Mini Hexagonal Nut (Slender) M10

2



28/62

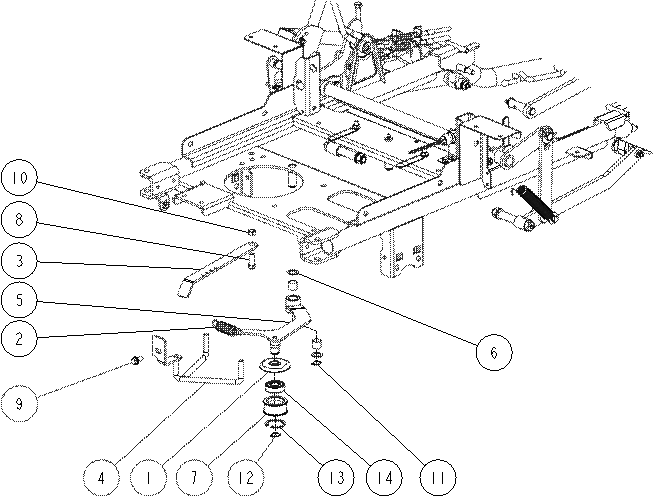

FRONT    1/4

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-30700

Center Pin

1



2

0208-31000

Hexagon U Cap Nut M8

2



3

0312-32200

Front Axle Holder

1



4

0312-74300

Hexagonal Bolt (7T-SW.PW) M10*30 (M

4



5

83-1020-314-00

Washer 8*40*2.3

2



6

83-1415-975-00

Grease Nipple M6

1



7

89-1551-120002

Hexagonal U Nut M12

1



8

89-1713-120002

Flat Washer 12 (large)

1



9

89-1750-120002

Spring Washer 12

1



29/62

FRONT    2/4











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0322-31100

Front Upper Guard CMP

1



2

0322-31200

Upper Flapper

1



3

0322-31300

Upper Flapper Holder

1



4

0322-31500

Upper Flapper Holder (R)

1



5

0329-33400

Front Flapper (RMK150)

1



6

0329-83800

Front Flapper Holder (RMK150)

1



7

0329-83900

Foot Guard CMP (RMK150)

1



8

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

2



9

89-1137-060152

Hexagonal Bolt (PW) M6*15

5



10

89-1213-100357

Mini Hexagonal Bolt (8T) M10*35

2



11

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



12

89-1581-060042

Flange Cap Nut M6

4



13

89-1611-100042

Mini Hexagonal Nut M10

2



14

89-1631-100042

Flange Mini Hexagonal Nut M10

2



15

89-1713-100002

Flat Washer 10 (large)

2



30/62

FRONT    3/4





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-30500

Front Wheel Dust Cover

2



2

0207-30600

Front Wheel Rubber Cover

2



3

0207-30800

Front Wheel Rubber Cover (IN) for 7inch

2



4

0207-30900

Front Wheel Rubber Cover Support

2



5

0207-31100

King Pin Collar

2



6

0322-32000

Front Tire (L) ASSY (3.50-7 TA) (Include Wheel Boss)

1

Detail : Page 32

7

0322-33000

Front Tire (R) ASSY (3.50-7 TA) (Include Wheel Boss)

1

Detail : Page 32

8

89-1631-080042

Flange Mini Hexagonal Nut M8

8



9

89-1668-140042

Mini Low Fluted Nut (2 sorts) M14

2



10

89-1750-140002

Spring Washer 14

2



11

89-2120-250252

Split Pin 2.5*25

2



31/62

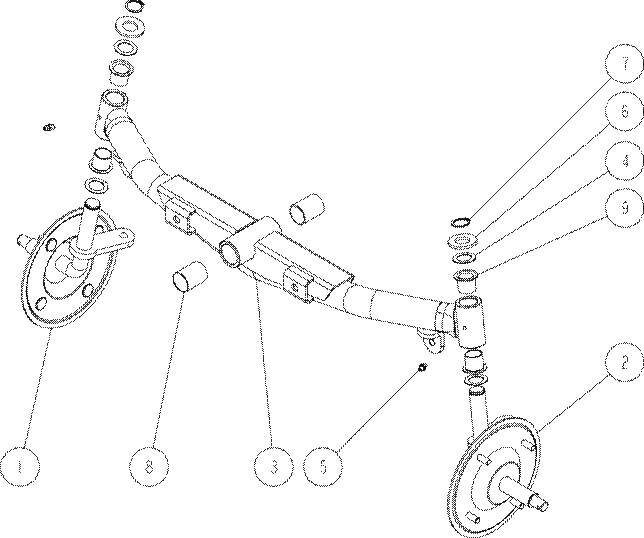

FRONT    4/4

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0322-30100

King Pin (R) CMP

1



2

0322-30200

King Pin (L) CMP

1



3

0329-32100

Front Axle CMP (RMK150)

1



4

83-1310-371-00

Thrust Washer 20*30*1.0

4



5

83-1415-975-00

Grease Nipple M6

2



6

83-1490-337-00

Washer 20*38*3.2

2



7

89-2511-000200

Snap Ring (S20)

2



8

89-3510-025350

DU Bush 25.35

2



9

89-3511-020200

DU Bush 20.20.31F

4



32/62

TIRE    1/1













Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0322-35000

Tire Assy (R) 3.50-7 (TA)

1

Include : 1,2,8,10,13

-

0322-34000

Tire Assy (L) 3.50-7 (TA)

1

Include : 1,2,8,10,13

-

80-1751-412-00

Tire (R) Assy (16*7.00-8)

1

Include : 3,4,5,11,13

-

80-1751-411-00

Tire (L) Assy (16*7.00-8)

1

Include : 3,4,5,11,13

1

80-1260-404-00

Tire Tube 3.50-7

2



2

80-1260-407-00

Wheel Assy 3.50-7

2



3

80-1751-401-00

Tire 16*700*8

2



4

80-1751-404-00

Tire Tube 16*700*8

2



5

80-1751-407-00

Wheel Assy 16*700*8

2



6

0207-30410

Front Wheel Boss CMP

2



7

0207-31200

Rear Wheel Boss

2



8

0322-32100

Tire 3.50-7 (TA)

2



9

89-1113-100202

Hexagonal Bolt (8T) M10*20

8



10

89-1211-080162

Mini Hexagonal Bolt M8*16

8



11

89-1213-080162

Mini Hexagonal Bolt (8T) M8*16

12



12

89-1213-100252

Mini Hexagonal Bolt (8T) M10*25

8



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

20



14

89-1750-100002

Spring Washer 10

16



15

89-3115-060044

Bearing 6004 2RS

4



33/62

CONTROL    1/3











Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0323-10000

Change Pedal Rod Assy

1

Include : 1,2,3,10,13,16

-

0312-16000

Shift Rod Assy

1

Include : 1,2,3,7,13,16

1

80-1485-265-00

Shift Rod Adjuster

2



2

80-1487-962-10

Rod End PHS10ECL

2



3

80-1487-964-10

Rod End PHS10EC

2



4

0207-72600

Lever Grip 8 (black)

1



5

0215-70600

Lever Grip (Red)

1



6

0221-13200

Change Grip

1



7

0312-16100

Shift Rod

1



8

0322-12100

Control Guide CMP

1



9

0322-75300

Choke Wire

1



10

0323-10100

Change Pedal Rod Assy

1



11

83-1488-195-02

Mini Hexagonal Nut M10 (L)

2



12

89-1213-100302

Mini Hexagonal Bolt (8T) M10*30

3



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



14

89-1611-100042

Mini Hexagonal Nut M10

4



15

89-1613-100042

Mini Hexagonal Nut (3 sorts) M10

1



16

89-1631-100042

Flange Mini Hexagonal Nut M10

4



17

89-1711-100002

Flat Washer 10*18*1.6

2



34/62

CONTROL    2/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0312-17010

Change Brake Assy

1

Include : 5,6,9,10

1

0207-72300

Change Brake Adjuster

1



2

0225-11800

Spring, Change Brake

1



3

0312-12900

Throttle Lever

1



4

0312-14200

Spring for Brake Pulling

1



5

0312-17100

Brake Cover

1



6

0312-17200

Brake Drum

1



7

0322-75400

Throttle Wire

1



8

83-1675-375-00

Thrust Washer 14*23*1.0

1



9

85-1711-317-00

Shoe Return Spring

2



10

85-1711-318-00

Brake Shoe Set

1



11

89-1113-060122

Hexagonal Bolt (8T) M6*12

3



12

89-1561-100002

Mini Hexagonal U Nut M10

1



13

89-1611-080042

Mini Hexagonal Nut M8

2



14

89-1611-100042

Mini Hexagonal Nut M10

1



15

89-1711-060002

Flat Washer 6

1



16

89-1750-060002

Spring Washer 6

3



17

89-1852-100000

Belleville Spring H10

2



18

89-2132-060002

Snap Pin 6 (with stopper)

1



19

89-2150-050100

Key 5*10 (round)

1



20

89-2181-060122

Flat Head Pin 6*12

1



21

89-2511-000140

Snap Ring (S14)

1




35/62

CONTROL    3/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1020-263-00

Control Lever Shaft Spring

1



2

0244-13200

Differential Lock Lever CMP

1



3

0244-72410

Defferential Lock Wire

1



4

0312-12100

Change Bracket CMP

1



5

0312-12210

Change Lever Guide CMP

1



6

0312-12310

Neutral Arm

2



7

0312-12420

Change Lever Base CMP

1



8

0312-12700

Change Lever CMP

1



9

0322-12300

Spring for Neutral Arm (RM881)

1



10

0312-13700

Spring for Change Lever

1



11

89-1113-060552

Hexagonal Bolt (8T) M6*55

1



12

89-1551-060002

Hexagonal U Nut M6

1



13

89-1561-100002

Mini Hexagonal U Nut M10

1



14

89-1711-100002

Flat Washer 10*18*1.6

1



15

89-1713-060002

Flat Washer 6 (large)

1



16

89-2132-060002

Snap Pin 6 (with stopper)

1



17

89-2181-060162

Flat Head Pin 6*16

1



18

89-2521-000120

E Type Ring 12

2



19

89-3510-016150

DU Bush 16.15

6



20

89-2521-000100

E Type Ring 10

1



21

0312-13800

Spring for Change Return Arm

1



22

0322-12400

Change Return Arm CMP

1



23

0208-71800

Spring, Neutral

1



36/62

CUTTING    1/8









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1488-926-10

Label, Caution for Knife

1



2

80-1488-928-10

Label, Caution for Belt Involving

1



3

0244-61200

Rear Guard

1



4

0244-61300

Rear Guard Flapper

1



5

0244-61400

Rear Guard Flapper Holder

1



6

0312-50700

Side Rear Flapper (L)

1



7

0312-77500

Flange Cap Nut M6 (Meck)

2



8

0329-60500

Knife Belt Cover CMP (RMK150)

1



9

83-1751-312-00

Washer 8*25*3.2

3



10

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



11

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

5



13

89-1581-060042

Flange Cap Nut M6

4



14

89-1671-080042

Mini Cap Nut M8

3



15

89-1713-060002

Flat Washer 6 (large)

2



16

89-6123-007703

V Belt LB-77 (SG1000)

1



37/62

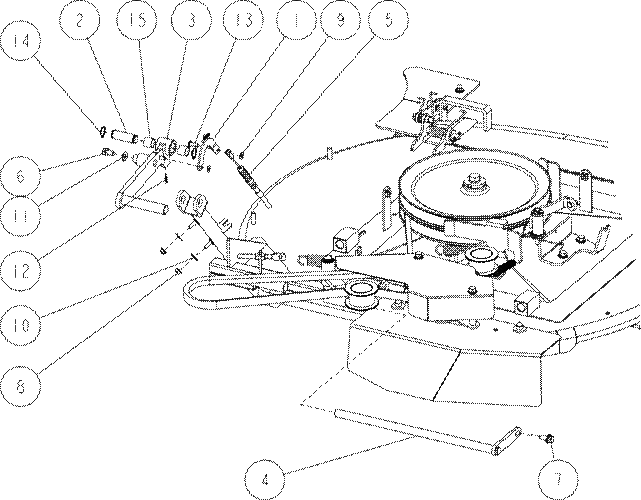

CUTTING     2/8











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0223-11600

Wire Joint

1



2

0303-53500

Hunger Pin

1



3

0329-53200

Connecting Hunger CMP (RMK150)

1



4

0329-53400

Offset Connecting Pipe CMP (RMK150)

1



5

0329-70900

Wire, Middle Tension (RMK150)

1



6

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

1



7

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



8

89-1531-060042

Flange Nut M6

2



9

89-1711-060002

Flat Washer 6

2



10

89-1713-060002

Flat Washer 6 (large)

2



11

89-1714-080002

Flat Washer 8

1



12

89-2132-060002

Snap Pin 6 (with stopper)

2



13

89-2181-060162

Flat Head Pin 6*16

1



14

89-2511-000160

Snap Ring (S16)

2



15

89-3510-016150

DU Bush 16.15

2



38/62

CUTTING     3/8







Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0272-41000

Tension Pulley (B) Assy

1

Include : 4,13,14

1

80-1485-551-00

Driving Tension Spring

1



2

0207-72300

Change Brake Adjuster

1



3

0225-70800

Blind Cover 40

1



4

0272-40200

Tension Pulley (B)

1



5

0303-51210

Middle Tension Arm (B) CMP

1



6

0329-50800

Left Cover (RMK150)

1



7

0329-60100

Middle Belt Cover CMP (RMK150)

1



8

83-1751-312-00

Washer 8*25*3.2

2



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



10

89-1611-080042

Mini Hexagonal Nut M8

2



11

89-1671-080042

Mini Cap Nut M8

2



12

89-2511-000160

Snap Ring (S16)

2



13

89-2512-000400

Snap Ring (R40)

1



14

89-3115-062034

Bearing 6203 2RS

1



15

89-3510-016250

DU Bush 16.25

2



16

89-6123-004803

V Belt LB-48 (SG1000)

1



39/62

CUTTING     4/8



Ref.

Parts Number

Parts Name

Quantity

Remarks

-

0272-41000

Tension Pulley (B) Assy

1

Include : 4,13,15

1

80-1485-551-00

Driving Tension Spring

1



2

0221-63600

Spring for Sensor Return

1



3

0225-70800

Blind Cover 40

1



4

0272-40200

Tension Pulley (B)

1



5

0282-70400

Blind Cover 35

1



6

0303-51100

Middle Tension Arm (A) CMP

1



7

0303-52300

Middle Pulley CMP

1



8

0913-70700

Grease Nipple B-Type M6

1



9

89-2511-000150

Snap Ring (S15)

1



10

89-2511-000160

Snap Ring (S16)

1



11

89-2511-000170

Snap Ring (S17)

1



12

89-2512-000350

Snap Ring (R35)

1



13

89-2512-000400

Snap Ring (R40)

1



14

89-3115-062024

Bearing 6202 2RS

2



15

89-3115-062034

Bearing 6203 2RS

1



16

89-3510-016150

DU Bush 16.15

2



17

89-6123-005603

V Belt LB-56 (SG1000)

1



40/62

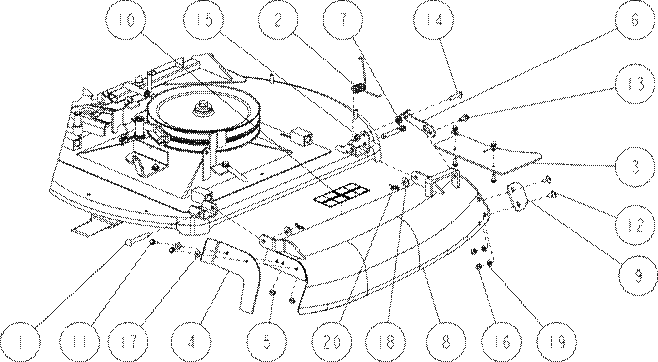

CUTTING     5/8















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-63900

Round Head Pin 10*72

2



2

0244-71600

Spring for Right Cover

1



3

0284-51500

Side Flapper (Front Right 88)

1



4

0284-51600

Side Flapper (Rear Right 88)

1



5

0312-77500

Flange Cap Nut M6 (Meck)

4



6

0322-50500

Right Cover Up/Down Arm

1



7

0322-50700

Spring for Right Cover Up/Down

1



8

0329-56100

Right Cover CMP (RMK150)

1



9

0329-56300

Side Foot Guard (RMK150)

1



10

0329-76200

Label, Caution for Hand and Leg etc

1



11

89-1137-060172

Hexagonal Bolt (PW) M6*17

4



12

89-1159-080168

Truss Mini Screw M8*16

2



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



14

89-1253-080352

Flange Mini Hexagonal Bolt (8T) M8*35

1



15

89-1561-080002

Mini Hexagonal U Nut M8

1



16

89-1671-080042

Mini Cap Nut M8

2



17

89-1713-060002

Flat Washer 6 (large)

4



18

89-1714-100002

Flat Washer 10

2



19

89-1750-080002

Spring Washer 8

2



20

89-2131-100002

Snap Pin 10

2



41/62

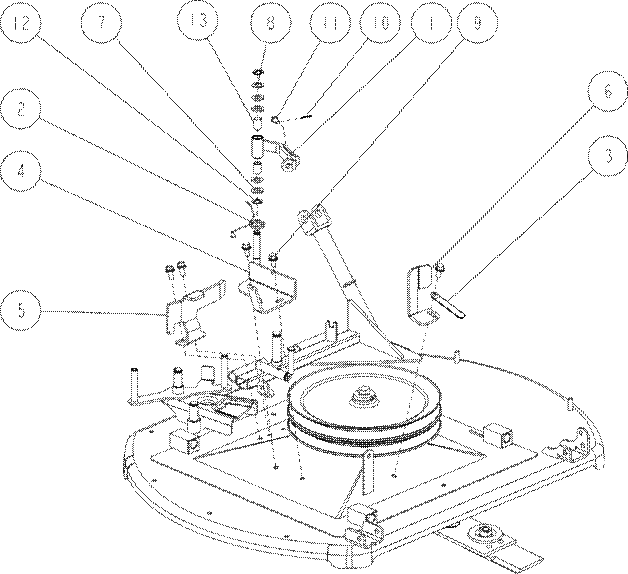

CUTTING     6/8









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1482-371-30

Knife Brake (6t)

1



2

80-1482-373-00

Brake Return Spring

1



3

80-1792-988-00

Harness Clip 8

1



4

0221-51400

Knife Brake Bracket CMP

1



5

0303-58110

Knife Belt Holder (L)

1



6

0303-58200

Knife Belt Holder (R)

1



7

83-1565-329-02

Washer 13*22*2.3

4



8

83-1754-329-00

Washer 13*22*1.0

1



9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

5



10

89-2120-200152

Split Pin 2*15

1



11

89-2181-060162

Flat Head Pin 6*16

1



12

89-2521-000100

E Type Ring 10

2



13

89-3510-012200

DU Bush 12.20

2



42/62

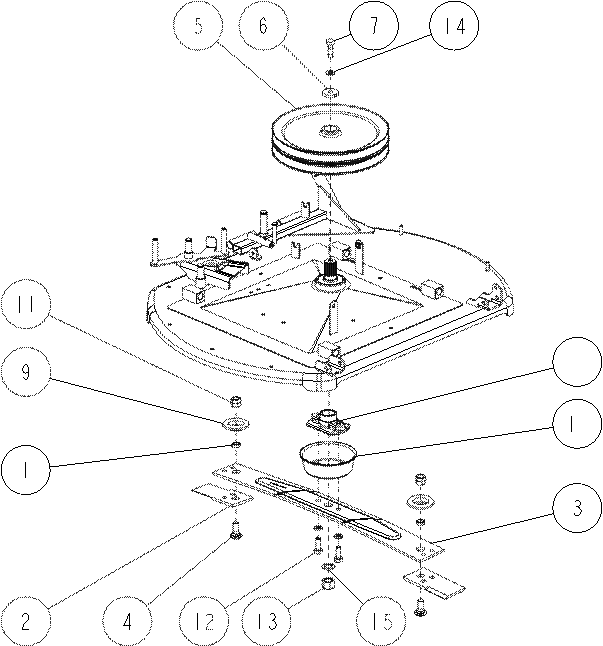

CUTTING     7/8



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1483-818-00

Knife Collar

2



2

80-1483-821-00

Knife

2



3

80-1493-A17-00

Knife Stay

1



4

0207-50200

Knife Setting Bolt M14*34

2



5

0221-40100

Knife Pulley (A)

1



6

0221-76100

Washer 12*40*6

1



7

0221-76300

Hexagonal Bolt (Meck) M12*35

1



8

0238-51100

Knife Bracket

1



9

0244-51800

Nut Guard 14

2



10

0244-52100

Knife Neck Guard

1



11

0244-74600

Hard Lock Nut M14

2



12

83-1483-129-00

Mini Hexagonal Bolt (8T) M12*30

2



13

83-1483-175-00

Bag Nut M20 (Lock)

1



14

89-1750-120002

Spring Washer 12

3



15

89-1750-200002

Spring Washer 20

1



43/62

CUTTING     8/8



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0221-50110

Vertical Shaft (A)

1



2

0262-50100

Dust Plate

1



3

0329-50300

Safety Cover CMP (RMK150)

1



4

89-2512-000620

Snap Ring (R62)

2



5

89-3115-060074

Bearing 6007 2RS

2



6

89-5121-356210

Oil Seal UE 35.62.10

1



7

89-5121-406212

Oil Seal UE 40.62.12

1



44/62

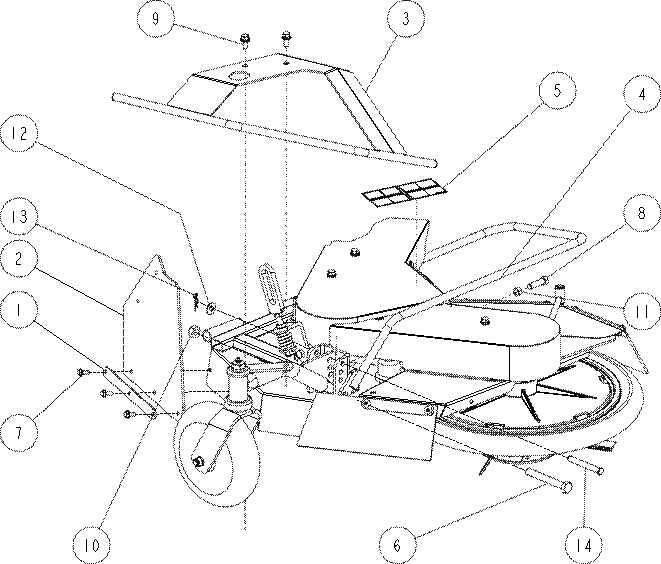

CUTTING OFFSET     1/10









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0303-56100

Offset Flapper Holder (B)

1



2

0303-61400

Offset Flapper (B)

1



3

0329-54500

Foot Guard CMP (Front) (RMK150)

1



4

0329-54700

Foot Guard (Rear) (RMK150)

1



5

0329-76200

Label, Caution for Hand and Leg etc

1



6

89-1111-120952

Hexagonal Bolt M12*95

1



7

89-1137-060172

Hexagonal Bolt (PW) M6*17

3



8

89-1213-100357

Mini Hexagonal Bolt (8T) M10*35

1



9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



10

89-1551-120002

Hexagonal U Nut M12

1



11

89-1611-100042

Mini Hexagonal Nut M10

1



12

89-1714-100002

Flat Washer 10

1



13

89-2131-100002

Snap Pin 10

1



14

89-2181-100802

Flat Head Pin 10*80

1



45/62

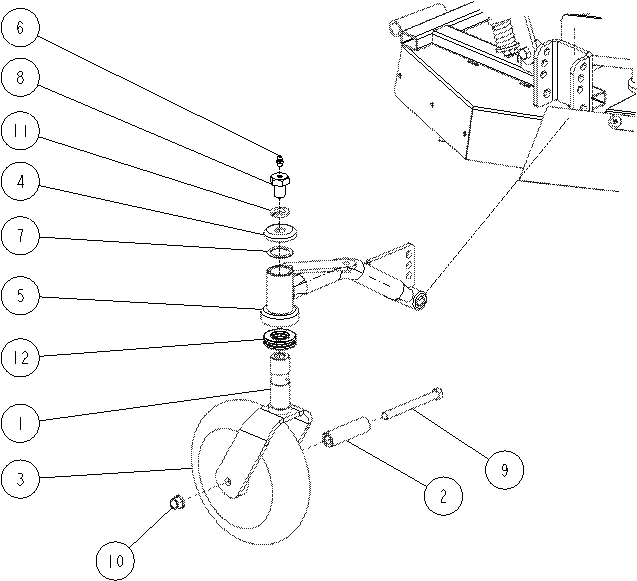

CUTTING OFFSET     2/10









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1614-725-20

Front Wheel Fork

1



2

80-1614-726-00

Front Wheel Collar

1



3

80-1614-727-00

Front Wheel

1



4

0256-60700

Dust Cover

1



5

0329-54300

Front Tire Bracket CMP (RMK150)

1



6

83-1415-975-00

Grease Nipple M6

1



7

83-1783-376-00

Thrust Washer 25*34*1.0

1



8

84-1783-791-00

Grease Nipple Bolt M14

1



9

89-1211-100952

Mini Hexagonal Bolt M10*95

1



10

89-1543-100002

Mini Hexagonal Nut (SW) M10

1



11

89-1750-140002

Spring Washer 14

1



12

89-3370-051105

Thrust Bearing 51105

1




46/62

CUTTING OFFSET     3/10





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0303-70600

Mini Hexagonal Bolt (8T) M10*50 (Meck)

2



2

0329-55310

Rotary Protector (RMK150)

2



3

0329-55400

Knife Bracket (B) (RMK150)

2



4

0329-55500

Knife Neck Guard CMP (RMK150)

2



5

0329-55600

Offset Blade (RMK150)

2



6

0329-61800

Nylon Blade (tooth of saw) (RMK150)

4



7

83-1517-175-00

Mini Cap Nut M12

2



8

83-1610-125-00

Hexagonal Bolt (8T) M10*35

4



9

89-1750-100002

Spring Washer 10

6



10

89-1750-120002

Spring Washer 12

2




47/62

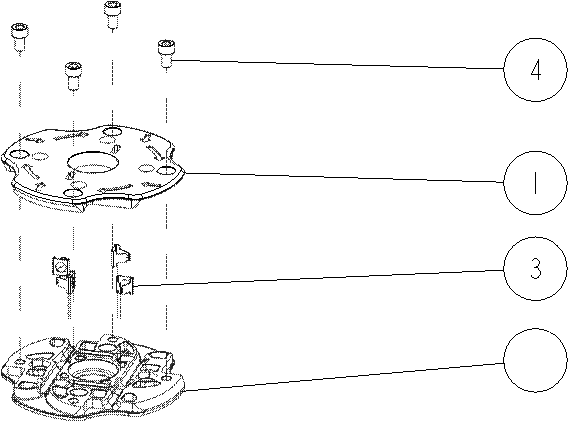

CUTTING OFFSET     4/10



























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0329-61110

Blade Holder (A) (RMK150)

1



2

0329-61210

Blade Holder (B) (RMK150)

1



3

0329-61600

Blade Holder Clip (RMK150)

4



4

0329-71300

Hexagonal Hole Bolt M6*10 (SUS)

4




48/62

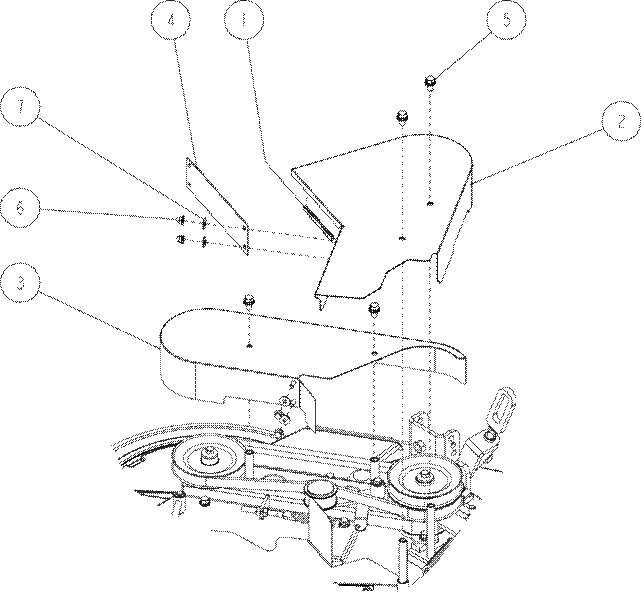

CUTTING OFFSET     5/10













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0223-71500

Rubber L92

1



2

0329-53500

Offset Belt Cover (B) CMP (RMK150)

1



3

0329-53700

Offset Belt Cover (C) CMP (RMK150)

1



4

0329-57700

Belt Cover Rubber

1



5

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



6

89-1581-060042

Flange Cap Nut M6

4



7

89-1713-060002

Flat Washer 6 (large)

4



49/62

CUTTING OFFSET     6/10













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0201-52700

Tension Spring for Blade

1



2

0207-72300

Change Brake Adjuster

1



3

0221-40200

Knife Pulley (B)

1



4

0221-40300

Knife Pulley C

1



5

0221-41300

Tension Arm (C) CMP

1



6

0221-41400

Tension Pulley (C)

1



7

0225-70800

Blind Cover 40

1



8

83-1751-312-00

Washer 8*25*3.2

2



9

83-1761-112-00

Hexagonal Bolt (Meck) M8*20

2



10

89-1611-080042

Mini Hexagonal Nut M8

2



11

89-2151-050250

Key 5*25 (half round)

2



12

89-2511-000170

Snap Ring (S17)

1



13

89-2512-000400

Snap Ring (R40)

1



14

89-2521-000083

E Type Ring 8

1



15

89-3115-062034

Bearing 6203 2RS

1



16

89-3510-012120

DU Bush 12.12

2



17

89-6123-004003

V Belt LB-40 (SG1000)

1



50/62

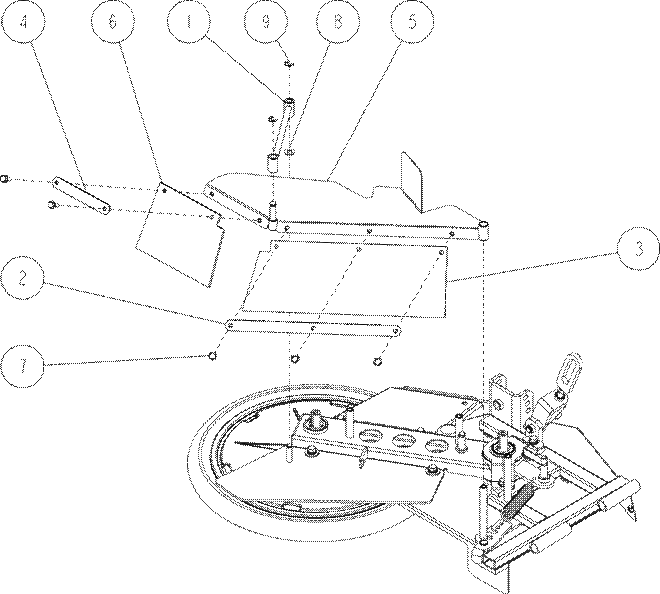

CUTTING OFFSET     7/10











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0303-52600

Swing Arm CMP

1



2

0303-56500

Swing Flapper Holder

1



3

0303-57800

Swing Flapper

1



4

0308-50400

Swing Front Flapper Holder (RMK150)

1



5

0329-52700

Swing Cover CMP (RMK150)

1



6

0329-57900

Swing Side Flapper (RMK150)

1



7

89-1137-060172

Hexagonal Bolt (PW) M6*17

5



8

89-1711-100002

Flat Washer 10*18*1.6

1



9

89-2521-000080

E Type Ring 8

2



51/62

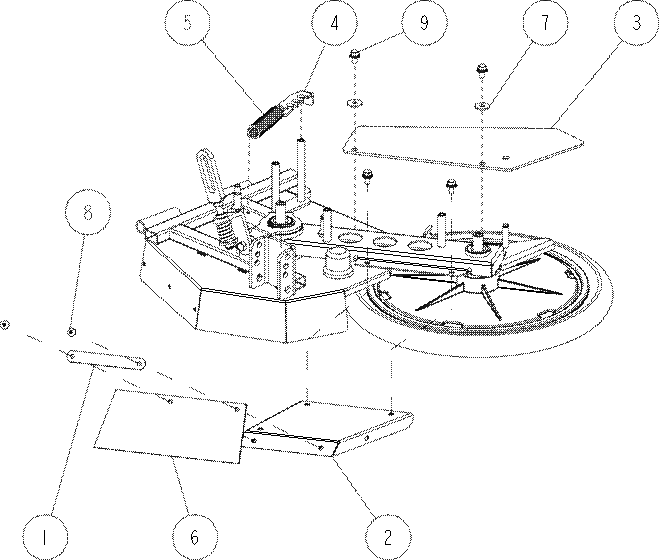

CUTTING OFFSET     8/10













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0308-50400

Swing Front Flapper Holder (RMK150)

1



2

0329-53100

Cover (D) CMP (RMK150)

1



3

0329-53300

Cover (E) (RMK150)

1



4

0329-55700

Spring Hook Plate (RMK150)

1



5

0329-55900

Spring for Offset Return (P) (RMK150)

1



6

0329-57800

Swing Front Flapper (RMK150)

1



7

83-1751-312-00

Washer 8*25*3.2

2



8

89-1159-060168

Truss Mini Screw M6*16

2



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



52/62

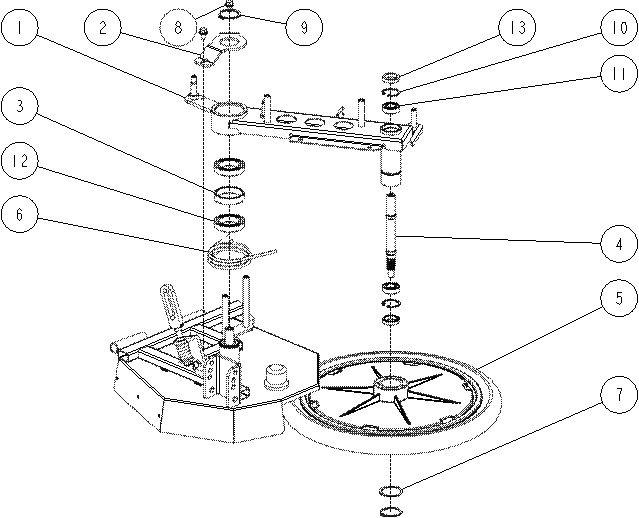

CUTTING OFFSET     9/10













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0329-50700

Offset Cover (C) CMP (RMK150)

1



2

0329-51300

Upper Holder (RMK150)

1



3

0329-51400

Holder Collar (RMK150)

1



4

0329-52400

Vertical Shaft (C) (RMK150)

1



5

0329-55100

18 inch Tire (RMK150)

1



6

0329-55800

Spring for Offset Return (RMK150)

1



7

83-1830-382-00

Thrust Washer 40*48*1.0

1



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



9

89-2511-000400

Snap Ring (S40)

2



10

89-2512-000350

Snap Ring (R35)

2



11

89-3115-060034

Bearing 6003 2RS

2



12

89-3115-069084

Bearing 6908 2RS

2



13

89-5121-253507

Oil Seal UE 25.35.7

2



53/62

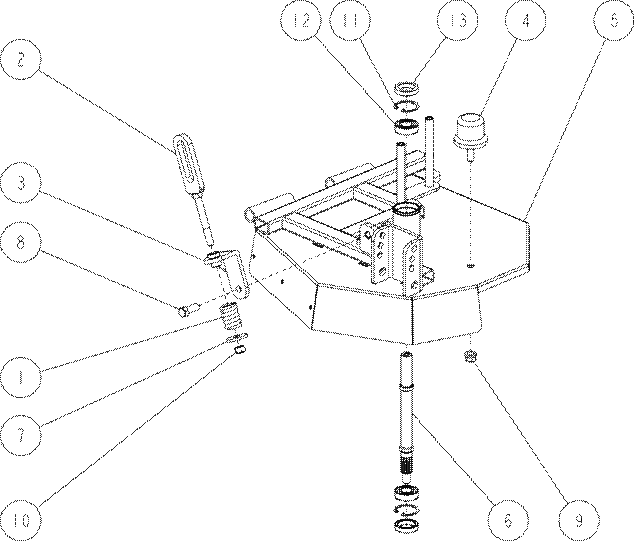

CUTTING OFFSET     10/10











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0221-51200

Hunger Spring (A)

1



2

0303-53100

Hunger CMP

1



3

0303-53600

Hunger Stay CMP

1



4

0303-70300

Stopper Cushion Rubber

1



5

0329-50600

Offset Cover (B) CMP (RMK150)

1



6

0329-52200

Vertical Shaft (B) (RMK150)

1



7

83-1035-323-00

Washer 10*30*3.2

1



8

89-1213-100252

Mini Hexagonal Bolt (8T) M10*25

1



9

89-1543-100002

Mini Hexagonal Nut (SW) M10

1



10

89-1561-100002

Mini Hexagonal U Nut M10

2



11

89-2512-000350

Snap Ring (R35)

2



12

89-3115-060034

Bearing 6003 2RS

2



13

89-5121-253507

Oil Seal UE 25.35.7

2



54/62

SEAT    1/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1792-988-00

Harness Clip 8

1



2

0202-74400

Label, Noise 104db

1



3

0207-72700

Gas Spring KMF 50-40

1



4

0221-71900

Clip CT-339

1



5

0244-22200

Seat Bracket Shaft

1



6

0244-73700

Grommet 24

1



7

0312-70400

Bonnet Clip

1



8

0322-21600

Seat Bracket CMP

1



9

83-1415-312-00

Washer 8*30*3.2

2



10

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

2



11

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



12

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



14

89-1553-060002

Bag Hexagonal U Nut M6

2



15

89-1561-100002

Mini Hexagonal U Nut M10

2



16

89-1711-100002

Flat Washer 10*18*1.6

4



17

89-1750-080002

Spring Washer 8

2



55/62

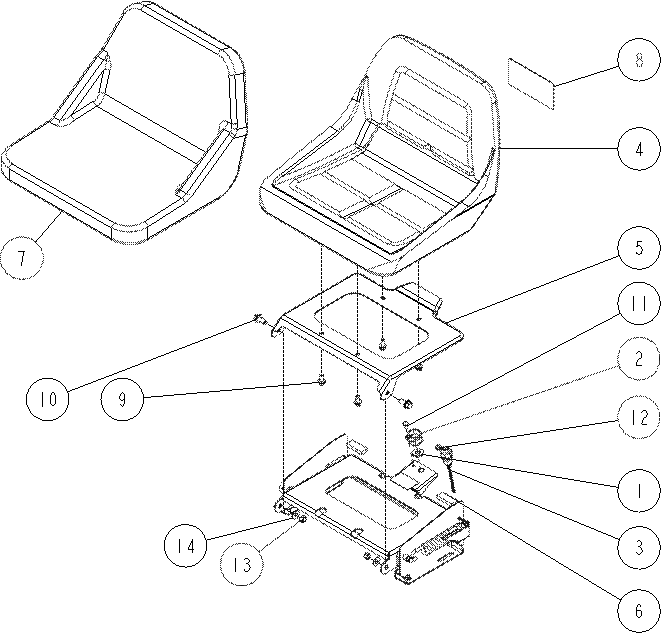

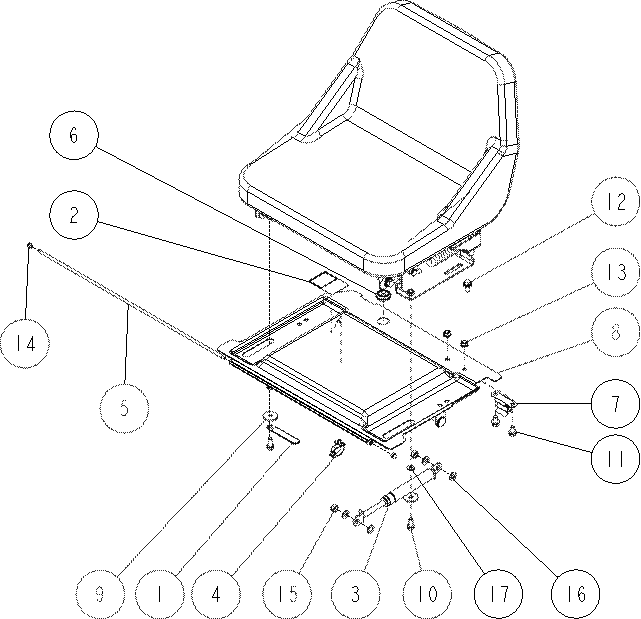

SEAT    2/3





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-72800

Switch Lock Nut

1



2

0207-72900

Seat Switch Spring

1



3

0207-74400

Safety Switch K17850

1



4

0284-78100

Seat K4 (Black)

1



5

0312-21200

Seat Receiver

1



6

0312-22300

Rubber, Seat Spacer

2



7

0322-73100

Seat Cover (option)

1



8

0329-78100

Label, Maintenance (RMK150)

1



9

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



10

89-1236-100252

Mini Hexagonal Bolt (PWSW) M10*25

2



11

89-1390-060162

Welded Bolt M6*16

1



12

89-1531-060042

Flange Nut M6

1



13

89-1561-100002

Mini Hexagonal U Nut M10

2



14

89-1714-100002

Flat Washer 10

4



56/62

SEAT    3/3







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0244-71200

Spring for Seat Link

2



2

0312-21400

Link Upper Bracket (R) CMP

1



3

0312-21500

Link Upper Bracket (L) CMP

1



4

0312-21600

Parallel Seat Link CMP

1



5

0312-21700

Seat Parallel Link (B)

2



6

0312-21800

Spring Shaft

2



7

0312-22100

Spring Shaft Hook CMP

1



8

0312-86100

Label, Seat Spring Adjusting

1



9

0329-80300

Seat Link Shield (RMK150)

2



10

0329-85200

Link Upper Bracket CMP (RMK150)

1



11

0329-85300

Clutch Cancellation Stay (RMK150)

1



12

83-1020-363-00

Thrust Washer 16*24*1.0

10



13

89-1211-100302

Mini Hexagonal Bolt M10*30

1



14

89-1541-060003

Hexagonal Nut (SW) M6

2



15

89-1714-100002

Flat Washer 10

1



16

89-2521-000120

E Type Ring 12

6



57/62

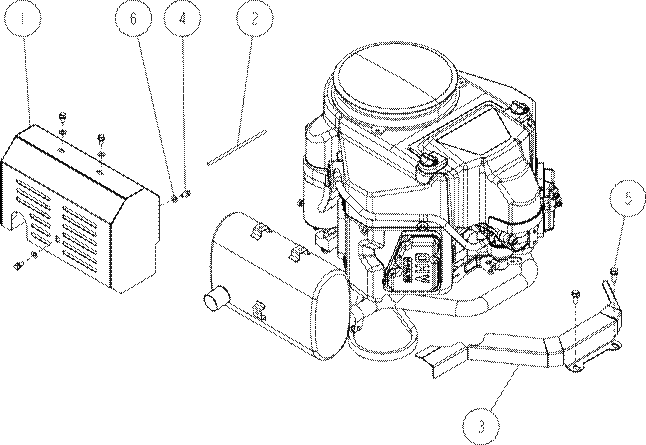

ENGINE     1/4

























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0312-40500

Muffler Cover CMP

1



2

0312-77300

Harness (K)

1



3

0329-40600

Exhaust Pipe Cover (RMK150)

1



4

89-1132-060122

Hexagonal Bolt (SW) M6*12

4



5

89-1232-080202

Mini Hexagonal Bolt (SW) M8*20

2



6

89-1711-060002

Flat Washer 6

4



58/62

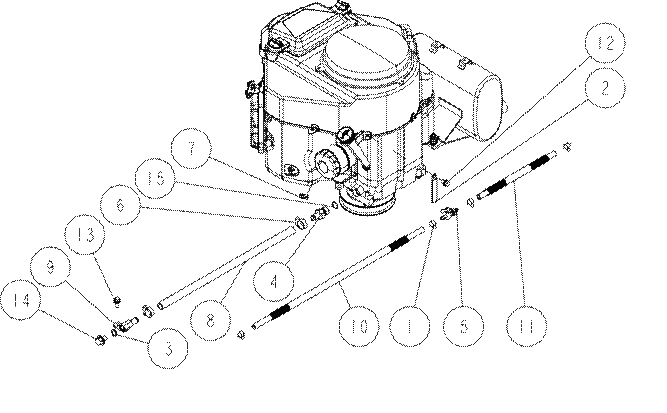

ENGINE     2/4

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1483-988-00

Hose Clip 17

4



2

80-1792-988-00

Harness Clip 8

1



3

0207-74900

Copper Packing 12.5*19*1.0

1



4

0244-40700

Drain Bolt (K)

1



5

0244-74500

Fuel Cock

1



6

0244-75700

Hose Band 22

2



7

0259-80600

Label, Caution for Engine Oil

1



8

0312-44200

Oil Drain Hose (K)

1



9

0312-44300

Drain End CMP (K)

1



10

0322-70400

Fuel Hose 600L

1



11

0322-70500

Fuel Hose 270L

1



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



13

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



14

89-1251-120152

Flange Mini Hexagonal Bolt M12*15

1



15

89-5221-016000

O Ring P16

1



59/62

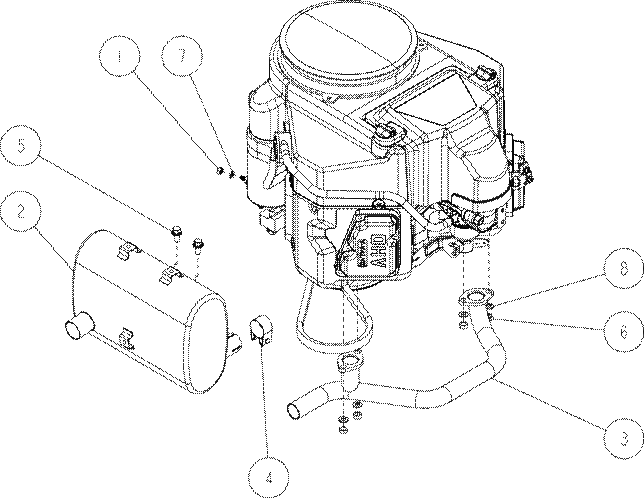

ENGINE     3/4



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0207-76300

Nut UNF 1/4

1



2

0312-40100

Muffler

1



3

0312-40200

Exhaust Pipe CMP (FS651)

1



4

0312-70500

Muffler Band

1



5

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



6

89-1611-080042

Mini Hexagonal Nut M8

4



7

89-1750-060002

Spring Washer 6

1



8

89-1750-080002

Spring Washer 8

4



60/62

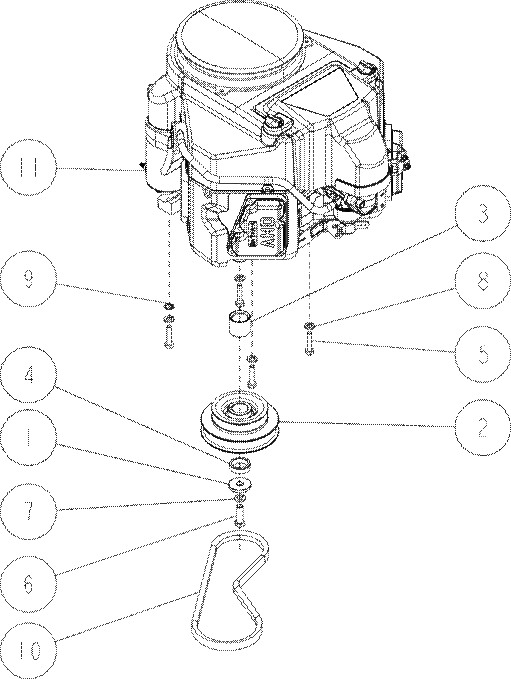

ENGINE     4/4





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1487-516-00

Washer 11*40*6

1



2

0221-40400

Engine Pulley

1



3

0244-41100

Engine Collar

1



4

0244-41200

Sub Engine Collar (21HP)

1



5

0312-42100

Hexagonal Bolt (8T) UNC 3/8-16*38

4



6

83-1437-115-00

Hexagonal Bolt (8T) UNF7/16*35

1



7

83-1493-300-00

Spring Washer 7/16

1



8

89-1750-100002

Spring Washer 10

4



9

89-1812-100002

Toothed washer (inside) 10

1



10

89-6123-003103

V Belt LB-31 (SG1000)

1



11

9021-0110

Kawasaki Engine FS651V-BG81

1





61/62

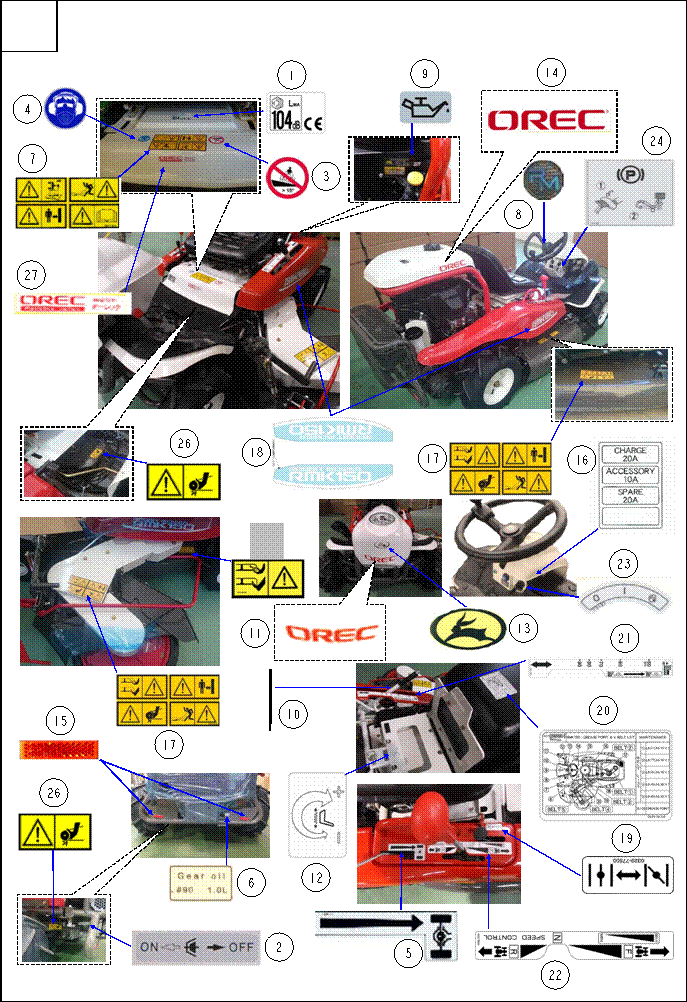

LABEL    1/2

62/62

LABEL    2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0202-74400

Label, Noise 104db

1



2

0215-80400

Driving Clutch ON-OFF Label

1



3

0215-83100

Attention Mark for Slope

1



4

0215-83200

Label, Protection Equipment

1



5

0217-70100

Label, Differential Lock (13168)

1



6

0217-70800

Label, Gear Oil 1.0L

1



7

0223-76100

Label, Caution (Large)

1



8

0244-80700

Label, Handle (Blue)

1



9

0259-80600

Label, Caution for Engine Oil

1



10

0259-80700

Label, Cutting Height Line

1



11

0312-79900

Label, OREC (Front Cover)

1



12

0312-86100

Label, Seat Spring Adjusting

1



13

0322-77200

Label, RM Emblem

1



14

0322-77500

Label, OREC (Fuel Tank Cover)

2



15

0322-77900

Reflection Seat (Red)

2



16

0322-78300

Label, Fuse Box

1



17

0329-76200

Label, Caution for Hand and Leg etc

2



18

0329-77300

Label, Side RMK150

2



19

0329-77500

Label, Choke (RMK150)

1



20

0329-78100

Label, Maintenance (RMK150)

1



21

0329-78300

Label, Cutting Height Adjusting (RMK150

1



22

0329-78400

Label, Control (RMK150)

1



23

80-1488-912-00

Label, Key (13121)

1



24

80-1488-921-00

Label Pedal Stopper (13113)

1



25

80-1488-926-10

Label, Caution for Knife

1



26

80-1488-928-10

Label, Caution for Belt Involving

2



27

83-1310-902-00

OREC Mark

1
