ＯＲＥＣ

Parts Catalogue Ace Rotor

ＡＲ６５０

(EXPORT MODEL)

ISSUED NO. AR650 EU-1

MODEL CODE

AR650 0010-○○○○○

CONTENTS

CHANGE LAVER....................................................... 1

HANDLE..................................................................... 2

BELT........................................................................... 4

ENGINE...................................................................... 5

ROTARY..................................................................... 6

TIRE............................................................................ 9

TRANSMISSION...................................................... 10

LABEL....................................................................... 14

OREC CO.,LTD

Update : June 2020

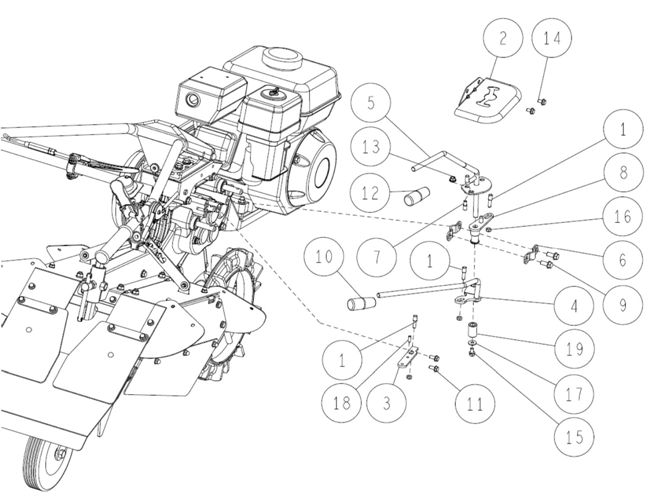

1/15	CHANGE LEVER 1/1
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0004-11300	Main Speed Change Shift	3
2	0010-10410	Change Cover	1
3	0010-10600	Rotary Clutch Arm	1
4	0010-10710	Rotary Change Lever CMP	1
5	0010-10910	Driving Change Lever CMP	1
6	0010-11110	Driving Arm Plate	2
7	0010-11510	Canceller Pin	1
8	0010-11810	Driving Change Arm CMP	1
9	80-1020-719-00	Hexagonal Tap Tight M8*18	2
10	80-1417-255-00	Lever Grip (Red) 10	1
11	83-1020-148-00	Tapping Bolt M6*14	2
12	83-1210-425-00	Lever Grip 10	1
13	83-1712-194-00	Terminal Nut M6	1
14	89-1137-060122	Hexagonal Bolt (PW) M6*12	2
15	89-1138-060122	Hexagonal Bolt (SW) M6*12	1
16	89-1551-060002	Hexagonal U Nut M6	3
17	89-1713-060002	Flat Washer 6 (large)	1
18	89-2142-050140	Parallel Pin 5*14	1
19	0036-12200	Driving Change Collar	1

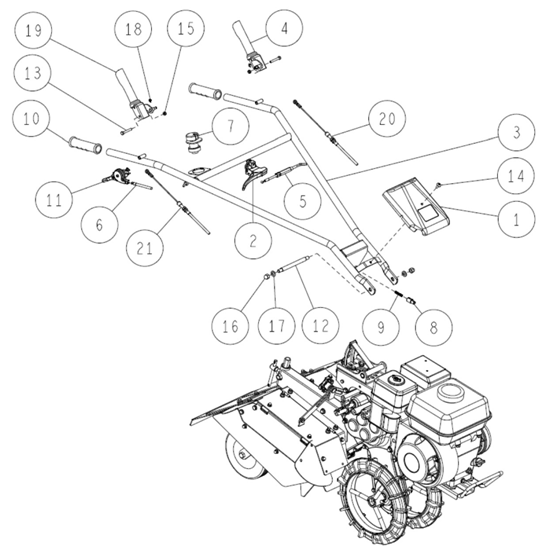

2/15	HANDLE 1/2
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-70600	Handle Bonnet	1
2	0010-71800	Lever	1
3	0036-12100	Handle CMP	1
4	0036-12200	Driving Change Collar	1
5	0051-70300	Handle Up/Down Wire	1
6	0051-70400	Throttle Wire	1
7	0336-70200	Push Switch Assy	1
8	80-1321-216-00	Stopper Pin	1
9	80-1321-217-00	Stopper Spring	1
10	83-1035-411-00	Grip (21.7)	2
11	83-1516-461-00	Throttle Lever	1
12	83-1855-132-10	Bolt, Both Screw M10*142	1
13	89-1113-060402	Hexagonal Bolt (8T) M6*40	2
14	89-1159-060168	Truss Mini Screw M6*16	1
15	89-1551-060002	Hexagonal U Nut M6	2
16	89-1671-100042	Mini Cap Nut M10	2
17	89-1750-100002	Spring Washer 10	2
18	89-2521-000050	E Type Ring 5	2
19	0036-12300	Rotary Clutch Lever CMP	1
20	0036-73100	Driving Clutch Wire	1
21	0036-73200	Rotary Clutch Wire	1

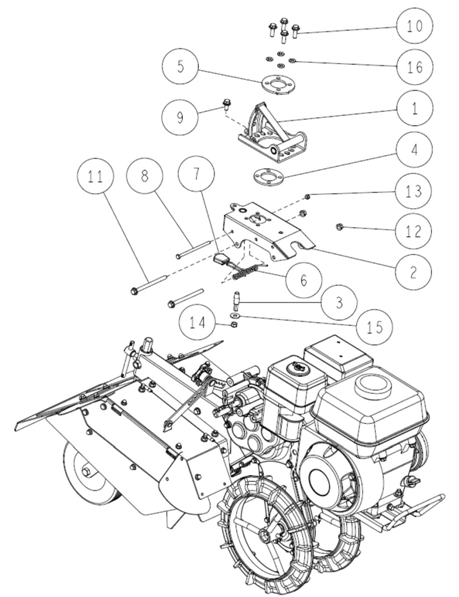

3/15	HANDLE 2/2
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-10100	Rotating Plate CMP for Handle	1
2	0010-10300	Tuentable CMP for Handle	1
3	0010-11700	Stopper Pin for Handle Right/Left	1
4	0010-12300	Spenser Rotating Plate for Handle	1
5	0010-12400	Pushing Plate	1
6	0010-70300	Rock Spring	1
7	0215-70600	Lever Grip (Red)	1
8	89-1113-061052	Hexagonal Bolt (8T) M6*105	1
9	89-1233-080202	Mini Hexagonal Bolt (PWSW) M8*20	1
10	89-1253-080252	Flange Mini Hexagonal Bolt (8T) M8*25	4
11	89-1253-081052	Flange Mini Hexagonal Bolt (8T) M8*105	2
12	89-1543-080002	Mini Hexagonal Nut (SW) M8	2
13	89-1551-060002	Hexagonal U Nut M6	1
14	89-1561-080002	Mini Hexagonal U Nut M8	1
15	89-1713-080002	Flat Washer 8 (large)	1
16	89-1750-080002	Spring Washer 8	4

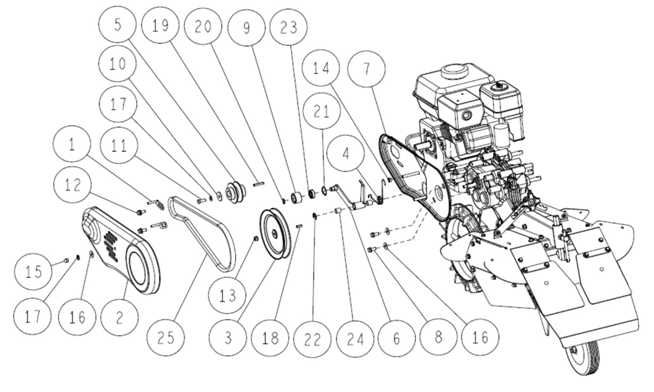

4/15	BELT 1/1
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0004-40600	Belt Holder	2
2	0010-40200	Belt Cover Out	1
3	0010-71100	Transmission Pulley	1
4	0010-71200	Tension Return Spring	1
5	0033-40300	Engine Pulley	1
6	0035-40100	Tension Arm CMP	1
7	0035-40200	Belt Cover In CMP	1
8	80-1020-719-00	Hexagonal Tap Tight M8*18	2
9	80-1321-523-10	Tension Pulley	1
10	83-1415-312-00	Washer 8*30*3.2	1
11	89-1213-080202	Mini Hexagonal Bolt (8T) M8*20	1
12	89-1233-080202	Mini Hexagonal Bolt (PWSW) M8*20	2
13	89-1543-080002	Mini Hexagonal Nut (SW) M8	1
14	89-1561-080002	Mini Hexagonal U Nut M8	1
15	89-1671-080042	Mini Cap Nut M8	1
16	89-1713-080002	Flat Washer 8 (large)	3
17	89-1750-080002	Spring Washer 8	2
18	89-2150-050200	Key 5*20 (round)	1
19	89-2152-050350	Key 5*35	1
20	89-2511-000120	Snap Ring (S12)	1
21	89-2512-000280	Snap Ring (R28)	1
22	89-2521-000120	E Type Ring 12	1
23	89-3115-060014	Bearing 6001 2RS	1
24	89-3510-013150	DU Bush 13.15	2
25	89-6123-004003	V Belt LB-40 (SG1000)	1

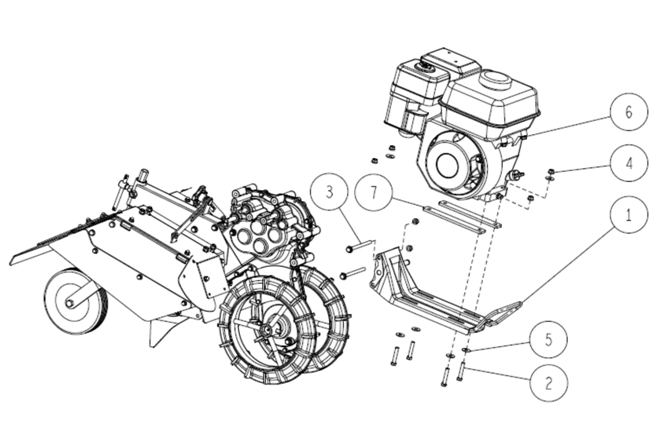

5/15	ENGINE 1/1
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-20300	Engine Base CMP	1
2	89-1213-080452	Mini Hexagonal Bolt (8T) M8*45	4
3	89-1253-081052	Flange Mini Hexagonal Bolt (8T) M8*105	2
4	89-1543-080002	Mini Hexagonal Nut (SW) M8	6
5	89-1713-080002	Flat Washer 8 (large)	6
6	9006-0171	GX160U1-S1CY	1
7	0036-20100	Flat Spacer 6t	2

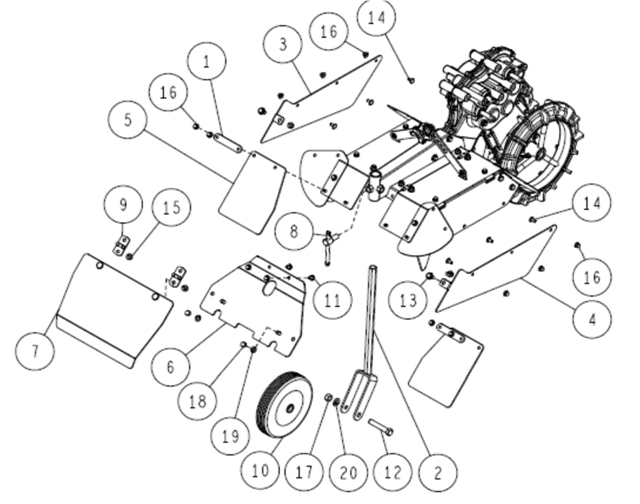

6/15	ROTARY 1/3
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0004-50600	Flapper Holder	2
2	0010-30100	Wheel Fork	1
3	0036-50400	Side Guard (L)	1
4	0036-50500	Side Guard (R )	1
5	0036-50600	Rear Flapper	2
6	0036-51100	Rear Guard Stationary Plate CMP	1
7	0036-51200	Rear Guard CMP	1
8	83-1210-487-00	Handle M12*48	1
9	83-1806-757-00	Hinge	2
10	85-1850-110-00	Steel Wheel on Rubber	1
11	89-1137-060122	Hexagonal Bolt (PW) M6*12	2
12	89-1113-120652	HEXAGONAL BOLT (8T) M12*65	1
13	89-1253-080162	Flange Mini Hexagonal Bolt (8T) M8*16	2
14	89-1390-060122	Welded Bolt M6*12	6
15	89-1543-080002	Mini Hexagonal Nut (SW) M8	4
16	89-1581-060042	Flange Cap Nut M6	12
17	89-1611-120042	Mini Hexagonal Nut M12	1
18	89-1671-080042	Mini Cap Nut M8	2
19	89-1750-080002	Spring Washer 8	2
20	89-1750-120002	Spring Washer 12	1

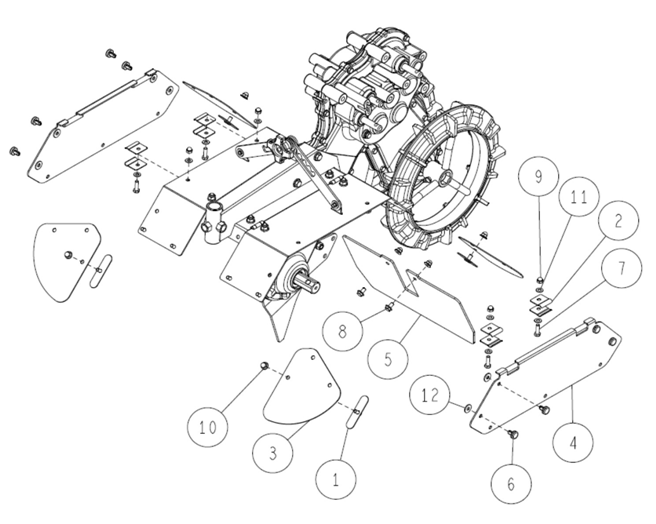

7/15	ROTARY 2/3
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-50800	Support Cover	4
2	0028-70500	Center Step Hinge	8
3	0035-71100	Side Flapper	4
4	0036-50300	Side Cover CMP	2
5	0036-51300	Front Sealing	1
6	83-1321-236-00	Rivet Clip	8
7	89-1113-060202	Hexagonal Bolt (8T) M6*20	4
8	89-1137-060122	Hexagonal Bolt (PW) M6*12	2
9	89-1553-060002	Bag Hexagonal U Nut M6	4
10	89-1581-060042	Flange Cap Nut M6	6
11	89-1711-060002	Flat Washer 6	8
12	89-1713-060002	Flat Washer 6 (large)	8

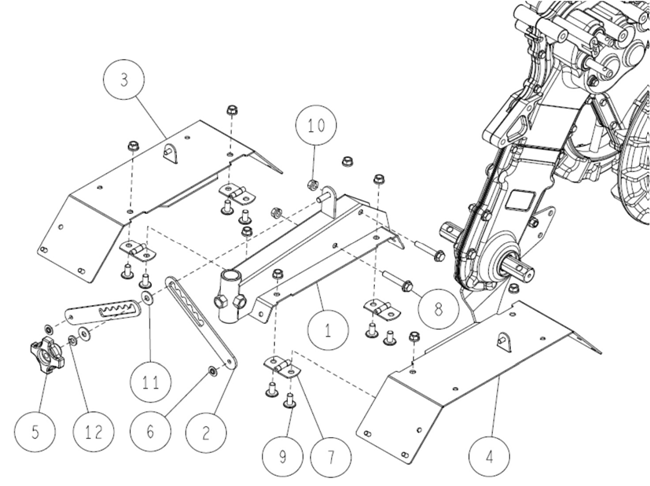

8/15	ROTARY 3/3
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-50100	Rotary Frame CMP	1
2	0010-50600	Up/down adjustment Plate	2
3	0036-50100	Rotary Cover CMP (L)	1
4	0036-50200	Rotary Cover CMP (R )	1
5	80-1020-228-10	Knob Nut M8	1
6	83-1515-177-00	Push Nut 6	2
7	83-1806-757-00	Hinge	4
8	89-1253-080452	Flange Mini Hexagonal Bolt (8T) M8*45	2
9	89-1390-080162	Welded Bolt M8*16	8
10	89-1543-080002	Mini Hexagonal Nut (SW) M8	10
11	89-1713-080002	Flat Washer 8 (large)	2
12	89-1750-080002	Spring Washer 8	1

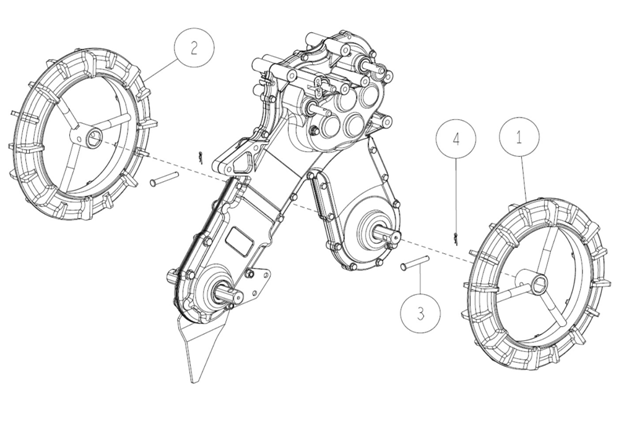

9/15	TIRE 1/1
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0035-70800	Rubber Wheel (L)	1
2	0035-70900	Rubber Wheel (R )	1
3	83-1142-152-00	Flat Headed Pin 8*53	2
4	89-2131-080002	Snap Pin 8	2

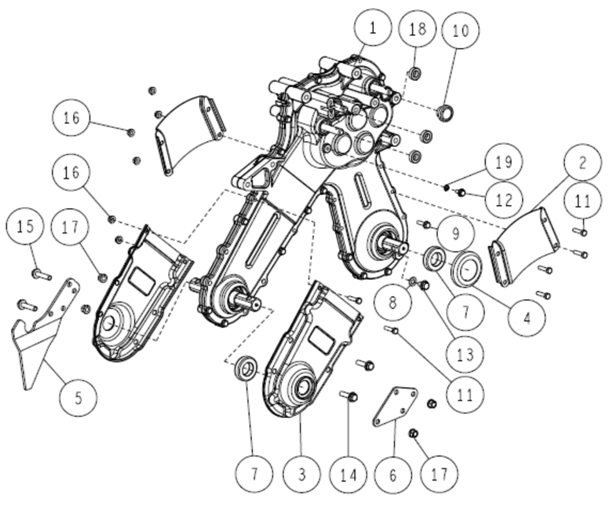

10/15	TRANSMISSION 1/4
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-00200	Transmission Case(R )	1
2	0010-03500	Safety Cover	2
3	0010-03600	Protection Cover	2
4	0010-03700	Axle Dust Cover	2
5	0010-50700	Anchor	1
6	0010-52100	Mounting Plate	1
7	83-1260-655-10	Oil Seal MUD 25.45.11	2
8	83-1415-348-00	Packing 8.5*16*1.3	1
9	83-1515-148-00	Tapping Bolt M6*22	16
10	83-1517-685-00	Oil Cap 20	1
11	89-1113-060252	Hexagonal Bolt (8T) M6*25	6
12	89-1251-060102	FLANGE HEXAGONAL BOLT M6*10	1
13	89-1251-080122	Flange Mini Hexagonal Bolt M8*12	1
14	89-1253-080302	Flange Mini Hexagonal Bolt (8T) M8*30	2
15	89-1253-080352	Flange Mini Hexagonal Bolt (8T) M8*35	2
16	89-1531-060042	Flange Nut M6	6
17	89-1543-080002	Mini Hexagonal Nut (SW) M8	4
18	89-5121-122207	Oil Seal UE 12.22.7	3
19	89-5230-060000	Seal Washer 6	1

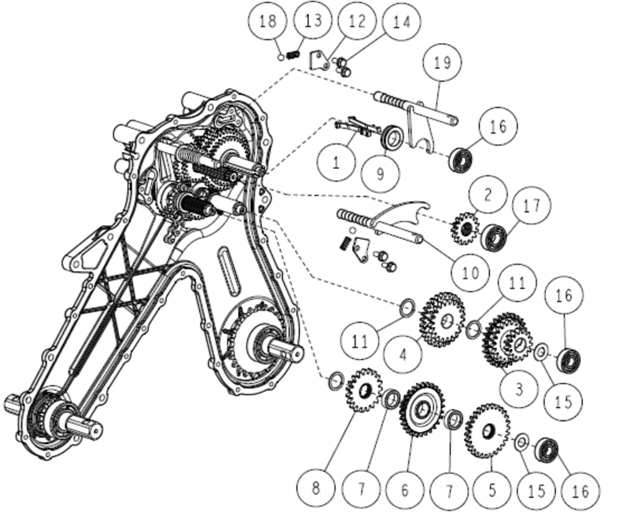

11/15	TRANSMISSION 2/4
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0004-02200	Shift Key	2
2	0010-00410	1st Shaft Gear 15T	1
3	0010-01710	3rd Shaft Gear 15T CMP	1
4	0010-01820	3rd Shaft Gear 19T CMP	1
5	0010-02310	4th Shaft Gear 28T	1
6	0010-02420	4th Shaft Gear 19T CMP	1
7	0010-02510	4th Shaft Collar	2
8	0010-02620	4th Shaft Gear 19T	1
9	0010-02900	Shift Key Holder	1
10	0010-03200	Rotary Shift Shaft CMP	1
11	0010-71500	Thrust Washer 19*25*1.0	2
12	80-1321-115-00	Shift Spring Holder B	2
13	80-1481-160-00	Pushing Spring 1.0	2
14	83-1020-148-00	Tapping Bolt M6*14	4
15	83-1020-355-00	Thrust Washer 12*24*1.0	2
16	89-3111-062014	Bearing 6201	3
17	89-3111-062024	Bearing 6202	1
18	89-3410-080000	Steel Ball 8.0	2
19	0010-03300	Driving Shift Shaft CMP	1

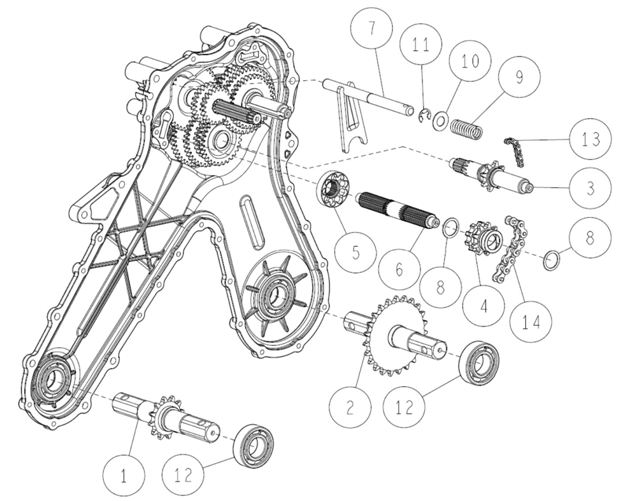

12/15	TRANSMISSION 3/4
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-00500	Rotary Shaft CMP	1
2	0010-00610	Axle CMP	1
3	0010-01620	3rd Shaft	1
4	0010-02710	Rotary Sprocket	1
5	0010-02810	Rotary Cutch Men	1
6	0010-03110	4th Shaft	1
7	0010-03410	Rotary Clutch Shaft CMP	1
8	0010-71500	Thrust Washer 19*25*1.0	2
9	80-1321-113-10	Rotary Clutch Return Spring	1
10	83-1020-355-00	Thrust Washer 12*24*1.0	1
11	89-2521-000090	E Type Ring 9	1
12	89-3111-062054	Bearing 6205	2
13	89-6514-420052	CHAIN #420 MBK1-52L	1
14	89-6514-420064	Chain #420 MBK1-64L	1

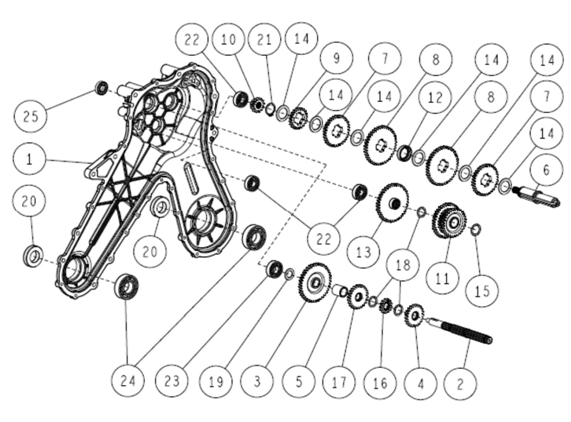

13/15	TRANSMISSION 4/4
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0010-00100	Transmission Case(L)	1
2	0010-00300	1st Shaft	1
3	0010-00700	1st Shaft Gear 13T CMP	1
4	0010-00800	1st Shaft Gear 21T	1
5	0010-00900	1st Shaft Collar	1
6	0010-01100	2nd Shaft	1
7	0010-01200	2nd Shaft Gear 32T	2
8	0010-01300	2nd Shaft Gear 40T	2
9	0010-01400	2nd Shaft Gear 21T	1
10	0010-01500	2nd Shaft Gear 13T	1
11	0010-01920	3rd Shaft Gear 17T CMP	1
12	0010-02100	2nd Shaft Gear 40T Collar	1
13	0010-02210	3rd Shaft Gear 40T CMP	1
14	0010-70500	Thrust Washer 23.5*34*1.0	6
15	0010-71500	Thrust Washer 19*25*1.0	1
16	80-1321-122-00	1st Shaft Gear 13T	1
17	80-1321-124-00	1st Shaft Gear 24T	1
18	83-1017-365-10	Thrust Washer 17*23*1.0	3
19	83-1020-361-00	Thrust Washer 15*24*1.0	1
20	83-1260-655-10	Oil Seal MUD 25.45.11	2
21	89-2511-000220	Snap Ring (S22)	1
22	89-3111-062014	Bearing 6201	3
23	89-3111-062024	Bearing 6202	1
24	89-3111-062054	Bearing 6205	2
25	89-5121-142807	Oil Seal UE 14.28.7	1

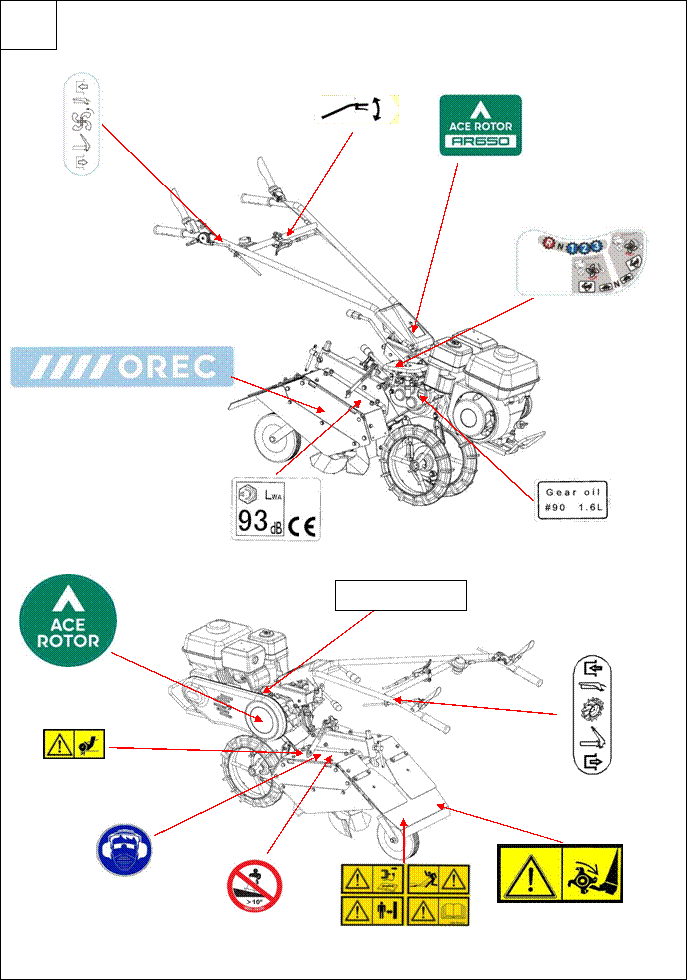

14/15 LABEL 1/2

① ② ③

⑥

④

⑤ ⑦

⑧

⑮ Serial number

⑭

⑨

⑩ ⑬

⑫

➃

15/15	LABEL 2/2
Ref.	Parts Number	Parts Name	Quantity	Remarks
1	0036-70500	Label, Rotor clutch	1
2	80-1614-917-00	Label, Handle Up/Down	1
3	0036-70700	Label, Model AR650	1
4	0310-72300	Label, OREC B02	2
5	0031-72800	Label,Noise 93db	1
6	0036-70600	Label, Change	1
7	80-1484-928-00	Label,Oil Quantity 1.6L	1
8	0036-70800	Label, AceRotor	1
9	80-1488-928-10	Label, Caution for Belt Involving	1
10	0215-83200	Label, Protection Equipment	1
11	0031-74100	Attention Mark for Slope	1
12	0223-76100	Label, Caution (Large)	1
13	83-1260-909-10	Attention Mark for Rotary	1
14	0334-76200	Label, Driving	1
15	-	Serial Number	1
