OREC ISSUED NO. SF60AE-1
Parts catalogue Mini Tiller
(EXPORT MODEL)
SF60AE
MODEL CODE NO.
SF50AE 0016-?????
CONTENTS
OREC CO.,LTD.
Update : March
2003

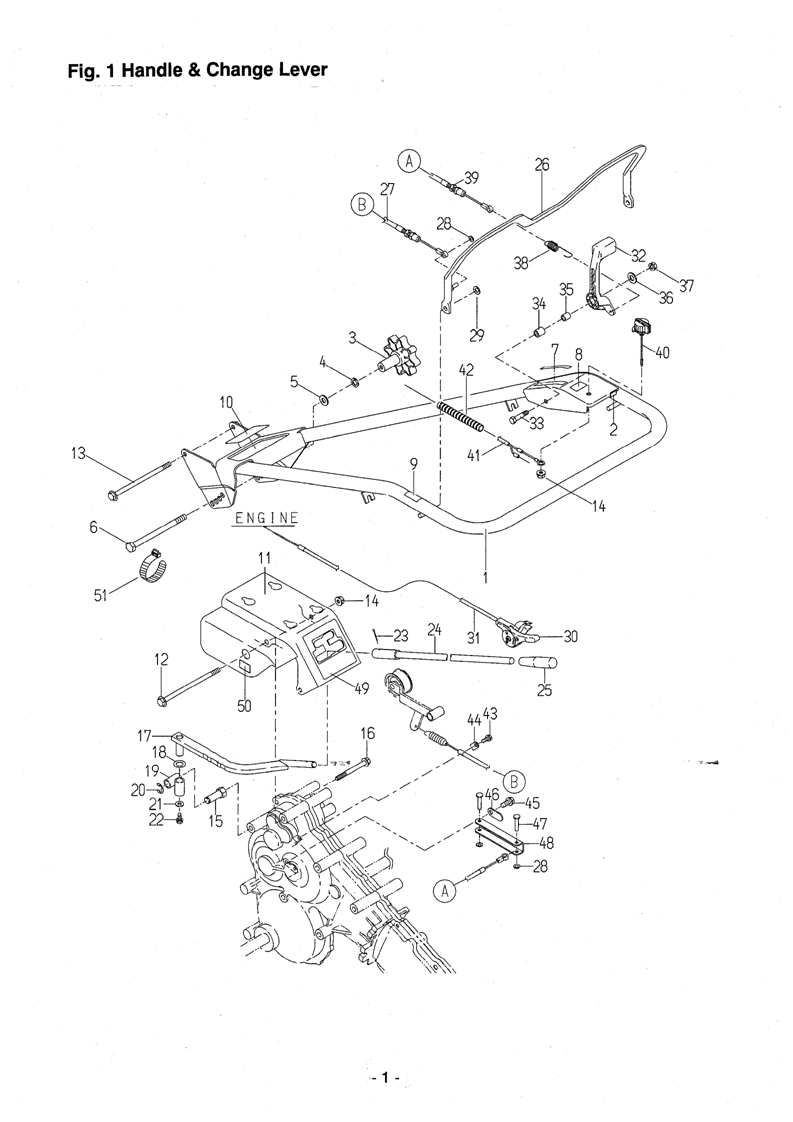

Fig. 1 Handle & Change Lever Serial Number : WJ03D00005~
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
SF60AE GX160 |
||||
|
CE Type |
||||
|
1 |
0016-10500 |
Handle CMP |
1 |
|
|
2 |
0016-10300 |
Rubber 15L |
1 |
|
|
3 |
80-1260-228-00 |
Knob Nut M10 |
1 |
|
|
4 |
89-1750-100002 |
Spring Washer 10 |
1 |
|
|
5 |
89-1713-100002 |
Flat Washer 10 |
1 |
|
|
6 |
0002-71000 |
Mini Hexagonal Bolt(8T) M10*145 |
1 |
|
|
7 |
80-1417-906-00 |
Label, Differential Lock |
1 |
|
|
8 |
80-1260-939-00 |
Label, Engine Switch |
1 |
|
|
9 |
80-1260-937-00 |
Main Clutch Mark |
1 |
|
|
10 |
Not for sale |
Label. Main |
1 |
|
|
11 |
80-1260-262-10 |
Gear Change Guide |
1 |
|
|
12 |
89-1253-081303 |
Small Flange Bolt (8T)M8*130 |
1 |
|
|
13 |
89-1253-081403 |
Small Flange Bolt (8T)M8*140 |
1 |
|
|
14 |
89-1631-080042 |
Flange Mini Hexagonal Nut M8 |
2 |
|
|
15 |
80-1260-535-00 |
Tension Arm Shaft |
1 |
|
|
16 |
89-1253-080802 |
Mini Flange Bolt (8T) M8*80 |
1 |
|
|
17 |
80-1260-263-20 |
Change Lever |
1 |
|
|
18 |
83-1754-329-00 |
Washer 13*22*1.0 |
1 |
|
|
19 |
80-1260-266-00 |
Change Lever Boss |
1 |
|
|
20 |
89-2521-000100 |
E-Type Stopper 10 |
1 |
|
|
21 |
89-1713-060002 |
Washer 6 |
1 |
|
|
22 |
83-1515-112-00 |
Hexagonal Bolt(SW) M6*14(Meck) |
1 |
|
|
23 |
89-2120-300252 |
Pin 3*25 |
1 |
|
|
24 |
80-1260-264-00 |
Change Lever Arm |
1 |
|
|
25 |
83-1711-426-00 |
Lever Grip 12 |
1 |
|
|
26 |
0016-10200 |
Clutch Lever |
1 |
|
|
27 |
83-1260-932-00 |
Main Clutch Wire |
1 |
|
|
28 |
83-1515-177-00 |
Push Nut 6 |
3 |
|
|
29 |
83-1020-177-00 |
Push Nut 8 |
2 |
|
|
30 |
83-1260-461-00 |
Throttle Lever |
1 |
|
|
31 |
83-1260-951-00 |
Throttle Wire |
1 |
|
|
32 |
80-1022-260-00 |
Differential Lock Lever |
1 |
|
|
33 |
89-1213-080402 |
Mini Hexagonal Bolt (8T) M8*40 |
1 |
|
|
34 |
80-1260-234-10 |
Differential Lock Lever Collar |
1 |
|
|
35 |
80-1020-270-00 |
Inner Collar |
1 |
|
|
36 |
89-1713-080002 |
Washer 8 |
1 |
|
|
37 |
89-1543-080002 |
Mini Hexagonal Nut(SW) M8 |
1 |
|
|
38 |
80-1020-967-00 |
Change Spring |
1 |
|
|
39 |
83-1260-938-00 |
Differential Lock Wire |
1 |
|
|
40 |
0016-72500 |
Engine Stop Switch |
1 |
|
|
41 |
80-1260-288-20 |
Engine Stop Wire Harness |
1 |
|
|
42 |
80-1260-225-00 |
Tube 10-200L |
1 |
|
|
43 |
83-1020-148-00 |
Hexagonal Tap Tight M6*14 |
1 |
|
|
44 |
80-1515-186-00 |
Wire Holder |
1 |
|
|
45 |
80-1020-719-00 |
Hexagonal Tap Tight M8*18 |
1 |
|
|
46 |
0023-00200 |
Differential Lock Arm Holder |
1 |
|
|
47 |
89-2181-060307 |
Flat-Headed Pin 6*30 |
2 |
|
|
48 |
80-1260-275-10 |
Differential Lock Arm |
1 |
|
|
49 |
80-1260-911-00 |
Label, Change |
1 |
|
|
50 |
80-1010-933-00 |
Label, CE |
1 |
|
|
51 |
83-1415-718-00 |
Wire Band 150 |
5 |
|
|
|
|
|
|
|
- 2 -

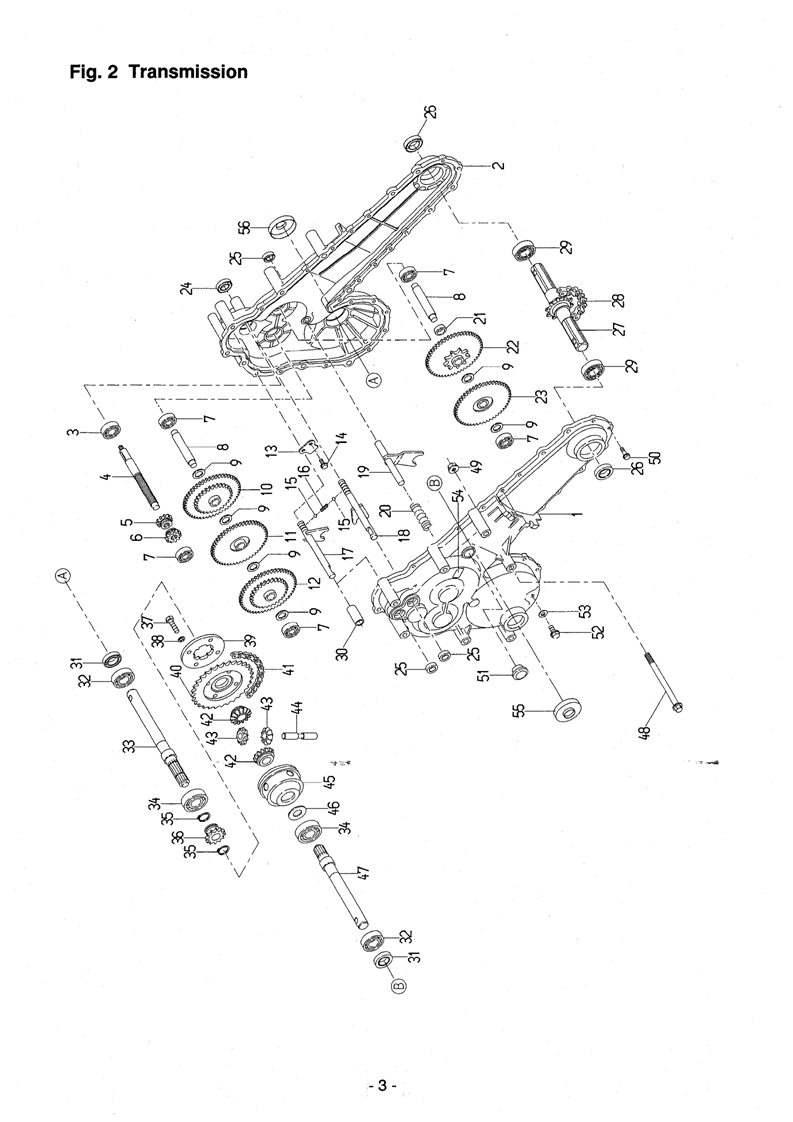

Fig. 2 Transmission
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
SF60AE GX160 |
||||
|
CE Type |
||||
|
1-55 |
0023-00000 |
Gear Case ASSY |
1 |
|
|
1 |
80-1260-101-00 |
Gear Case (L) |
1 |
|
|
2 |
80-1260-103-10 |
Gear Case (R) |
1 |
|
|
3 |
89-3111-062024 |
Bearing 6202 |
1 |
|
|
4 |
80-1260-118-00 |
Main Shaft |
1 |
|
|
5 |
80-1260-122-20 |
Rotary Shift Gear 12T |
1 |
|
|
6 |
80-1260-120-20 |
Shift Gear 11T |
1 |
|
|
7 |
89-3111-062014 |
Bearing 6201 |
5 |
|
|
8 |
80-1260-127-10 |
Shaft |
2 |
|
|
9 |
83-1020-361-00 |
Thrust Washer 15*24*1 |
6 |
|
|
10 |
0016-00400 |
Second Shaft 20T Rotary |
1 |
|
|
11 |
0016-00900 |
Second Shaft Sprocket 9T |
1 |
|
|
12 |
0016-00300 |
Second Shaft 20T |
1 |
|
|
13 |
80-1260-161-00 |
Shift Spring Holder |
1 |
|
|
14 |
83-1020-148-00 |
Hexagonal Tap Tight M6*14 |
2 |
|
|
15 |
89-3410-060000 |
Steel Ball 6 |
2 |
|
|
16 |
80-1805-160-20 |
Shift Spring |
1 |
|
|
17 |
80-1260-110-50 |
Rotary Shift Folk Shaft |
1 |
|
|
18 |
0023-00100 |
Main Shift Folk Shaft |
1 |
|
|
19 |
80-1260-116-00 |
Differential Lock Folk Shaft |
1 |
|
|
20 |
80-1260-117-00 |
Spring |
1 |
|
|
21 |
80-1260-139-10 |
Shaft Collar |
1 |
|
|
22 |
0016-00600 |
Third Shaft Sprocket 9T |
1 |
|
|
23 |
0016-00500 |
Third Shaft 12T |
1 |
|
|
24 |
89-5121-153007 |
Oil Seal UE 15.30.7 |
1 |
|
|
25 |
89-5121-122207 |
Oil Seal UE 12.22.7 |
3 |
|
|
26 |
83-1260-655-10 |
Oil Seal MUD 25.45.11 |
2 |
|
|
27 |
0007-01400 |
Rotary Shaft |
1 |
|
|
28 |
89-6513-520060 |
Chain #520-60L |
1 |
|
|
29 |
89-3111-060054 |
Bearing 6005 |
2 |
|
|
30 |
80-1260-111-00 |
Rotary Shift Folk Shaft Collar |
1 |
|
|
31 |
89-5121-203508 |
Oil Seal UE 20.35.08 |
2 |
|
|
32 |
89-3111-060044 |
Bearing 6004 |
2 |
|
|
33 |
0016-00200 |
Shaft (R) |
1 |
|
|
34 |
89-3111-062044 |
Bearing 6204 |
2 |
|
|
35 |
89-2511-000200 |
Shaft Stopper 20 |
2 |
|
|
36 |
80-1260-148-00 |
Differential Clutch On |
1 |
|
|
37 |
83-1517-111-00 |
Hexagonal Bolt(8T) M8*30(Meck) |
4 |
|
|
38 |
89-1750-080002 |
Washer 8 |
4 |
|
|
39 |
80-1260-156-00 |
Differential Clutch Men |
1 |
|
|
40 |
80-1260-154-00 |
Shaft Sprocket 30T |
1 |
|
|
41 |
89-6513-420042 |
Chain #420-42L |
1 |
|
|
42 |
80-1260-152-00 |
Differential Gear 14T |
2 |
|
|
43 |
80-1260-153-00 |
Pinion 10T |
2 |
|
|
44 |
80-1260-155-10 |
Differential Pinion Shaft |
1 |
|
|
45 |
80-1260-151-00 |
Differential Case |
1 |
|
|
46 |
83-1310-371-00 |
Thrust Wahser 20*30*1 |
1 |
|
|
47 |
0016-00100 |
Shaft (L) |
1 |
|
|
48 |
89-1253-081253 |
Small Flange Bolt (8T)M8*125 |
1 |
|
|
49 |
89-1631-080043 |
Flange Mini Hexagonal Nut M8 |
1 |
|
|
50 |
83-1515-148-00 |
Tap Tight M6*22 |
18 |
|
|
51 |
83-1517-685-00 |
Oil Cap 20 |
1 |
|
- 4 -

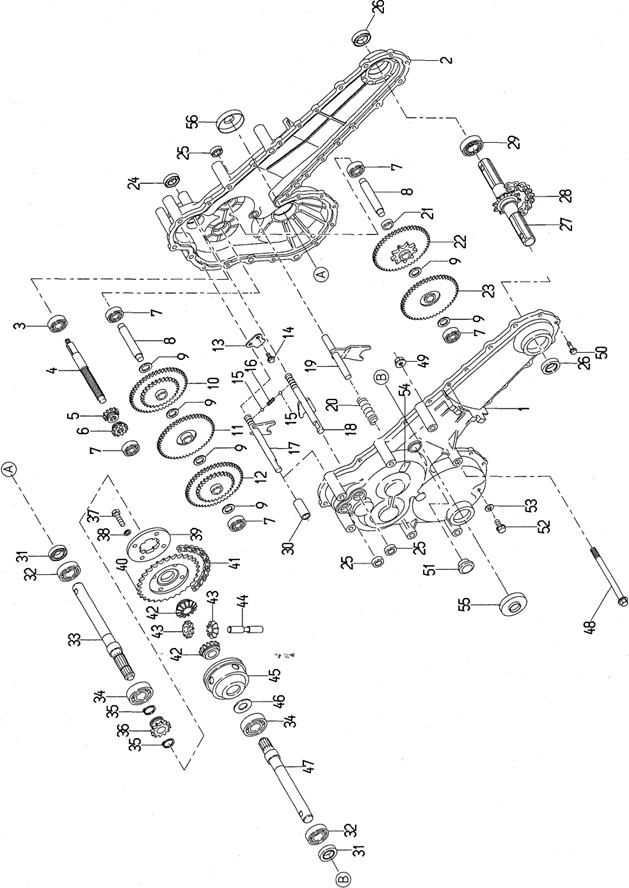

Fig. 2 Transmission
- 5 -
Fig. 2 Transmission
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
SF60AE GX160 |
||||
|
CE Type |
||||
|
52 |
89-1251-080123 |
Mini Flange Hexagonal Bolt M8*12 |
1 |
|
|
53 |
83-1415-348-00 |
Packing 8.5*16*1.3 |
1 |
|
|
54 |
83-1260-928-00 |
Label, Oil Quantity 2.5 |
1 |
|
|
55 |
0016-01100 |
Axle Dust Cover |
2 |
|
|
|
||||
- 6 -
57
20 47
49
21 48
2 73 6
19
60
87
76 79
90
g
93 ”“
2
76 79
59
66
76
57 '
I
75
6ś
63
! 53 5ł
65 50
62
62
62

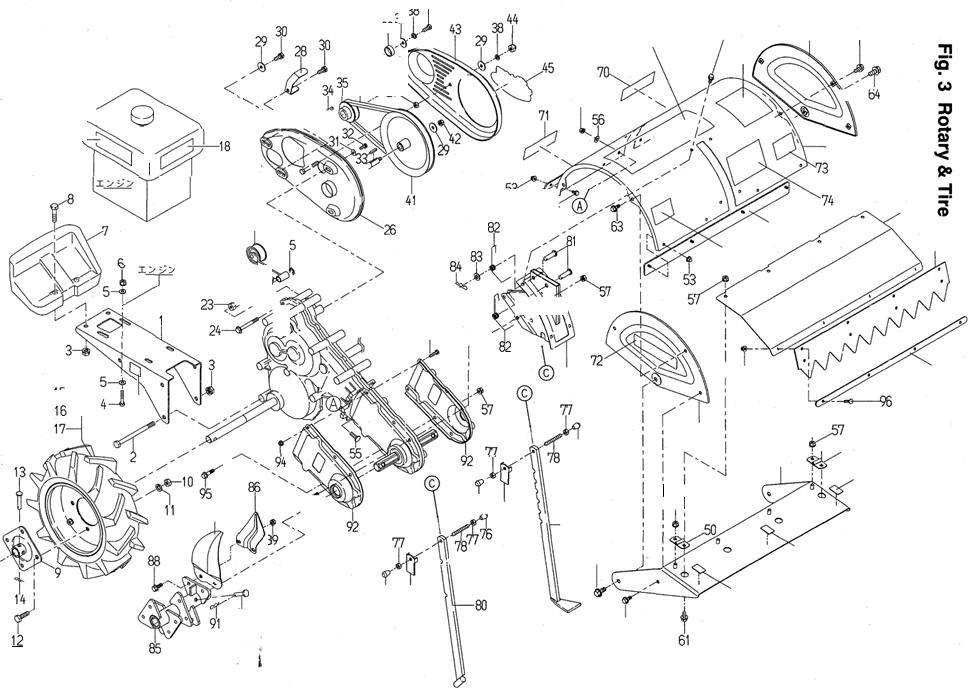

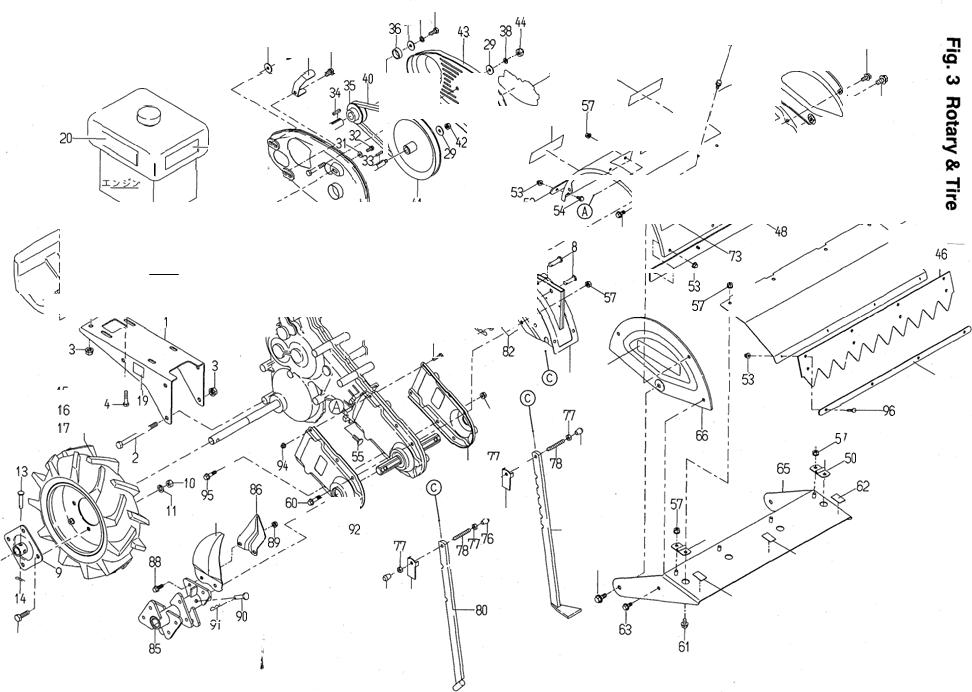

Fig. 3 Rotary & Tire
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
SF60AE GX160 |
||||
|
CE Type |
||||
|
1 |
80-1260-301-00 |
Engine Base |
1 |
|
|
2 |
89-1213-101352 |
Mini Hexagonal Bolt(8T) M10*135 |
2 |
|
|
3 |
89-1543-100002 |
Mini Hexagonal Nut(SW) M10 |
4 |
|
|
4 |
89-1213-080402 |
Mini Hexagonal Bolt(8T) M8*40 |
4 |
|
|
5 |
89-1713-080002 |
Washer 8 |
6 |
|
|
6 |
89-1543-080002 |
Mini Hexagonal Nut(SW) M8 |
4 |
|
|
7 |
80-1260-343-10 |
Balance Weight |
1 |
|
|
8 |
89-1213-100452 |
Mini Hexagonal Bolt(8T) M10*45 |
2 |
|
|
9 |
80-1260-414-00 |
Wheel Boss |
2 |
|
|
10 |
89-1511-100042 |
Hexagonal Nut M10 |
8 |
|
|
11 |
89-1750-100002 |
Spring Washer 10 |
8 |
|
|
12 |
89-1111-100202 |
Hexagonal Bolt M10*20 |
8 |
|
|
13 |
83-1260-154-00 |
Flat-Headed Pin 9*45 |
2 |
|
|
14 |
89-2131-100002 |
Snap Pin 10 |
2 |
|
|
15-17 |
80-1260-411-00 |
Tire ASSY(3.50*7) |
2 |
|
|
15 |
80-1260-401-10 |
Tire(3.50*7) |
2 |
|
|
16 |
80-1260-404-00 |
Tube |
2 |
|
|
17 |
80-1260-407-00 |
Wheel |
2 |
|
|
18 |
83-1415-909-00 |
Sticker for Engine (Z18-6) |
1 |
|
|
19 |
Not for sale |
Label, Serial No. |
1 |
|
|
20 |
0023-70300 |
Label, Model |
1 |
|
|
21 |
80-1260-542-10 |
Tension Pulley |
1 |
|
|
22 |
80-1260-552-00 |
Spring |
1 |
|
|
23 |
80-1260-535-00 |
Tension Shaft |
1 |
|
|
24 |
89-1253-080702 |
Mini Flange Bolt(8T) M8*70 |
1 |
|
|
25 |
89-2521-000100 |
E-Type Stopper 10 |
1 |
|
|
26 |
80-1260-501-00 |
Belt Cover In |
1 |
|
|
27 |
89-1561-080002 |
Mini Hexagonal U Nut M8 |
1 |
|
|
28 |
80-1260-575-10 |
Belt Holder |
1 |
|
|
29 |
89-1713-080002 |
Washer 8 |
3 |
|
|
30 |
89-1232-080202 |
Hexagonal Bolt(SW) M8*20 |
2 |
|
|
31 |
89-1713-060002 |
Washer 6 |
2 |
|
|
32 |
83-1020-148-00 |
Hexagonal Tap Tight M6*14 |
2 |
|
|
33 |
89-2150-050250 |
Key 5*25 |
1 |
|
|
34 |
Engine parts |
Key |
1 |
|
|
35 |
80-1260-514-00 |
Engine Pulley(H.M.K) |
1 |
|
|
36 |
80-1260-517-00 |
Pulley Collar 10L(M.C.H) |
1 |
|
|
37 |
83-1020-312-00 |
Washer 8*32*3.2 |
1 |
|
|
38 |
89-1750-080002 |
Spring Washer 8 |
2 |
|
|
39 |
89-1253-080202 |
Mini Flange Bolt(8T) M8*20 |
1 |
|
|
40 |
89-6122-003202 |
ＶBelt SA32W400-P |
1 |
|
|
41 |
80-1260-521-00 |
Transmission Pulley |
1 |
|
|
42 |
89-1543-080002 |
Mini Hexagonal Nut(SW) M8 |
1 |
|
|
43 |
80-1260-502-00 |
Belt Case Out |
1 |
|
|
44 |
89-1673-080042 |
Mini Hexagonal Cap Nut M8 |
1 |
|
|
45 |
80-1260-906-00 |
Label 2, PICO |
1 |
|
|
46 |
80-1260-781-00 |
Rear Flapper A |
1 |
|
|
47 |
0016-60410 |
Rotary Cover |
1 |
|
|
48 |
80-1260-738-00 |
Rear Plate Setting |
1 |
|
|
49 |
0016-60800 |
Rotary Rear Cover |
1 |
|
|
50 |
83-1806-757-00 |
Hinge |
4 |
|
|
51 |
80-1260-786-00 |
Flapper Holder |
1 |
|
- 8 -
29 28 30
27
68
A5 70
71 ss
58
69 ø
67 63
64
18 31
ł ./ ._
47
73
•
74
49
5r,
57
92 ,
59 72 5ł
76
87 79
75 50
64
76 79 62
12
Fig. 3 Rotary & Tire
|
Ref. |
Parts No. |
Parts Name |
Quantity |
Remarks |
|
SF60AE GX160 |
||||
|
CE Type |
||||
|
52 |
80-1260-736-00 |
Rotary Cover Reinforcement |
1 |
|
|
53 |
89-1581-060042 |
Flange Cap Nut M6 |
12 |
|
|
54 |
89-1137-060152 |
Hexagonal Bolt(PW) M6*15 |
4 |
|
|
55 |
89-1390-080302 |
Welded Bolt M8*30 |
4 |
|
|
56 |
89-1713-080002 |
Washer 8 |
4 |
|
|
57 |
89-1543-080002 |
Mini Hexagonal Nut(SW) M8 |
16 |
|
|
58 |
89-1232-080122 |
Mini Hexagonal Bolt(SW) M8*12 |
4 |
|
|
59 |
0016-61100 |
Case |
1 |
|
|
60 |
89-1253-080352 |
Mini Hexagonal Bolt(8T) M8*35 |
2 |
|
|
61 |
89-1253-080162 |
Flange Hexagonal Bolt (8T) M8*16 |
4 |
|
|
62 |
80-1415-509-00 |
Rubber |
3 |
|
|
63 |
89-1236-080202 |
Mini Hexagonal Bolt (PWSW) M8*20 |
6 |
|
|
64 |
89-1236-100202 |
Mini Hexagonal Bolt (PWSW) M10*20 |
2 |
|
|
65 |
0016-60900 |
Rear Cover CMP |
1 |
|
|
66 |
0016-60600 |
Side Cover (L) |
1 |
|
|
67 |
0016-60700 |
Side Cover (R) |
1 |
|
|
68 |
80-1260-905-00 |
Label 1, PICO |
1 |
|
|
69 |
80-1260-926-00 |
Label, Instruction |
1 |
|
|
70 |
80-1488-928-00 |
Label, Coution for Belt Involving |
1 |
|
|
71 |
83-1260-908-00 |
Attention Mark for Reversing |
1 |
|
|
72 |
80-1260-903-00 |
Label, Company Name |
2 |
|
|
73 |
83-1260-909-00 |
Attention Mark for Rotary |
2 |
|
|
74 |
80-1484-A47-00 |
Label, Coution (Large) |
1 |
|
|
75 |
80-1260-743-10 |
Bar for Tilling Depth Adjustment |
1 |
|
|
76 |
83-1260-423-00 |
Grip Rubber |
4 |
|
|
77 |
89-1611-080042 |
Mini Hexagonal Nut M8 |
4 |
|
|
78 |
80-1260-745-00 |
Screw M8*58 |
2 |
|
|
79 |
0023-60100 |
Resistant Bar Stopper |
2 |
|
|
80 |
80-1260-744-10 |
Resistant Bar |
1 |
|
|
81 |
89-2181-100352 |
Flat-Headed Pin 10*35 |
2 |
|
|
82 |
80-1260-746-00 |
Spring |
2 |
|
|
83 |
89-1714-100002 |
Flat Washer 10 |
2 |
|
|
84 |
89-2131-100002 |
Snap Pin 10 |
2 |
|
|
85 |
0023-50100 |
Tine Shaft |
2 |
|
|
86 |
0016-50200 |
Grass Discharging Plate |
2 |
|
|
87 |
80-1260-821-00 |
Tine for SF50 |
12 |
|
|
88 |
89-1253-080202 |
Mini Flange Bolt(8T) M8*20 |
24 |
|
|
89 |
89-1543-080002 |
Mini Hexagonal Nut(SW) M8 |
24 |
|
|
90 |
83-1260-154-00 |
Flat-Headed Pin 9*45 |
2 |
|
|
91 |
89-2131-100002 |
Snap Pin 10 |
2 |
|
|
92 |
0010-03600 |
Protection Cover |
2 |
|
|
93 |
89-1113-060302 |
Hexagonal Bolt (8T) M6*30 |
2 |
|
|
94 |
83-1712-194-00 |
Nut M6 |
2 |
|
|
95 |
89-1253-080302 |
Small Flange Bolt (8T)M8*30 |
2 |
|
|
96 |
89-1390-060122 |
Welded Bolt M6*12 |
4 |
|
|
|
||||
- 10 -
