OREC

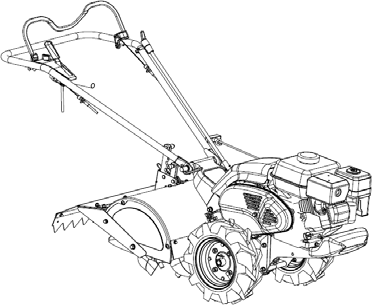

Parts catalogue Mini Tiller

(EXPORT MODEL) SF600

ISSUED NO. SF600 EU-1



MODEL              CODE

SF600               0031-○○○○○




CONTENTS



TIRE

1

REAR COVER

2

TINE SHAFT

3

BELT

4-5

FRAME

6

HANDLE

7-8

ROTARY COVER

9-10

CHANGE LEVER

11-12

TRANSMISSION

13-16

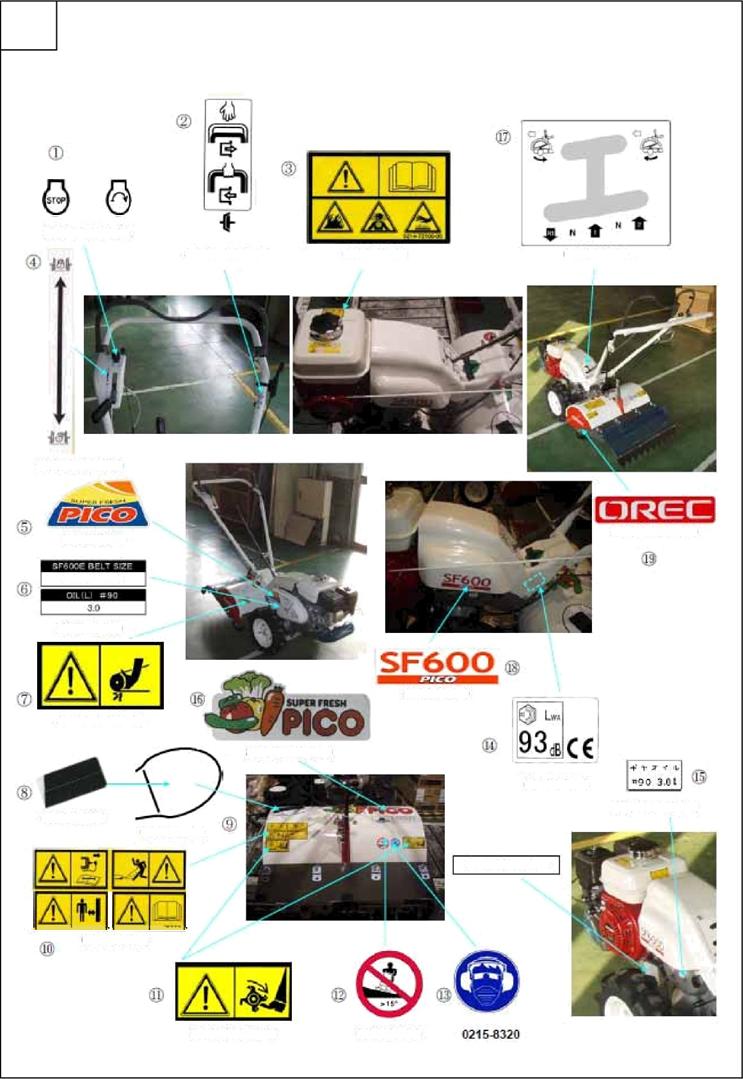

LABEL

17-18



OREC CO.,LTD

Update : February 2012

                                                MEMO















*1) Interchangeable

*2) Serial Number :SF600 : ~WM11K00161

*3) Serial Number :SF600 :WM11M00162~

1/18

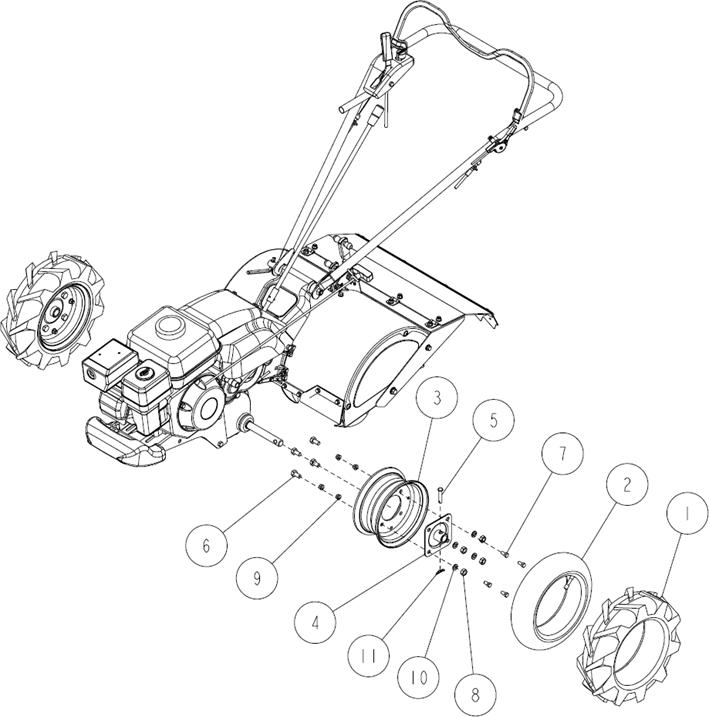

TIRE









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-401-10

Tire (3.50*7)

2



2

80-1260-404-00

Tire Tube 3.50-7

2



3

80-1260-407-00

Wheel Assy 3.50-7

2



4

80-1260-414-00

Wheel Boss

2



5

83-1260-154-00

Flat-Headed Pin 9*45

2



6

89-1111-100202

Hexagonal Bolt M10*20

8



7

89-1211-080162

Mini Hexagonal Bolt M8*16

8



8

89-1511-100042

Hexagonal Nut M10

8



9

89-1543-080002

Mini Hexagonal Nut (SW) M8

8



10

89-1750-100002

Spring Washer 10

8



11

89-2131-100002

Snap Pin 10

2



2/18

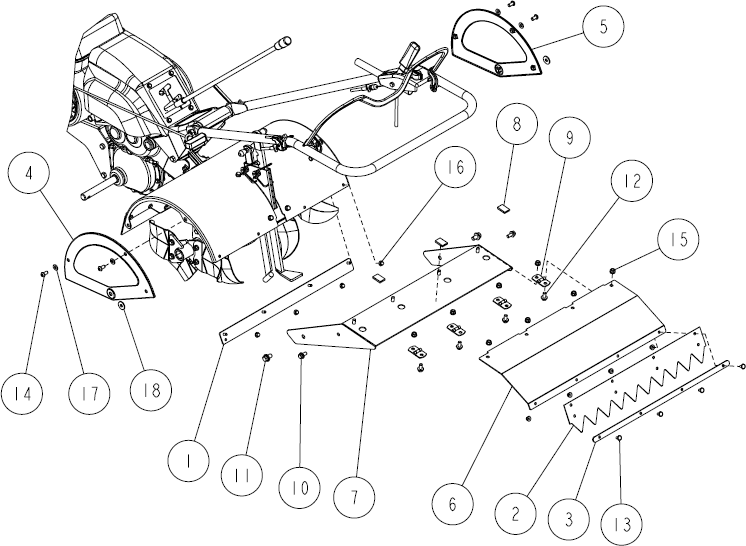

REAR COVER















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-738-00

Rear Plate Setting

1



2

80-1260-781-00

Rear Flapper A

1



3

80-1260-786-00

Flapper Holder

1



4

0016-60600

Side Cover (L)

1



5

0016-60700

Side Cover (R)

1



6

0016-60800

Rotary Rear Cover

1



7

0031-61100

Rear Cover Setting CMP

1



8

0031-61400

Sponge Rubber

3



9

83-1806-757-00

Hinge

4



10

89-1236-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



11

89-1236-100202

Mini Hexagonal Bolt (PWSW) M10*20

2



12

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

4



13

89-1390-060122

Welded Bolt M6*12

4



14

89-1433-080162

Hexagonal Hole Bolt M8*16

4



15

89-1543-080002

Mini Hexagonal Nut (SW) M8

8



16

89-1581-060042

Flange Cap Nut M6

8



17

89-1711-080002

Flat Washer 8

4



18

89-1714-080002

Flat Washer 8

2



3/18

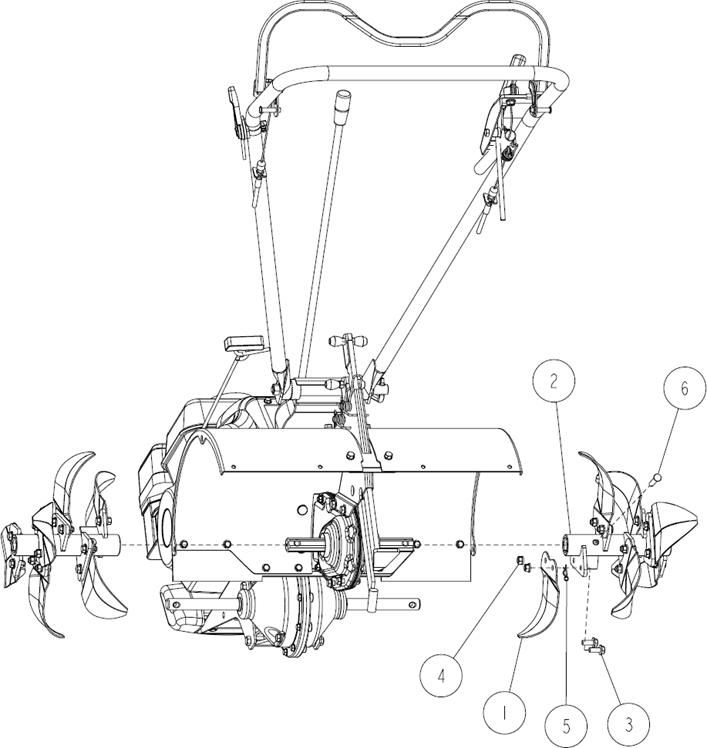

TINE SHAFT















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-821-00

Tine for SF50

12



2

0031-50100

Tine Shaft CMP

2



3

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

24



4

89-1543-080002

Mini Hexagonal Nut (SW) M8

24



5

89-2131-080002

Snap Pin 8

2



6

89-2191-080452

Round Head Pin 8*45

2



4/18

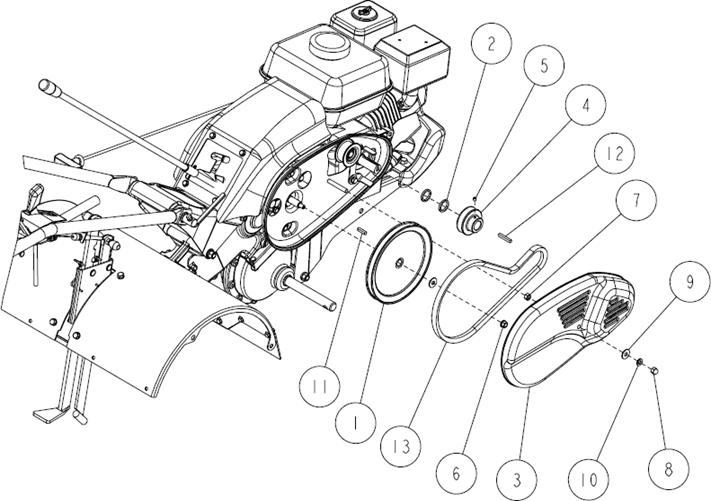

BELT























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-521-00

Transmission Pulley

1



2

80-1321-515-10

Engine Pulley Collar 3.5L

2



3

0031-40200

Belt Cover Out

1



4

0031-40600

Engine Pulley (H.M.K)

1



5

89-1172-060065

Hexagonal Hole Screw M6*6

1



6

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



7

89-1561-080002

Mini Hexagonal U Nut M8

1



8

89-1671-080042

Mini Cap Nut M8

1



9

89-1713-080002

Flat Washer 8 (large)

2



10

89-1750-080002

Spring Washer 8

1



11

89-2150-050250

Key 5*25 (round)

1



12

89-2152-050350

Key 5*35

1



13

89-6122-003202

V Belt SA-32 (W400P)

1



5/18

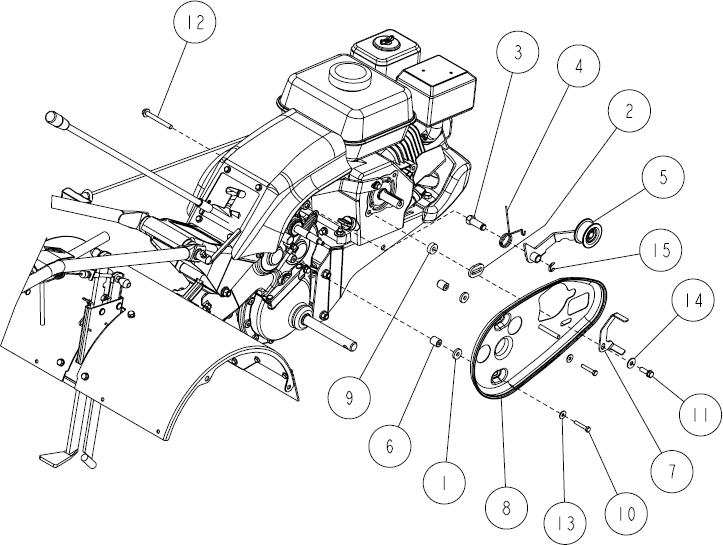

BELT

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1035-988-00

Spacer Rubber

2



2

80-1260-501B-00

Spacer

1



3

80-1260-535-00

Tension Arm Shaft

1



4

80-1260-552-00

Spring

1



5

0031-40300

Tension Arm CMP

1



6

0031-40400

Setting Collar for Belt Cover In

2



7

0031-40500

Belt Holder

1



8

0031-41100

Belt Cover In

1



9

0031-70610

Belt Cover Spacer 8.5*22*8

1



10

89-1113-060352

Hexagonal Bolt (8T) M6*35

2



11

89-1232-080252

Mini Hexagonal Bolt (SW) M8*25

1



12

89-1253-080702

Flange Mini Hexagonal Bolt (8T) M8*70

1



13

89-1713-060002

Flat Washer 6 (large)

2



14

89-1713-080002

Flat Washer 8 (large)

1



15

89-2521-000100

E Type Ring 10

1



6/18

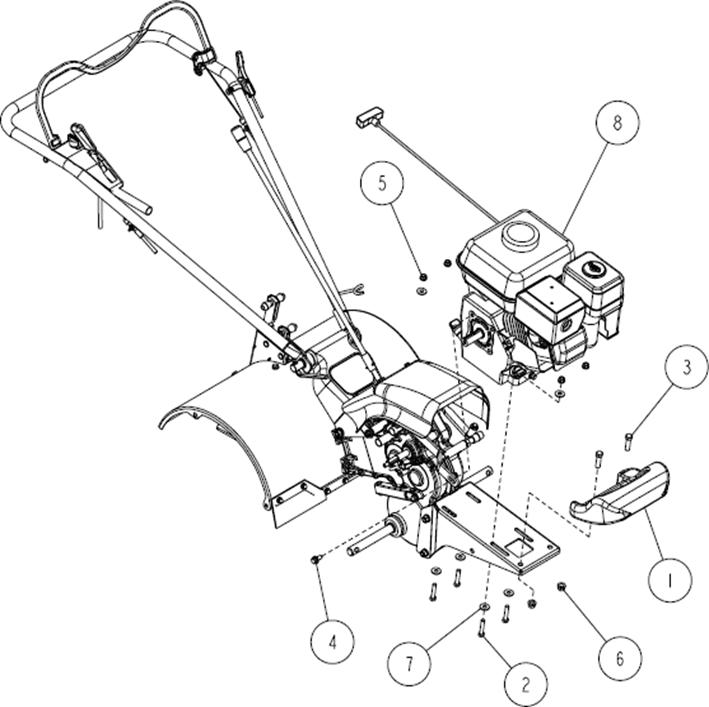

FRAME











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0031-20210

Balance Weight

1



2

89-1213-080402

Mini Hexagonal Bolt (8T) M8*40

4



3

89-1213-100352

Mini Hexagonal Bolt (8T) M10*35

2



4

89-1239-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



5

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



6

89-1543-100002

Mini Hexagonal Nut (SW) M10

2



7

89-1713-080002

Flat Washer 8 (large)

6



8

9006-0171

GX160U1-S1CY

1

*2)



9006-0371

GX160UT2-S1CY

1

*1) *3)

7/18

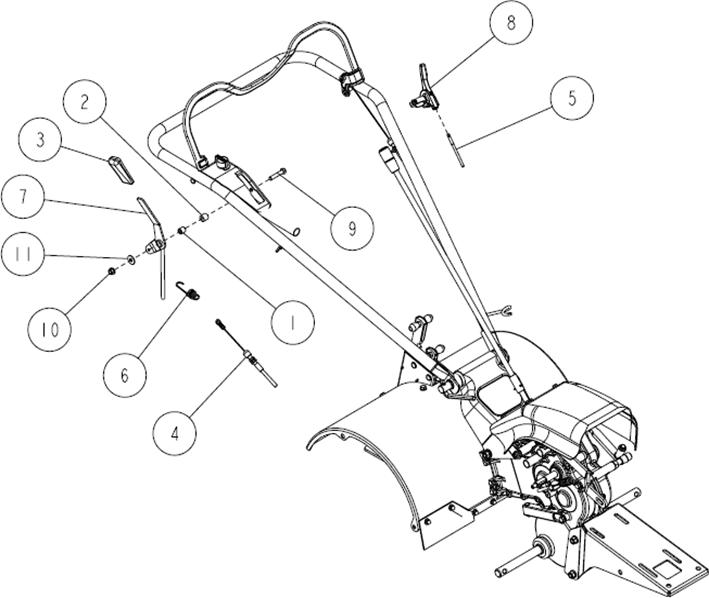

HANDLE

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1020-270-00

Inner Collar

1



2

80-1260-234-10

Differential Lock Lever Collar

1



3

80-1515-262-00

Arm Grip (Black)

1



4

0016-73100

Differential Lock Wire

1



5

0023-72500

Throttle Wire

1



6

0031-10700

Spring for Differential Lock Return

1



7

0031-10800

Differential Lock Lever

1



8

83-1260-461-00

Throttle Lever

1



9

89-1213-080402

Mini Hexagonal Bolt (8T) M8*40

1



10

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



11

89-1713-080002

Flat Washer 8 (large)

1



8/18

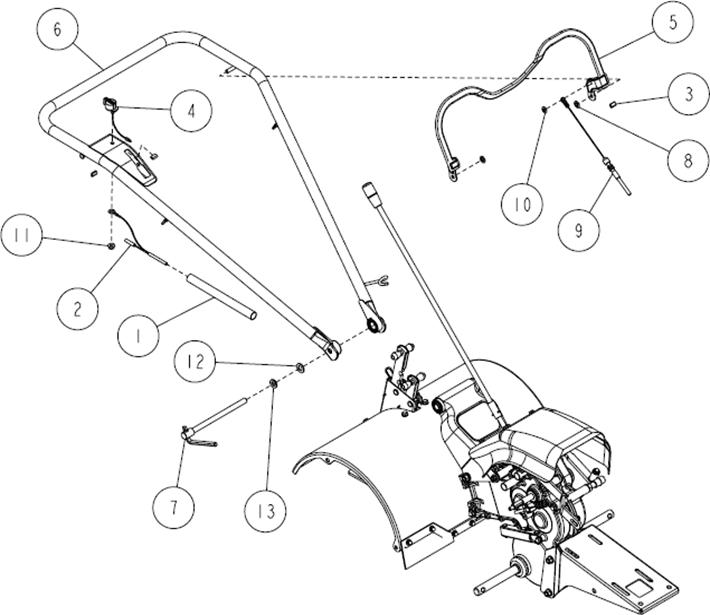

HANDLE













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-225-00

Tube 10-200L

1



2

80-1260-288-20

Engine Stop Wire Harness

1



3

0016-10300

Rubber 15L

3



4

0016-72500

Engine Stop Switch

1



5

0023-10600

Clutch Lever CMP

1



6

0031-12100

Handle CMP

1



7

0046-70300

Flexible Handle M12*185

1



8

83-1020-177-00

Push Nut 8

2



9

83-1260-932-00

Main Clutch Wire

1



10

83-1515-177-00

Push Nut 6

1



11

89-1631-080042

Flange Mini Hexagonal Nut M8

1



12

89-1714-120002

Flat Washer 12

1



13

89-1750-120002

Spring Washer 12

1



9/18

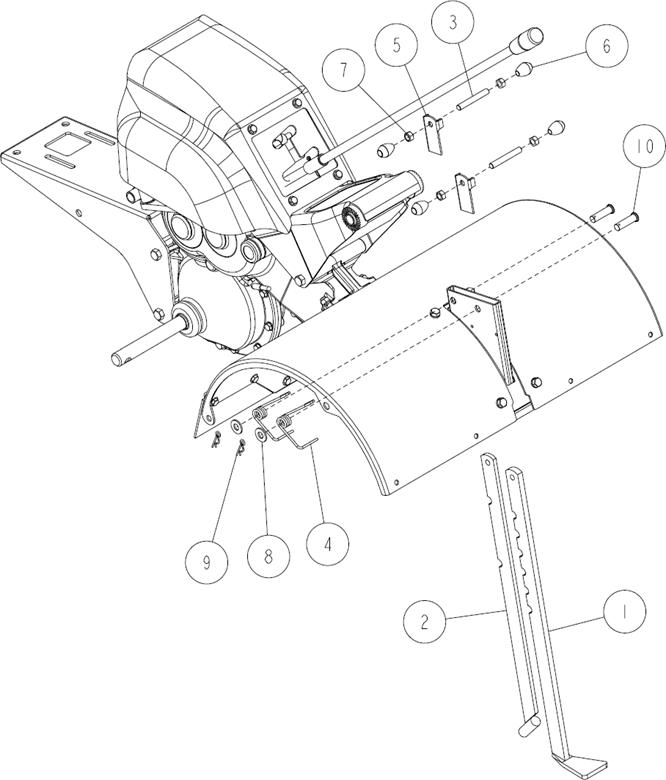

ROTARY COVER



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-743-10

Bar for Tilling Depth Adjustment

1



2

80-1260-744-10

Resistant Bar

1



3

80-1260-745-00

Screw M8*58

2



4

80-1260-746-00

Spring

2



5

0023-60100

Resistant Bar Stopper

2



6

83-1260-423-00

Grip Rubber

4



7

89-1611-080042

Mini Hexagonal Nut M8

4



8

89-1714-100002

Flat Washer 10

2



9

89-2131-100002

Snap Pin 10

2



10

89-2181-100352

Flat Head Pin 10*35

2



10/18

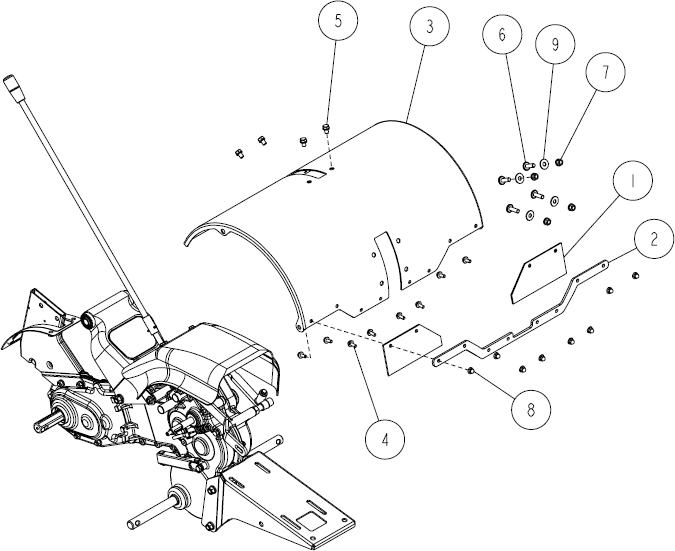

ROTARY COVER





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0016-60500

Front Flapper

2



2

0031-60210

Rotary Cover Reinforcement (Front)

1



3

0031-61200

Rotary Cover

1



4

89-1137-060152

Hexagonal Bolt (PW) M6*15

8



5

89-1232-080122

Mini Hexagonal Bolt (SW) M8*12

4



6

89-1390-080252

Welded Bolt M8*25

4



7

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



8

89-1581-060042

Flange Cap Nut M6

8



9

89-1713-080002

Flat Washer 8 (large)

4



11/18

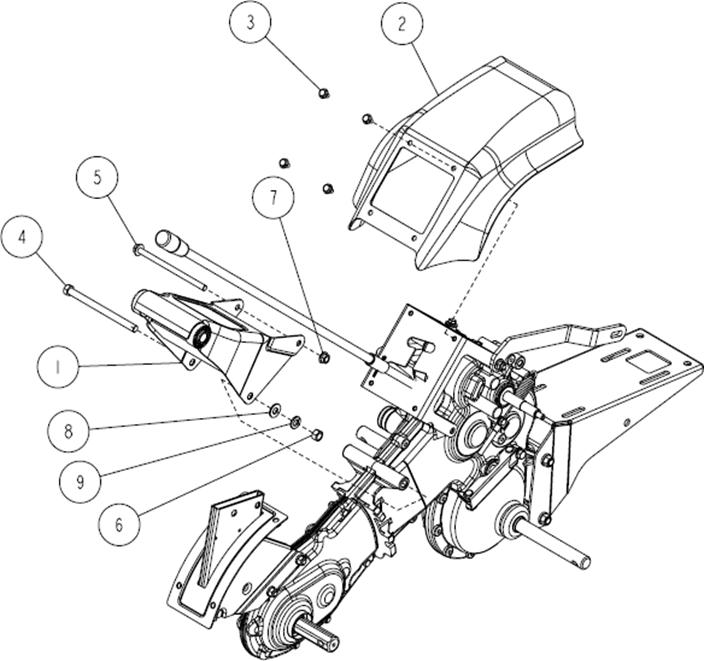

CHANGE LEVER













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0023-10300

Bracket for Handle

1



2

0031-10410

Change Guide Cover

1



3

89-1137-060122

Hexagonal Bolt (PW) M6*12

4



4

89-1213-101352

Mini Hexagonal Bolt (8T) M10*135

1



5

89-1253-081353

Flange Mini Hexagonal Bolt (8T) M8*135

1



6

89-1611-100042

Mini Hexagonal Nut M10

1



7

89-1631-080042

Flange Mini Hexagonal Nut M8

1



8

89-1714-100002

Flat Washer 10

1



9

89-1750-100002

Spring Washer 10

1



12/18

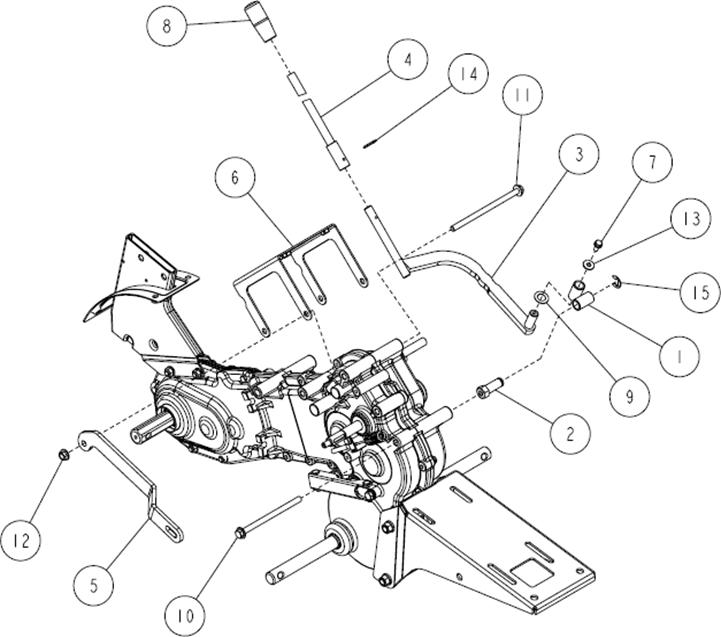

CHANGE LEVER









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-266-00

Change Lever Boss

1



2

80-1260-535-00

Tension Arm Shaft

1



3

0046-10200

Change Lever CMP

1



4

0031-10600

Change Lever Arm CMP

1



5

0031-20300

Engine Stay

1



6

0046-10100

Change Guide CMP

1



7

83-1515-112-00

Hexagonal Bolt (SW) M6*14 (Lock)

1



8

83-1711-426-00

Lever Grip 12

1



9

83-1754-329-00

Washer 13*22*1.0

1



10

89-1253-081253

Flange Mini Hexagonal Bolt (8T) M8*125

1



11

89-1253-081403

Flange Mini Hexagonal Bolt (8T) M8*140

1



12

89-1631-080042

Flange Mini Hexagonal Nut M8

1



13

89-1713-060002

Flat Washer 6 (large)

1



14

89-2120-300252

Split Pin 3*25

1



15

89-2521-000100

E Type Ring 10

1



13/18

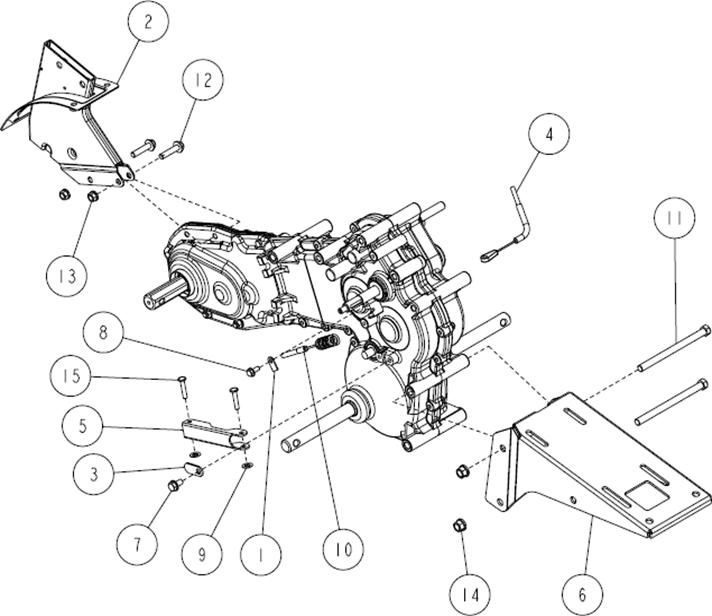

TRANSMISSION











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1515-186-00

Wire Holder

1



2

0016-61100

Case

1



3

0023-00200

Differential Lock Arm Holder

1



4

0025-70200

Differential Lock Wire

1



5

0031-10900

Differential Lock Arm

1



6

0031-21100

Engine Base

1



7

0031-70800

Tapping Bolt M8*14

1



8

83-1020-148-00

Tapping Bolt M6*14

1



9

83-1515-177-00

Push Nut 6

2



10

83-1260-931-10

Main Clutch Wire

1



11

89-1213-101352

Mini Hexagonal Bolt (8T) M10*135

2



12

89-1253-080352

Flange Mini Hexagonal Bolt (8T) M8*35

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



14

89-1543-100002

Mini Hexagonal Nut (SW) M10

2



15

89-2181-060307

Flat Head Pin 6*30

2




14/18

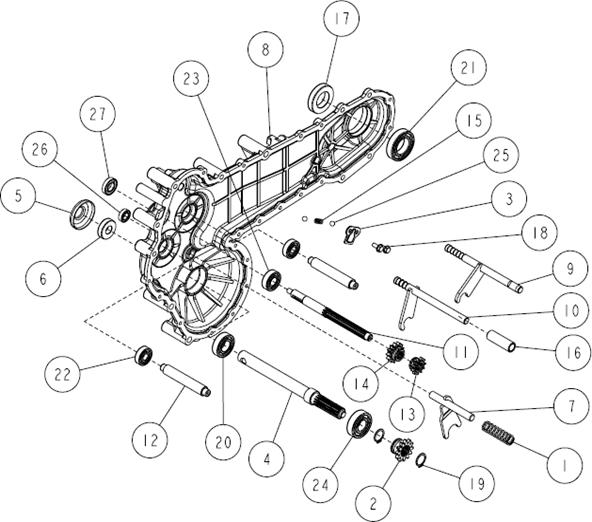

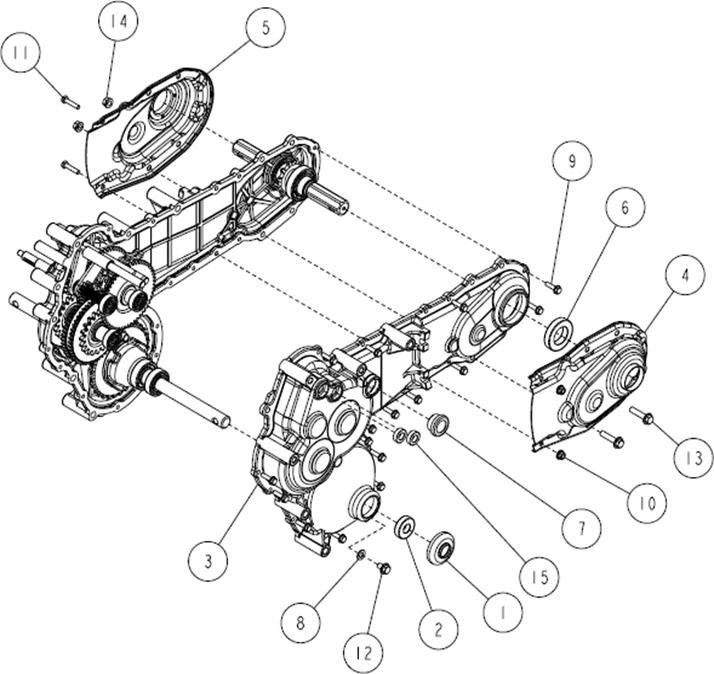

TRANSMISSION







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0016-01100

Axle Dust Cover

1



2

0021-71700

Oil Seal MUD 20.35.10

1



3

0031-00100

Transmission Case (L)

1



4

0031-01800

Protection Cover (L) CMP

1



5

0031-01900

Protection Cover (R) CMP

1



6

0031-70100

Oil Seal MUD 30.50.11

1



7

0031-70200

Oil Cap 26

1



8

83-1415-348-00

Packing 8.5*16*1.3

1



9

83-1515-148-00

Tapping Bolt M6*22

17



10

83-1712-194-00

Terminal Nut M6

2



11

89-1113-060282

Hexagonal Bolt (8T) M6*28

2



12

89-1251-080123

Flange Mini Hexagonal Bolt M8*12

1



13

89-1253-080352

Flange Mini Hexagonal Bolt (8T) M8*35

2



14

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



15

89-5121-122207

Oil Seal UE 12.22.7

2



15/18

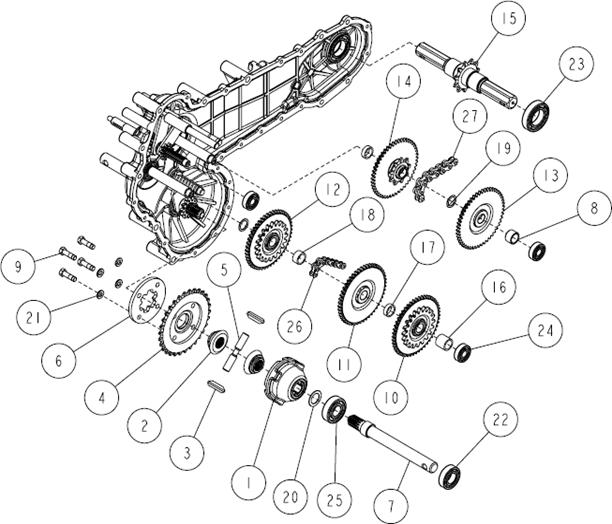

TRANSMISSION



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-151-00

Differential Lock Case

1



2

80-1260-152-00

Differential Gear 14T

2



3

80-1260-153-00

Pinion 10T Gear

2



4

80-1260-154-00

Shaft Sprocket 30T

1



5

80-1260-155-10

Differential Pinion Shaft

1



6

80-1260-156-00

Differential Clutch Men

1



7

0016-00100

Shaft (L)

1



8

0017-02300

Shaft Collar B 14L

1



9

0023-72300

Hexagonal Bolt(8T) M8*28(Meck)

4



10

0031-00900

Second Shaft 20-50T

1



11

0031-01100

Second Shaft 9TSP-50T

1



12

0031-01200

Second Shaft 20-48T

1



13

0031-01300

Third Shaft 50-20-13T

1



14

0031-01400

Third Shaft 9TSP-48T-20T

1



15

0031-01500

Rotary Shaft CMP

1



16

0031-01600

Shaft Collar 21L

1



17

0031-02300

Shaft Collar 7L

2



18

0031-02400

Shaft Collor 11L

1



19

83-1017-365-10

Thrust Washer 17*23*1.0

2



20

83-1310-371-00

Thrust Washer 20*30*1.0

1



21

89-1750-080002

Spring Washer 8

4



22

89-3111-060044

Bearing 6004

1



23

89-3111-060064

Bearing 6006

1



24

89-3111-062014

Bearing 6201

3



25

89-3111-062044

Bearing 6204

1



26

89-6513-420042

Chain #420-42L

1



27

89-6513-520060

Chain #520-60L

1



16/18

TRANSMISSION



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-117-00

Spring

1



2

80-1260-148-00

Differential Clutch On

1



3

80-1260-161-00

Shift Spring Holder

1



4

0016-00200

Shaft (R)

1



5

0016-01100

Axle Dust Cover

1



6

0021-71700

Oil Seal MUD 20.35.10

1



7

0023-10900

Differential Lock Folk Shaft

1



8

0031-00200

Transmission Case (R)

1



9

0031-00300

Main Shift Fork Shaft CMP

1



10

0031-00400

Rotary Shift Fork Shaft CMP

1



11

0031-00500

Main Shaft

1



12

0031-00600

Middle Shaft

2



13

0031-00700

Shift Gear 11T

1



14

0031-00800

Rotary Shift Gear 13T

1



15

0031-01700

Shift Spring

1



16

0031-02200

Rotary Shift Fork Shaft Collar

1



17

0031-70100

Oil Seal MUD 30.50.11

1



18

83-1020-148-00

Tapping Bolt M6*14

2



19

89-2511-000200

Snap Ring (S20)

2



20

89-3111-060044

Bearing 6004

1



21

89-3111-060064

Bearing 6006

1



22

89-3111-062014

Bearing 6201

2



23

89-3111-062024

Bearing 6202

1



24

89-3111-062044

Bearing 6204

1



25

89-3410-080000

Steel Ball 8.0

2



26

89-5121-122207

Oil Seal UE 12.22.7

1



27

89-5121-153007

Oil Seal UE 15.30.7

1



17/18 LABEL























8O-126g-939-00





























8g-14‘f 7-906-10









0031-73500



S/ü2*•B00 P





€i031-7ZZ00









80-1488-928-1ß

80-1260-93740

0214-72100



















































0031-73JO0

0ß31-721ß0



































8g-1Z60 -903-00



80-1260-905-00







003t -72600





0031-72500

0031-T280O









Serial Number



83-‘f141-926—00









0223-76t 00









83-126g-909-10

0223-72910

18/18

Label



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1260-939-00

Label, Engine Switch

1



2

80-1260-937-00

Main Clutch Mark

1



3

0214-72100

Label, Caution for Engine etc

1



4

80-1417-906-10

Label, Differential Lock

1



5

0031-73500

Label, Belt Cover

1



6

0031-72200

Label, Belt Size

1



7

80-1488-928-10

Label, Caution for Belt Involving

1



8

0031-72600

Nonslip Seal

1



9

0031-72500

Label,Step

1



10

0223-76100

Label, Caution (Large)

1



11

83-1260-909-10

Attention Mark for Rotary

2



12

0223-72910

Attention Mark for Slope

1



13

0215-83200

Label, Protection Equipment

1



14

0031-72800

Label, Noise 93db

1



15

83-1141-926-00

Oil Inlet Mark

1



16

80-1260-905-00

Label 1, PICO

1



17

0031-72100

Label, Change (SF600)

1



18

0031-73300

Label, Model (SF600)

1



19

80-1260-903-00

Label, Company Name

2
